CAS ATT24R

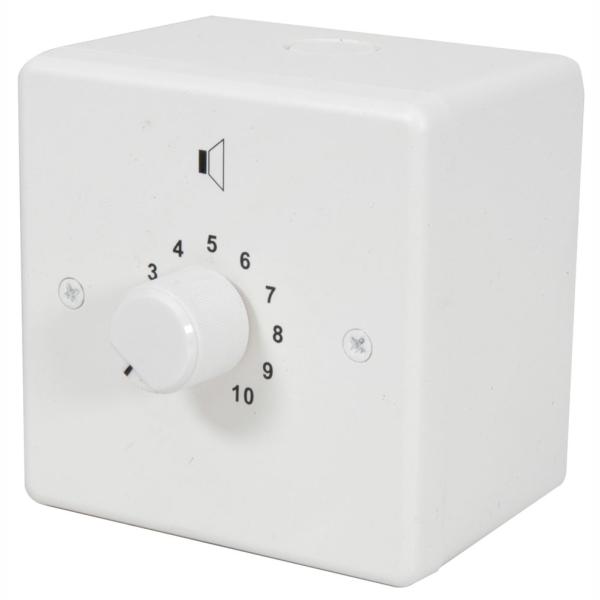

CAS ATT24R is a 24 watt, 100 volt line wall mounted volume control attenuator with a 24V relay to enable bypass to full volume when triggered from a fire alarm panel.

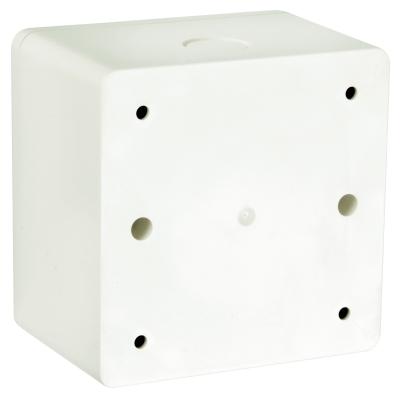

Surface mount back box included.

24 watt, 100v line
Attenuation in 10 steps: 8 x 3dB and 2 x 6dB steps

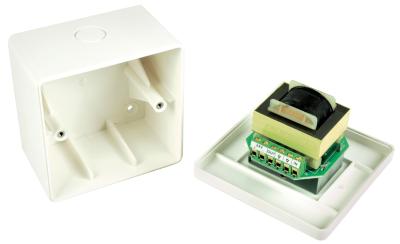

100V line audio transformer
Mounts onto supplied single gang back box

Please contact us for availability

SPECIFICATIONS

Attenuation	3dB per graduation
Frequency response	35Hz - 20kHz
Relay	24V, 50mA
Dimensions (assembled)	85 x 85 x 75mm (inc. back box)
Mounting depth	47mm
