Electro-Voice EVID C8.2D Discontinued

The Electro-Voice EVID C8.2D is no longer available.
Please see the Bosch LC2-PC30G6-8 which has identical specifications & fire-rated terminals.

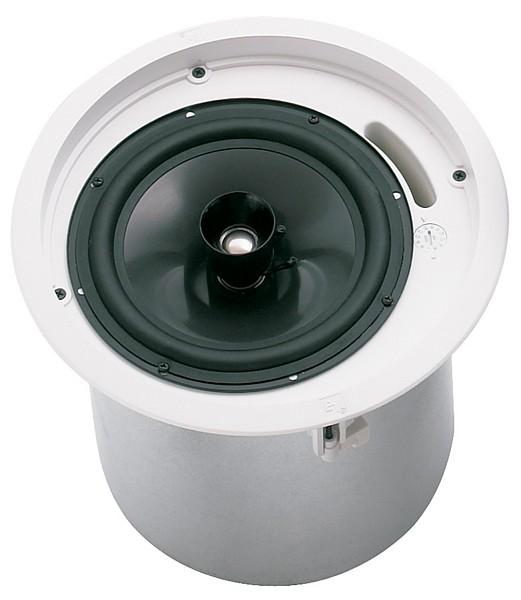

The Electrovoice EVID C8.2D is a dual impedance 8", two way, coaxial ceiling speaker with fire rated terminals. SOLD BY AND PRICED PER PAIR.

The compact design fits in tight spaces and is ported and tuned to provide a surprising bass response and excellent bandwidth.

Its 8" weatherized woofer and waveguide coupled 1" titanium coated dome tweeter give smooth, wide frequency response.

Designed for use in air handling spaces.

An easy 3-point mounting system facilitates quick installation. Supplied with mounting support ring and tile rails. No additional accessories needed for most installations.

Supplied in pairs.

  • Ported enclosure for extended bass response
  • Waveguide-coupled 1-inch titanium-coated tweeter
  • Full-bandwidth overload protection
  • Integrated transformer for 70 V, 100 V, or 8 Ω use
  • Front-panel mode/wattage selector
  • Safe, easy installation with included tile bridge and mounting ring
  • White semi-gloss perforated grille
  • Complete package, requires no additional accessories
  • Warranty: 5 Years
100V 8ohms
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Chassis Size

203.2 mm (8")

Color

White (paintable surface)

Coverage (Nominal -6 dB)

110° conical

Diameter (Max)

270 mm (10.63")

Input Formats

8 Ω, 70 V, 100 V

Mounting Systems

Integrated 3-point toggle anchors

Speaker Type

Ported cabinet, internally damped, two-way (passive crossover included)

Transformer

Yes

Transformer Taps (Transformer Version Only)

(1.88 - 70 V only), 3.75, 7.5, 15, 30

Frequency Response (-10 dB)

50 - 20000 Hz

Sensitivity 1 W/1 m

91 dB

System Power Handling (Continuous/Program/Peak)

100 Watts Overload Protected

LF Transducer

8-inch polypropylene cone

HF Transducer

1-inch (25 mm) Ti Mylar Laminate Dome

Enclosure Material

Steel enclosure and UL94V-0 rated baffle and bezel

Outdoor

No

Grill

Powder-coated steel

Height

255 mm (10.0")

Weight Net

5 kg (11.02 lbs)
