The AZOR® S2 features a 300W LED light source with 13,000 lumens of luminous flux and a wide zoom range of 5°-50° for precise adjustment of the light beam.

The rotating CMY colour mixing system is complemented by an additional colour wheel with 8 dichroic filters for lightning-fast colour changes and split colours in conjunction with the 630° pan and 270° tilt movement.

Further design opportunities are presented by the two gobo wheels with 8 rotating or 11 static gobos each (plus open) and additional effect options are created by the linear and circular prisms, both of which can be rotated and indexed.

The adjustable PWM frequency (650 Hz - 25 kHz) makes the AZOR S2 suitable for use in any camera based applications such as TV, Film and broadcast due to its flicker-free capability,

This compact spot moving head can be controlled via DMX512, RDM or wirelessly via W-DMX using the optional Cameo iDMX adapter. Otherwise, basic setup can be conveniently completed via the onboard OLED display and controls.

• Compact spot moving head
• 300 W LED illuminant with 13,000 lm luminous flux
• Zoom range: 5° - 50°
• CMY colour mixing
• Additional colour wheel with 8 dichroic colour filters
• Rotating gobo wheel with 8 indexable/rotatable, exchangeable glass gobos + open
• Static gobo wheel with 11 gobos + open
• Selectable PWM frequencies up to 25 kHz for flicker-free operation

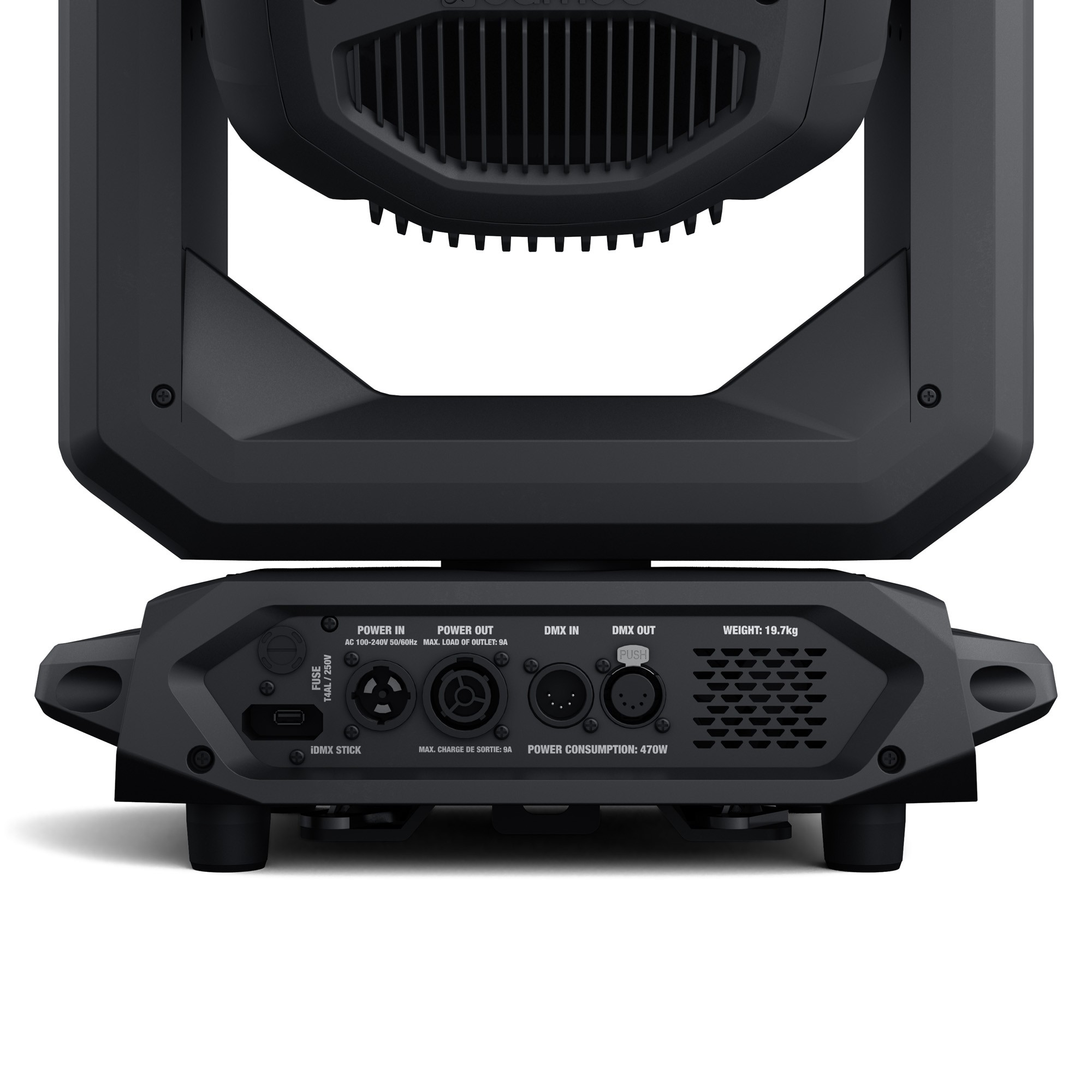

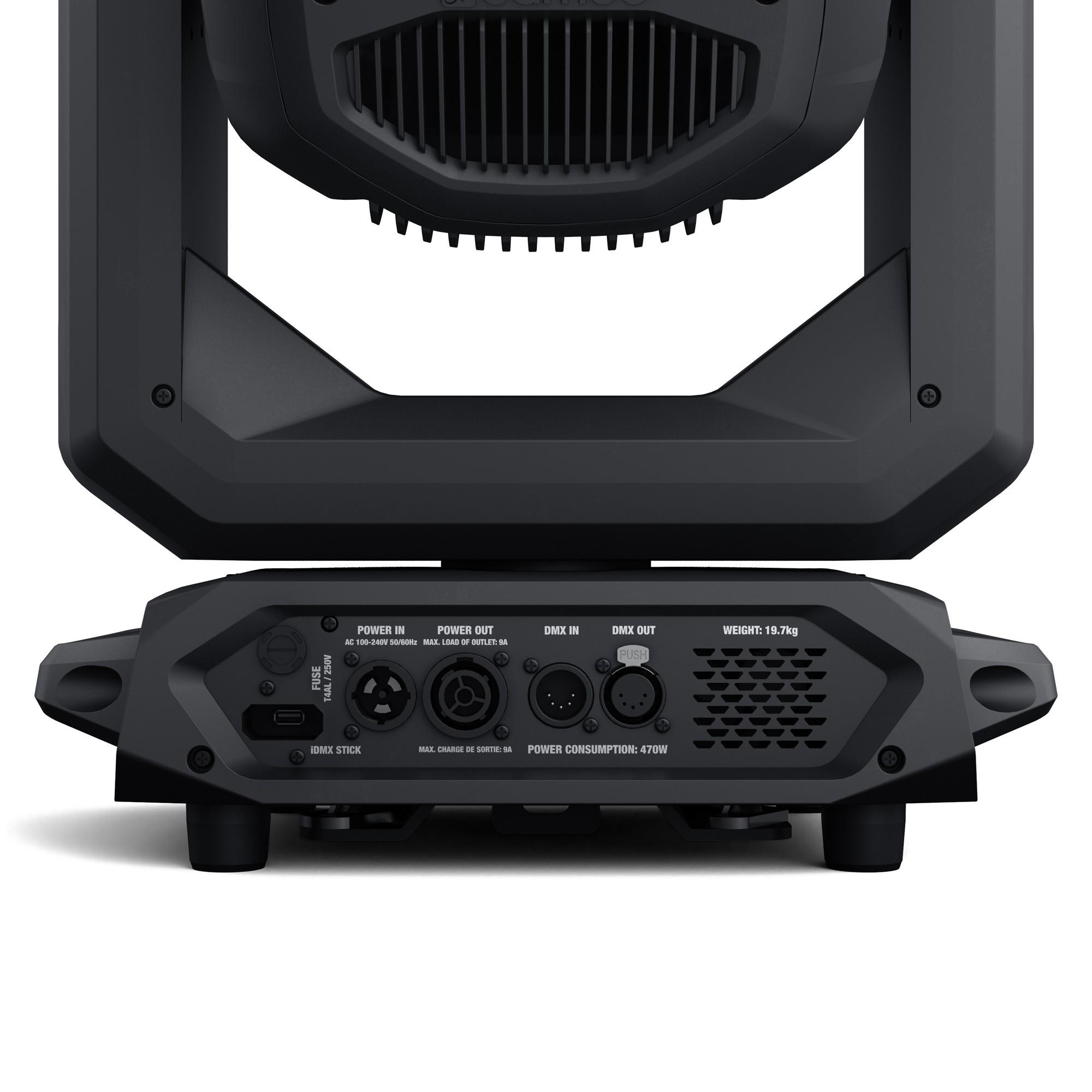

• Neutrik True1-compatible inputs/outputs
• OLED display with 4 buttons

For more details, please download the Cameo AZOR S2 datasheet and User Manual via the links below.

You may like to download the Cameo Lighting Brochure here.

Please see the Cameo Lighting Glossary for more information on any of the following features:
