Cameo G4 T
Click to expand

Cameo G4 T

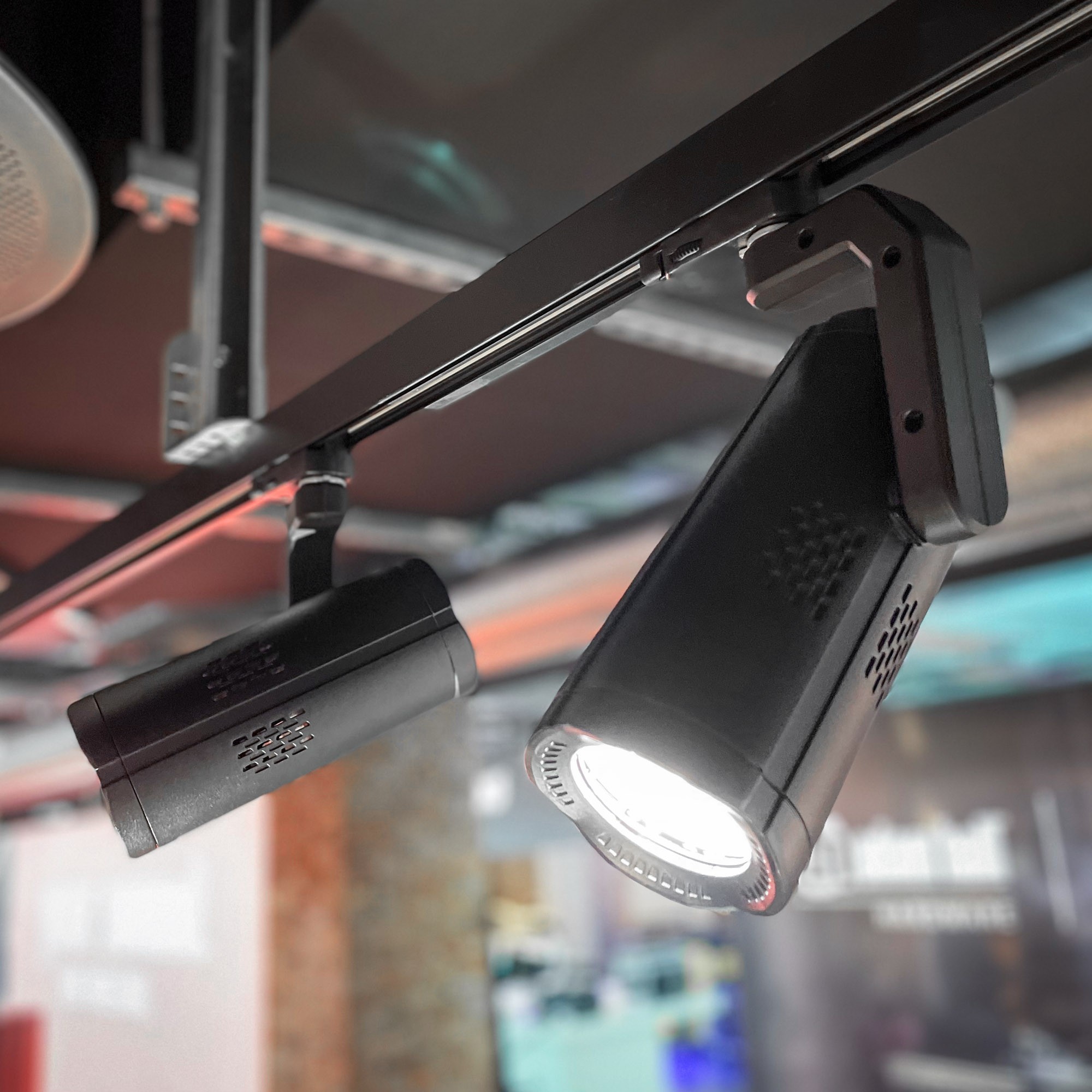

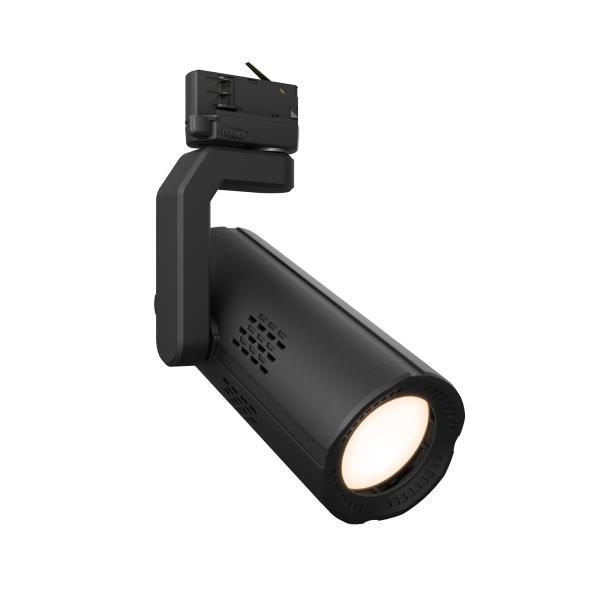

The Cameo G4 T Tungsten LED Tracklight is compatible with standard lighting track systems and provides a highly flexible professional lighting solution for applications such as shops, restaurants and museums.

Discreet and smart, the G4 T is equipped with a 25 Watt Tungsten COB LED that produces a luminous flux of 715 lumens and a high CRI (>97Ra) for natural white light reproduction.

The simple mounting of the G-Series tracklights allows for easy installation & repositioning to suit changing displays and flexible restaurant table layouts, as well as permanent or temporary exhibits. The Cameo G Series is compatible with popular lighting track systems like Global Trac.

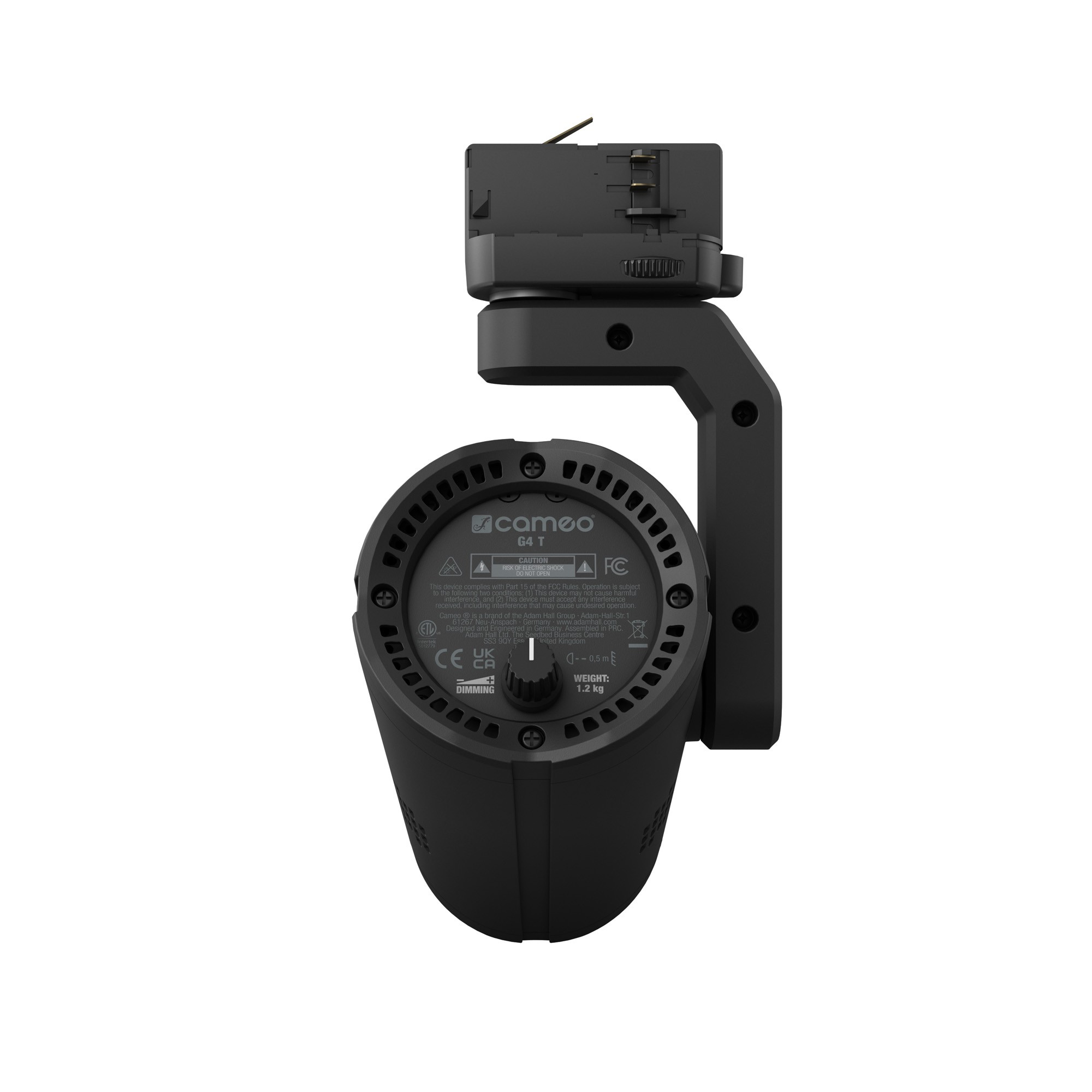

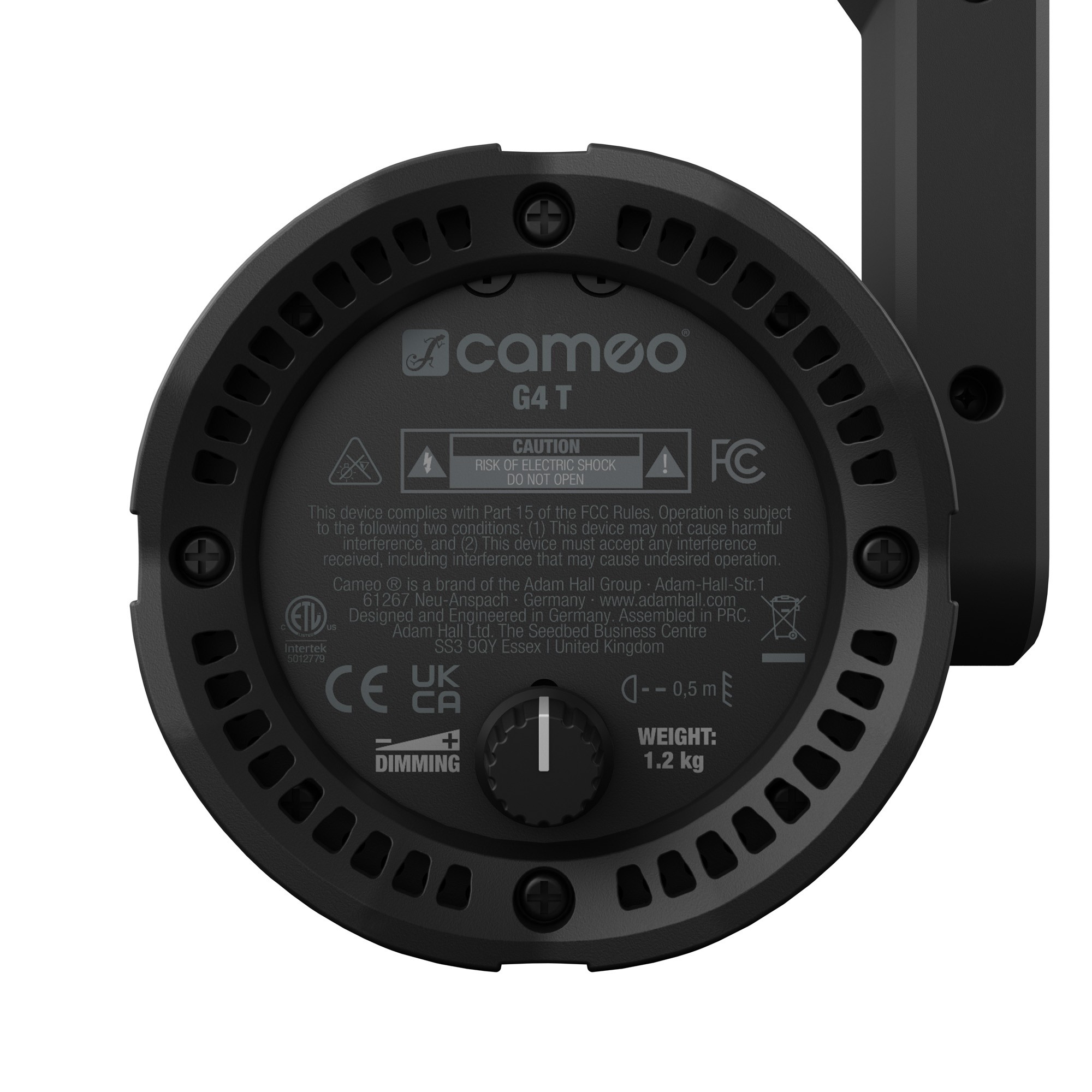

This is a stadalone light (no DMX etc) with just a simple dimming control on the rear for control of lighting levels.

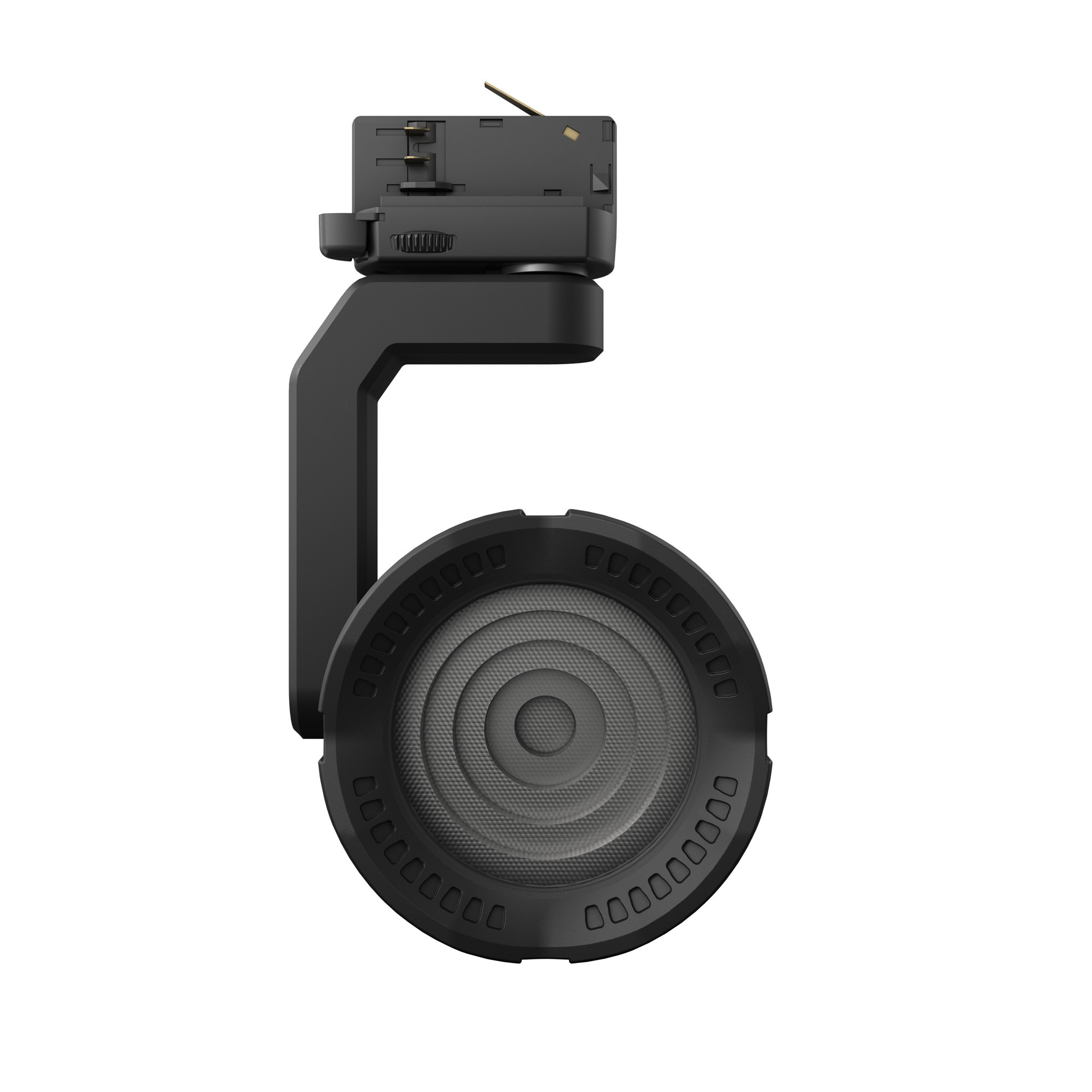

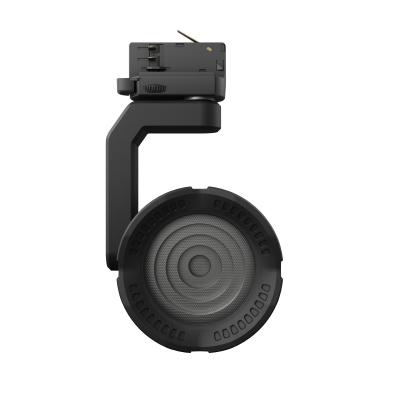

Optional interchangeable filters allow the 5° beam angle to be flexibly adjusted without the use of tools. CTO, CTB and honeycomb filters are also available. Up to 3 filters can be combined and used simultaneously.

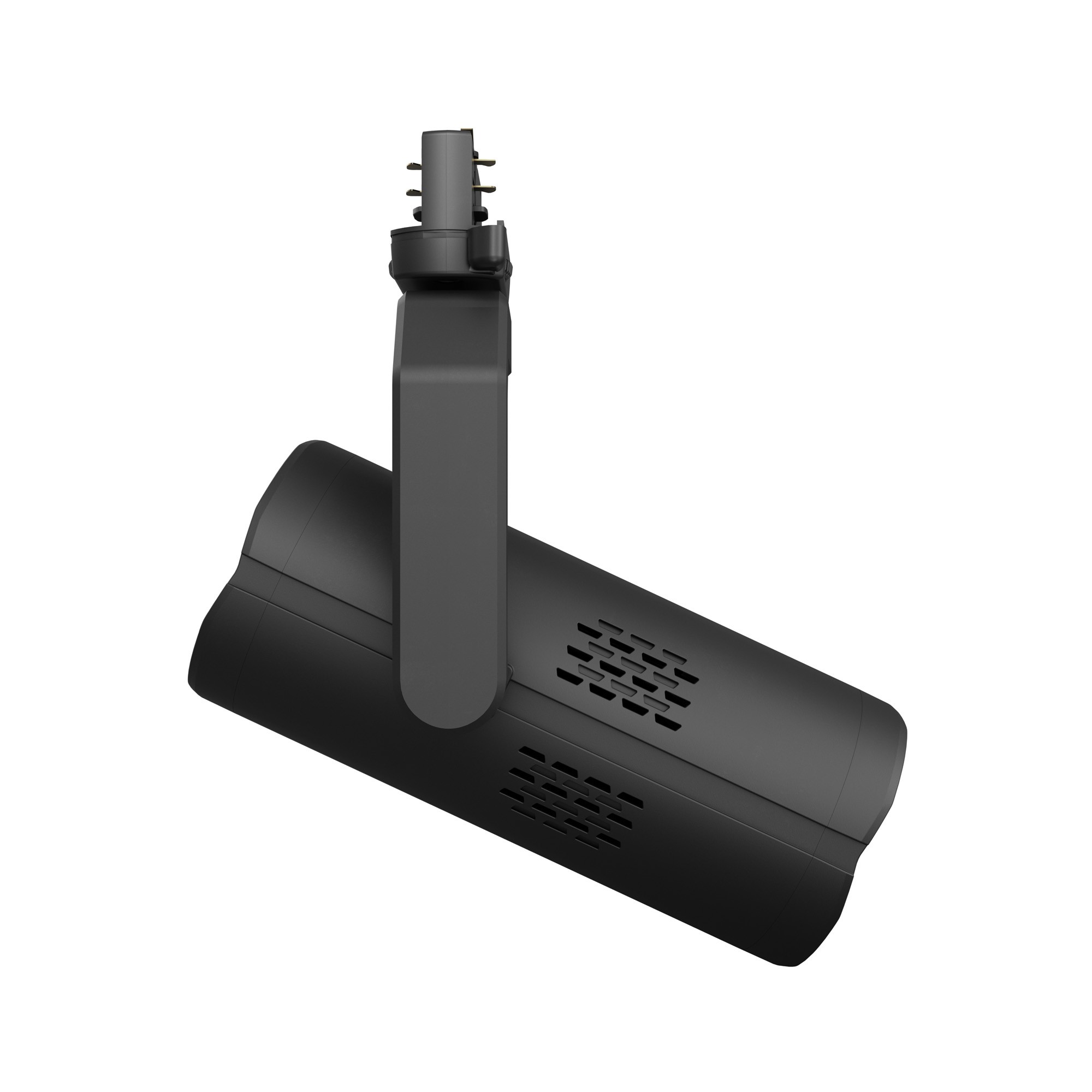

Passive convection cooling enables the G4 T to operate almost silently making it suitable for noise-sensitive environments.

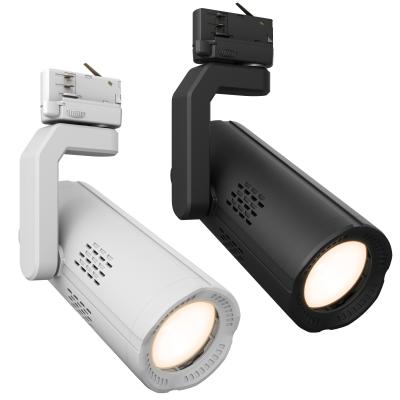

The G4 track mounted light is available in either black or white and in four different versions: Neutral White (N), Tungsten (T), Tunable White (TW) & Full-Colour (FC).

The Full-Colour (FC) & Tunable White (TW) models of the Cameo G-series also feature integrated protocols such as DMX512, W-DMX for wireless control and RDM for convenient configuration and monitoring of the tracklights. Please see the related products below for these options.

  • Tracklight with 25 W Tungsten COB LED
  • Colour temperature: 3,000 K (warm white)
  • 715 lm Luminous flux
  • High CRI (>97Ra) for natural white light reproduction
  • Use on commercially available busbar systems
  • Applications: Museum, retail, gastronomy and many more.
  • Beam angle flexibly adjustable via magnetic filters
  • Optional magnetic filters (CTO, CTB, Honeycomb)
  • Passive cooling for almost silent operation

For more details, please download the Cameo G4 T Datasheet and User Manual via the links below.

You may also like to download the Cameo Lighting Brochure here.

Please see the Cameo Lighting Glossary for more information on any of the following features:

z:COB z:ETL z:Green z:Standalone z:Warm z:LED z:Multi-Angle
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Product type

LED Installation spotlights

Colour spectrum

Tungsten

Number / Type of LEDs

1 x COB LED

Average LED lifetime

30000 hours

LED PWM Frequency

800 Hz (fixed)

Dispersion

Standalone Functions

Static

Controls

Encoder wheel

RDP (Material Group A)

0.24 K, 0.58 K

RDP (Material Group B)

0.58  K

Operating voltage

100 V AC - 240 V AC, 50 - 60 Hz

Power consumption

25 W

Luminous flux

715 lm

Colour rendering index (Ra)

>97 Ra

Power connector

Rail adapter (selectable phase)

Compatible rails

Global Track

Housing material

Metal, Black or White

Housing Cooling

Convection

Width x Length

80 mm x 195 mm

Weight

1.3 kg
