FreeSpace 3 Series I Acoustimass Bass Module, black

FreeSpace 3 Series I Acoustimass Bass Module

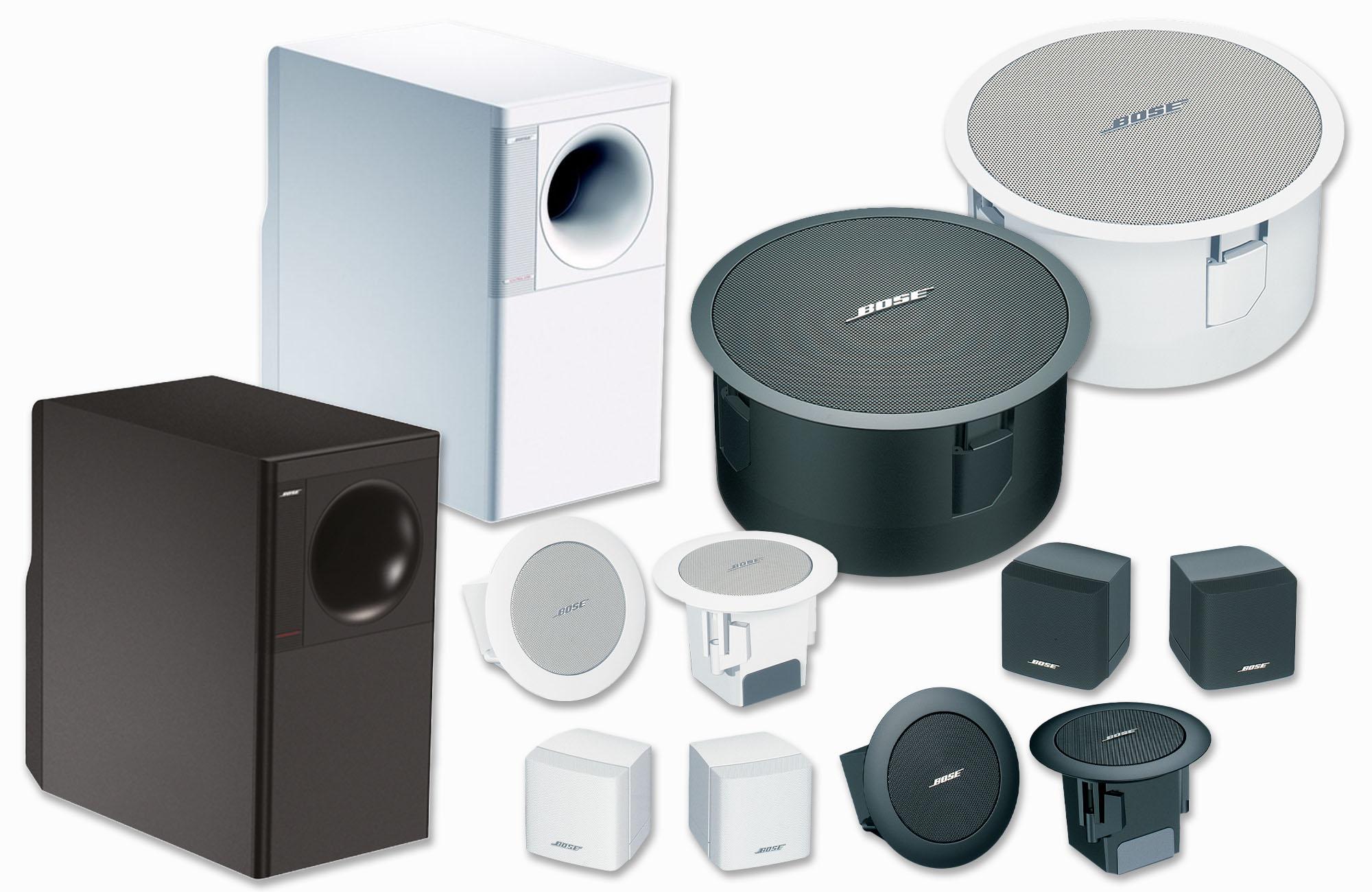

Bose Professional Freespace 3 Loudspeakers

Click to expand

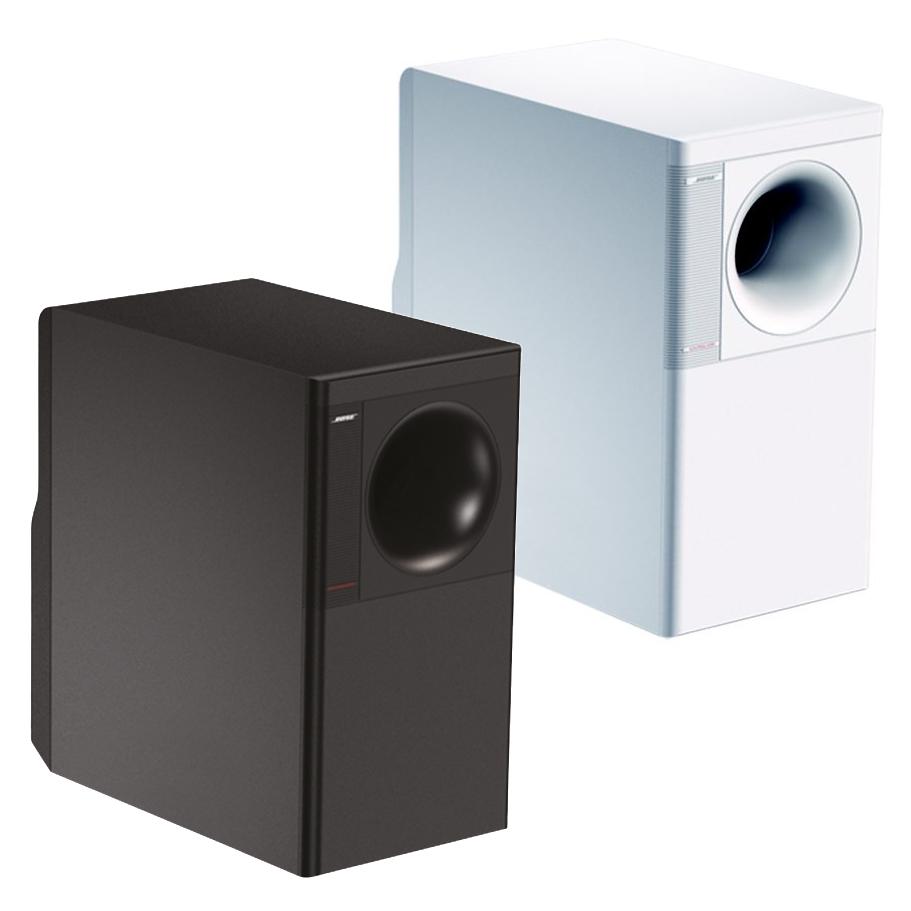

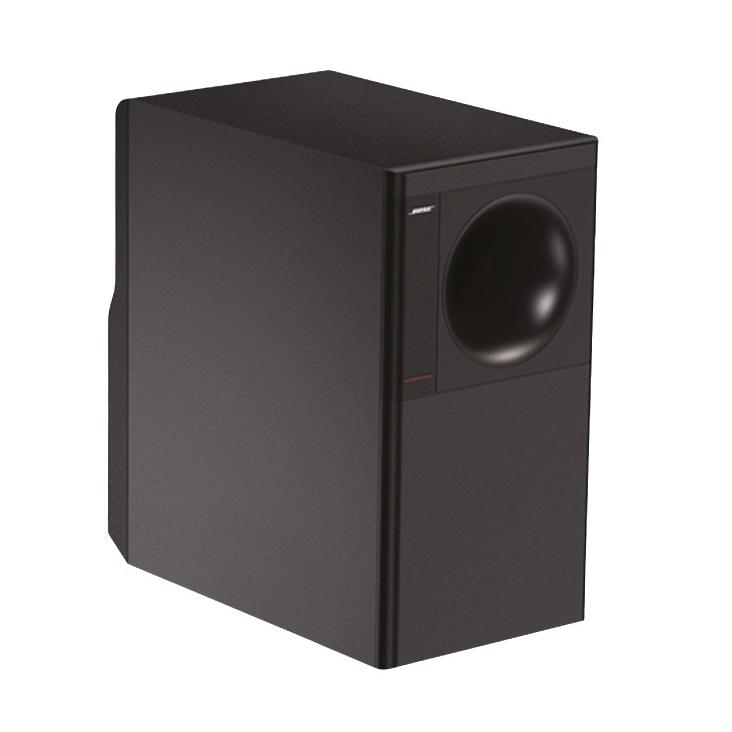

Bose FreeSpace 3 Series I Acoustimass Bass Module, Black

The Bose Professional FreeSpace 3 Series I Acoustimass bass module is designed to provide surface-mount bass enhancement for new and existing background music systems. Ideal for use with the Freespace 3 surface-mount or flush-mount satellite loudspeakers.

Black finish. Also available in white.

This subwoofer speaker is fitted with one 5.25-inch (133 mm) woofer delivering deep bass down to 40 Hz without audible distortion.

Acoustimass speaker technology filters out audible distortion to deliver non-localized bass.

The modular design of the FreeSpace 3 bass module allows parallel connection of multiple bass modules and can accommodate two or four FreeSpace 3 satellites per bass module.

Suitable for use on either 70/100V or low impedance loudspeaker circuits.

For indoor applications only.

Warranty: 5 Years

For further information, please download the Datasheet and/or User Manual. To see more of the range, please download the current Bose Professional Product Catalogue and don't hesitate to contact us for further information.

Please contact us for availability

SPECIFICATIONS

Frequency Range (-10 dB)	40 Hz – 315 Hz
Maximum SPL at 1 m	Per channel: 96 dB continuous, 102 dB peak / Mono: 102 dB continuous, 108 dB peak
Nominal Impedance	5 Ω mono direct (transformer bypassed)
Power Handling, Continuous	70/100 V: 200 W mono / Low impedance: 50 W per channel stereo or 100 W mono
Power Handling, Peak	70/100 V: 800 W peak mono / Low impedance: 200 W peak per channel stereo or 400 W peak mono
Recommended Signal Processing	Recommended
Sensitivity (SPL/1 W at 1 m)	Per channel: 76 dB / Mono: 79 dB
Transformer Taps, 70V/100V	25 W, 50 W, 100 W, 200 W
Coverage, Horizontal/Vertical	Omnidirectional below 200 Hz
Driver Protection	Recommended high-pass filter 40 Hz high-pass filter
Low-Frequency Transducer Quantity and Size	5.25 in (133 mm) dual-voice-coil low-frequency driver
Enclosure Material	High-density wood composite with solid colour PVC laminate
Mounting/Rigging Provisions	Wall-mount bracket, pre-attached
Net Weight	17.5 lb (7.9 kg)
Product Dimensions (H×W×D)	14.0 in × 7.5 in × 13.6 in (356 mm × 191 mm × 345 mm) / width with bracket: 8.8 in (222 mm)
