RCF MQ 50W
Click to expand

RCF MQ 50W

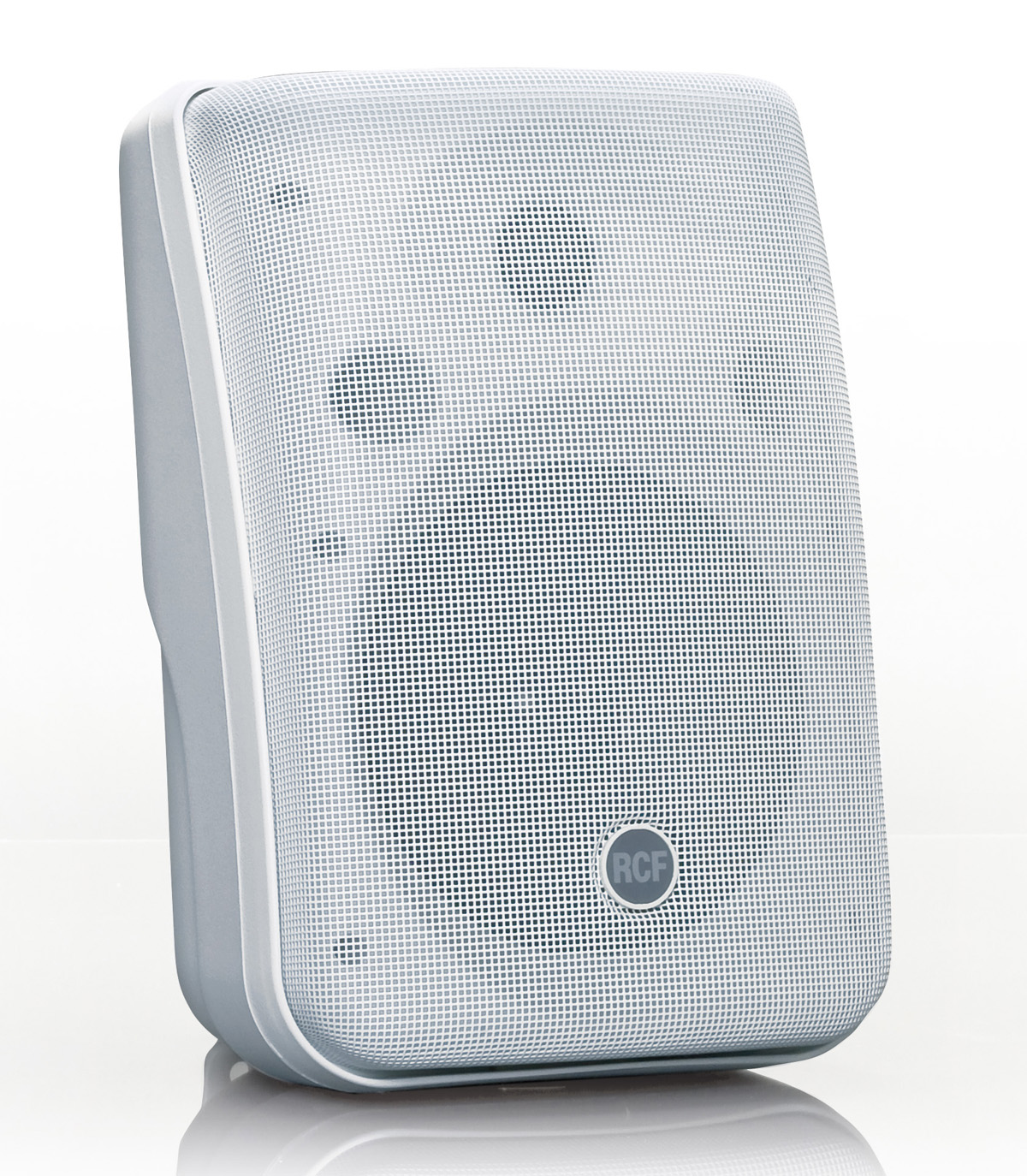

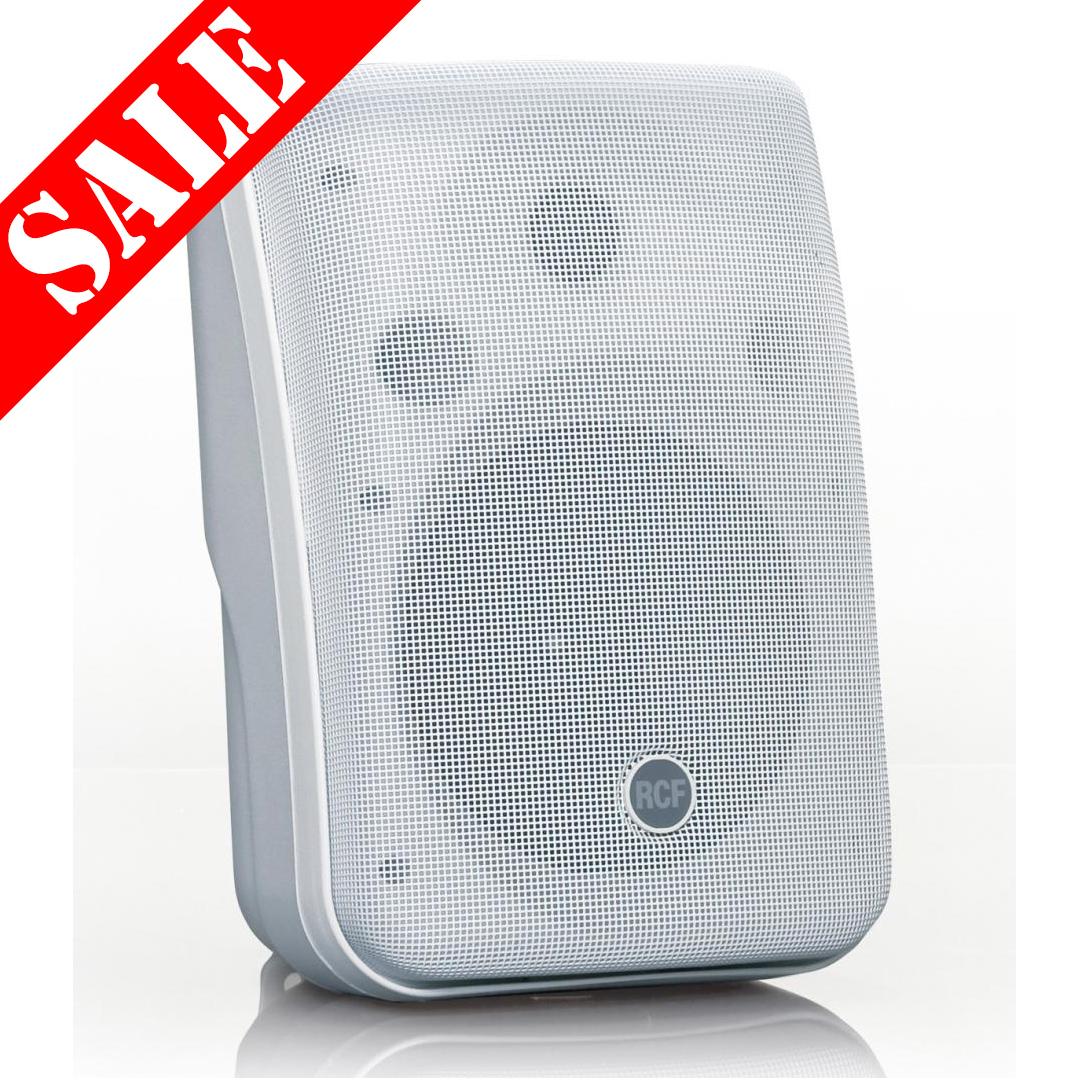

The RCF MQ50/W is a compact 2-way cabinet loudspeaker ideal for use in PA systems and background / foreground music systems.

Clearance Line - Limited Stock. Please contact us for up to date availability.

The speaker is fitted with a 5” woofer and waveguide-loaded dome tweeter to ensure intelligibility and correct dispersion of the sound over a wide angle of coverage.

The built-in support makes the MQ50 easy to install and enables close fitting to the wall, limiting its protrusion.

The exclusive attachment system designed for the MQ50 model allows the installer to fit the attachment bracket to the wall and make the electrical connections during the preinstallation phase; subsequently, when all the works are completed, the MQ50 is positioned, oriented, and connected with a simple “click”, without the need for tools.

Priced and sold individually.

  • Two way Bass reflex speaker for music reproduction
  • Speaker: woofer 5" - tweeter 0,75" dome
  • Power/RMS: 120/60 W Bypass
  • Crossover frequencies: 4500 Hz, 12/12 dB/oct
100V
List Ex VAT: £50.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

FREQUENCY RESPONSE (-10DB):

70 Hz ÷ 20000 Hz

MAX SPL @ 1M:

110 dB

COVERAGE ANGLE:

Horizontal: 120°
Vertical: 100°

SYSTEM SENSITIVITY:

89 dB

NOMINAL IMPEDANCE (OHM):

16 ohms

POWER HANDLING:

60 W RMS

PEAK POWER HANDLING:

240 W PEAK

DOME TWEETER:

0.75”

WOOFER

5”

INPUT CONNECTORS

Euroblock

OUTPUT CONNECTORS

Euroblock

CONSTANT VOLTAGE TRANSFORMER

100 V

POWER SELECTION

30 W - 333 ohm
20 W - 500 ohm
10 W - 1000 ohm
5 W - 2000 ohm

MATERIAL

Plastic cabinet, steel grille

COLOUR

White

DIMENSIONS H x W x D

245mm x 235mm x 220mm

WEIGHT

3.16 kg / 6.97 lbs
