Ecler eMOTUS5PW
Click to expand

Ecler eMOTUS5PW

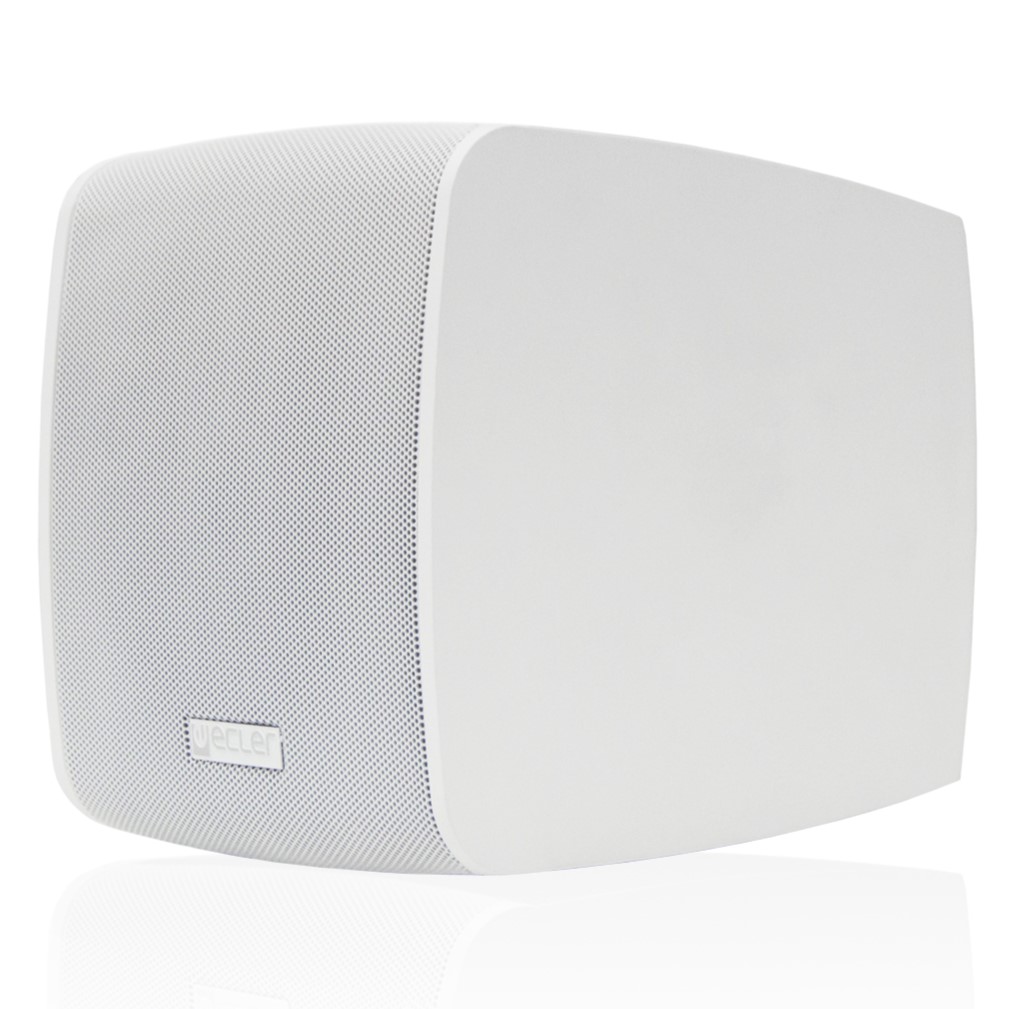

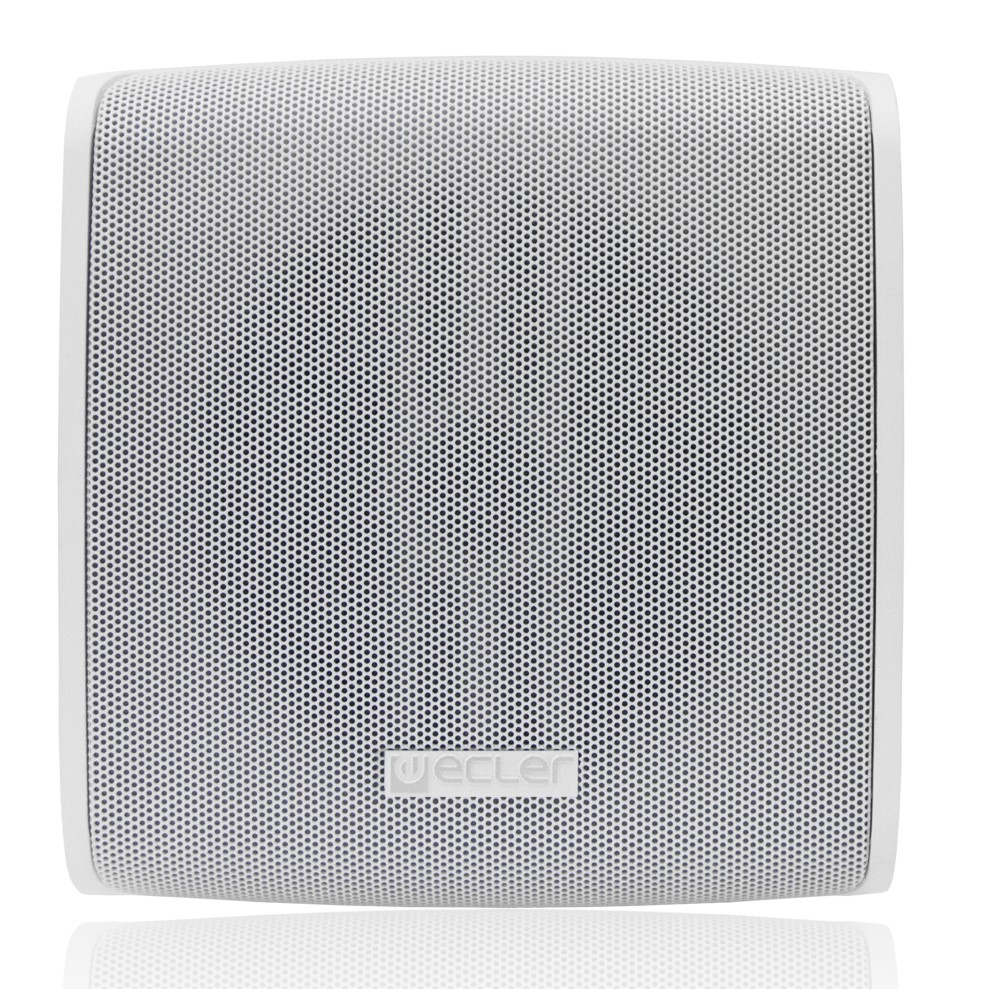

The Ecler eMOTUS5P stereo loudspeaker kit includes an active and a passive cabinet speaker with an output power of 2 x 25W.

Clearance Line – Very Limited Stock.

2 audio inputs are provided with balanced and unbalanced options.

This professional and compact loudspeaker stereo kit is a user-friendly and cost-effective solution for numerous multimedia applications: education classrooms, corporate meeting rooms, retail stores, etc.

Available only in white.

  • Stereo 2-way loudspeaker stereo kit – powered loudspeaker + passive loudspeaker
  • Full range: 5” woofer and 1” tweeter
  • Integrated amplifier 2 x 25 WRMS (MASTER unit)

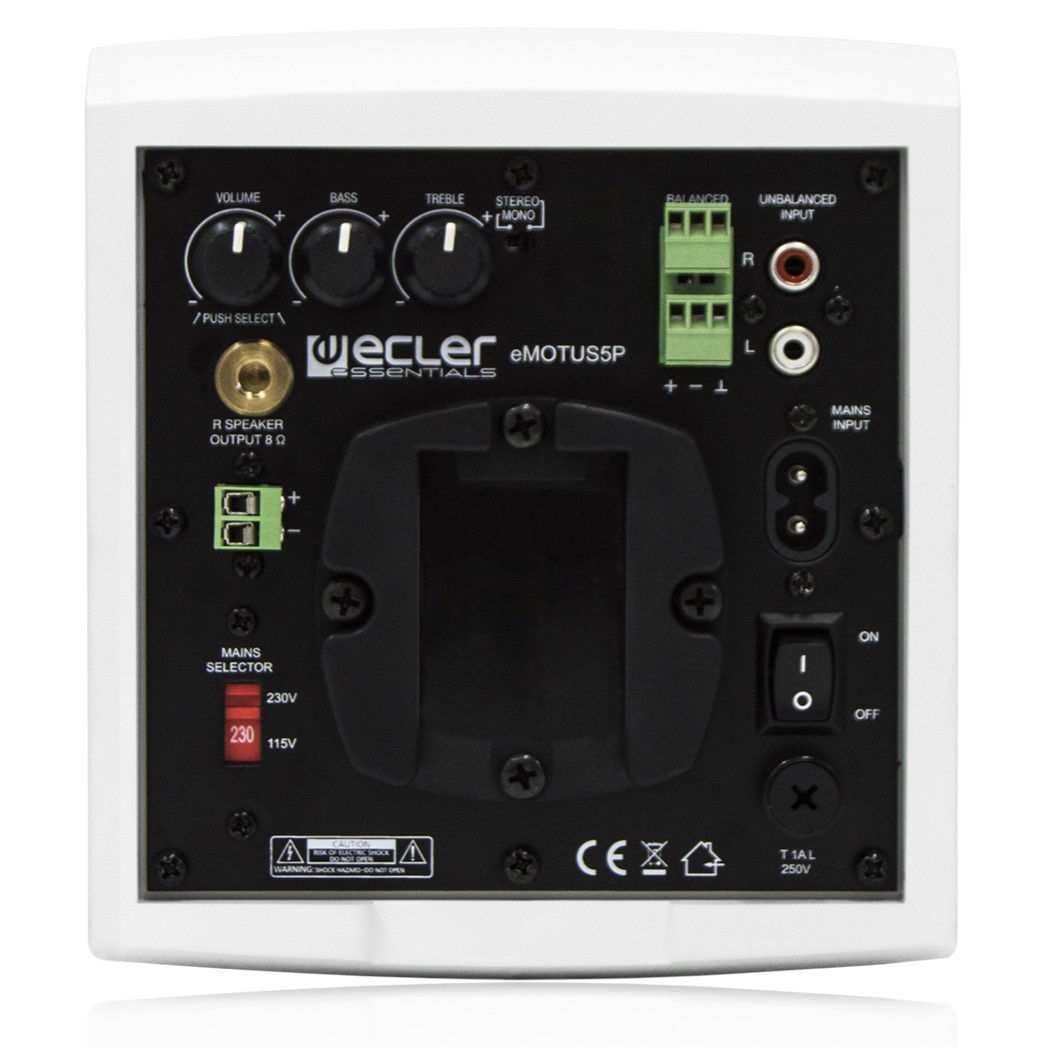

  • Volume control and tone control (bass & treble) in the MASTER unit
  • Euroblock balance stereo input on the MASTER UNIT
  • Non-balanced RCA input on the MASTER UNIT
  • Mono/Stereo switch
  • Link between the MASTER and the SLAVE unit via Euroblock connectors.
  • Integrated power supply source (MASTER unit)
  • Selectable power voltage 115 V/230 V (MASTER unit)
  • Auto standby function (automatic standby mode / energy saving without the need to turn the system on or off each day)
  • Integrated Anti-Clip System
  • LED activity display
  • Reinforced ABS construction
  • BT wireless connection, remote control port (0-10 VDC – RJ45 connector)
  • Available in white only

Click here to download the full
Ecler Product Catalogue.

Ecler Product Brochure



8ohms
List Ex VAT: £100.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Power

2 x 25W RMS

Impedance

8 Ω

Frequency response (±10dB)

85Hz – 20kHz

Maximum SPL (dB@1m)

 91dB

THD + Noise @ 1kHz Full PWR

≤0.5%

Inputs sensitivity nom/impedance

525mV/22k Ω

CMRR - Line Bal

≥80dB

Tone control response

±14dB

Mains voltage

115 / 230VAC (selectable)

Construction

Aluminium grill, ABS cabinet

Dimensions (WxDxH)

173x185x180mm - Not including brackets; 173x248x180mm - Including brackets

Weight

4.2 kg – Not including accessories; 4.5 kg – Including accessories
