RCF P 3108
Click to expand

RCF P 3108

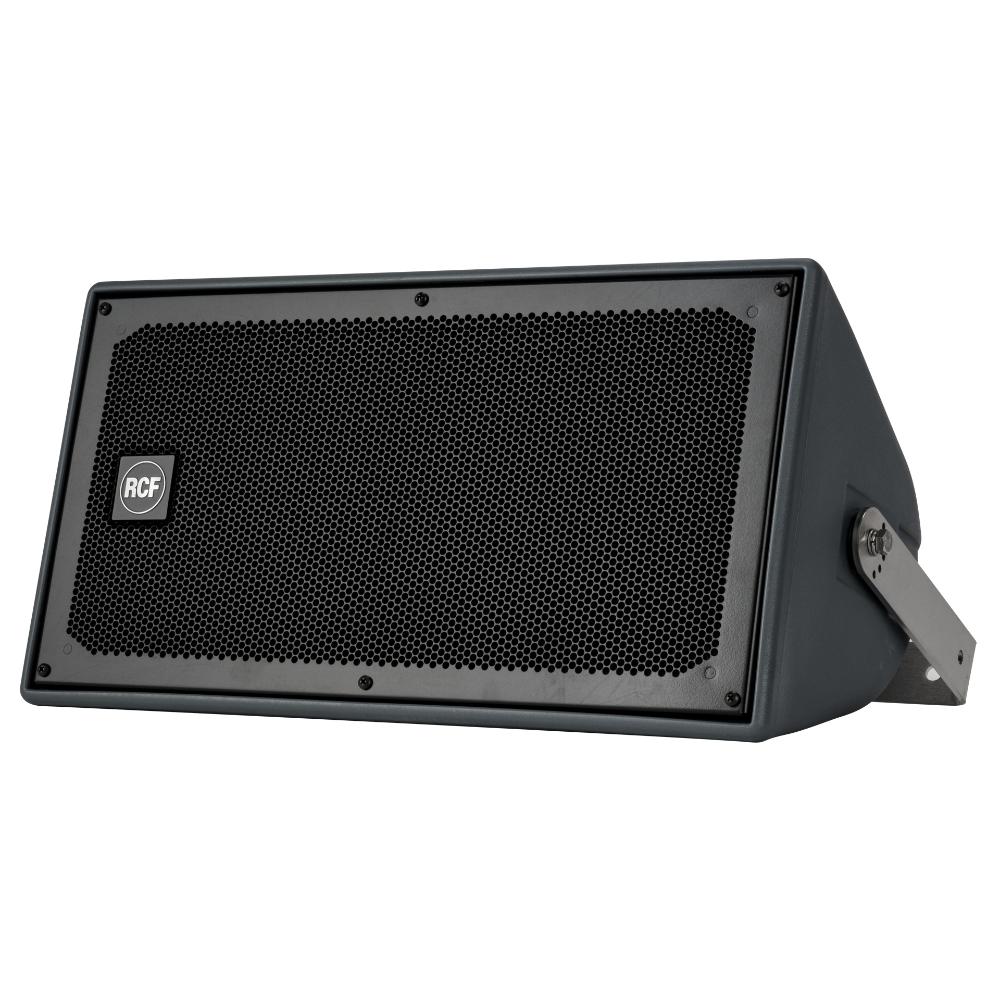

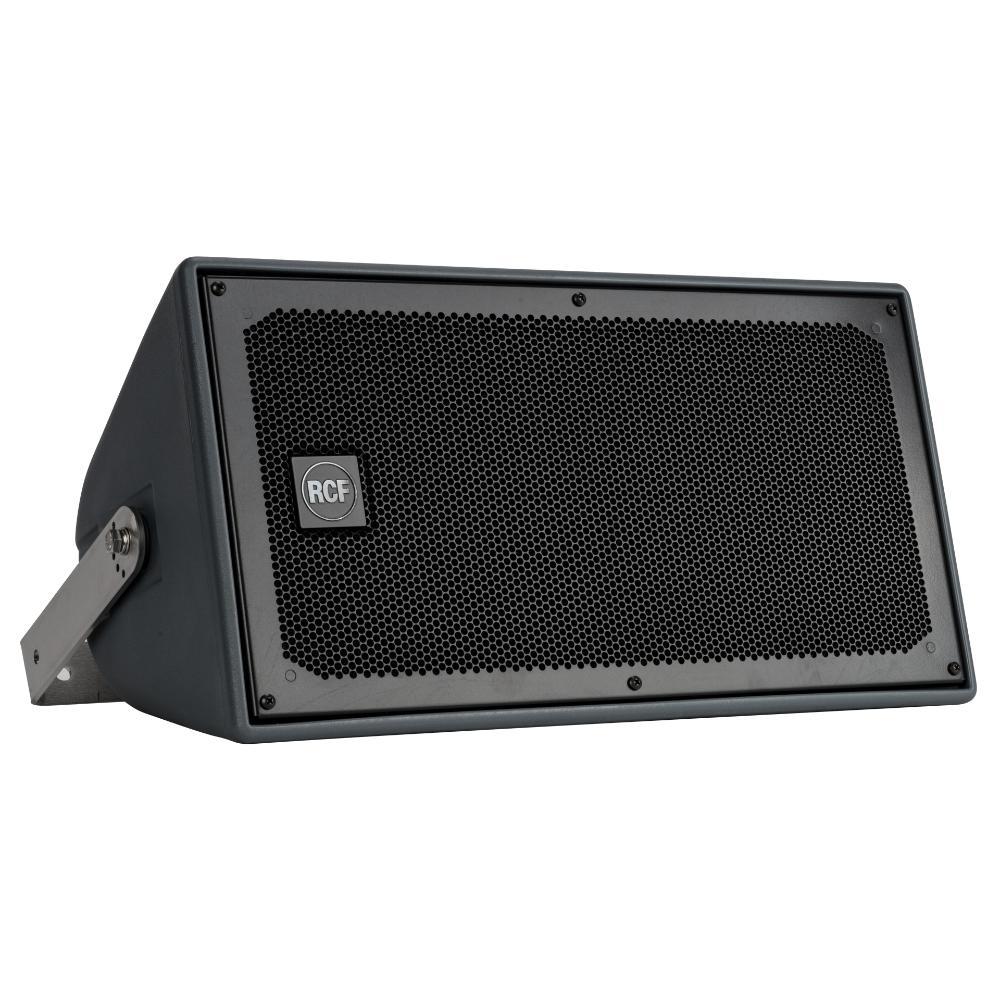

The RCF P 3108 is a weatherproof full range, two-way loudspeaker which can be installed individually or coupled in array configurations. Ideal for indoor or outdoor large spaces, P Series speakers are ideal for a variety of Pro-Sound applications providing concert-level high performance in a compact enclosure.

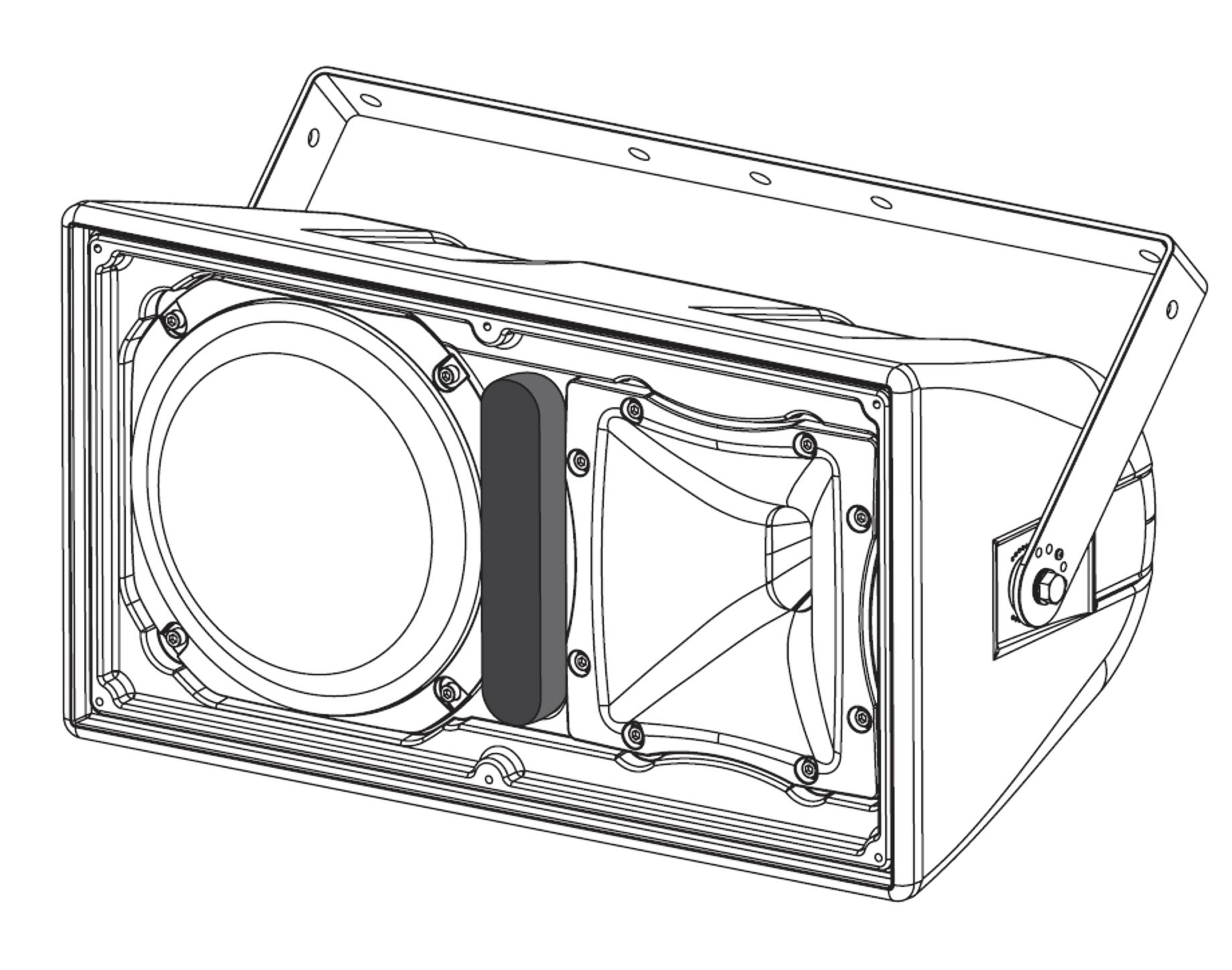

The high-frequency section includes a constant directivity CMD horn, loaded with a 1" RCF Precision neodymium compression driver, and a 1.5" diaphragm assembly.

The low-frequency section is an 8" woofer with a 2.5" voice coil.

Internal circuitry provides LICC crossover and Active Mosfet Compression Driver Protection (AMCDP).

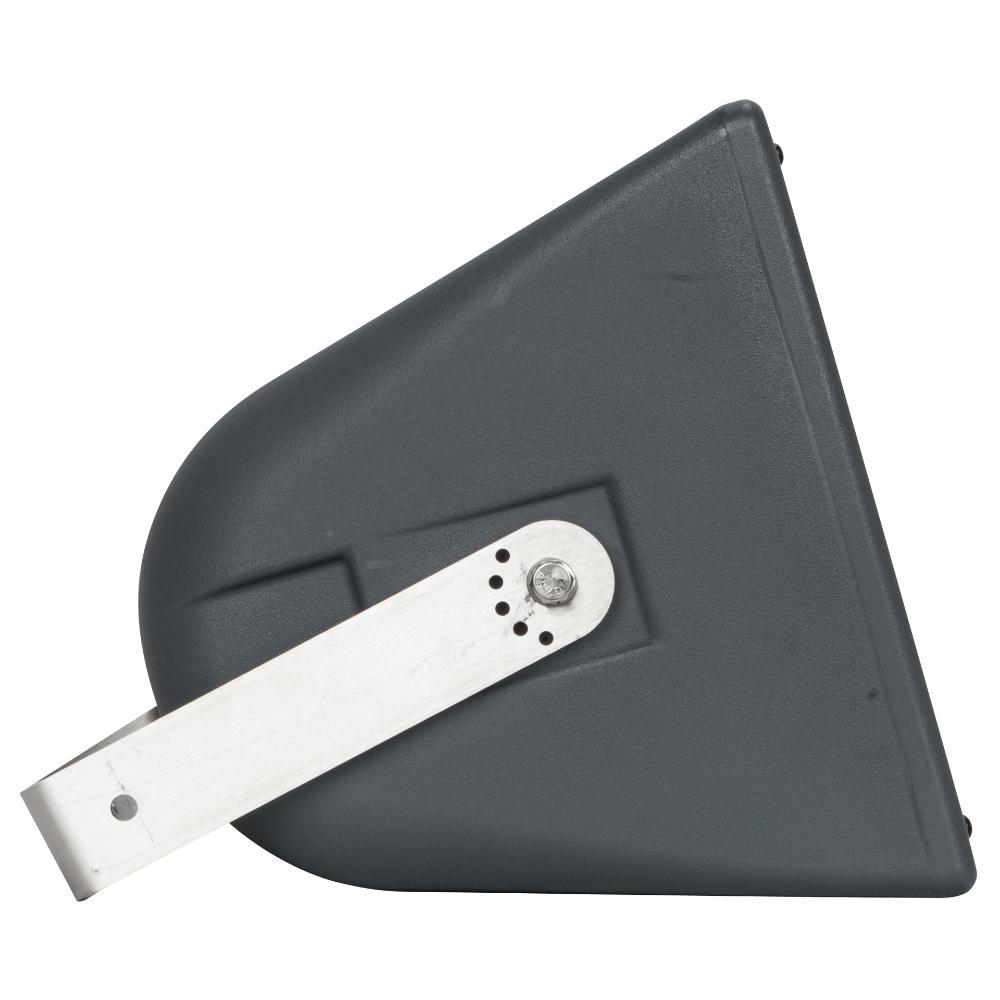

The P3108 is constructed from a single-piece roto-moulded cabinet, is fully UV protected and meets IP 55 standard requirements and is equipped with M8 (4x) brass inserts and corrosion-resistant 316P stainless steel U-bracket.

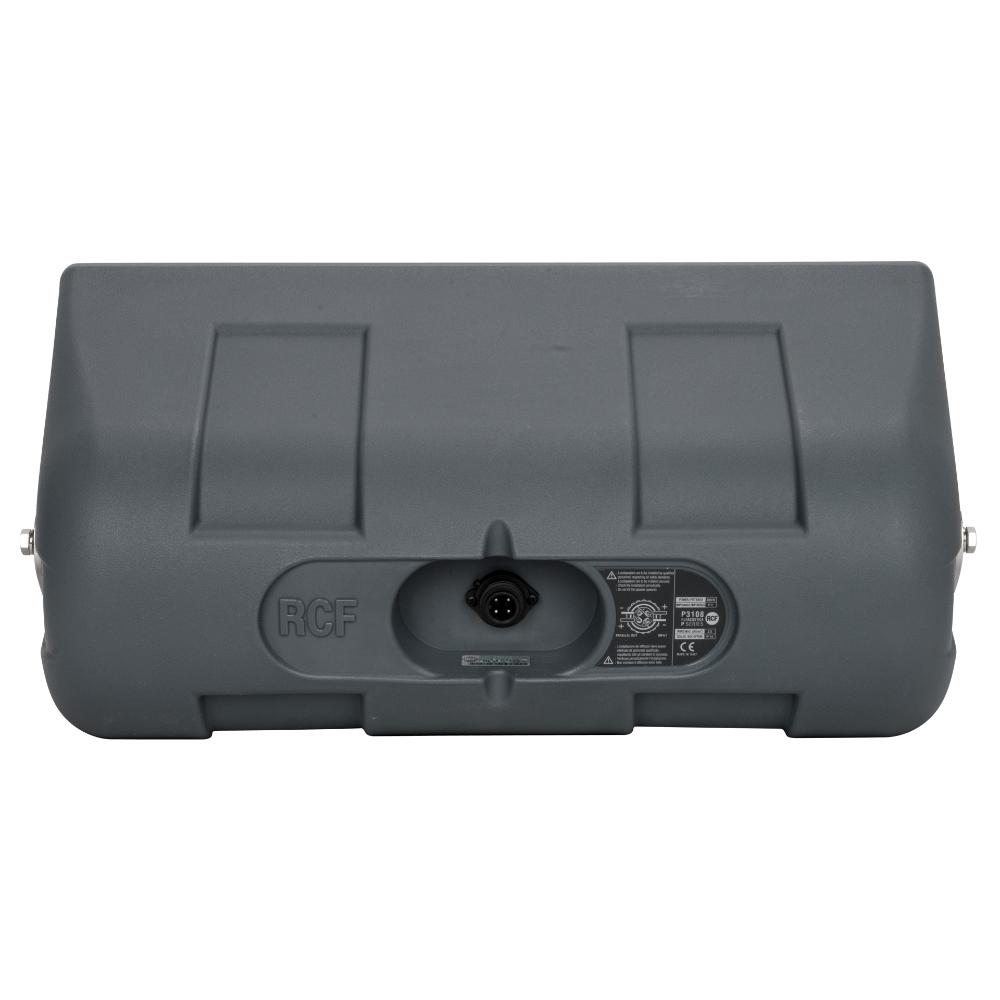

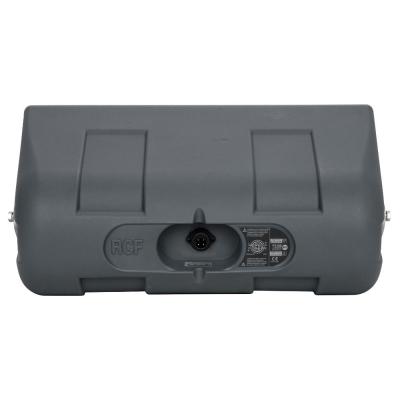

Connections to the amplifier are made through a watertight multi-pole connector. The horn can be rotated, allowing the loudspeaker to be installed either vertically or horizontally.

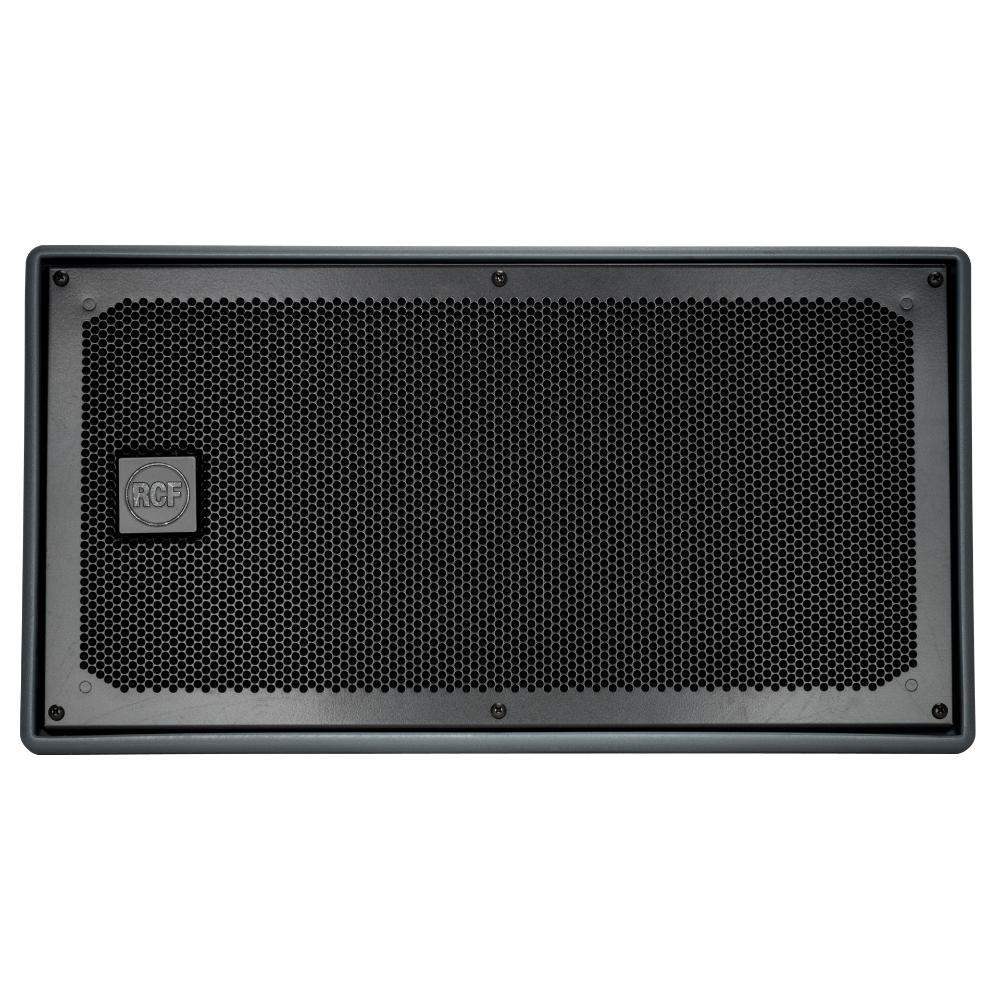

The front aluminium grille cover is powder coated with a water-repellent backing material, with a rotatable logo plate.

  • 300 W RMS power handling
  • 125 dB max SPL
  • 80 Hz ÷ 20000 Hz frequency range
  • 8" neodymium woofer, 2.5" v.c.
  • 1.5" v.c. neodymium compression driver
  • 90° x 60° constant directivity
  • Weatherproof IP55 cabinet with UV protection
  • Aluminium grille
  • AISI 316L stainless steel bracket
  • Amphenol IP67 4 pole input connector
8ohms IP55
List Ex VAT: £881.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Frequency Response

(-10dB) 80 Hz ÷ 20000 Hz

Max SPL @ 1m

125 dB

Coverage angle

Horizontal: 90°, Vertical: 60°

Directivity index Q

11

System Sensitivity

94 dB

Nominal Impedance

8 ohm

Power Handling

300 W

Peak Power Handling

1200 W PEAK

Protections

Dynamic active mosfet

Crossover Frequencies

1800 Hz

Compression Driver

1 x 1.0'', 1.5'' v.c

Woofer

1 x 8'', 2.5'' v.c

Input connectors

Amphenol eco/mat IP 67

IP protection grade

IP 55

Cabinet/Case Material

PE Low Density

Hardware

4 x M8 + U-bracket and pair of spacers

Grille

Aluminium with waterproof cloth backing

Colour

Grey

Size H x W x D

266mm (10.47”) x 493mm (19.41”) x 250 mm (9.84”)

Weight

10.6 kg / 23.37 lbs
