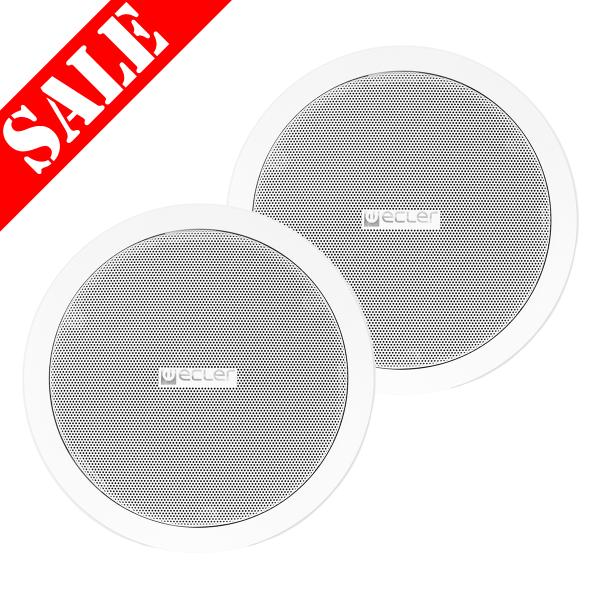

Ecler IC6 W Pair
Click to expand

Ecler IC6 W Pair

The Ecler IC6 White ceiling speakers are fitted with a 6.5" coaxial driver and are compatible with both low impedance (8 Ohm) and 100 Volt line loudspeaker circuits.

Rated at 40 watts RMS @ 8 Ohms and 15 watts RMS @ 100V.

Clearance line - Last pair! Save over 50% off the list price.

Supplied and priced as a pair.

  • 2 way speaker for false ceilings
  • 6” polypropylene woofer
  • 25mm tweeter
  • Power: 40W RMS @ 8 ohm
  • Sensitivity (1W/1m): 93 dB SPL
  • Built-in transformer
  • External diameter: 204mm
  • Cut out diameter: 180mm
  • Available in black (RAL9005) or white (RAL9010) finish
  • Installation system: Three revolving fasteners

Click here to download the full
Ecler Product Catalogue.

Ecler Product Brochure



100V 8ohms
List Ex VAT: £50.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Effective Freq. Range

75 Hz- 20 kHz (-10dB)

Coverage angle / Dispersion

145°x145° (HxV)

Power handling

40 W RMS / 160 W Peak

Sensitivity

93 dB (1W/1m)

Maximum SPL

109 dB continuous / 115 dB peak

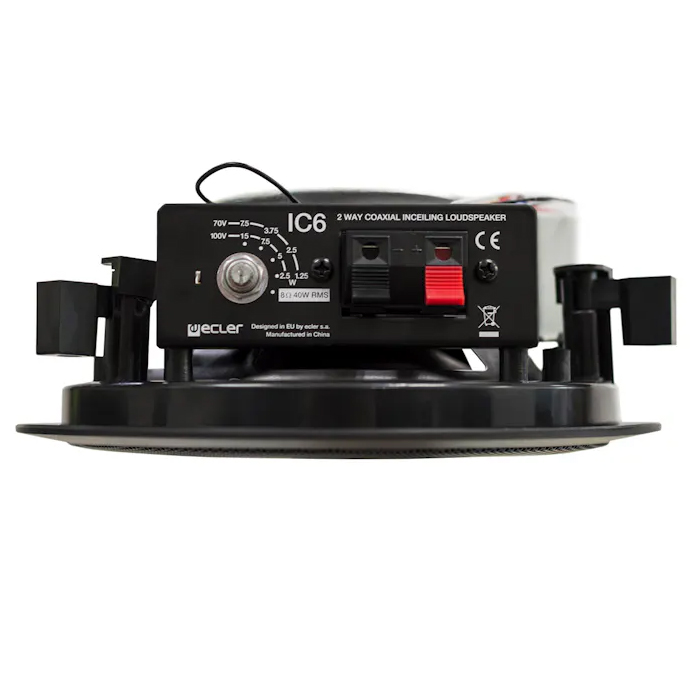

Power options (Hi Z Multi-tap)

100V: 15W / 7,5W / 5W / 2,5W / 8Ω, 70V: 7,5W / 3,75W / 2,5W / 1,25W / 8Ω

Speaker Type

2-ways full range

Low frequency driver

6.5" woofer

High frequency driver

1" tweeter

Nominal impedance

8Ω

Power type selector

Rotary power tap selector

Enclosure material

ABS

Grille material

Aluminium, rust proof

Mounting system

3 rotating tabs

External diameter

204 mm / 8.03"

Internal diameter

178 mm / 7.00"

Recommended cut out diameter

180 mm / 7.40"

Required depth

> 73 mm / 2.87"

Ceiling thickness

5mm / 0.19" min, 20mm / 0.78" max

Colour White (RAL 9010)
Weight 1.5 kg / 3.30 lb
