CYP PU-IR01-KIT

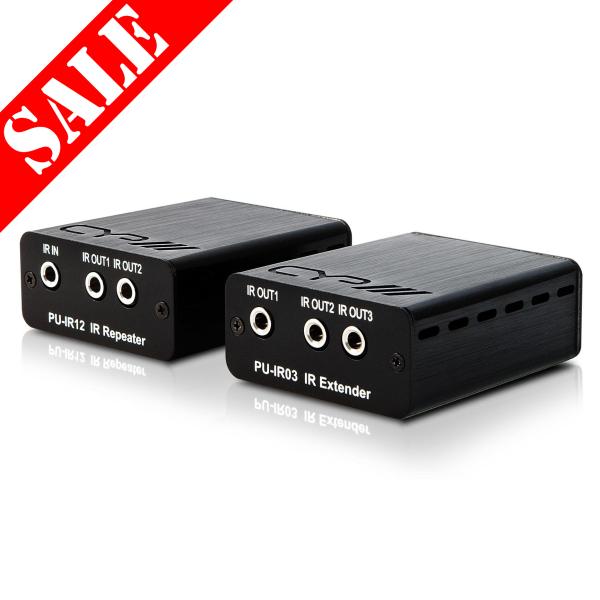

The CYP PU-IR01-KIT IR Extender and Repeater set is perfect for controlling Infrared controlled source equipment over long distances.

Clearance line – one only!

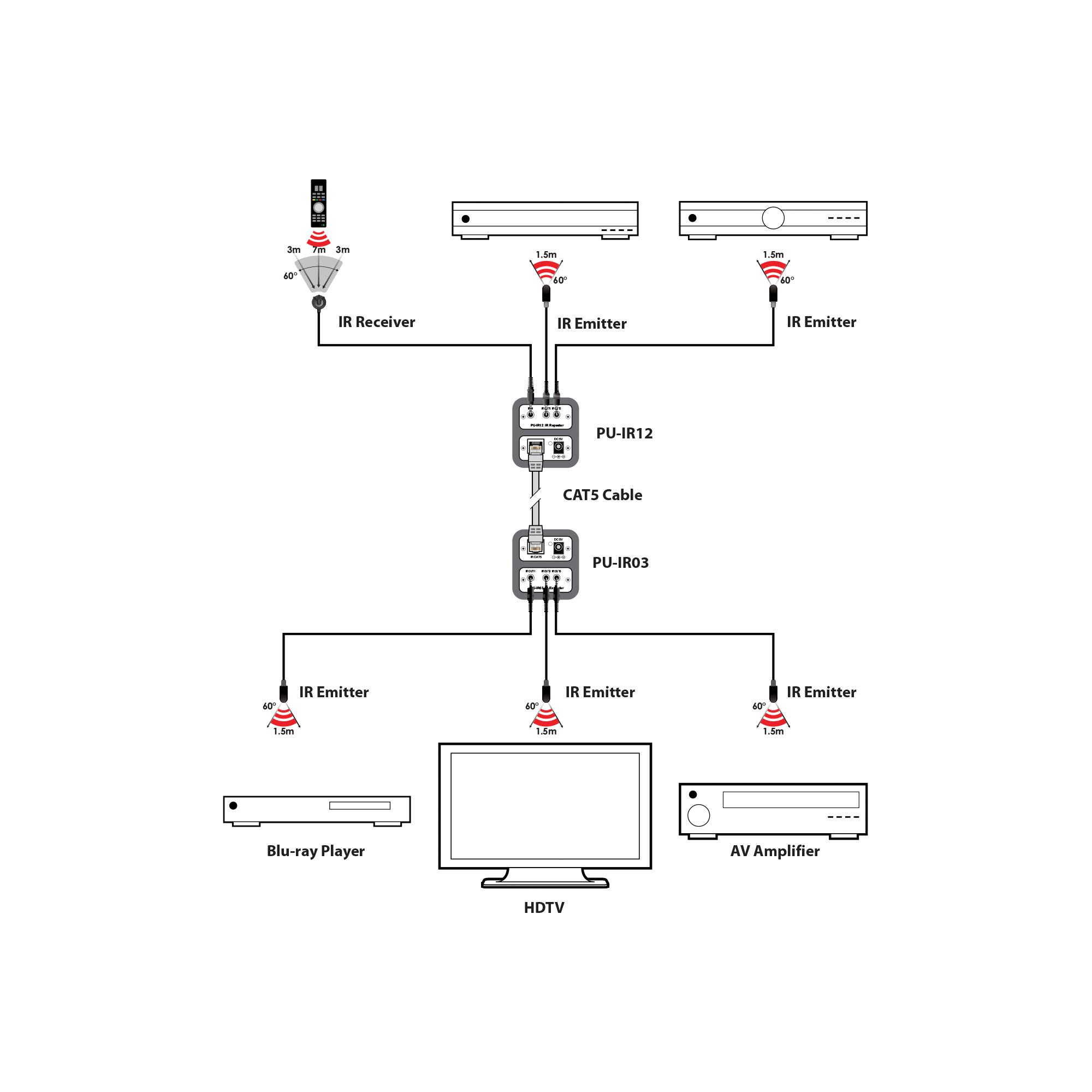

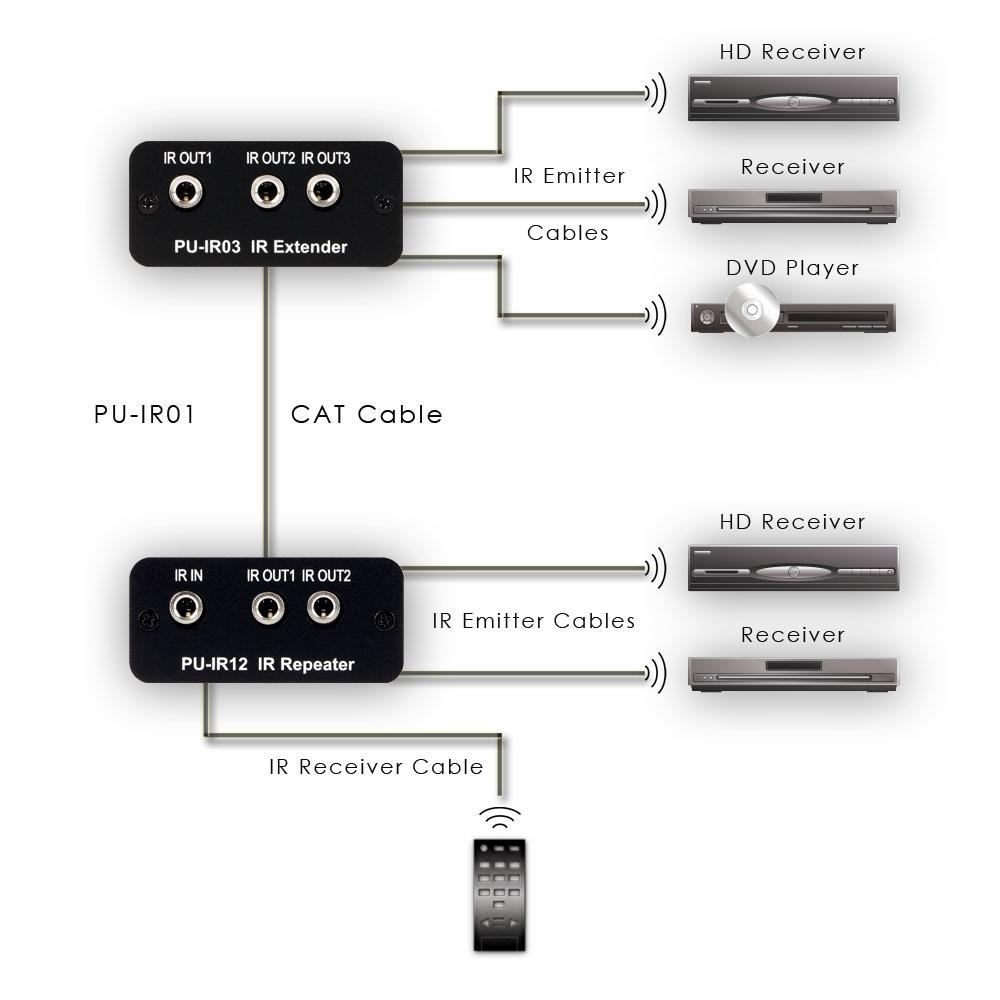

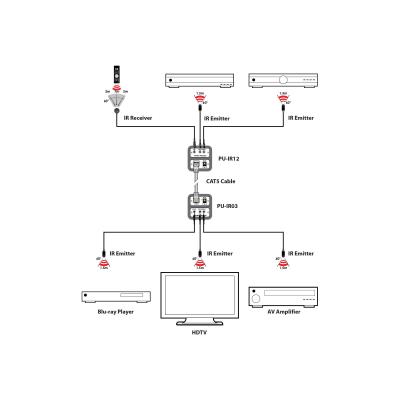

Up to five sources can be controlled using this extender set. Two sources can be controlled located locally to the repeater, whilst the remaining three sources can be controlled locally to the extender, which can be located up to 250m away via CAT5/6 cable.

This system allows for the sources to be controlled by their own original remote controls, from extended distances. A 5-eye emitter accessory can be supplied for additional control of extra source equipment.

  • Supports five outputs (two from the repeater, three from the extender)
  • Control source equipment from a distance of up to 250 metres away, via CAT5/6 cable
  • Transmits infrared signals only
  • Allows the use of existing remote controls
  • IR Receiver's frequency is at 20~60 kHz

The IR extender kit includes:

Infrared Extender Box (CIR-03)
Infrared Repeater Box (CIR-12)
1pc IR Eye Receiver cable (CIR-12)
5pcs IR Eye blaster cables (3pcs for CIR-03, 2pcs for CIR-12)
1pc 5V DC power supply adaptor
Operation Manual

List Ex VAT: £25.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Inputs

(PU-IR12) 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]

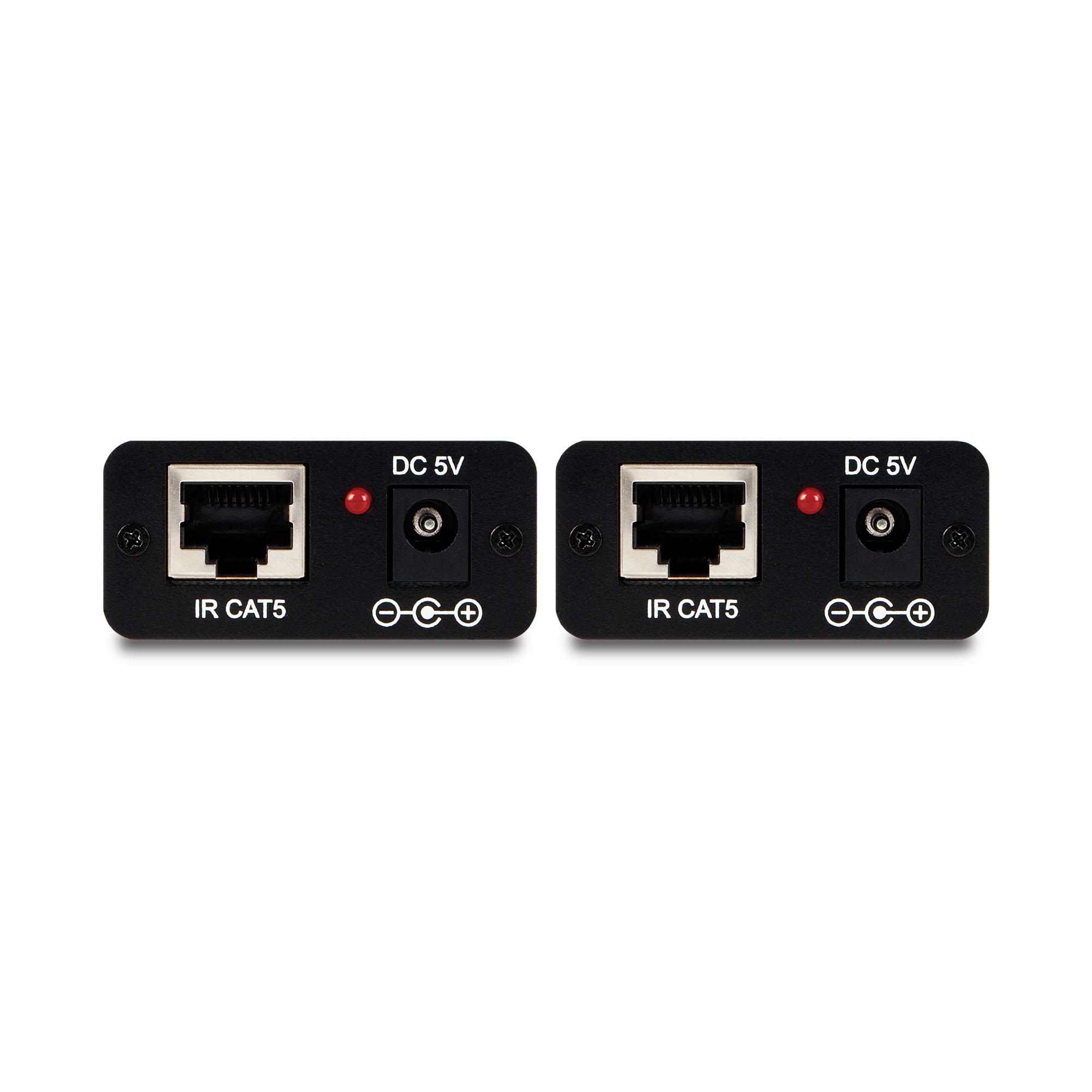

(PU-IR03) 1x RJ45 [1x IR Propriety Data]

Outputs

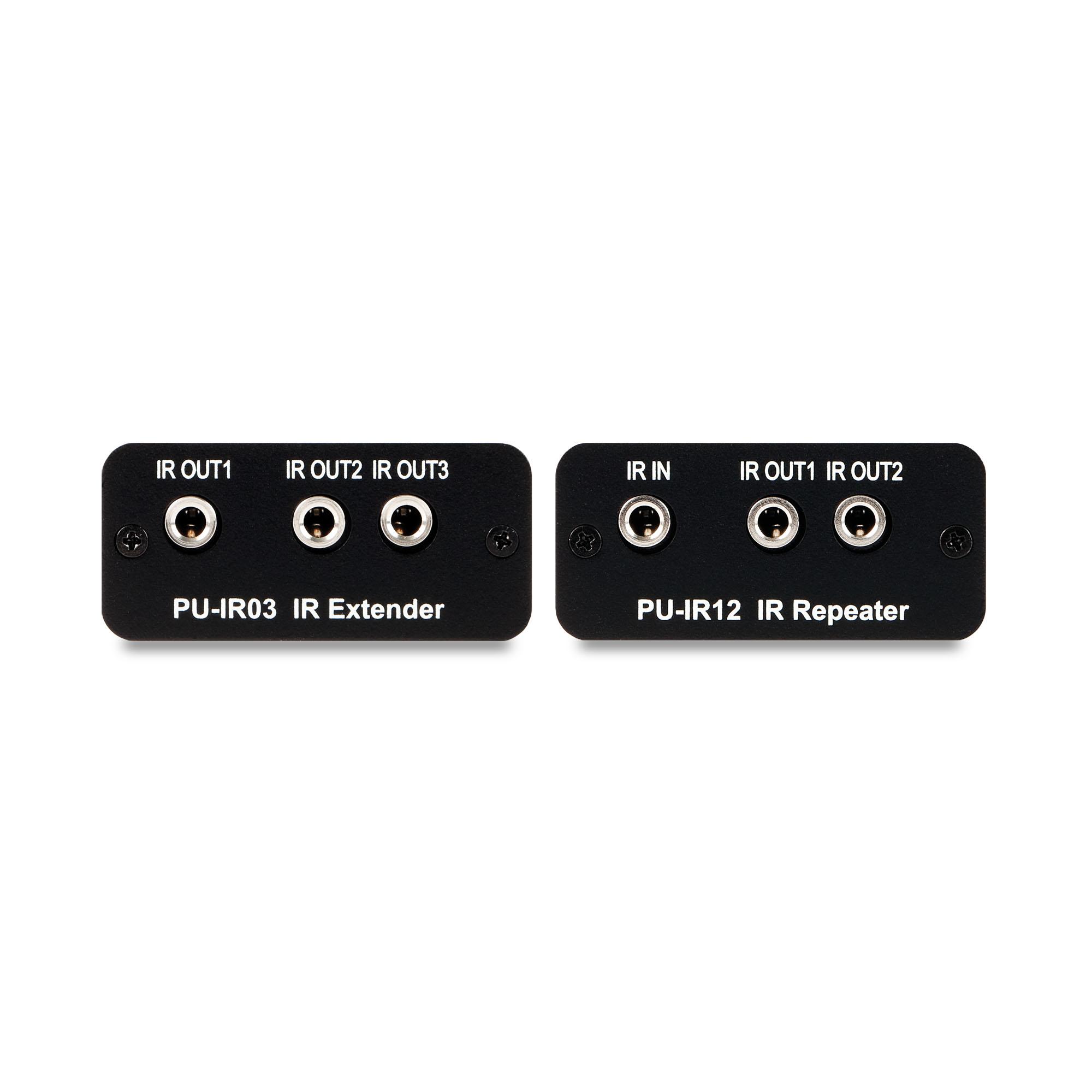

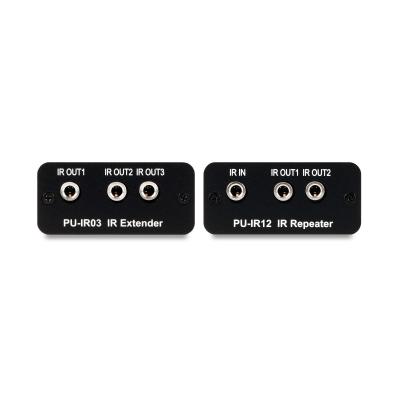

(PU-IR12) 2x 3.5mm Stereo mini-jack [2x Infra Red Emitter]
1x RJ45 [1x IR Propriety Data]
(PU-IR03) 3x 3.5mm Stereo mini-jack [3x Infra Red Emitter]

PSU

5V/1.2A

Dimensions

(PU-IR03) 50mm [W] x 65mm [D] x 25mm [H]
(PU-IR12) 50mm [W] x 65mm [D] x 25mm [H]

Net Weight

(PU-IR03) 0.14kg (PU-IR12) 0.28kg

Gross Weight

0.58kg
