JTS SIEM101T In Ear Monitoring Transmitter

Click to expand

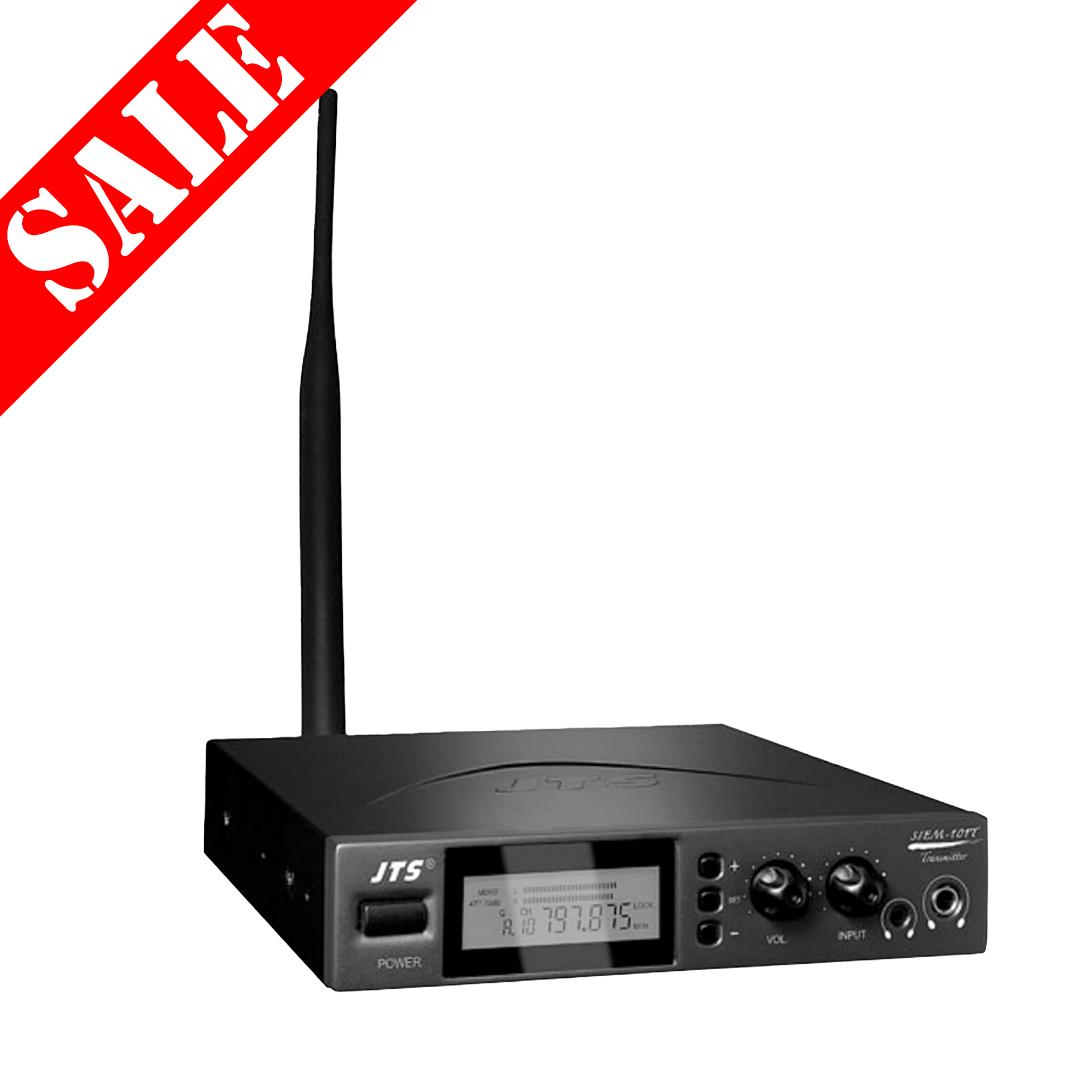

JTS SIEM-101T

The JTS SIEM-101T transmitter is part of the JTS SIEM101 mono/stereo in-ear monitoring system.

Clearance line - limited stock.

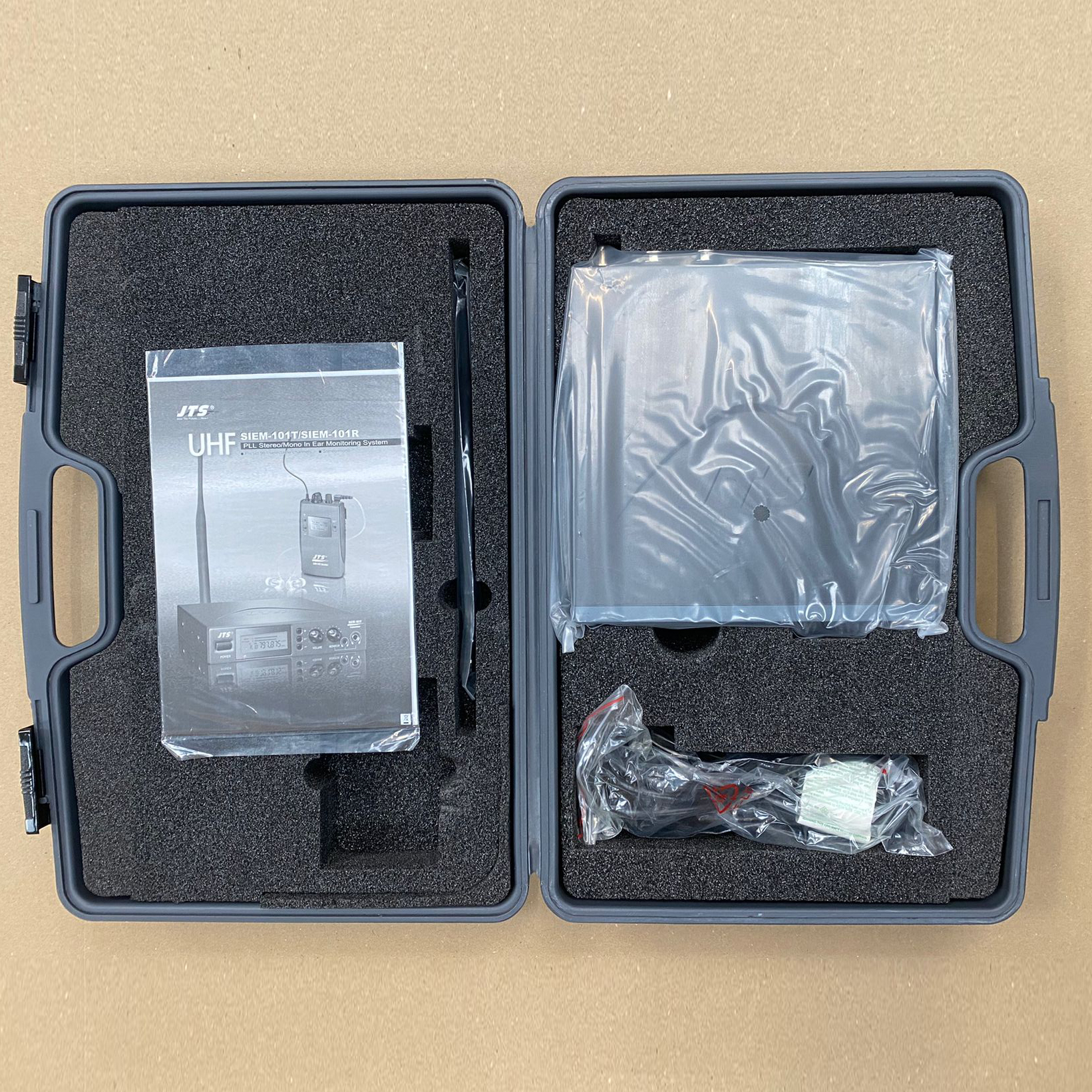

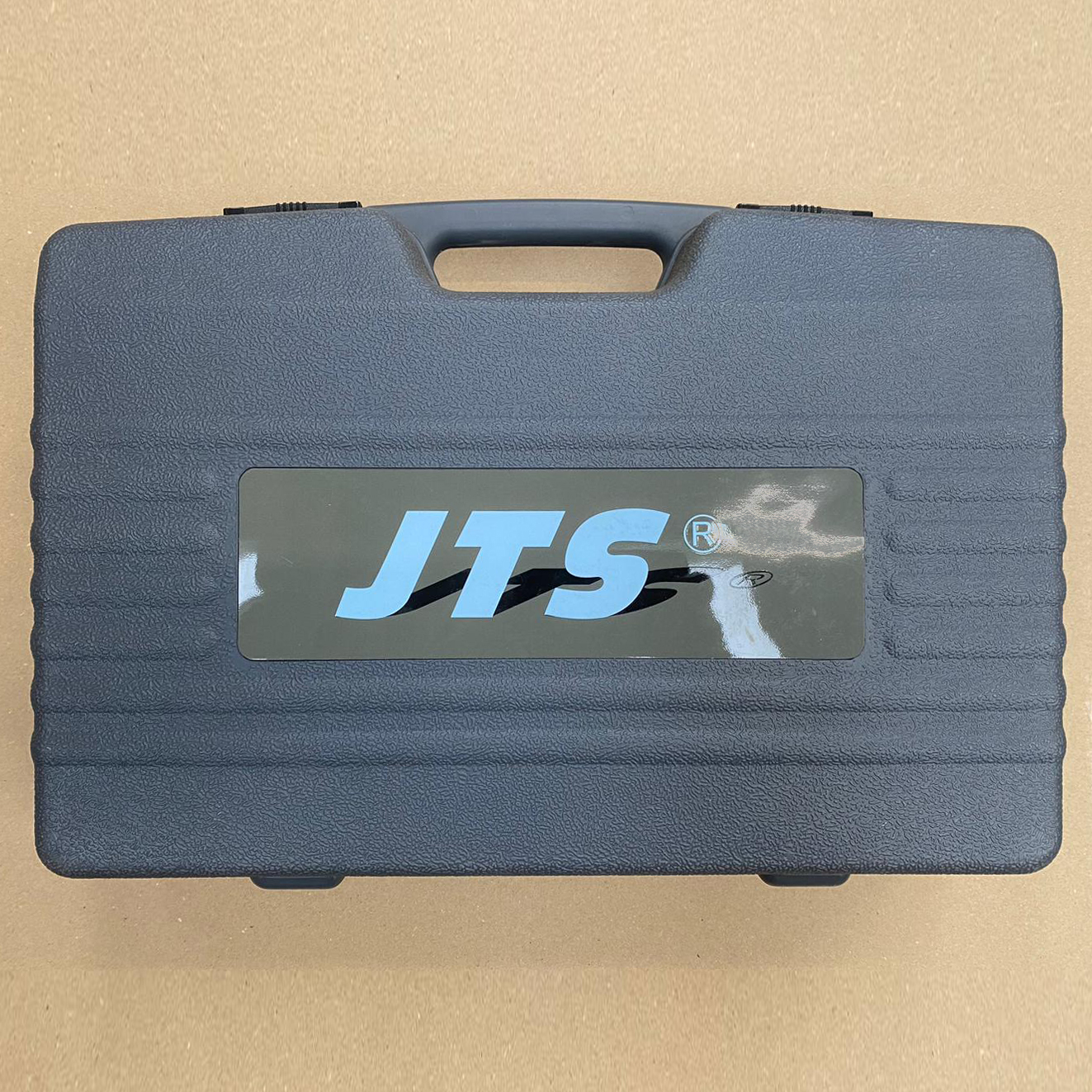

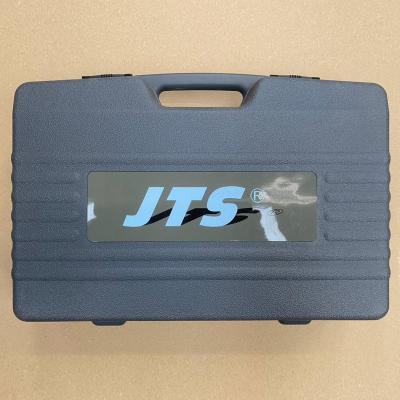

Please note - this item is the transmitter only, complete with antenna, mains lead, manual & carry case but WITHOUT BELTPACK RECEIVER.

This model has been discontinued. The SIEM-101R beltpack receiver is no longer available. Please only consider buying this if you already have an SIEM101R beltpack receiver or can find one elsewhere.

Please contact us for availability

SPECIFICATIONS

Carrier frequencies	790 – 814 MHz, adjustable in steps of 25 kHz (961 frequencies)
Preset frequency groups	4, with 16 frequencies each
Audio frequency response	60 to 15 000 Hz (-3 dB)
S/N ratio	> 80 dB (A weighted)
THD	1 %, typical
Stereo channel separation	35 dB
Transmitter	spec
RF output power	10 mW
Frequency stability	±0.005 %
Nominal frequency deviation	±40 kHz
Audio inputs	Impedance: 20 kΩ Rated input level: -10 dBV Max. input level: 20 dBV (ATT 10 dB) Signal attenuation:10 dB (switchable)
Power supply	100 – 240 V~
Current consumption	200 mA max.
Dimensions	212 × 44 × 239 mm
Weight	1.3 kg

DOWNLOADS

JTS SIEM-101T User Manual
