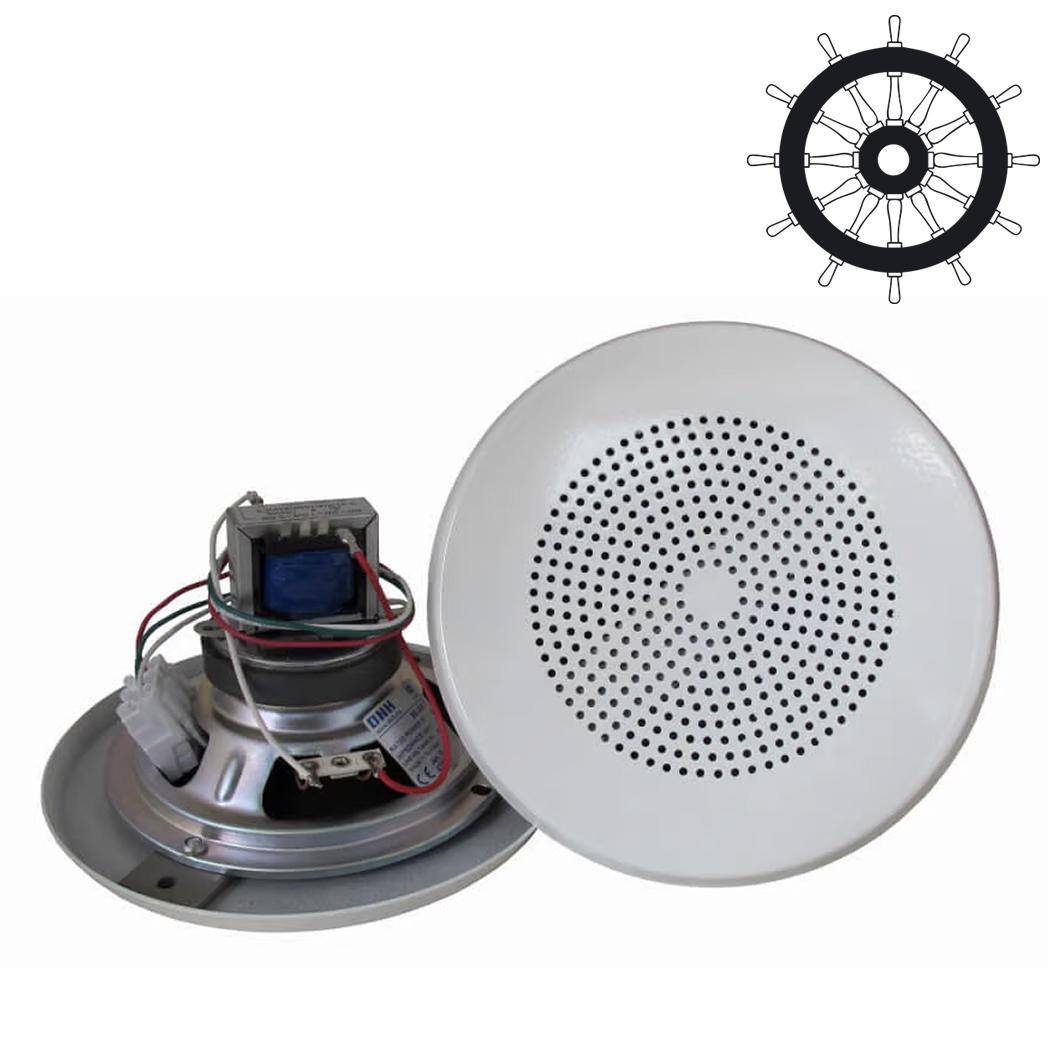

DNH BS-560T MED

The DNH BS-560T MED is a 5", 6 watt ceiling speaker for 100 Volt line loudspeaker circuits.

Compliant with the Marine Equipment Directive 2014/90/EU standard for Safety of Life at Sea (SOLAS) Maritime applications.

Versatile enough for most installations including speech, alarm and music because of its wide frequency range.

Secure mounting is achieved via 2 screws which attach the chassis to the ceiling. The perforated grille is then rotated into place using an internal threaded spigot for a clean finish.

Warranty: 2 Years

100V MED
List Ex VAT: £119.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated Power (rms) 6W
Power Taps @ 100V 6W, 3W, 1.5W & 0.5W
SPL (1W/1m) 90dB
Max SPL (rated/1m) 97dB
Frequency Range (-10dB) 130HZ - 20KHZ
Dispersion 1K Hz / 4K Hz 170° / 60°
Termination Spring Clamp
Material Aluminium
Colour White (RAL9010)
Dimensions mm 167 Dia. X 94 Height mm.
Weight (kg) 0.66
Mounting 2 screws
