Waves System AP420 Wifi
Click to expand

Waves System AP420 Wifi

Waves System AP420 Wifi | Audio Player & Broadcaster | Wi-Fi connectivity | Built-in scheduler | USB & MicroSD card input | Remote configuration & monitoring | Pro audio quality DAC

The Waves System AP420 Wifi audio player offers endless automated audio streaming possibilities. This version of the AP420 has Wi-Fi connectivity enabling it to be located where there may not be a hard-wired network point.

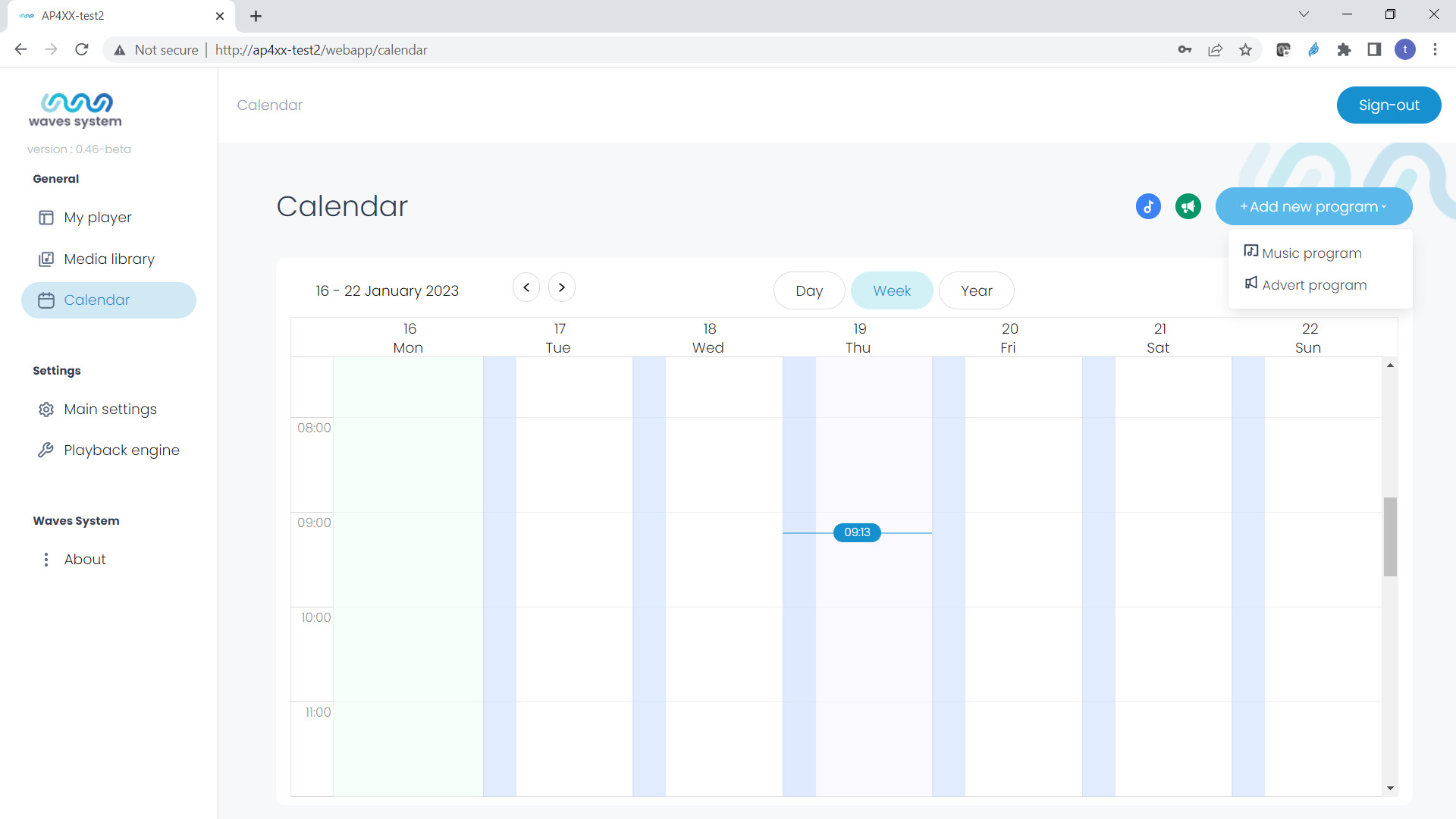

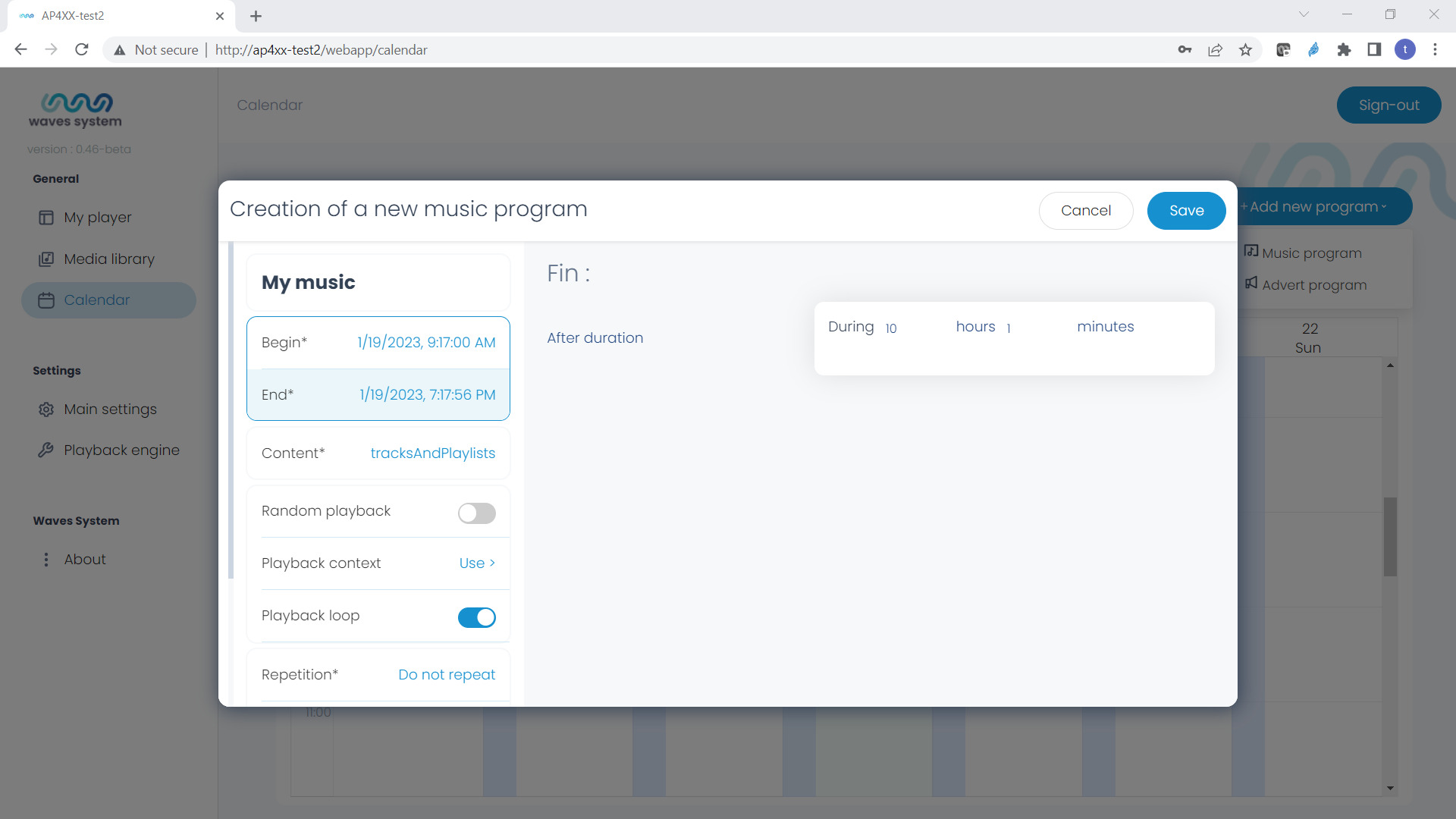

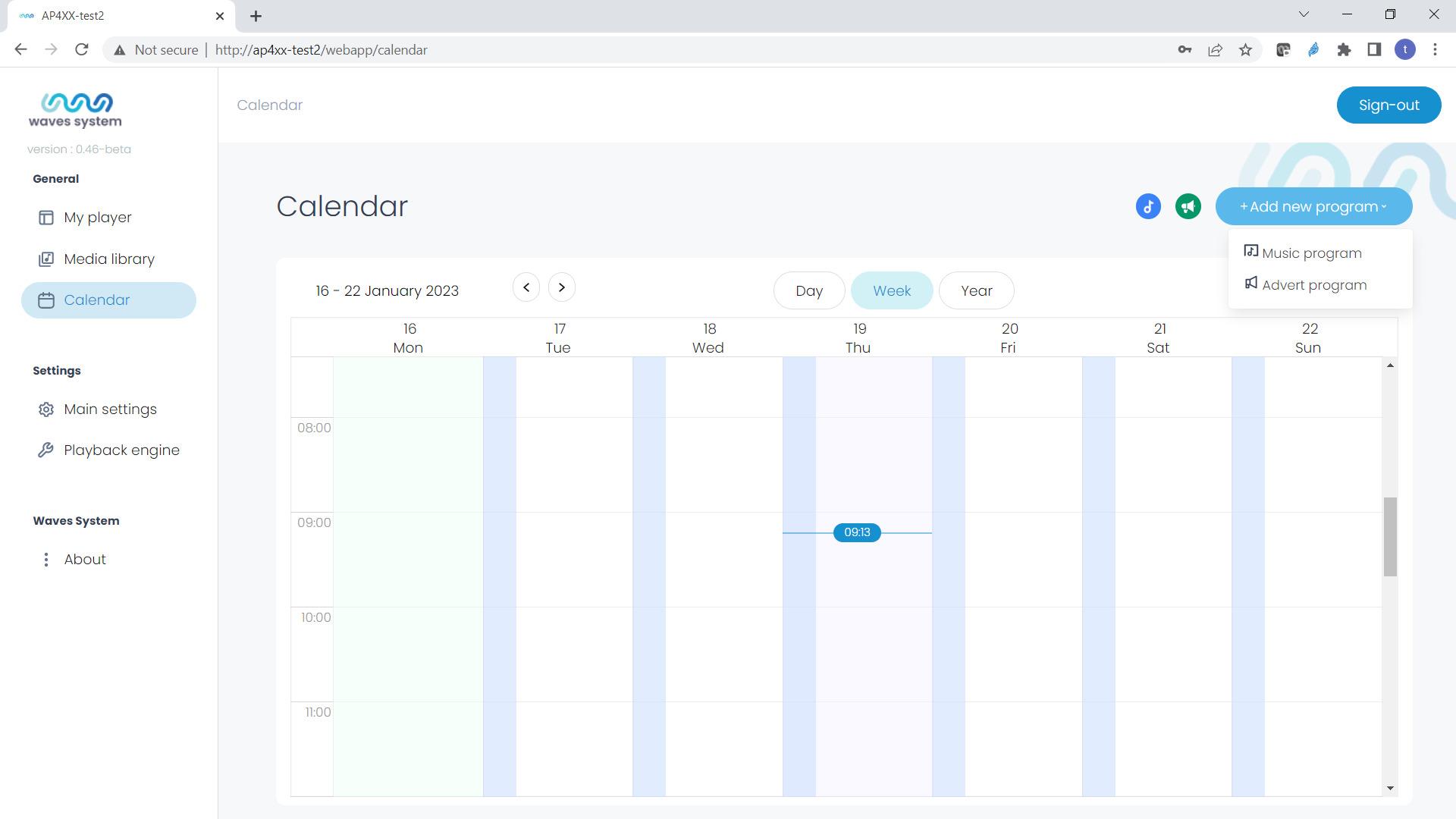

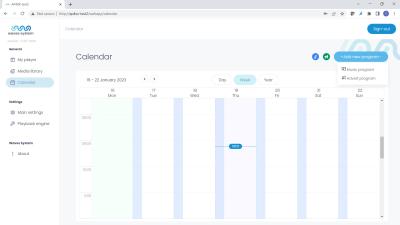

Whether you have one location or multiple sites, it’s ideal for broadcasting your webradio, playlists or commercial messages. The built-in scheduler enables your background music, store information or promotional messaging to play at just the right time.

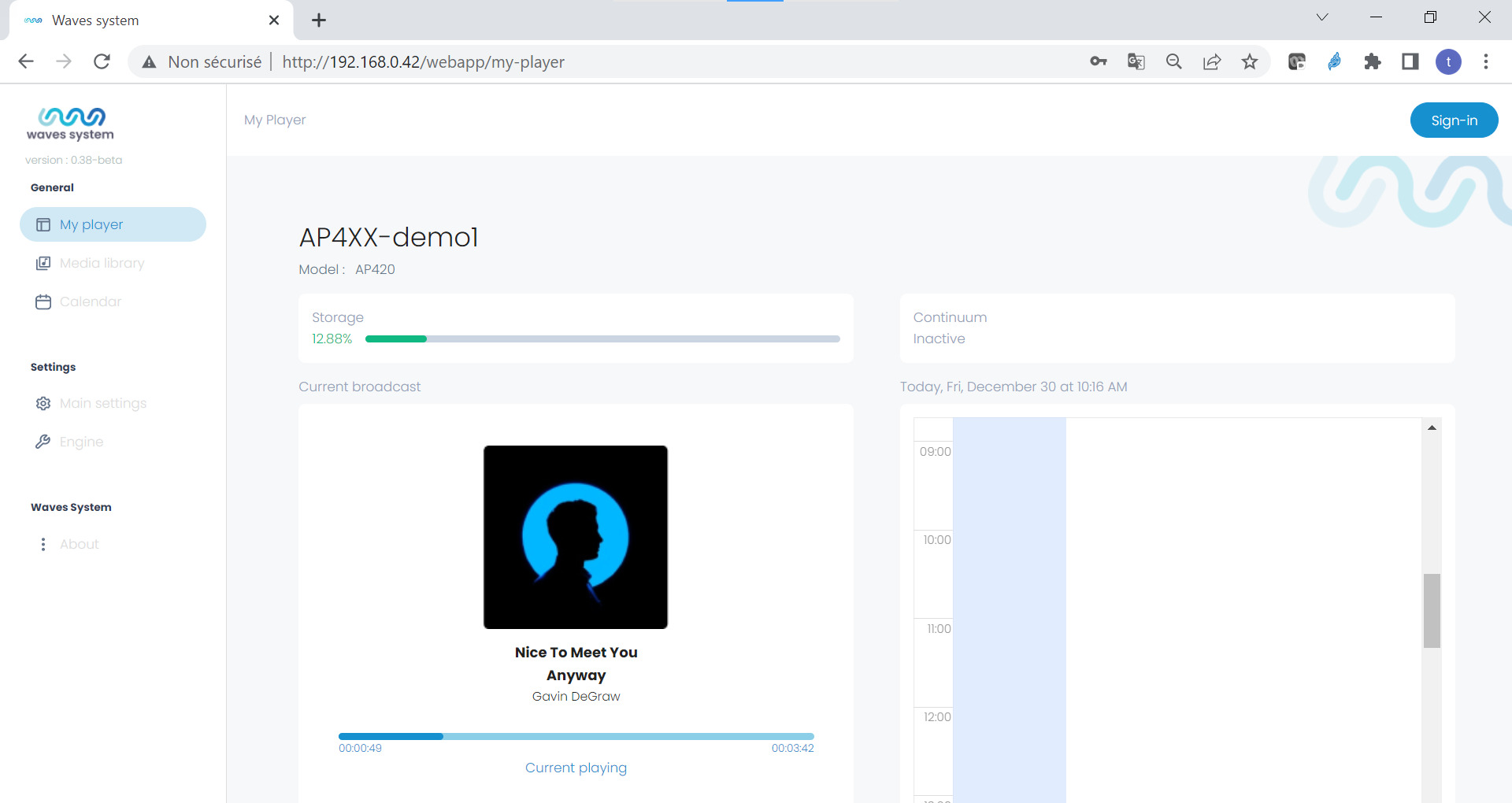

Audio playlists can be configured & monitored remotely via ‘Wavespark’ using the Ethernet port or over Wi-Fi. The AP420 Wifi also supports streaming via Icecast or Shoutcast or local playback via USB input or MicroSD card.

In addition to accepting files on USB & MicroSD cards, the AP420 Wifi has 4Gb memory built in. This can be extended to 64Gb with the optional memory extension - see AP420-64EXT in related products.

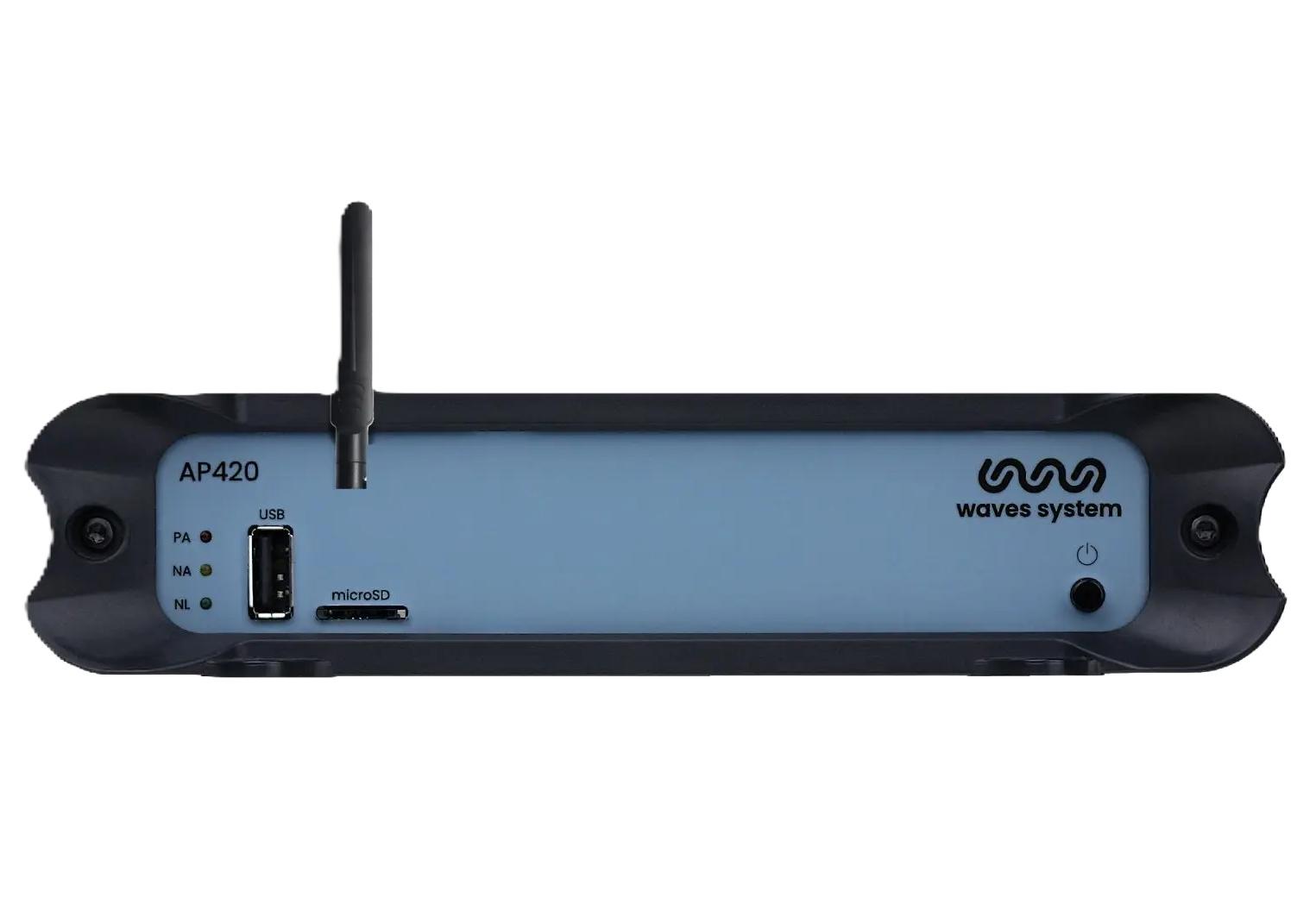

Control is possible via the front panel or your mobile.

The exceptional pro audio quality DAC ensures the best performance and audibility.
The ‘Continuum’ feature facilitates a 24/7 secured broadcast, switching seamlessly to local input if the internet signal is lost.

A single input contact and 2 relay outputs enable connection to an external trigger and devices.

  • Built-in Wi-Fi connection, no USB accessories / dongles required.
  • Ideal for spaces without network cabling: restaurants, hotels, shops, showrooms.
  • Stream and automate your audio: local playlists, web radio, NAS, all managed remotely.
  • Automate your announcements and ads with an intuitive scheduling system.
  • Guaranteed 24/7 streaming: real-time monitoring and automatic failover to backup content.
  • Standby / Power multi purpose switch
  • Status LEDs (Network, Activity)
  • 4Gb internal memory, extendable to 64Gb with optional card
  • MicroSD card slot

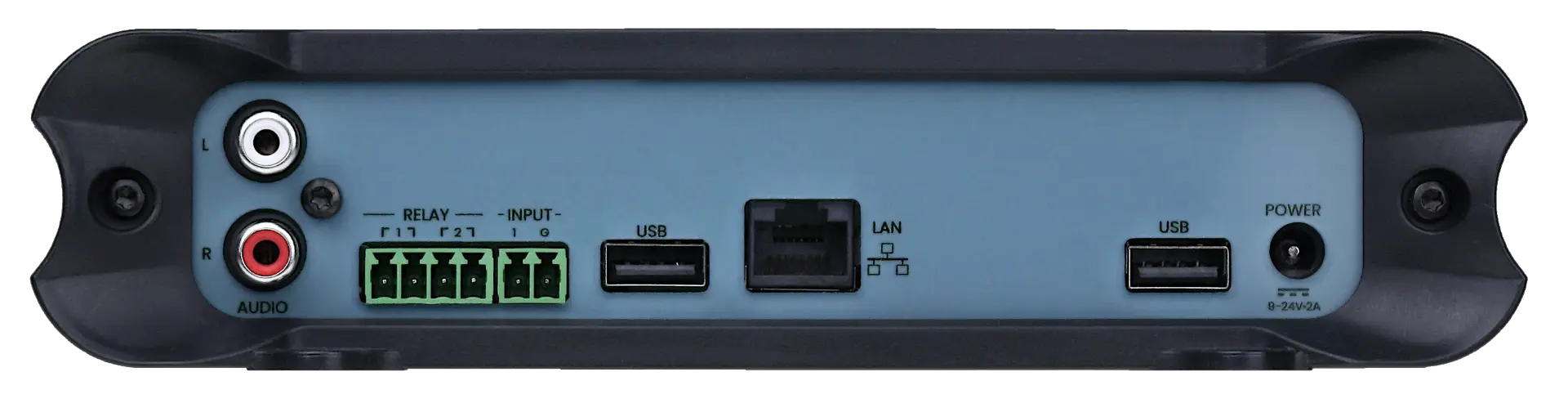

  • Unbalanced line-level stereo audio output on standard RCA connectors (configurable level -10 dBv to +4 dBu)
  • 10/100 Mb Ethernet on RJ45 connector
  • 3 x USB Host 2.0 High Speed (480 Mb/s), type-A receptacle
  • 1 input contact on 3.81 mm pluggable terminal block
  • 2 MOSFET relays (normally open - 2A per output, max 24 V) on 3.81 mm pluggable terminal block
  • Warranty: 3 Years
1U SD USB
List Ex VAT: £390.00
Log in for Trade Prices
CONTACT US


BR>

SPECIFICATIONS

Supported Audio Formats

MP3, AAC, ALAC, FLAC, WAV, AIFF, Vorbis

Supported audio stream type

Icecast, Shoutcast

Supported Playlist formats

M3U, PLS, JSPF

Audio processing

equalization, dynamic compression, limiter, downmix stereo to mono

Storage device compatibility

USB flash drives and micro SDSC/SDHC/SDXC cards

File systems supported

FAT32 / exFAT / NTFS / ext3/4

Audio Output

Unbalanced line-level stereo RCA connectors (configurable level -10 dBv to +4 dBu)

10/100  Mb Ethernet Connection

RJ45

Input Contact

1 x 3.81 mm pluggable terminal block

Output Contacts

2 x MOSFET relays (normally open - 2A per output, max 24 V) on 3.81 mm pluggable terminal block

Dimensions

192mm wide x 43mm high (1U)
