The LD Systems SWAV 41, part of the TIVA® Series, is a powerful 8K HDMI™ 4x1 switcher with audio extraction, designed to reliably consolidate and manage multiple AV sources.

This brand new product is expected to be available later in 2025 - please contact us for the latest ETA.

It supports 8K60 and 4K120 resolutions, is fully HDCP 2.3 compliant, and offers compatibility with advanced video formats such as HDR10+, Dolby Vision, VRR, and ALLM.

With digital and analogue audio outputs featuring gain control and flexible control options via Ethernet, IR, or directly on the device, the SWAV 41 is ideal for professional AV applications where HDMI sources need to be switched and audio processed separately.

The SWAV 41 is fully integrated into the QUESTRA platform, allowing centralized configuration and monitoring.

The compact, installation-friendly design includes mounting accessories for easy installation in racks, under desks, or inside AV enclosures.

Perfect for professional presentation environments where high-resolution video, reliable source management, and discrete audio processing are required.

• Selects one of four HDMI™ sources for a single display
• Fully integrated with the QUESTRA platform
• Supports up to 8K60 and 4K120 resolutions with HDMI 2.1
• HDCP 2.3 compliant for secure content playback
• HDR, HDR10+, Dolby Vision, ALLM, and VRR compatible
• Independent EDID settings per input for format consistency
• Built-in signal equalizer, retimer, and driver
• Audio de-embedding with digital and analog outputs with gain control
• Dolby Atmos, DTS-HD, and hi-res audio pass-through
• Selectable audio output modes for 2.0, 5.1, or 7.1 channels

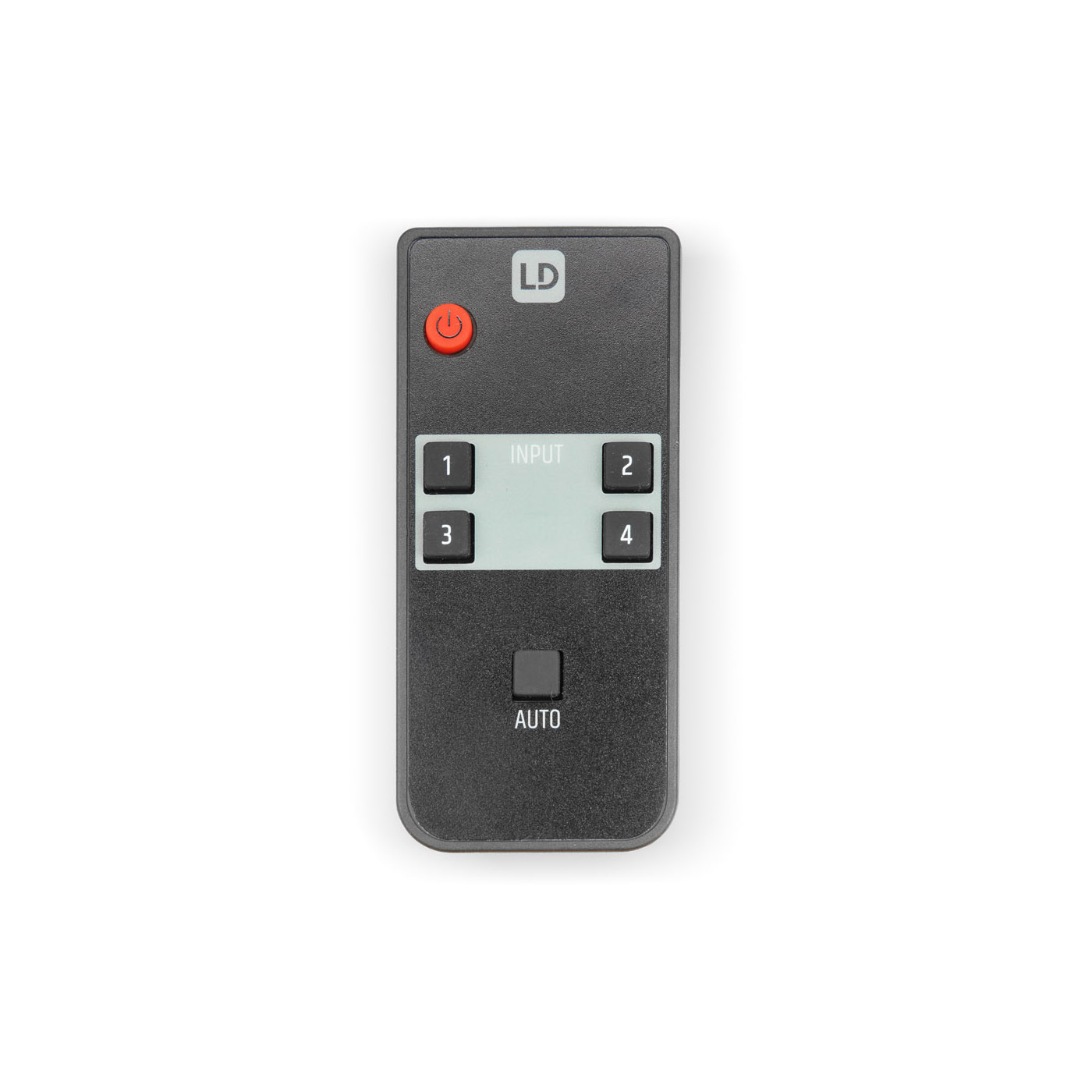

• Control via front panel buttons, IR remote, and Ethernet
• Auto and manual input switching modes
• Integrated signal generator for line testing and setup verification
• Fanless, silent operation with efficient power design

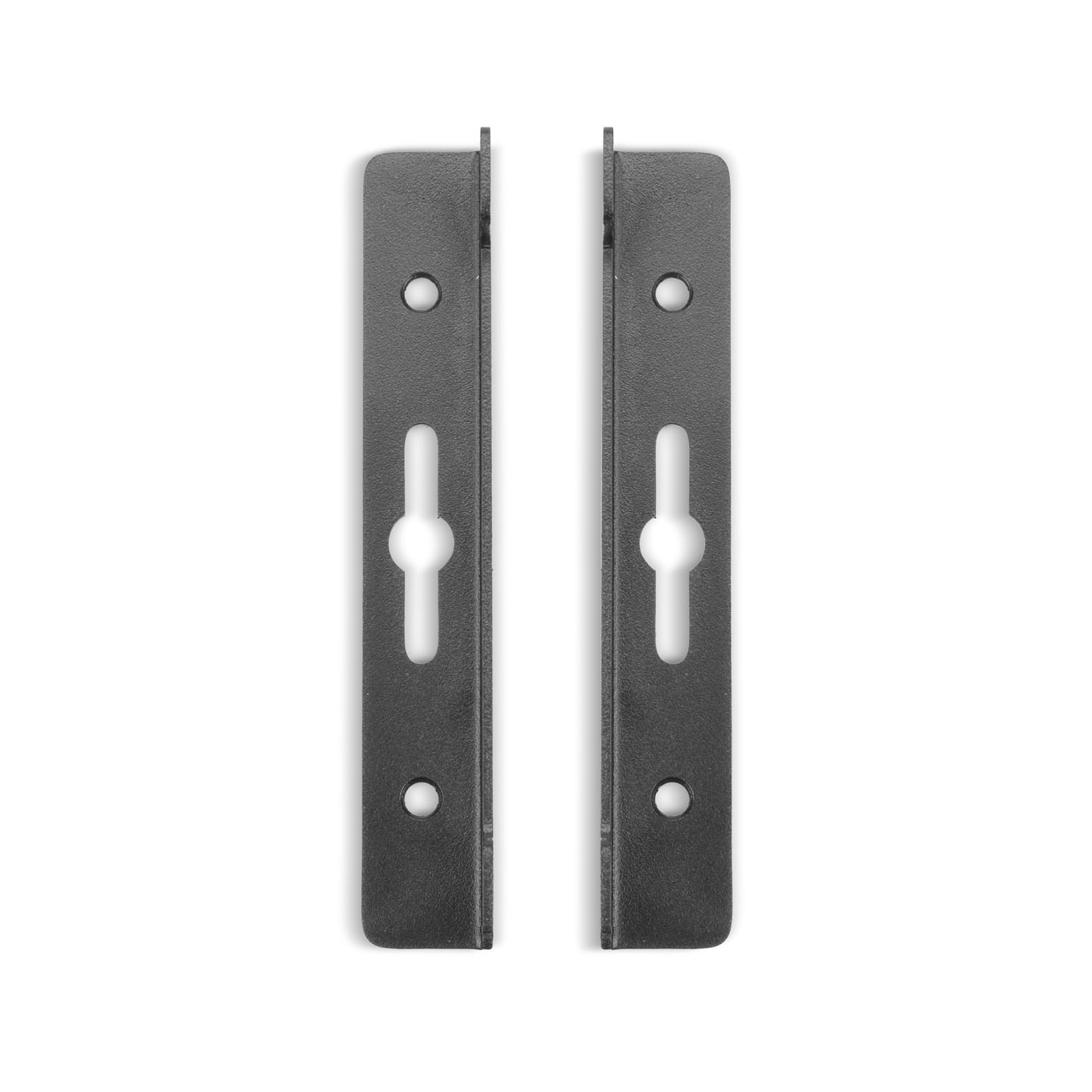

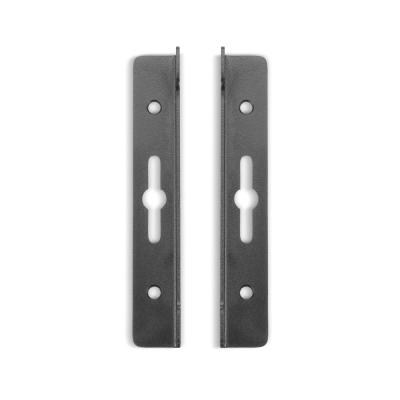

• Includes mounting hardware for flexible installation
• Firmware upgradable via Ethernet for future enhancements
• 12 VDC power supply included
• Part number: LDSWAV41
• Warranty: 5 Years
