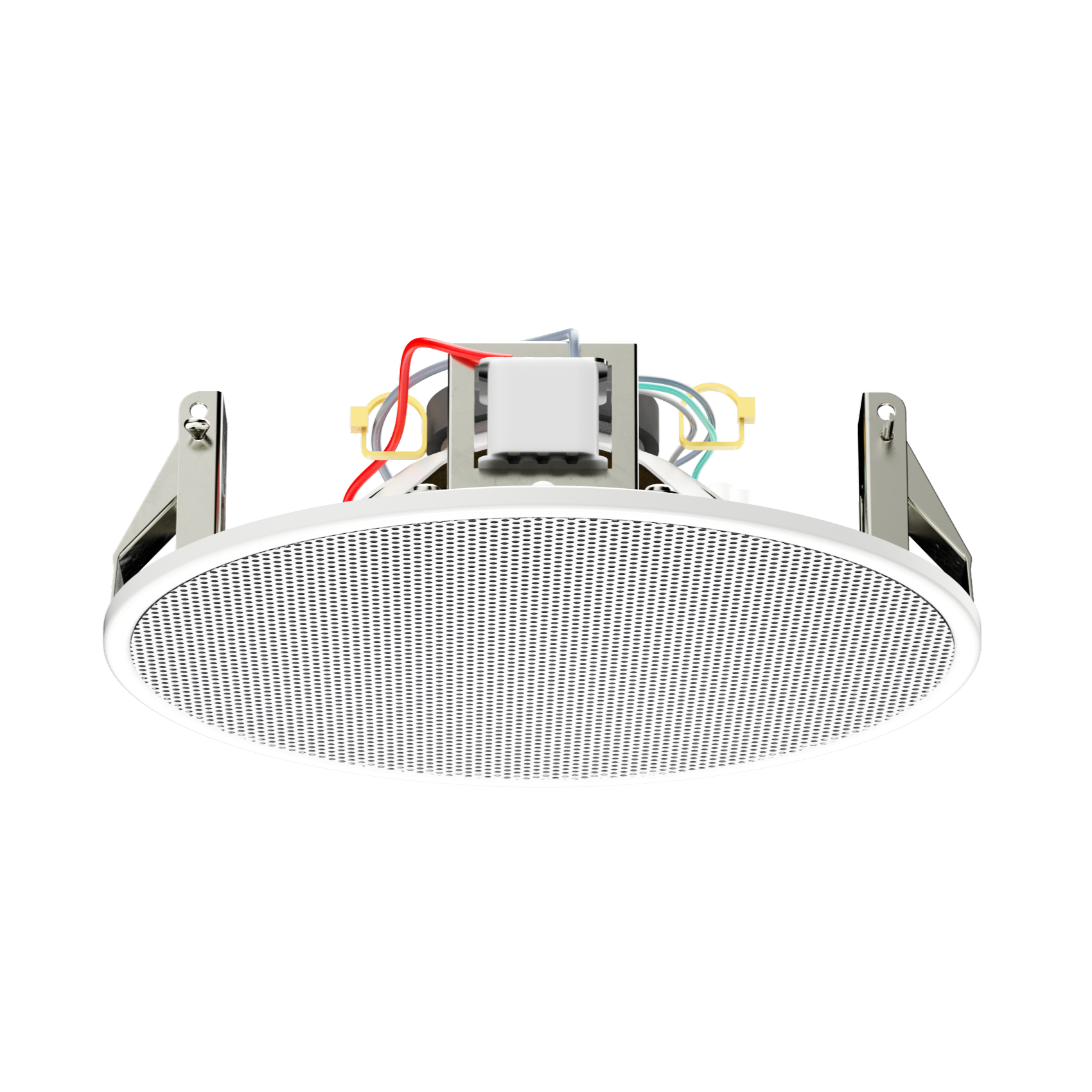

Bosch LCE-06MW 6" Ceiling Loudspeaker, Showing Transformer.

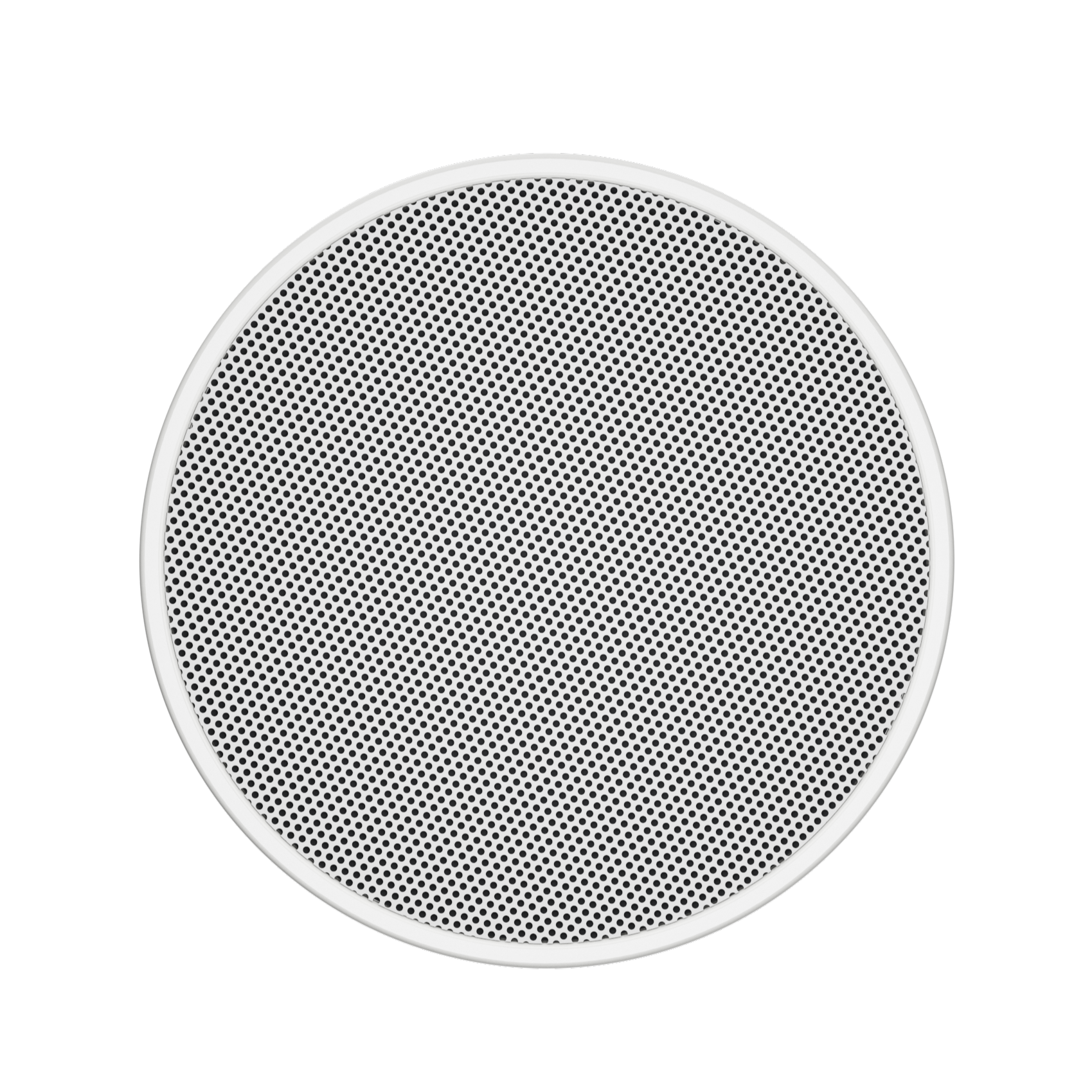

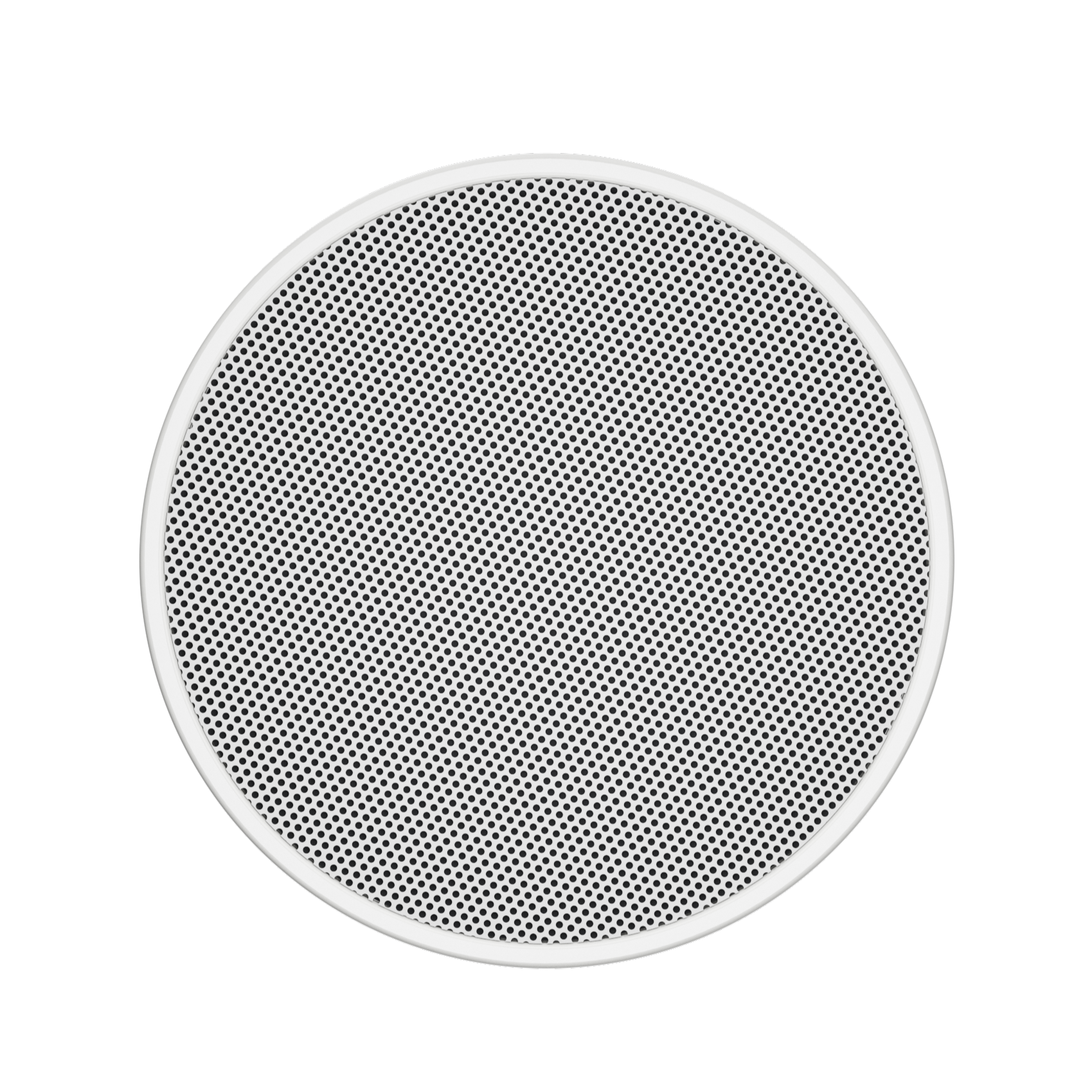

Bosch LCE-06MW, 6" Ceiling Loudspeaker, Grille.

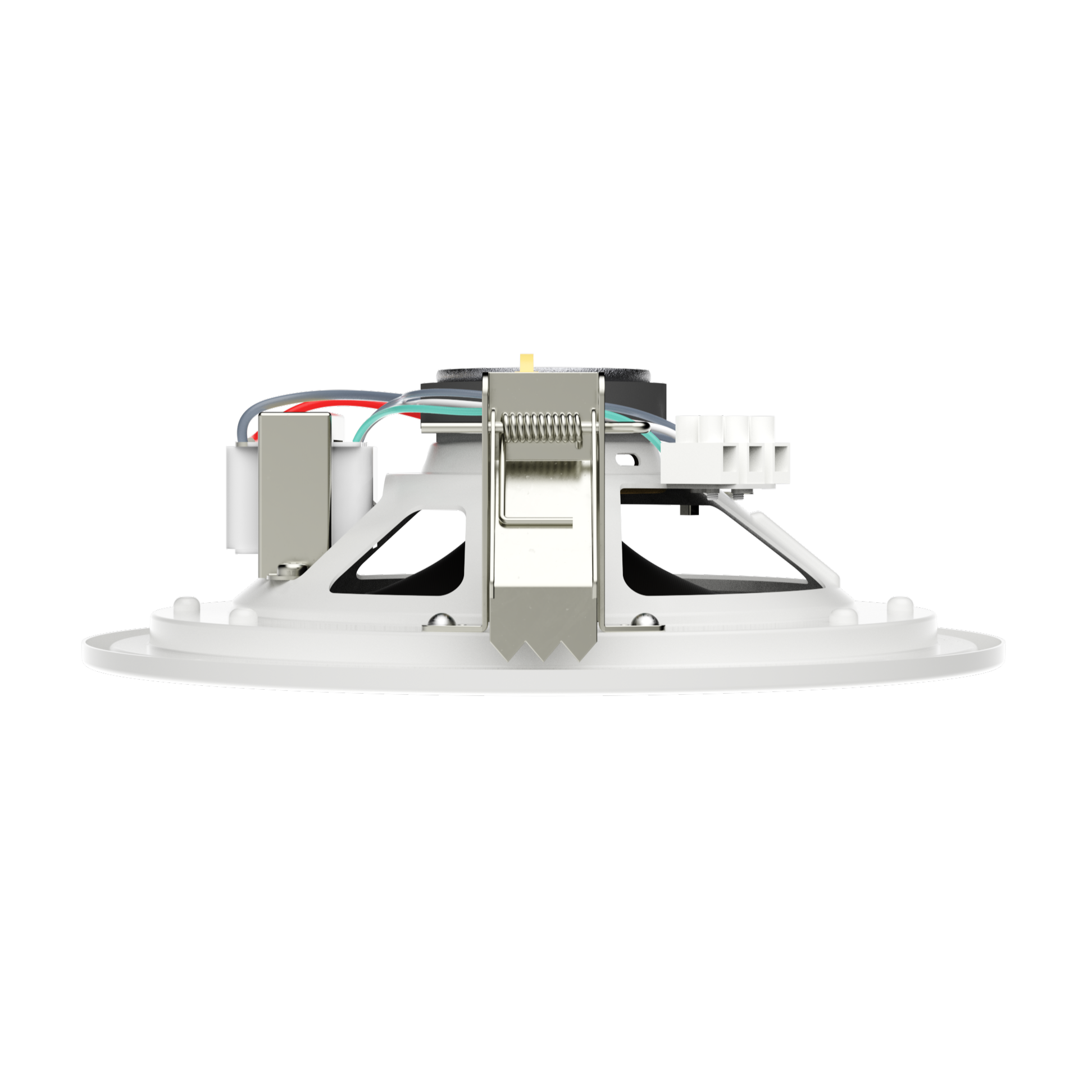

Bosch LCE-06MW Ceiling Loudspeaker, Showing Spring Clip Mounting.

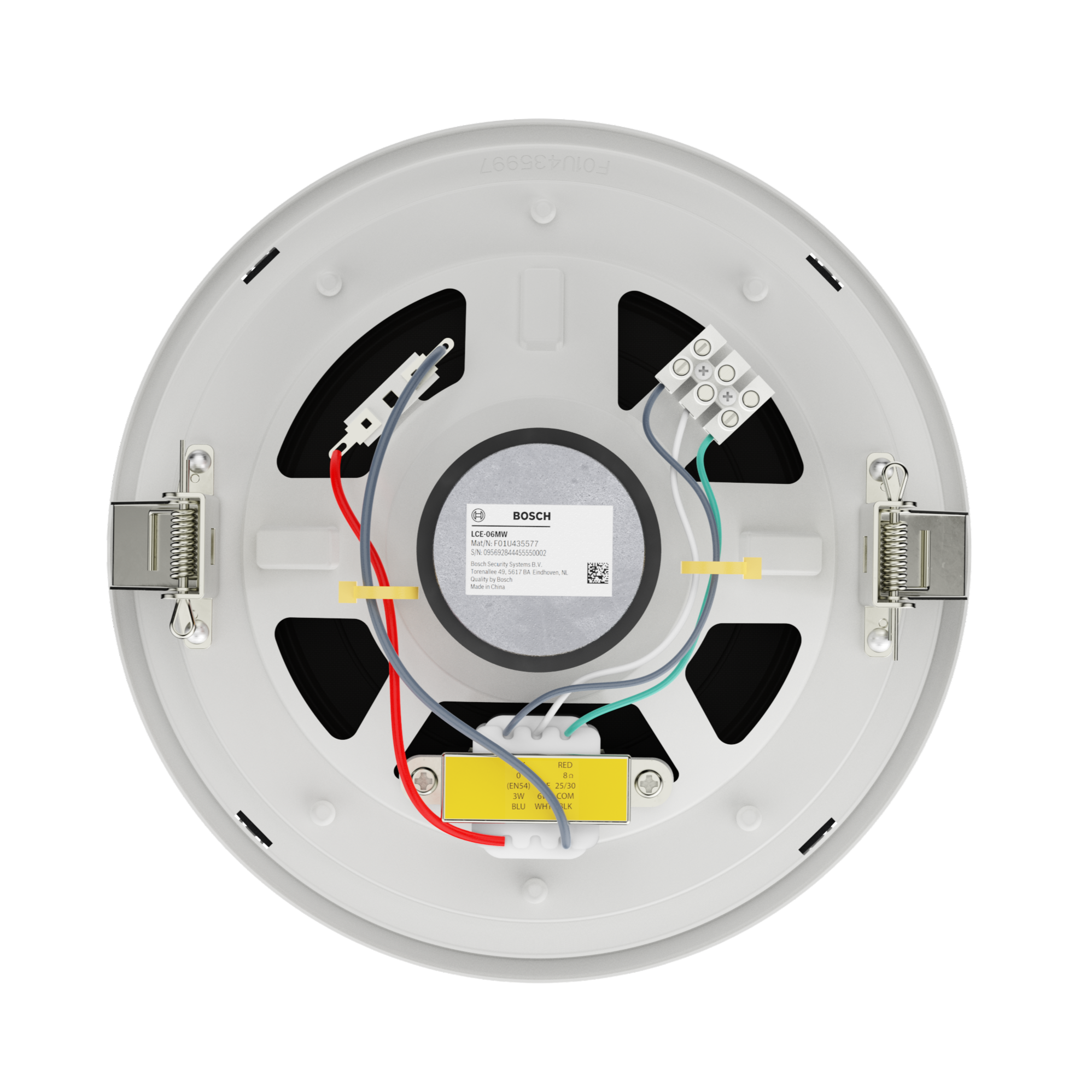

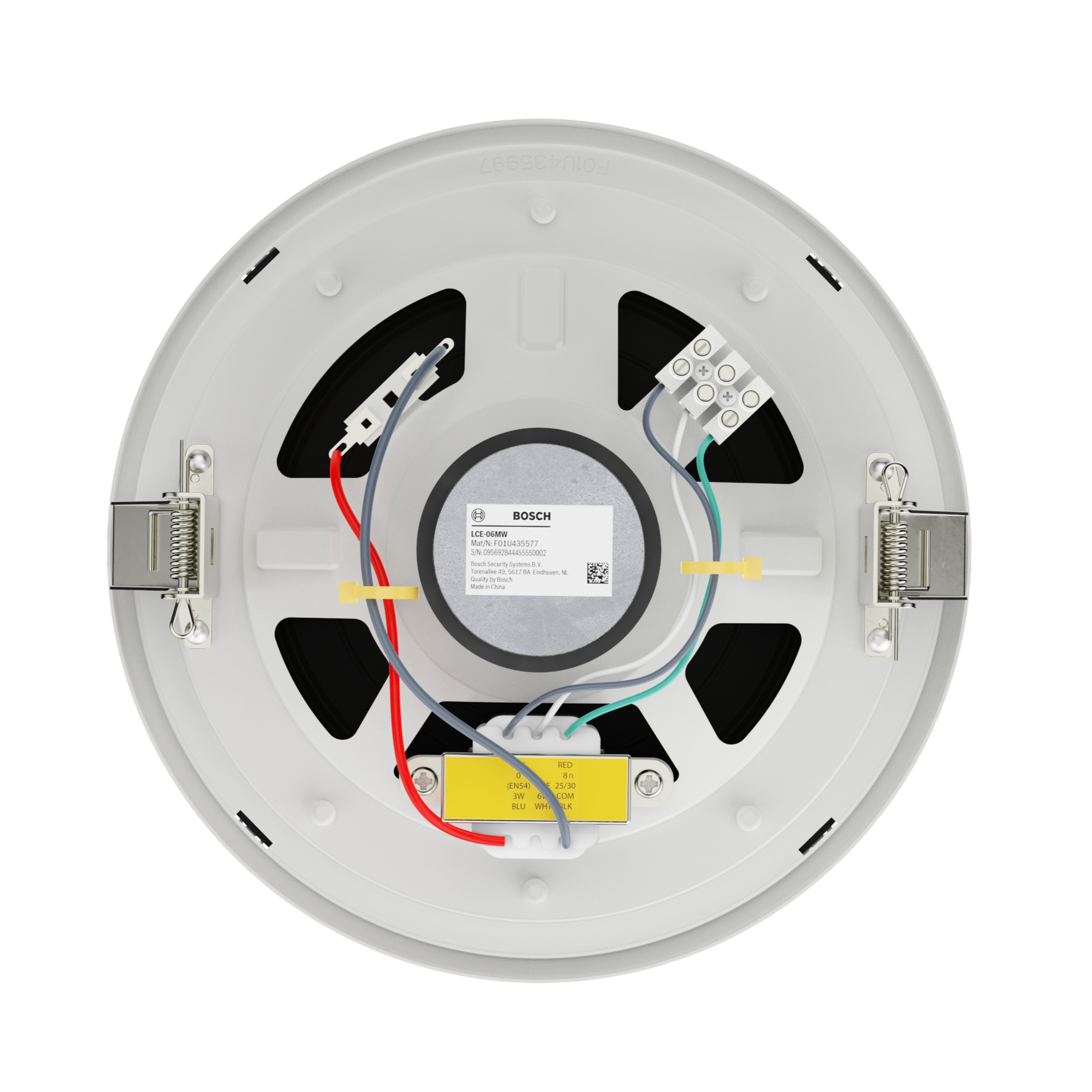

Bosch LCE-06MW, Ceiling Loudspeaker, Top
Click to expand

Bosch LCE-06MW

The Bosch LCE-06MW ceiling loudspeaker is rated at 6 Watts, 100 Volt line and is part of ‘The New Generation’ Bosch loudspeaker lineup.

This entry level, cost-effective ceiling speaker provides excellent speech and music reproduction for public address and background music applications.

The LCE06MW has a metal frame and elegant metal grille with minimal rim.

  • Suitable for speech & music reproduction
  • Simple power tapping selection
  • Elegant 'minimal rim' design grille
  • Easy and quick installation
  • White finish (RAL9003)
  • Bosch Product Number F.01U.435.577
  • Warranty: 3 Years
1a: 100V
List Ex VAT: Contact Us
Log in for Trade Prices

Please contact us for availability

CONTACT US

SPECIFICATIONS

Rated power

6 W

Transformer taps

100 V line: 6 / 3 W
Connector type

3-pole plastic connector
Driver size

152.4 mm / 6"

Sound pressure level at 6W / 1W (1kHz Octave, 1 m)

96 dB / 88 dB (SPL)

Frequency range (-10dB)

65 Hz - 14.6 kHz
Coverage angle HxV (-6 dB, 1 kHz)

180° x 180°

Coverage angle HxV (-6 dB, 4 kHz)

80° x 80°

Rated voltage

100 V

Dimensions (Ø x D)

204.1 mm x 64.77 mm
8.04 in x 2.55 in

Cutout Diameter

180mm

Weight

0.74 kg (1.62 lb)
Material

Frame: Metal
Grille: Metal

Colour

RAL 9003 Signal white

DOWNLOADS

Bosch LCE-06MW Datasheet
