TOA CS-64

TOA CS-64

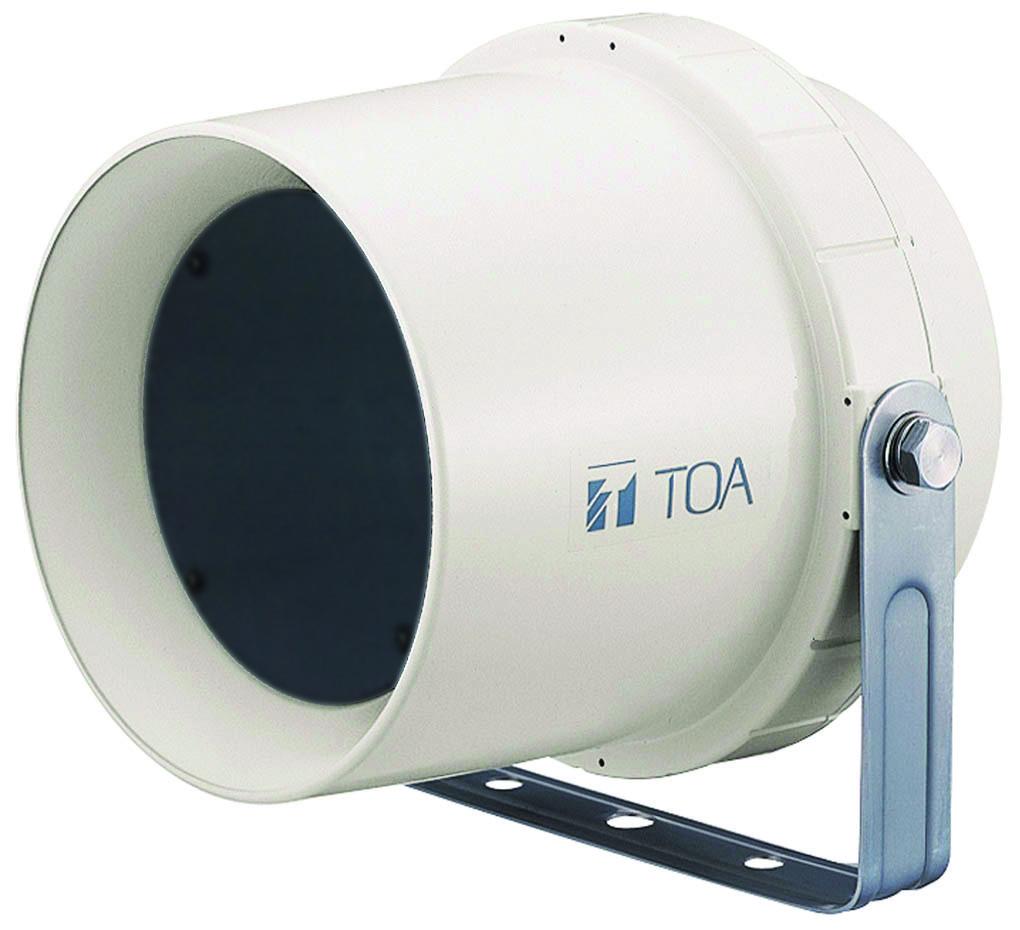

The TOA CS-64 is an exponential horn loudspeaker with excellent directivity characteristics for a uniform and clear sound dispersion.

Rated at 6 watts and suitable only for use on 70 / 100 volt line distributed sound systems. The transformer has tappings at 6 watts, 3 watts and 1 watt, selectable via an external rotary impedance selector switch enabling the impedance to be changed during and after speaker installation.

The lightweight ABS resin enclosure of the TOA CS64 horn speaker is mechanically strong and impact resistant.

The corrosion resistant weatherproof polyurethane resin paint and stainless steel mounting bracket and hardware enable the speaker to be used outdoors.

Water resistant, rated IP64.

  • Warranty: 1 Year
100V IPxx
List Ex VAT: £75.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated Power (rms) 6W (100V line)
Impedance

100 V line : 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
70 V line : 830 Ω (6 W), 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
SPL (1W/1m) 96dB
Frequency Range (-10dB) 130HZ - 13KHZ
Speaker Component 12 cm cone - type dynamic speaker (treated for splash proof)
Material Horn, cover : ABS resin, off - white, paint
Bracket: Stainless steel
Grille : Surface treated steel plate, dark gray powder coating
Screw : Stainless steel
Colour Off-White
Dimensions mm 233 (W) x 224 (H) x 208 (D) mm
Weight (kg) 1.5 kg

DOWNLOADS

TOA CS64, CS154, CS304 Brochure
TOA CS-64 Datasheet

Related Products

TOA SC-610M
TOA SC-610M

Oval, aluminium horn speaker. 10 watts, 70V / 100 volt line.

Water resistant, rated IP65.

see more
List Ex VAT: £65.00
Penton PH10/T
Penton PH10/T

ABS re-entrant horn speaker. 10 watts, 100 volt line.
Water resistant, IP56 rated.

see more
List Ex VAT: £61.13
DNH HP-10(T)
DNH HP-10(T)

Small, lightweight plastic horn speaker. 10 watts, 100 volt line.

Water resistant, rated IP56.

see more
List Ex VAT: £131.00
Penton APH10T/ENC
Penton APH10T/ENC

EN54-24 re-entrant horn speaker. 10 watts, 100 volt line.
Water resistant, IP66 rated.

see more
List Ex VAT: £84.10

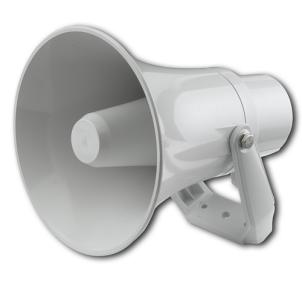

DNH HP-15(T)
