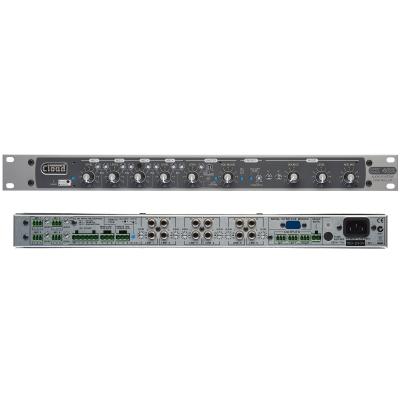

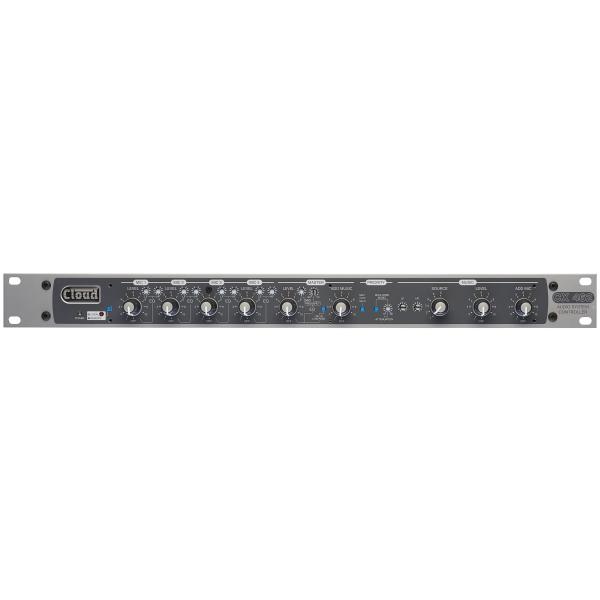

Cloud CX462 Front
Click to expand

Cloud Electronics CX462

The Cloud Electronics CX462 stereo audio mixer with independent music and microphone sections featuring 6 line inputs with preset gain controls in the music section and 4 microphone inputs in the mic section.

Ideal for AV presentations, churches and other places of worship as well as hotels, shops, bars and leisure venues.

  • Independent music and microphone sections
  • 6 line inputs with preset gain controls (music section)
  • Line 6 can be configured for priority (music section)
  • Music level and source selection with remote control
  • HF & LF EQ (music section)
  • Mic signal routable assignable to music section
  • 4 Mic inputs with preset gain
  • Individual HF & LF controls (mic section)
  • Single parametric EQ (mic section)
  • 150 Hz High pass filter
  • Selectable priority for Mic 1
  • Optional CDI-S100 serial interface (RS232)
  • Optional EQ modules
  • Warranty: 5 Years

Download the full
Cloud Electronics Product Catalogue here.

Cloud Electronics Product Brochure



1U
Log in for Trade Prices

Please contact us for availability

CONTACT US

SPECIFICATIONS

LINE INPUTS



Sensitivity

100 mV (-17.8 dBu) to 1.5 V (+6 dBu)

Input Gain Control

24 dB range

Input Impedance

48 kohms

Equalisation

LF: ±10 dB @ 50 Hz, HF: ±10 dB @ 10 kHz

Headroom

 >20 dB

MICROPHONE INPUT



Gain Range

10 dB to 60 dB

Input Impedance

>2 kohms (balanced)

Common Mode Rejection

1 kHz, >70 dB

Headroom

>20 dB

Equalisation

LF: ±10 dB @ 150 Hz, HF: ±10 dB @ 5 kHz

OUTPUTS



Output

0 dBu (775mV) balanced

Minimum Load Impedance

600 ohms

Maximum Output Level

+20 dBu

GENERAL



Power Input

 230 V / 115 V ±10%

Dimensions Net (w x h x d)

482 mm x 44 mm (1U) x 152.5 mm

Weight (Net)

2.5 kg
