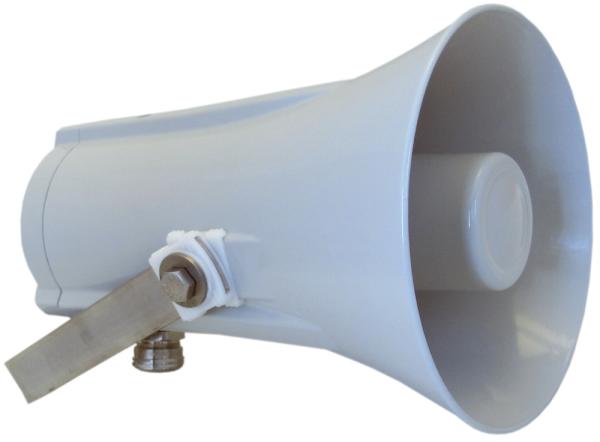

DNH HS-15EExIINT

The DNH HS-15EExIINT is an explosion proof, 15 watt aluminium horn loudspeaker with two M20 blanking plugs as standard.

Ex certified - Suitable for 100 volt line public address sound systems in environments with a potentially explosive atmosphere.

  • Zone 2 Explosion proof
  • Suitable for hazardous areas where explosion is a risk, for example spray booths, oil and gas production facilities

Supplied complete with mounting bracket.

The HS15EExIINT horn is waterproof and weatherproof, water resistant, rated IP67.

Constructed from alumimium alloy.

Warranty: 2 Years



100V IPxx
List Ex VAT: £459.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated Power (rms) 15W
Impedance 100 volt line
Transformer tappings 15W, 7.5W, 4W, 3W, 1.5W, 1W
SPL (1W/1m) 107dB
Max SPL (rated/1m) 118dB
Frequency Range (-10dB) 350HZ - 7500HZ
Dispersion 1K Hz / 4K Hz 140° / 30°
Termination e-chamber, screw terminals
Max. / min. amb. temp 50°C / -50°C
IP Rating IP67
Material / colour Aluminium alloy / RAL7035
Weight (kg) 2.7 kg
Dimensions (Ø x D) mm 163 x 247
Mounting Bracket supplied
