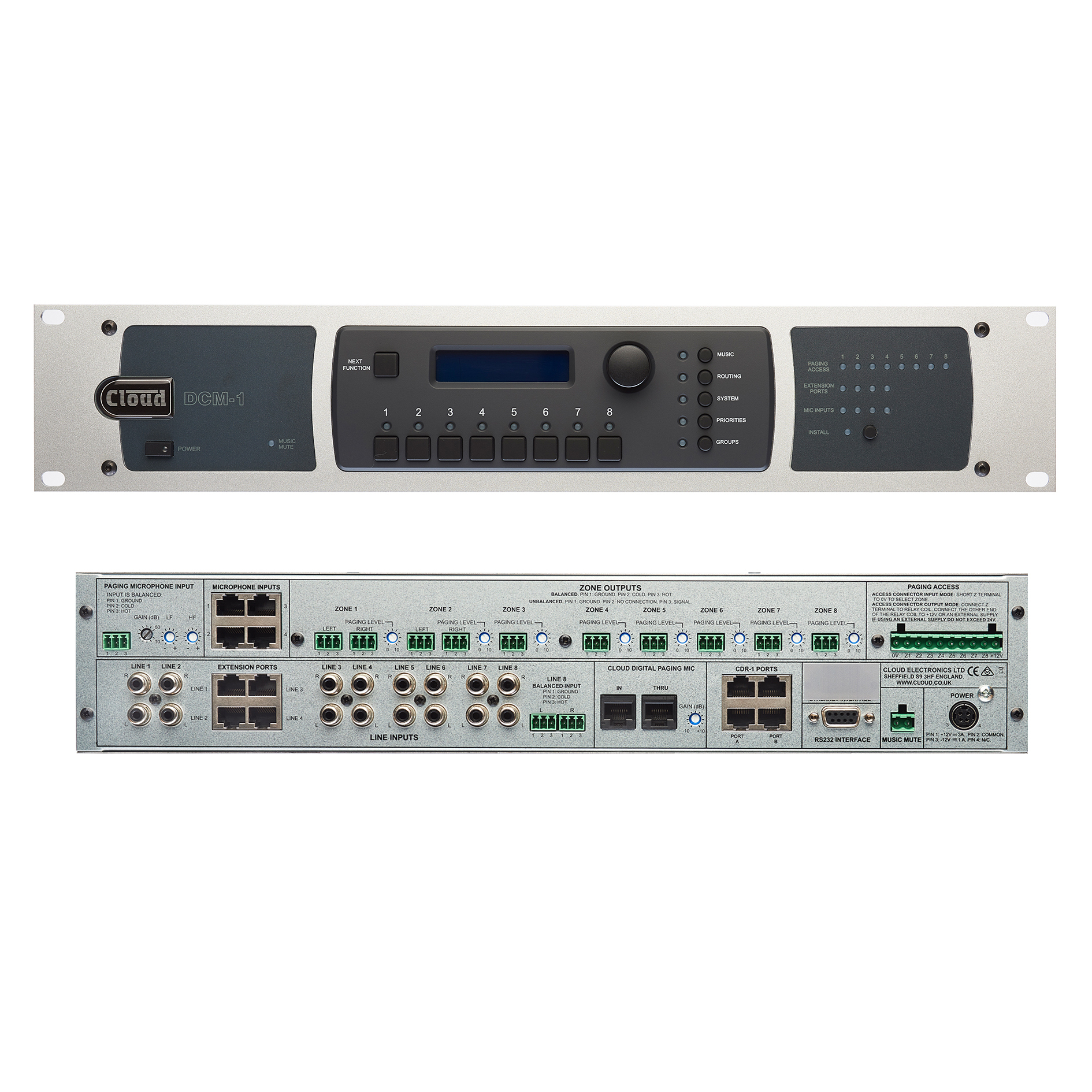

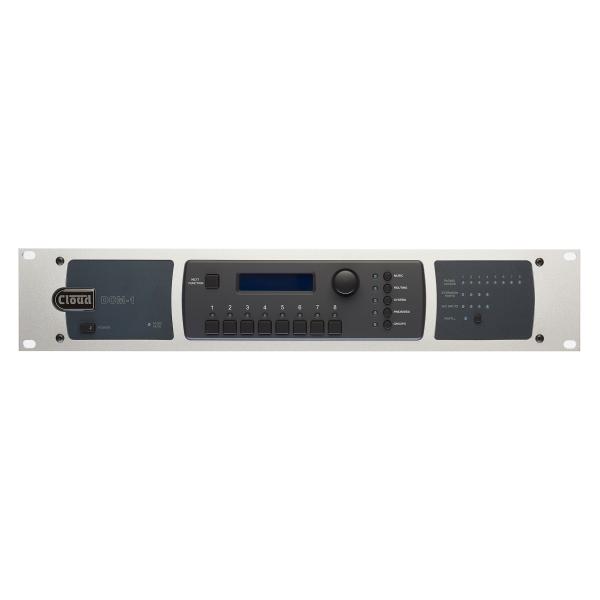

Cloud Electronics DCM1
The Cloud Electronics DCM1 microprocessor controlled multi zoner provides any space-conscious sound installation with a high level of flexibility, but without the need of a PC.
It is ideal for contractors/installers who require flexible routing of line and mic signals.The analogue zoner, with its simple-to-use digital control interface, can be controlled remotely via multiple LCD digital controllers.
Optional active input modules extend the flexibility further, with traditional "installer friendly" analogue I/O and signal path, but giving the contractor the flexibility and adaptability of digital control.The traditional simplicity of Cloud products, with far greater functionality.
- 8 stereo line inputs (1 balanced)
- 8 balanced line outputs (2 stereo + 6 mono)
- 4 dedicated ports for optional remote line input modules
- 4 dedicated ports for optional remote mic input modules
- Mic paging to all zones with fully programmable override logic
- Separate analogue paging mic input with contact closure zone selection
- Separate RJ45 interface for CDPM Series digital paging microphones
- Supports multiple CDR‑1 Remote Controls (optional) in any wiring configuration
- CDR‑1 provides local control of source, level, EQ and group enable
- 2 x 16 character LCD dot-matrix display (both DCM‑1 and CDR‑1)
- 4 definable zone groups
- Any line input may have priority in any zone; operation also configurable per-zone
- Key-protected Installer mode (both DCM‑1 and CDR‑1) prevents user access to configuration menus
- Inputs, zones and groups can be named RS232 interface for control by third-party control systems
- Front-panel LEDs confirm remote access
- Accepts BoseEQ cards
- No PC required
- Multiple DCM‑1s may be cascaded for larger systems
- External Music Mute input for interfacing with emergency systems
- Any input (mic or line) may be assigned as Emergency Input, overriding Music Mute
- 2U 19" rack-mounting unit
- Warranty: 5 Years
|
