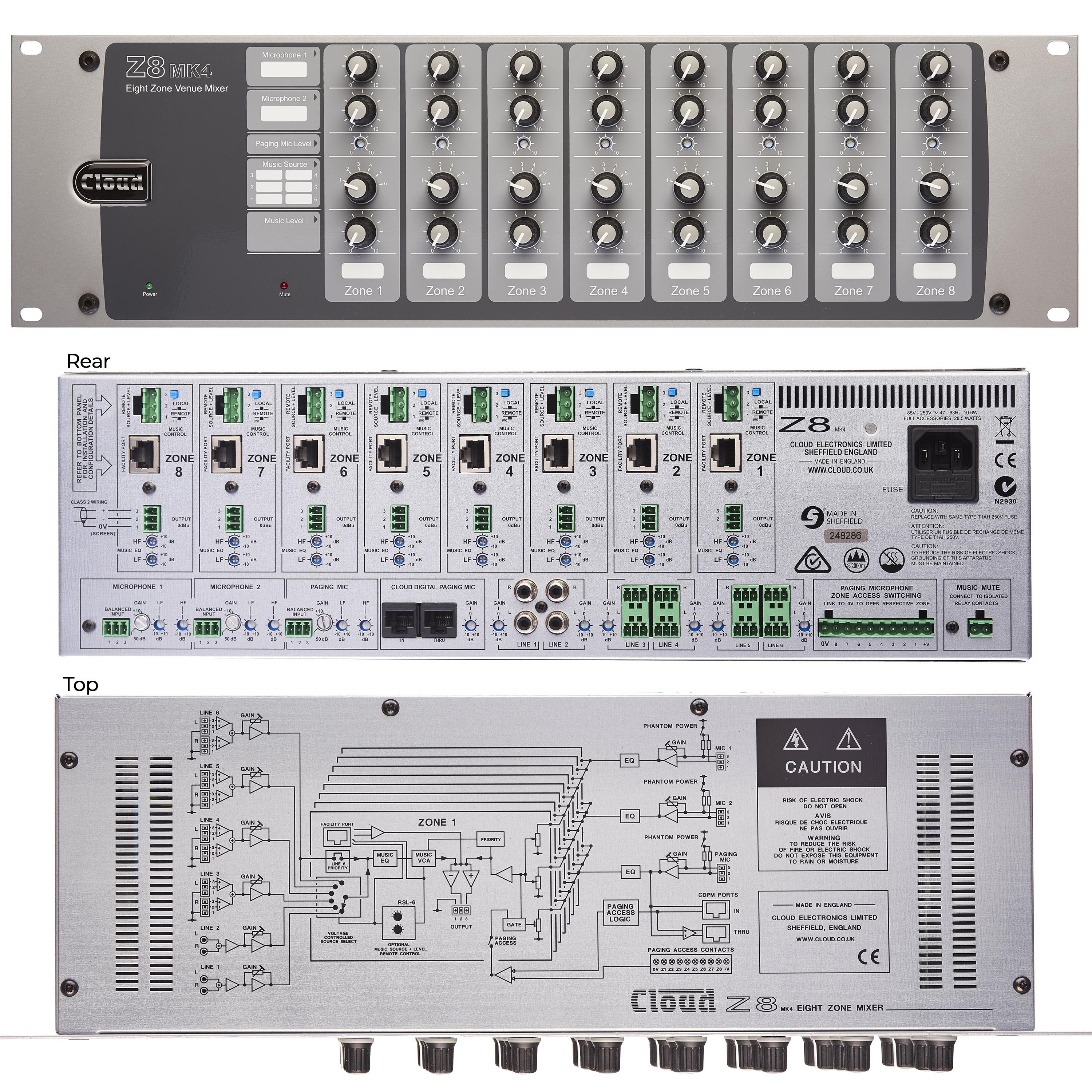

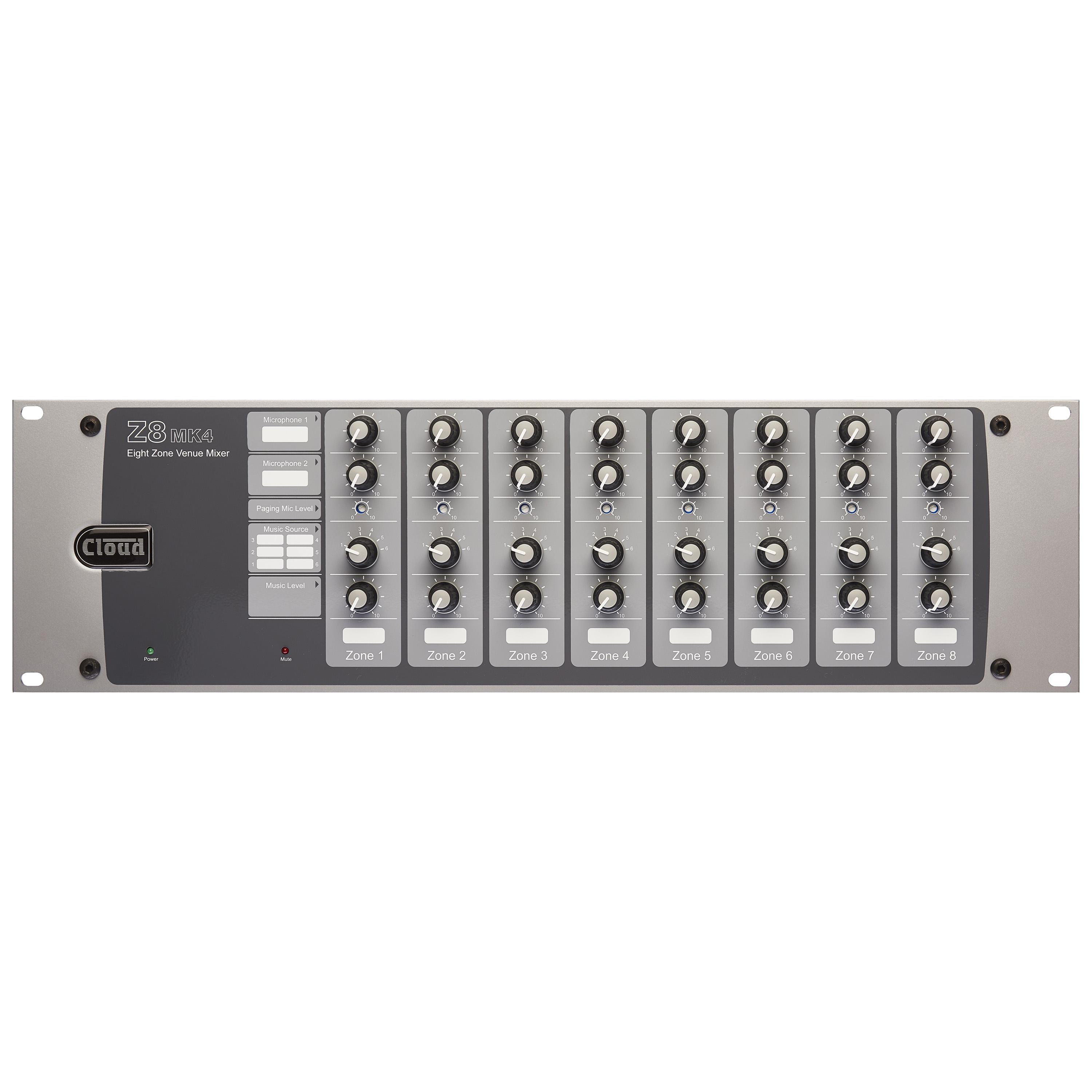

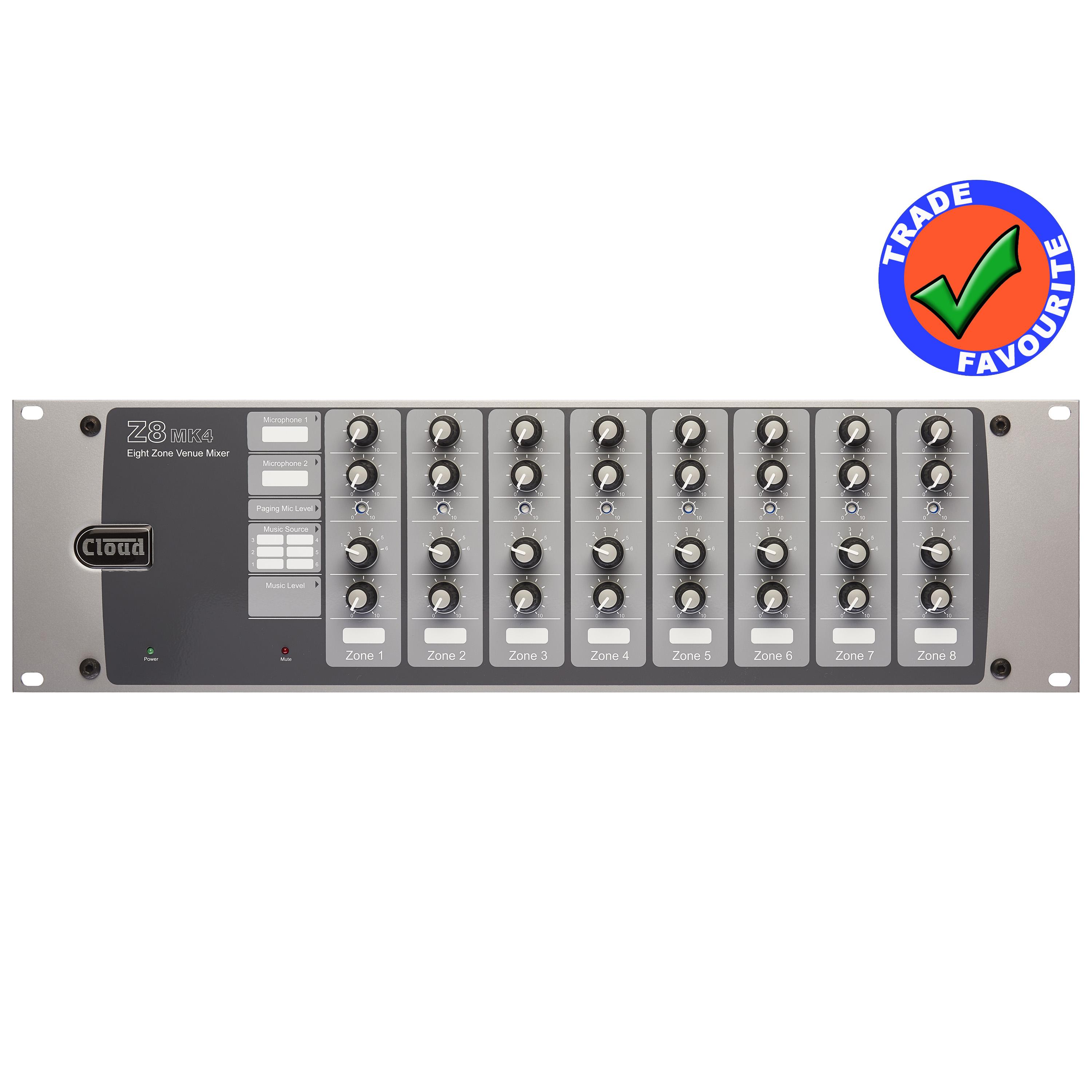

Cloud Electronics Z8mk4
The Cloud Electronics Z8mk4 8 zone venue mixer, one of our favourite products, offers direct connection of up to six music sources, two microphones and a paging mic, all of which can be selected to operate in up to eight different output zones, in any combination.
This latest upgrade benefits from the following new features:
- NEW Digital Paging Interface for PM Paging Mics with IN/THRU Connections for Multi Mixer Configuration
- NEW Uprated digital Switch Mode Power Supply (600mA Input to support optional accessories such as EQ cards and external devices such as LM-2 Line/Mic/Remote Mixer Modules and Paging Consoles
- NEW Lines 1-6 now 2 x Unbalanced on PHONO + 4 x Balanced on Phoenix 3pin 3.5mm connectors
- NEW Universal Power Supply (85-254v) allows the Z4MK4 to be installed anywhere in the world, regardless of mains supply
The RJ45 connectors enable easier wiring of the NEW LM-2 or LM-2A Active Facility Input Plates and the Mic Input Sockets have been changed from XLR to Phoenix style connectors.
The Cloud Z4MK4 is the ideal multi-zone, multi function zoned audio mixer for your venue offering a user friendly master control for the complete sound system.
Accepts input sources such as MP3, Hardisc, CD, Video, Satellite etc, and connecting an LM-2 or LM-2A active module further extends the versatility.
- 8 Zone Mono Mixer
- Optional Paging Mic with Chime (PM-4 or PM-8)
- Optional Paging & Message Announcer (PM-4SA or PM-8SA)
- 6 Line Inputs with Preset Gain Controls
- Line 6 priority, can be selected on a Zone by Zone basis
- Optional Facility input plates on all zones (LM-2/A, B&W) Now using RJ-45 Connectors for Cat-5 Screened Cabling
- Zone Music Level and Source Selection via RSL-6/A (B&W) or RL-1/A (B&W) Wall Remotes
- 2 Mic Inputs with Volume Controls
- Input for Paging Mic with Priority and Zone Selection
- Separate EQ for Mic and Music
- All Mics have Priority over Music
- Fire Alarm “Music Mute” Interface
- Optional custom equalizer modules for various loudspeakers brands can be fitted to any independent zone
- Warranty: 5 Years
|
Click here to download the full |
 |
