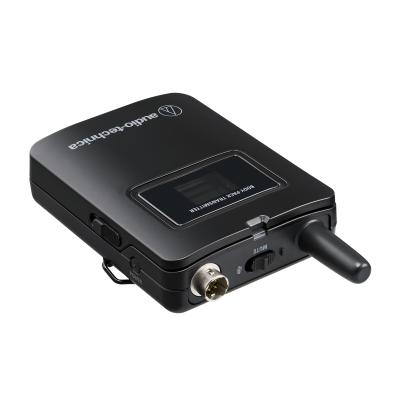

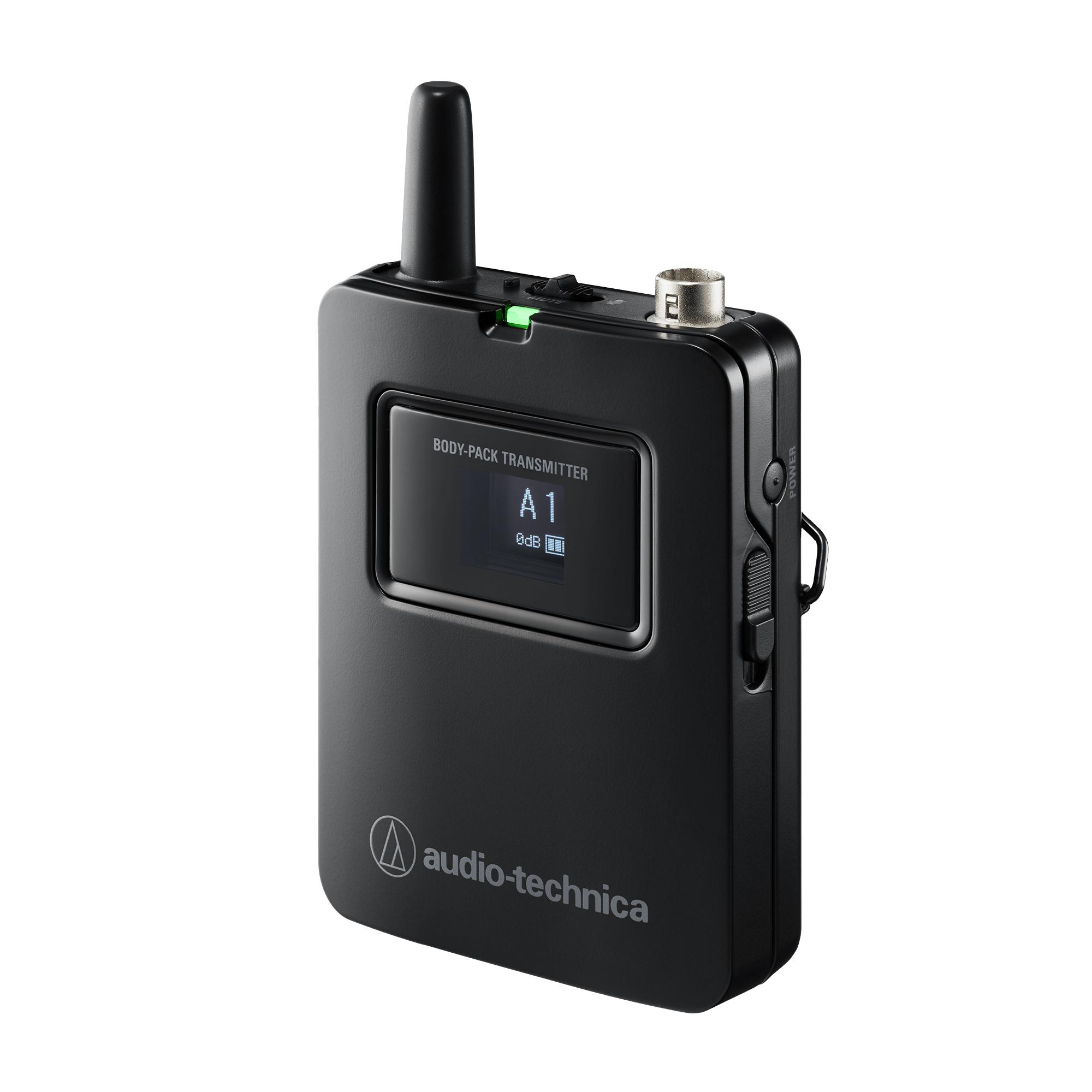

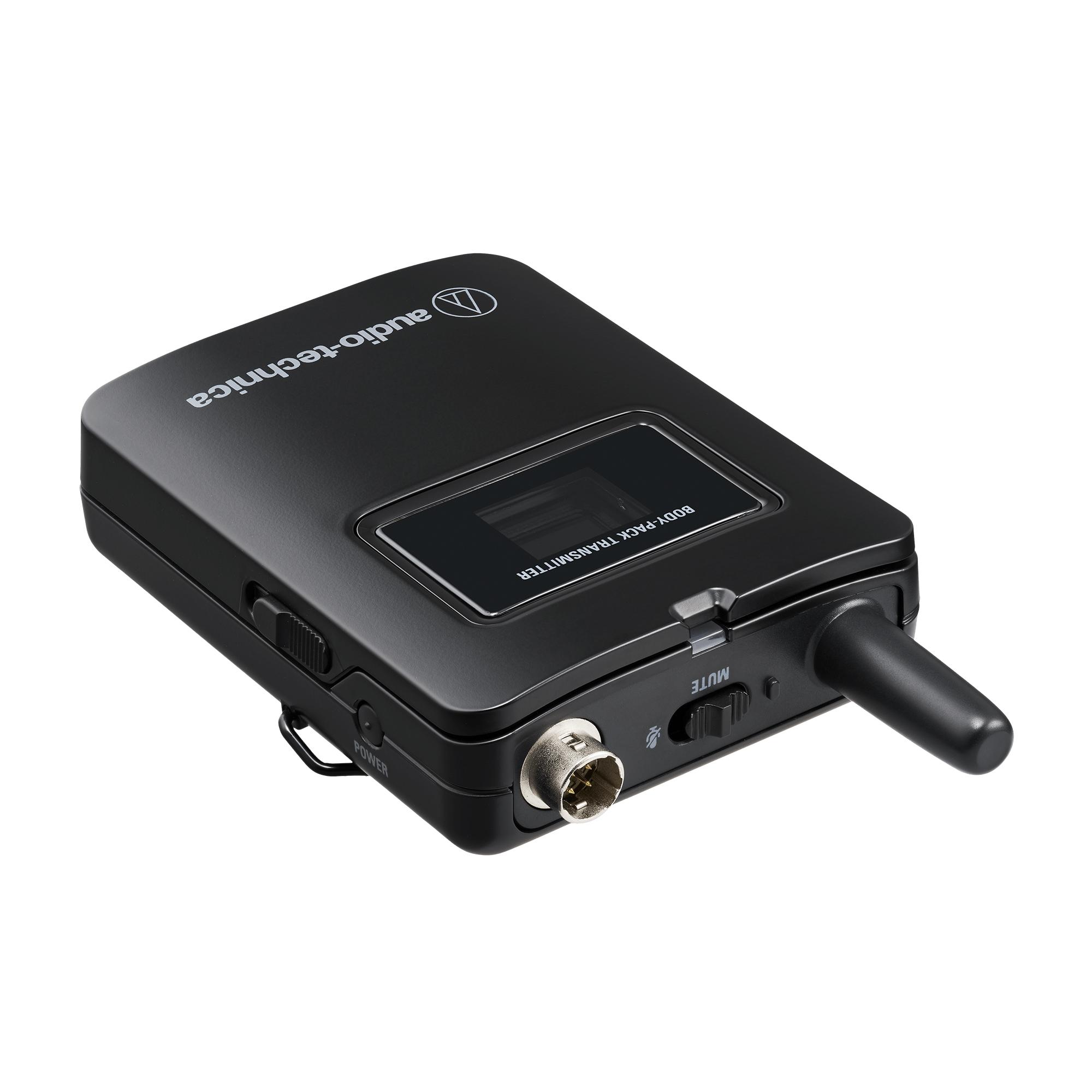

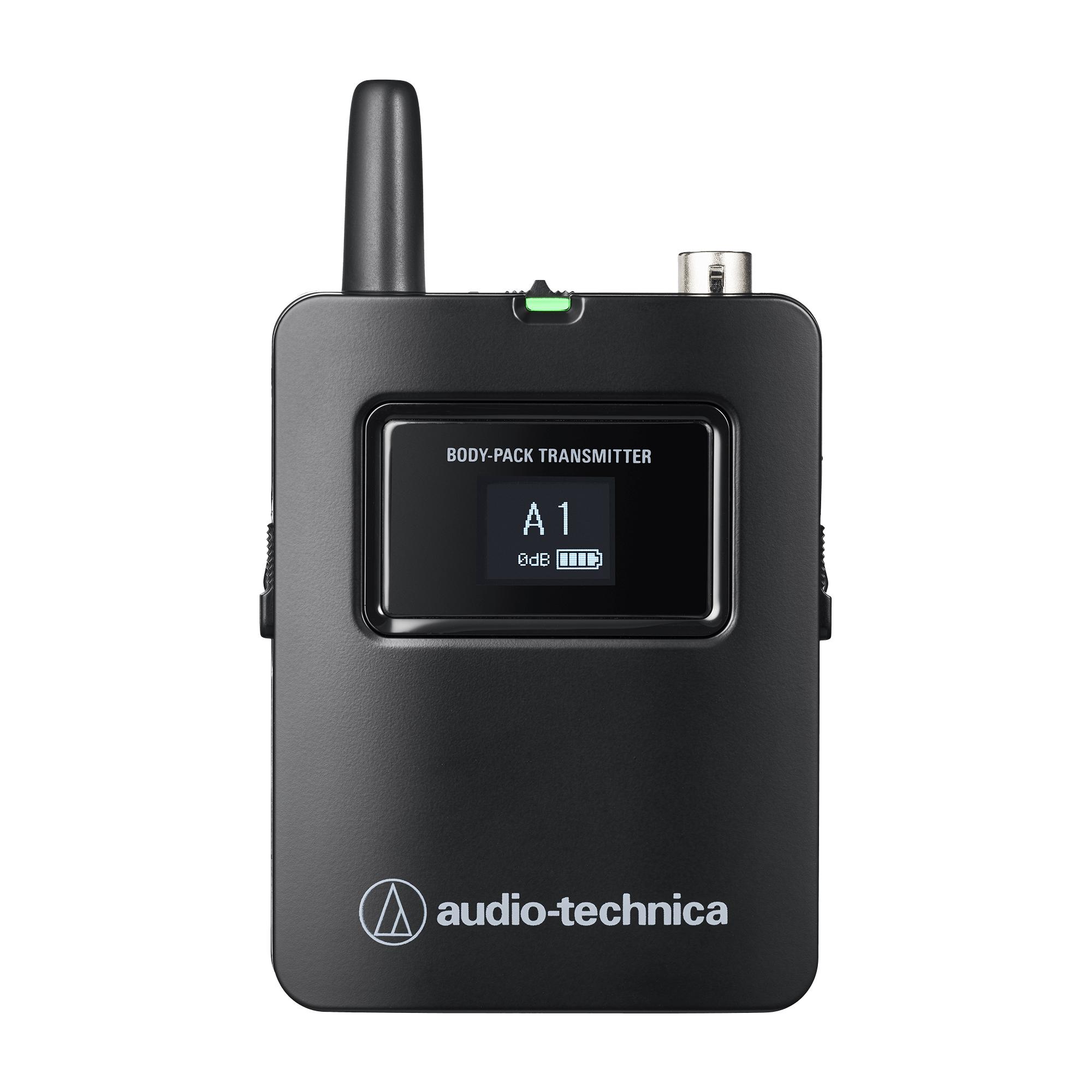

Audio Technica ATW-T1401
The Audio Technica ATW-T1401 wireless microphone bodypack transmitter is part of the System 20 Pro Series of wireless mic systems operating in the 2.4 GHz range, licence free and totally TV interference free too.

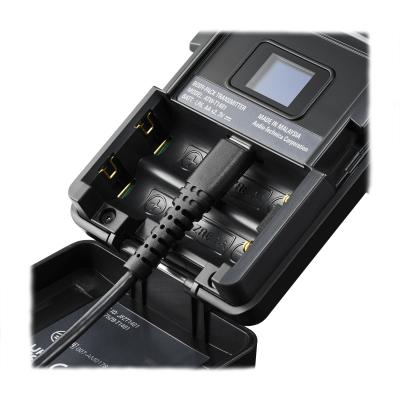

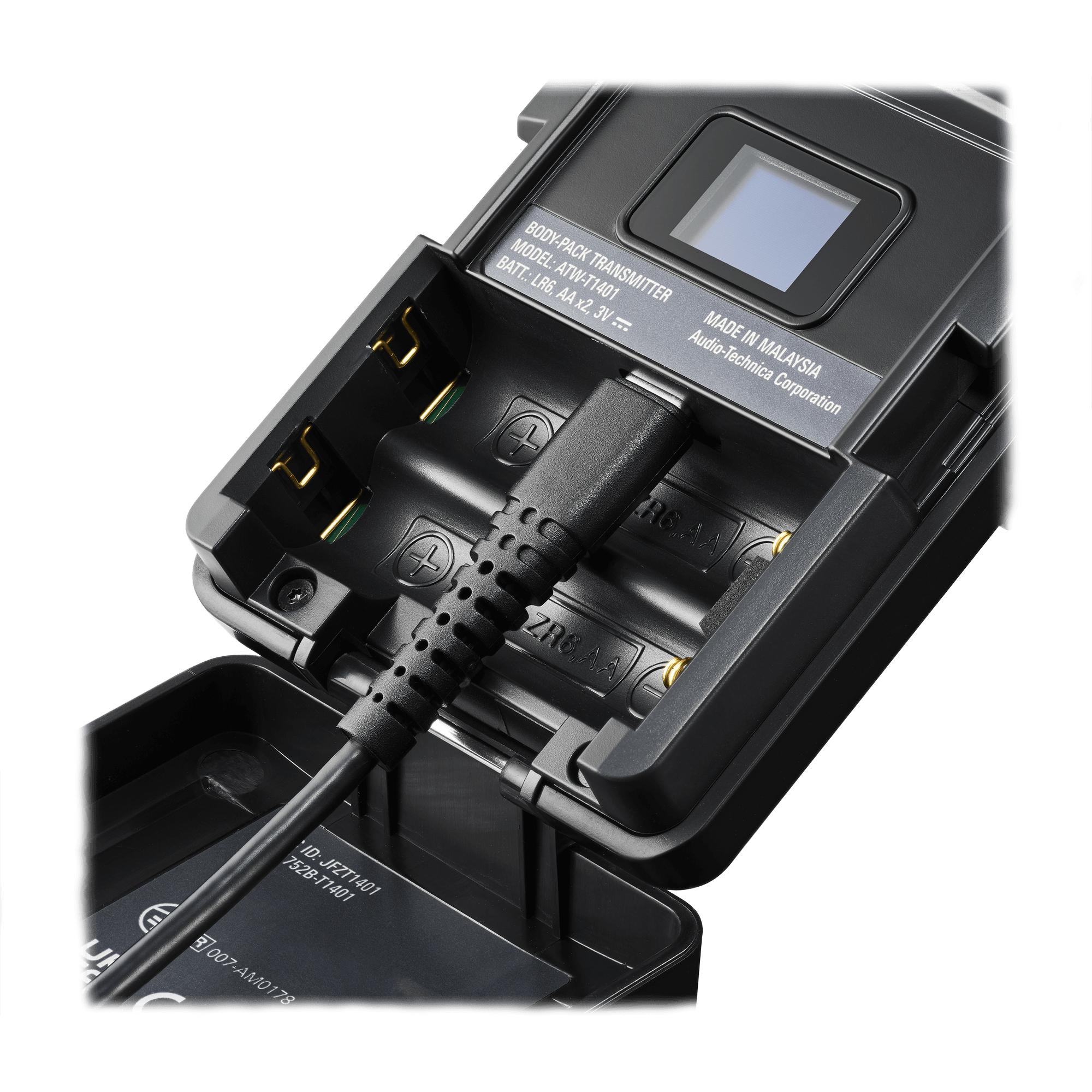

The beltpack is powered by 2 alkaline, NiMH or Lithium AA batteries (not supplied) with an approximate run time of up to 15 hours, 14.5 hours or 29 hours respectively.
When using NiMH batteries, a dual port charging bay is also available which enables charging of up to two handheld or bodypack transmitters simultaneously – see ATW-CHG3.
- Two antennas built into the transmitter
- High sound quality (24-bit/48 kHz)
- Compatible with NiMH batteries for all-day use
- Slide-to-mute switch

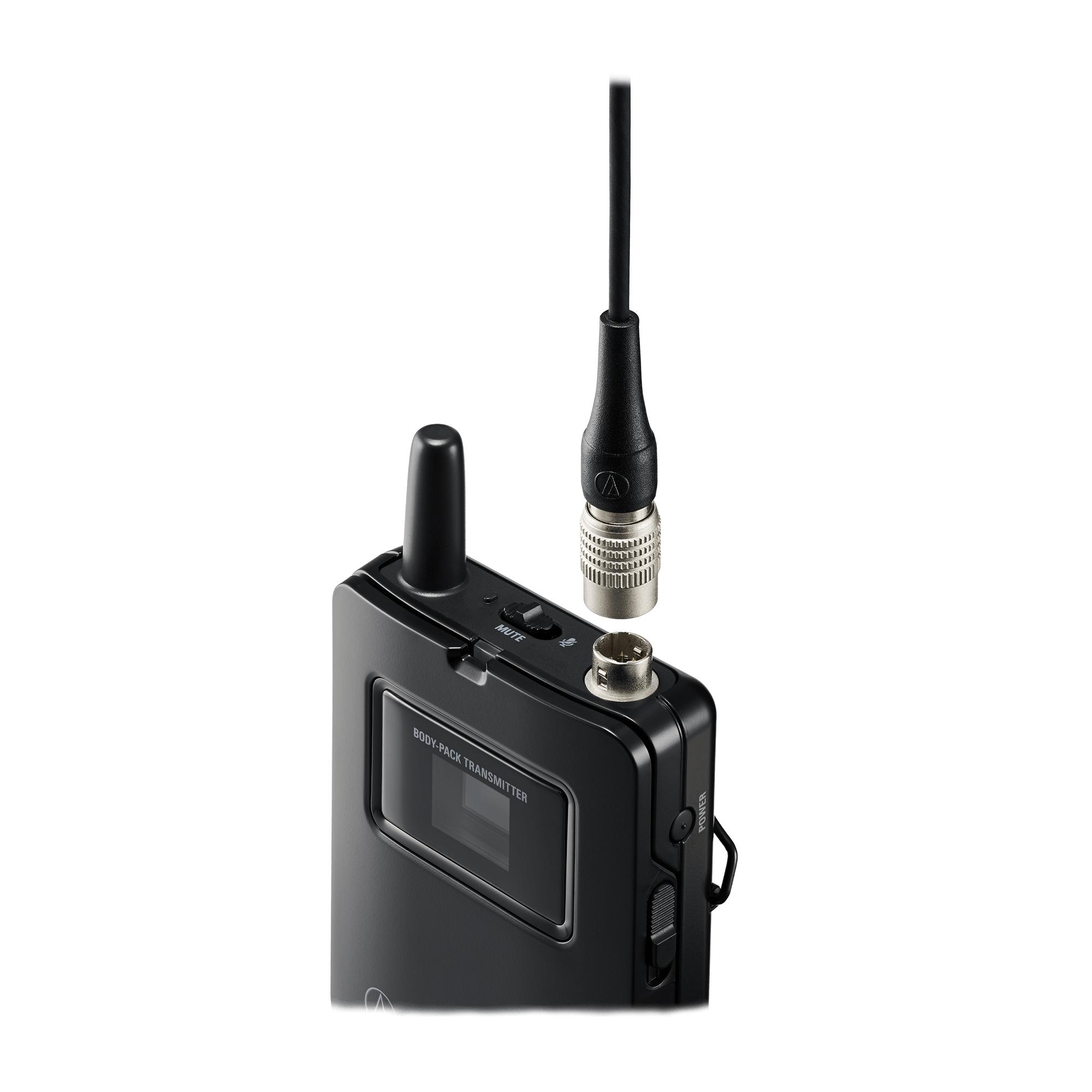

- Water- and sweat-resistant cW-style locking 4-pin connector for use with a variety of Audio-Technica microphones
- OLED display
- Warranty: 2 Years
Building on the success of the System 10 PRO 2.4 GHz wireless microphone systems, Audio Technica now offer System 20 PRO with a self-managing, plug-and-play 2.4 GHz system that’s scalable to 20 channels and delivers the same dependable, high-quality audio.
Capable of receiving up to four transmitters, the System 20 Pro ATW-R1440 receiver makes installation a breeze. Receiver units can remain docked in the half-rack chassis or be mounted remotely (up to 328 feet away) via Ethernet cable for added versatility. Up to five chassis can be linked using the included RJ12 cable, creating a stable, multichannel system with the simultaneous use of up to 20 channels. But the user is always free to choose the most effective operation mode for a given situation: Standard mode (10 channels) to minimise latency or HD mode (20 channels) to maximise channel count.
Audio-Technica’s Wireless Manager software enables seamless setup & management of multiple UHF, 2.4 GHz and DECT wireless systems from a single screen. In addition, AES128 encryption comes standard, providing security and reliable operation.
If purchasing a complete system, the transmitters are paired and ready to use out of the box and offer all-day operation on a full charge.
- Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
- Plug-and-play operation in the 2.4 GHz range – completely free from TV interference
- User can switch between Standard mode (10 channels) and HD mode (20 channels) to minimise latency or maximise channel count, respectively
- Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
- Up to five chassis can be linked and used simultaneously
- Each receiver channel can be paired with up to four transmitters, allowing users to instantly switch between different transmitter configurations
- Chassis’ System ID Display shows RF signal level, system ID, transmitter battery level, and system link status
- Each half-rack receiver chassis comes with a short and a long rack ear, and two long ears can be combined as a joining plate to secure two chassis in a full rack space
- Compatible with Audio-Technica’s Wireless Manager software for centralised management of system settings and operations
- Auto-lock function prevents unintended operations like turning off the power or displaying the channel select screen
- AES128 encryption for security
- Compatible with Syslog protocol
- Ability to configure, monitor, and save device settings as projects in
- Wireless Manager
- Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
- Water- and sweat-resistant cW-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cW-style locking 4-pin connector
- Charging terminals on body-pack and handheld transmitters work with ATW-CHG3/ATW-CHG3a and ATW-CHG3N/ATW-CHG3Na charging docks to recharge NiMH batteries
- Supports mixed output for situations with limited input channels
