Cloud CVS-P62TB Suspended Pendant Loudspeaker
Click to expand

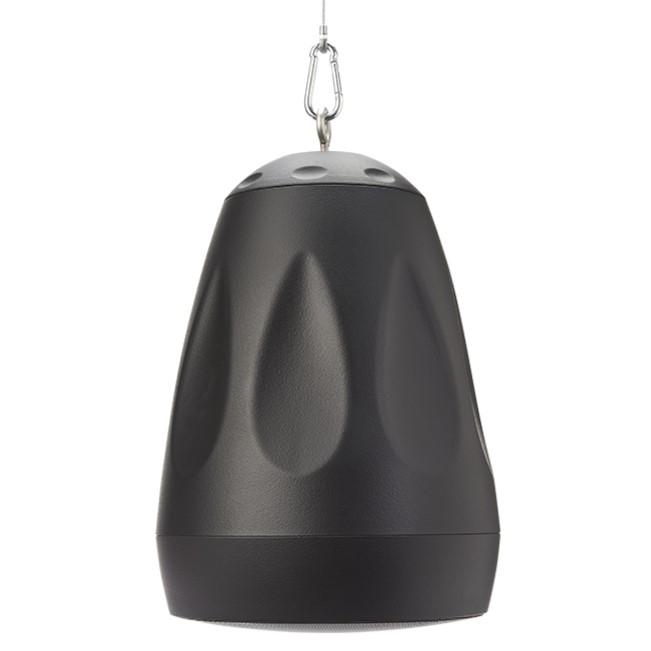

Cloud Electronics CVS-P62TB

The Cloud Electronics CVS-P62TB pendant speaker is one of our favourite products. It’s rated at 20 watts and suitable for both 25/70/100 volt line and low impedance (8 ohms). Black finish.

This smart and stylish suspended speaker offers a 360° horizontal dispersion ideal for speech as well high quality music reproduction.

The CVSP62TB uses a 6½” LF polypropylene driver with a soft rubber surround and a 1” diameter aluminium dome tweeter. The coaxial design gives a pleasing music performance and high speech intelligibility.

There is a rotary switch on the top of the enclosure to select one of five power tappings and connections are made via a 4-pin “Euroblock” connector; a mating connector is supplied. This is all protected by a separate top cover after installation.

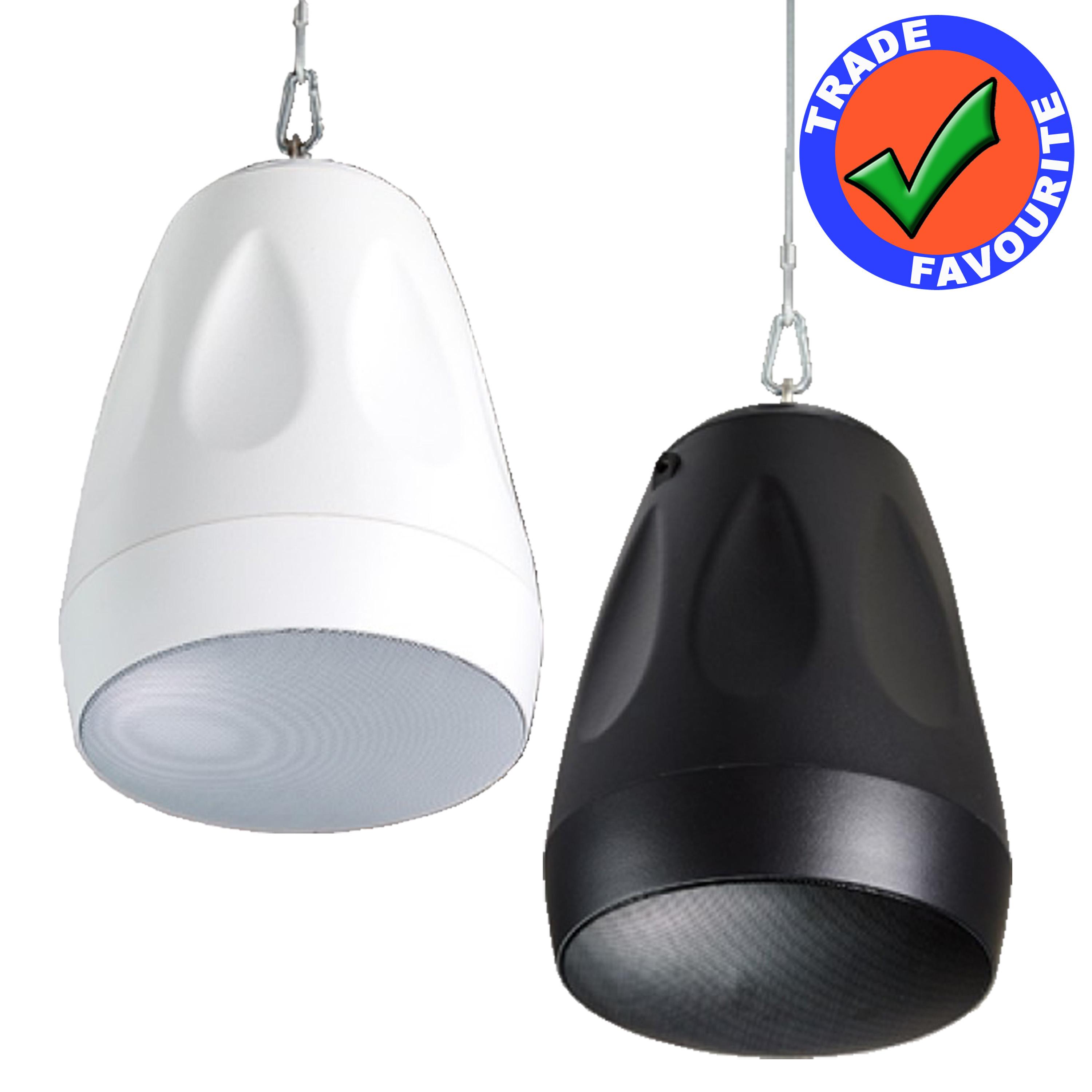

Available in black (CVS-P62TB) or white (CVS-P62TW).

Also available in a smaller 4½” version – see CVS-P42T.

Warranty: 2 Years

Download the full
Cloud Electronics Product Catalogue here.

Cloud Electronics Product Brochure
1a: 100V 1e: 8ohms
Log in for Trade Prices

Please contact us for availability

CONTACT US

SPECIFICATIONS

Nominal driver diameter

6½”

Type

2-way coaxial

Tweeter design

1” aluminium dome

Woofer design

6½” polypropylene cone, with soft rubber surround

Frequency Response (-3 dB)

90 Hz – 20 kHz

Frequency Response (-10 dB)

75 Hz – 20 kHz

Crossover frequency

5 kHz

Driver impedance

8 ohms

Sensitivity (1 W @ 1m)

88 dBA

Power rating

20 W

Max power input

40 W

Grille type

Painted aluminium

Dimensions



Bottom diameter

20.5 cm (11.6”)

Top diameter

12 cm (4.7”)

Height

29.5 cm (11.6”)

Net weight

1.4 kg (3.14 lb)
