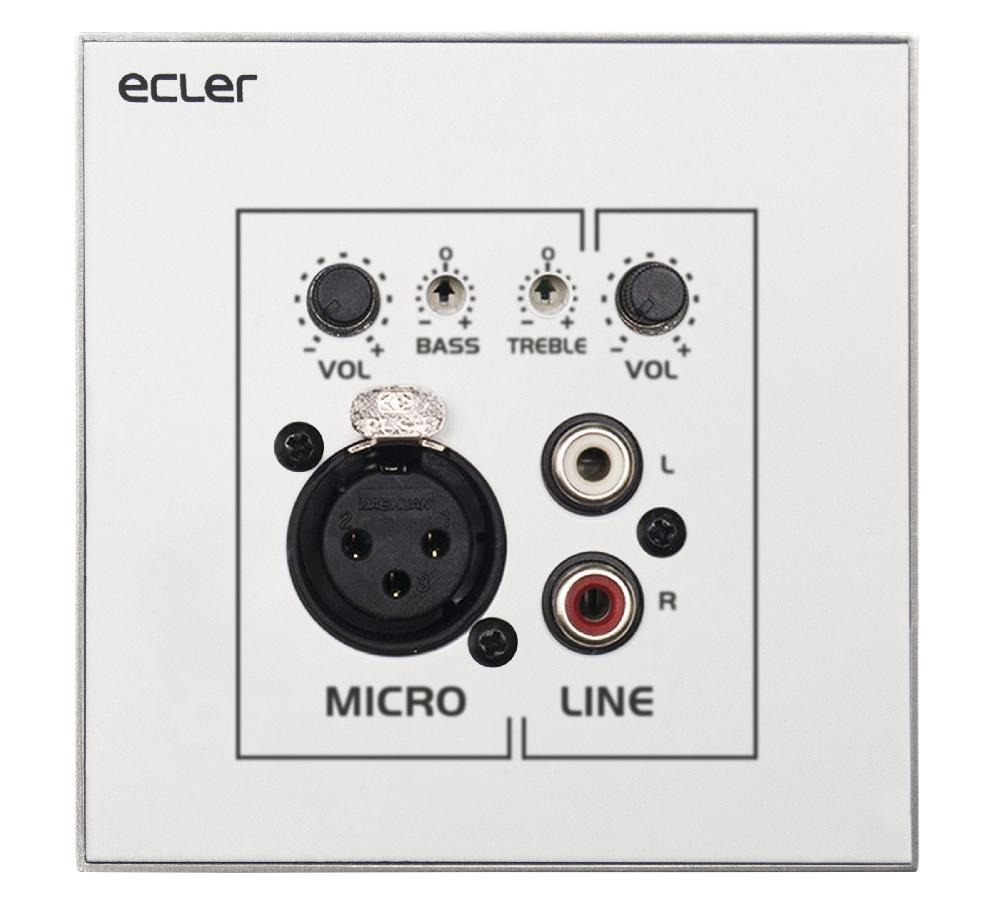

Ecler WPaMIX-T
The ECLER WPaMIX-T is a 2 channel micro-mixer compatible with the eMCONTROL1 wall panel and HUB1408 / HUB1616 mixers.
It enables the user to mix a stereo unbalanced signal (2 x RCA) with a microphone signal (XLR), getting a balanced mono output that can be sent to a preamplifier, amplifier, mixer, digital or analogue matrix, etc., thus saving inputs in the receiver device.
The MIC input includes a 2 band EQ (BASS, TREBLE) and it can use the talk-over function to override the line signal when the microphone exceeds the talk-over detection threshold.
Beautifully designed in collaboration with Italdesign Giugiaro.
Key Features
- Unbalanced stereo line input (2 x RCA)
- Balanced microphone input with BASS and TREBLE controls and selectable Phantom power
- Independent volume controls for LINE and MIC inputs
- Talk-over function available (MIC over LINE)
- External Power Supply Unit required (12 to 17 VDC). Suggested ECLER PSU unit: WPPSU (a single WPPSU unit can feed up to 20 WPaMIX-T units, depending on cable runs and sections)
- It can be combined with an eMCONTROL1 to work as a remote audio input for eMIMO1616 digital matrix
- Warranty: 5 Years.
Applications
- Remote audio sources connection, mixing 2 inputs into a single balanced mono LINE output
 |
