DNH BP-361ST-MED

DNH BP-361ST-MED

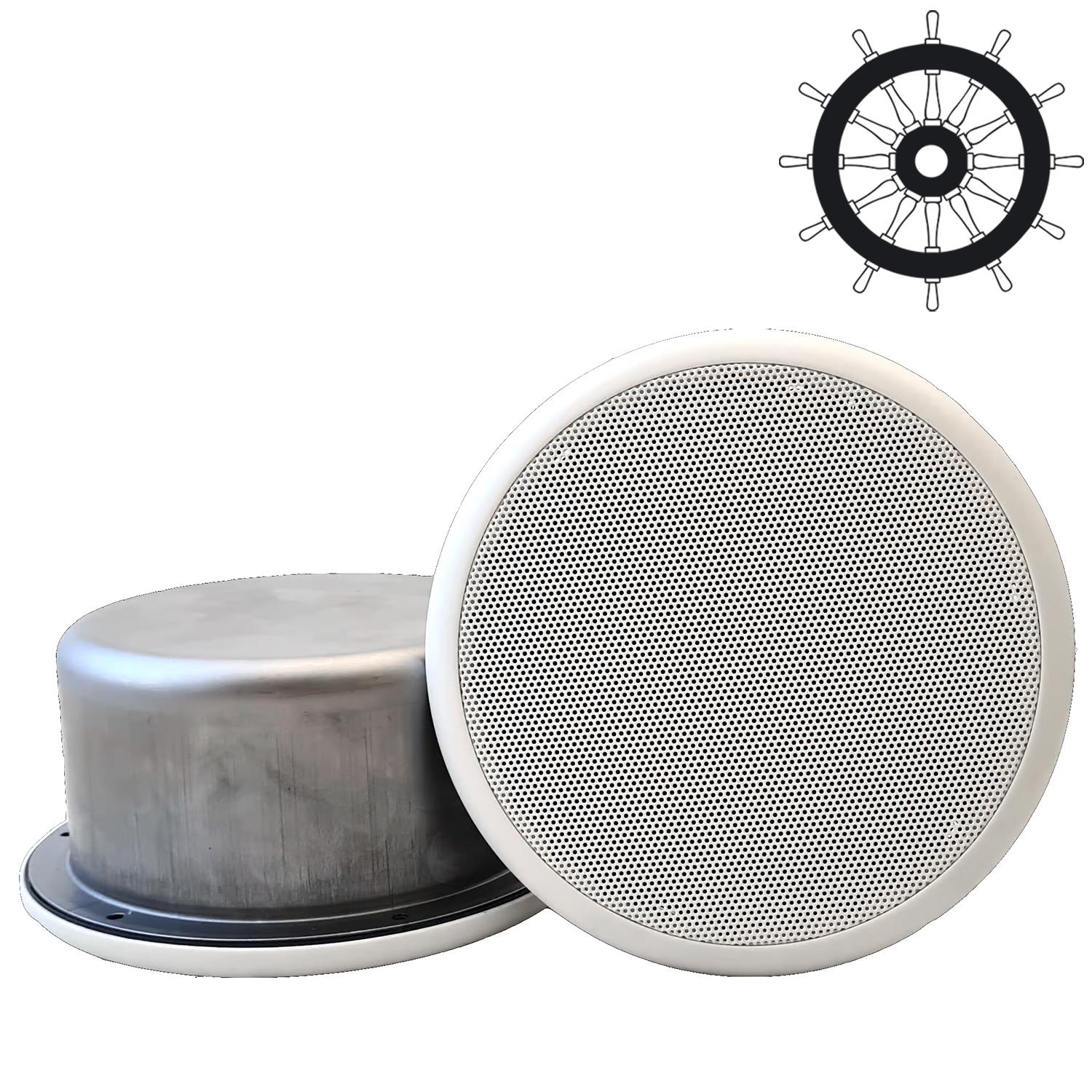

The DNH BP-361ST-MED is a 5", 6 watt ceiling loudspeaker with steel firedome and ceramic terminal block. For 70/100 volt line distributed sound systems only.

Compliant with the Marine Equipment Directive 2014/90/EU standard for Safety of Life at Sea (SOLAS) Maritime applications.

Ideal for interior areas onboard ships and yachts etc.

Secure fitting with 4-6 screws. Clip on ABS grille.

The wide frequency range of the BP-361ST-MED makes it versatile enough for most installations including speech and background music.

Warranty: 2 Years

100V MED
List Ex VAT: £79.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated Power (rms) 6W
Power Taps @ 70.7/100V 6W, 3W, 1.5W & 0.5W
SPL (1W/1m) 90dB
Max SPL (rated/1m) 97dB
Frequency Range (-10dB) 150HZ - 20KHZ
Termination Ceramic terminal block
Max. / min. amb. temp 90°C / -20°C
Material ABS - Aluminium - Steel 316
Colour White (RAL9010)
Weight (kg) 0.52 kg
Dimensions mm (dia x D) 162 x 79
Mounting Screws

DOWNLOADS

DNH BP-361-ST MED Datasheet
DNH BP-361-ST MED Compliance Certificate
