DNH SAFE-561IPT-MED

DNH SAFE-561IPT-MED

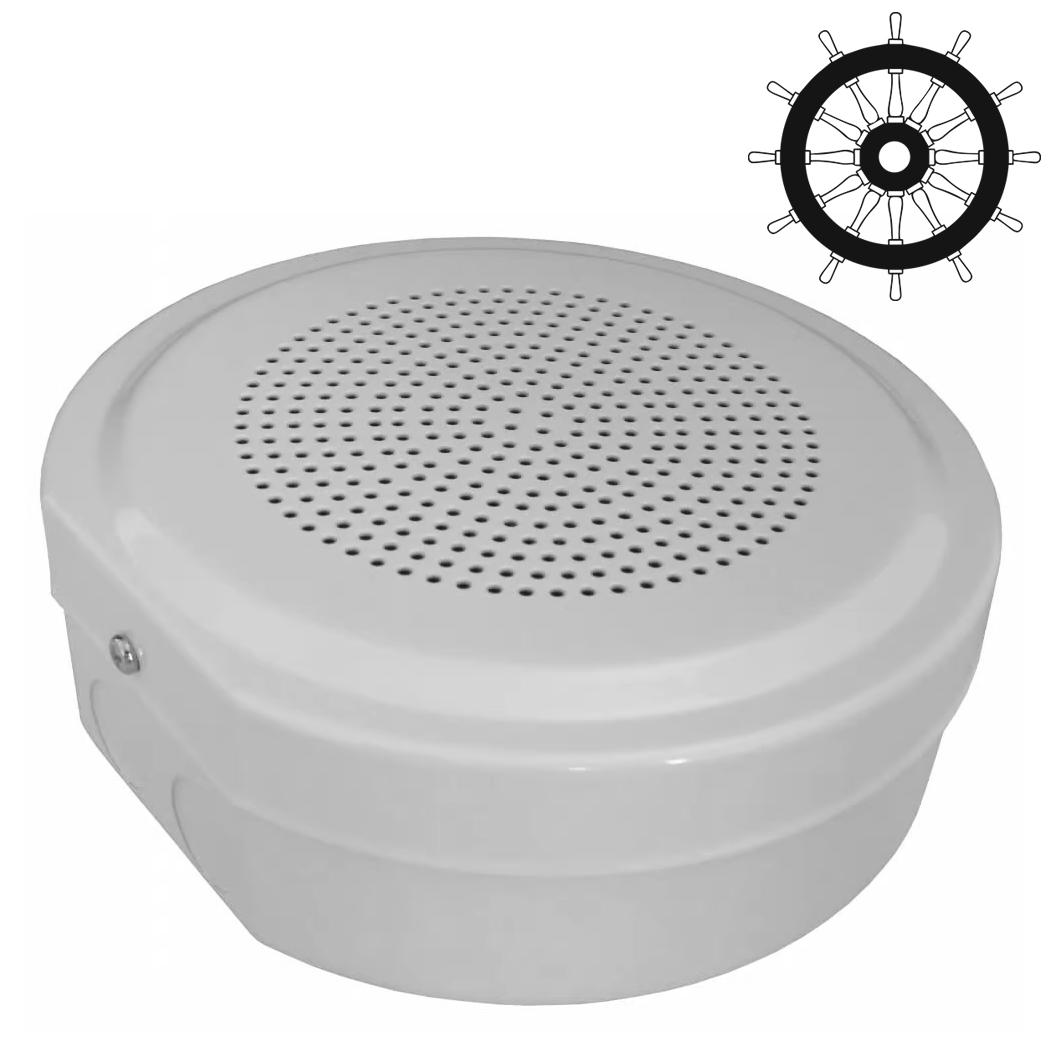

The DNH SAFE-561IPT-MED is a circular cabinet loudspeaker for voice alarm & maritime applications.

It's rated at 6 watts, 70/100V line and is certified to BS5839 Part 8 for voice alarm emergency broadcasting for fire detection and fire alarm systems in buildings and ships.

Compliant with the Marine Equipment Directive 2014/90/EU standard for Safety of Life at Sea (SOLAS) Maritime applications.

Water resistant, rated IP55.

Contructed from steel and fitted with a ceramic terminal blck and thermal fuse.

Can be glanded for side entry or into the rear of the unit for discreet cabling.

Warranty: 2 Years.

100V IP55 MED
List Ex VAT: £162.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated Power (rms) 6W
Power Taps @ 100V 6W, 3W, 1.5W, 0.5W
SPL (1W/1m) 90dB
Max SPL (rated/1m) 97dB
Frequency Range (-10dB) 180HZ - 13KHZ
Dispersion 1K Hz / 4K Hz 187° / 77°
Termination Ceramic terminal
Max. / min. amb. temp 90°C / -40°C
IP Rating IP55
Material Steel
Colour White (RAL9010)
Weight (kg) 1.3kg
Dimensions (H x W x D) mm 169 dia x 65
Mounting 4 screws

DOWNLOADS

DNH SAFE-561IPT-MED datasheet
DNH SAFE-561IPT MED Compliance Certificate
