DACS Install RJ45 LINK 02/VOL

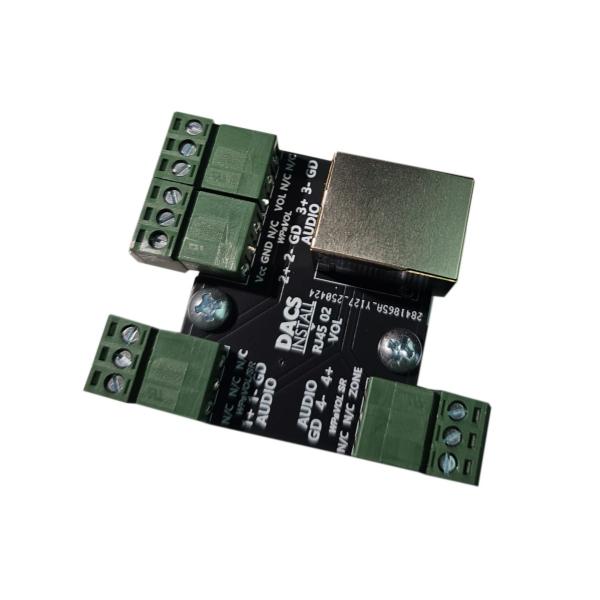

The DACS Install RJ45 LINK 02/VOL enables the transmission of 4 balanced audio lines via one CAT5/6 cable.

The use of screened cable is recommended but connection without is quite robust.

The pin out matches CATCore’s configuration (for T568A and B wiring) so these can act as breakout for SMD stage boxes and UP55 wall plates.

The RJ45 LINK 02/VOL can also be used with an Ecler WPaVOL/SR; all the necessary connections are clearly labelled. A single FST cable connects to a GPI port (Vcc, 0V and VOL or Source). For connecting both Vol and Source, you would use two FST, with Vcc and 0V commoned.

The DACS Install RJ45 LINK 02/VOL measures just 44.5mm x 36.5mm and is manufactured in the UK by DACS Audio.

Please contact us for availability

DOWNLOADS

DACS Install BALTIC & RJ45 02 Example of Use 1

DACS Install BALTIC & RJ45 02 Example of Use 2

Related Products

DACS Install MIX

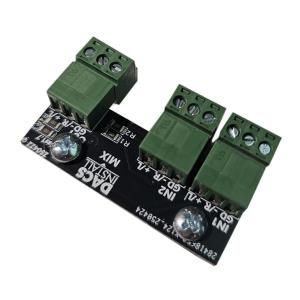

Interface for passive mixing of a balanced stereo signal into a single balanced output.

DACS Install SPLIT

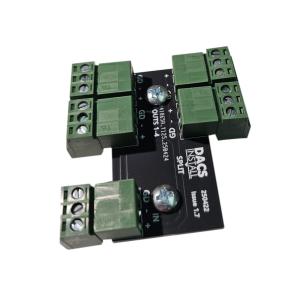

Interface for passive splitting of 1 balanced input to 4 balanced outputs.

DACS Install BALTIC

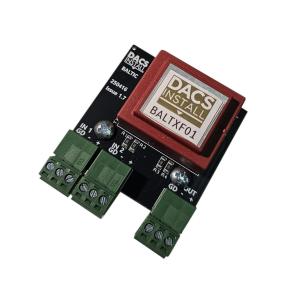

Interface for passive mixing of 2 balanced inputs to 1 mono output.

DACS Install RJ45 LINK 01/BT

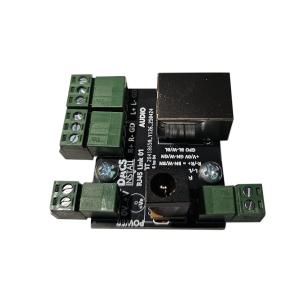

Interface for the Ecler WPaBT Bluetooth receiver. Makes all necessary connections over a single CAT 5/6.
