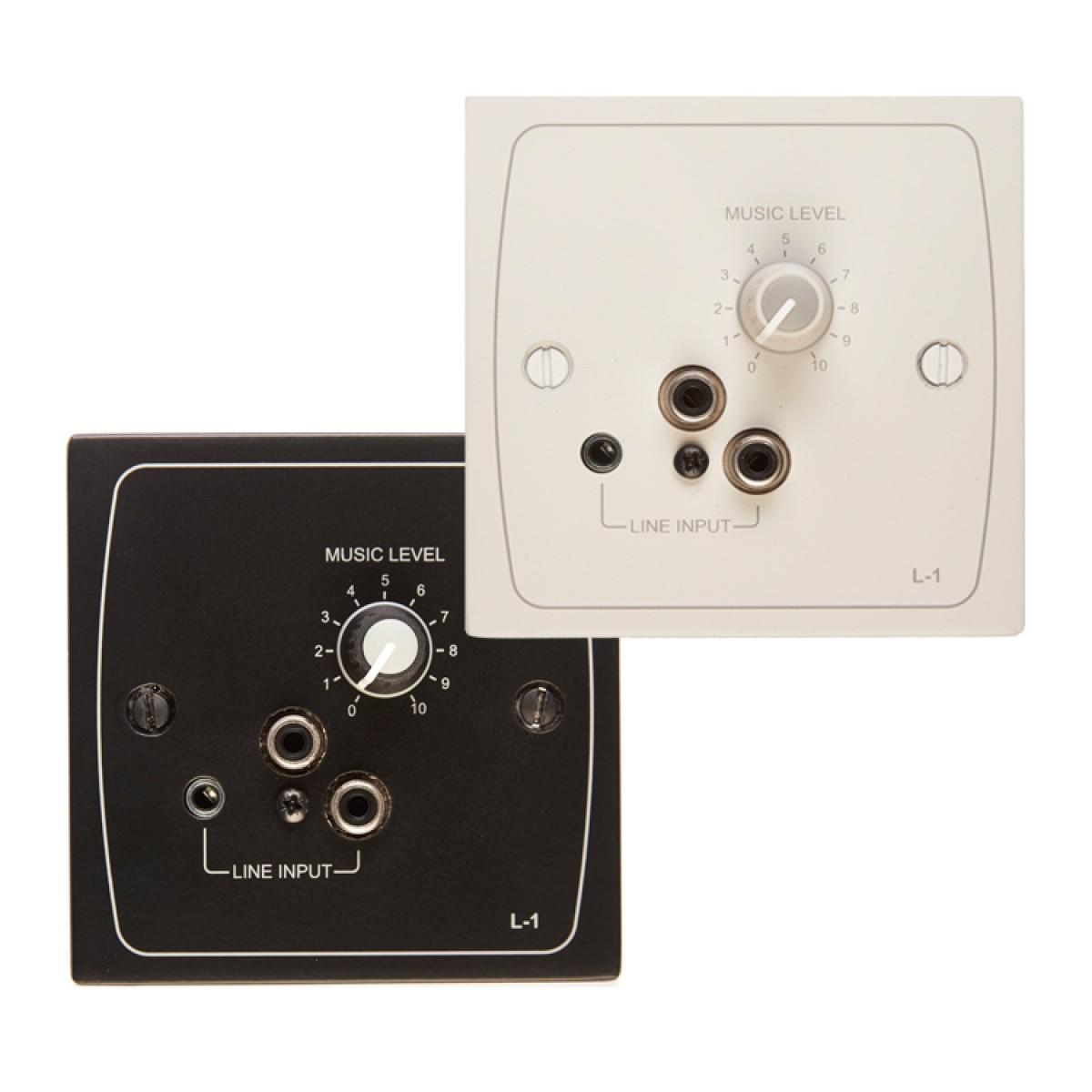

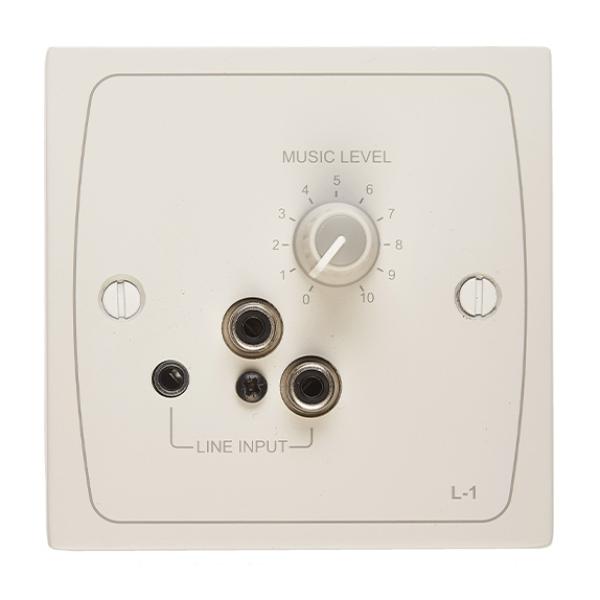

Cloud Electronics L-1W
The Cloud Electronics L-1W is an Active Line Input Plate for easy connection of a single Line Input within a remote Zone.
The L-1W is finished in white and works with any Cloud product supporting a FACILITY PORT connector. Ideal for use with:
Z-Series (MK2, MK3, MK4), 46-120-Series, 46-50, 46-80, MPA120MK2, MPA240MK2 & select MA40/MA80 Mini Amps
The L-1W is a simple line input plate to facilitate connection of a local playback device via 2 x line level RCA phono inputs or 3.5mm jack. Ideal for use during meetings & presentations in seminar and conference suites, hotel ballrooms, multipurpose hospitality application, outdoor events, health and fitness application or lecturers in a classroom situation.
Connection is via via CAT5/6 cable and offers a working range of 1.5km.
End Point only, with no THROUGH option.
Can be used with FPA-1 Adaptor if Facility Port connector is not available.
Available in Black (L-1B) or White (L-1W).
- 2 x RCA Phone Input Sockets - Mono Sum Output
- 1 x 3.5mm Stereo Jack Socket - Mono Sum Output
- Input Level control
- 1 Gang Metal UK Plate
- RJ45 Connector
- 1 x Local Output Volume Control
- 1 Gang UK Plate
- Warranty: 1 Year
|
