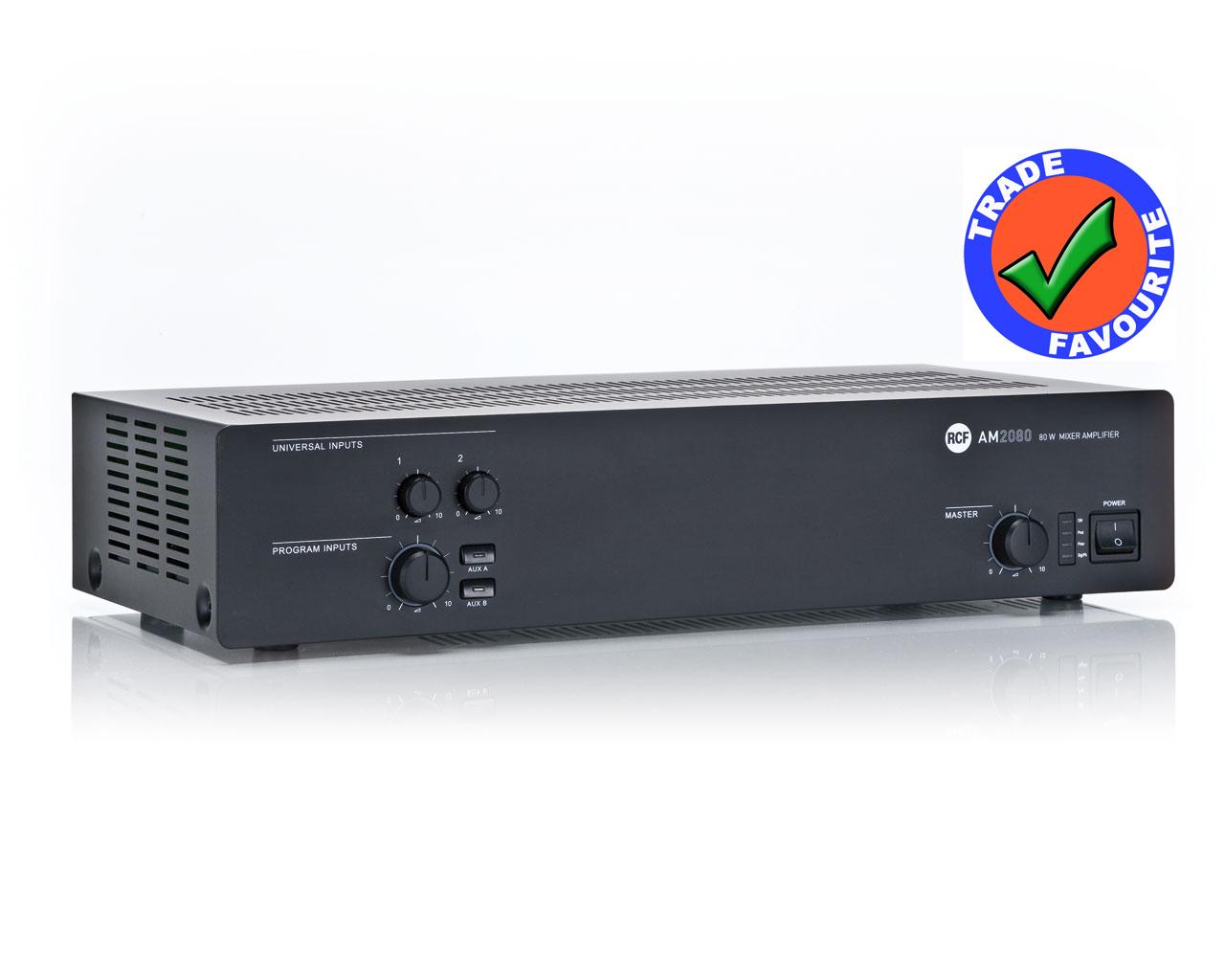

RCF AM 2080
The RCF AM 2080, one of our favourite products, is an 80 watt mixer-amplifier suitable for use on 70 / 100 volt line distributed sound systems or low impedance (4Ω) music systems.
Audio input 1 has Phantom power supply and has priority over the other audio inputs via the ‘VOX’ circuit. Iinputs 1 and 2 can access the priority through an external command (connected to either the removable connector or the RJ 45 port).
Audio inputs include 2 mic-line audio inputs on removable connectors (the first input also has an XLR socket) and 2 aux inputs for music sources (e.g. CD players, tuners, etc.).
Input 2 also has an RJ 45 port for quick connection of an RCF BM 3001 paging microphone via CAT5 cable.
Other useful features on the RCF AM2080 include a ‘music on hold’ aux output, a ‘pre out’ aux output, high-pass filter (with a common on/off dipswitch) and independent tone controls on the 2 auxilary inputs (common for both aux inputs).
- Full digital technology amplifier, 80 W RMS
- 70 – 100 V / 4 Ω outputs
- 2 universal inputs with phantom power supply facility and high-pass filter
- RJ45 port on input 2 for connection of a BM3001 paging microphone
- Screw terminal connections, additional XLR (INPUT 1) and RJ45 (INPUT 2) connectors
- Configurable priority settings, VOX facility on input 1
- 2 selectable aux inputs with volume and tone controls for 2 music sources
- Selectable single or dual tone chime generator
- Music On Hold and PRE outputs
- Status / Priority / Audio Level LED indications
- Warranty: 3 Years
