Ecler CA40
The Ecler CA40 is super compact wall mounted mini stereo amplifier offering 2 x 20 watts output @ 4 ohms and remote control features.
Ideal for integration with external control devices in audiovisual applications in classrooms, meeting rooms and shops etc.
- 2 x 20 W RMS @ 4 Ω mini amplifier
- External, universal power supply
- AUTO STANDBY function
- Light and silent (fanless) design
- STEREO, PARALLEL and BRIDGE modes
- 1 balanced MIC input, with Phantom power and high-class preamp, including noise gate and talkover function over the rest of inputs
- 2 unbalanced LINE inputs
- 2-band tone control (Bass, Treble) independent, for the MIC and LINE buses
- AUX output for external link to other devices or amplifiers
- Digital local control, encoder type

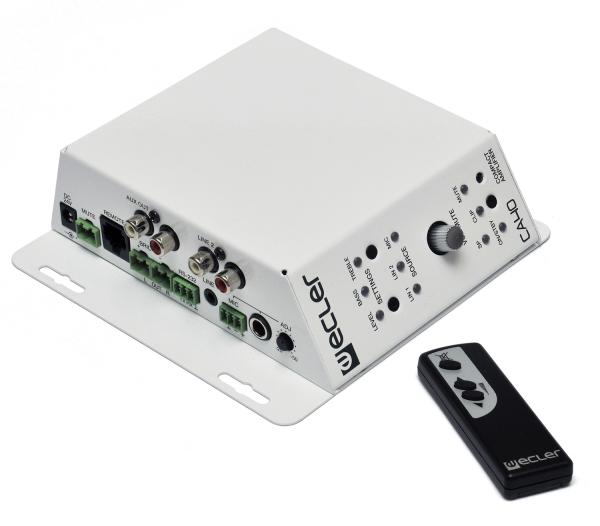

- Infrared remote control included
- Remote control compatible with WPmVOL and WPmVOL-SR wall panels (0-10 VDC)
- RS-232 control port compatible with CA-NET protocol
- MUTE port for external muting of the unit when an evacuation system must be activated
- Presets / sources management via RS-232 or 0-10 VDC remote control port
- Warranty: 5 Years.
Compatible with wall mounted controls from the WPm series to enable remote volume adjustment and input selection etc from a more convenient location. - see related products.
 |
