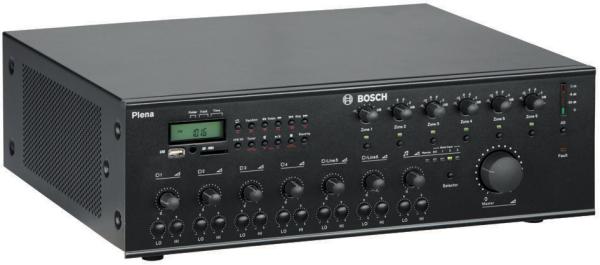

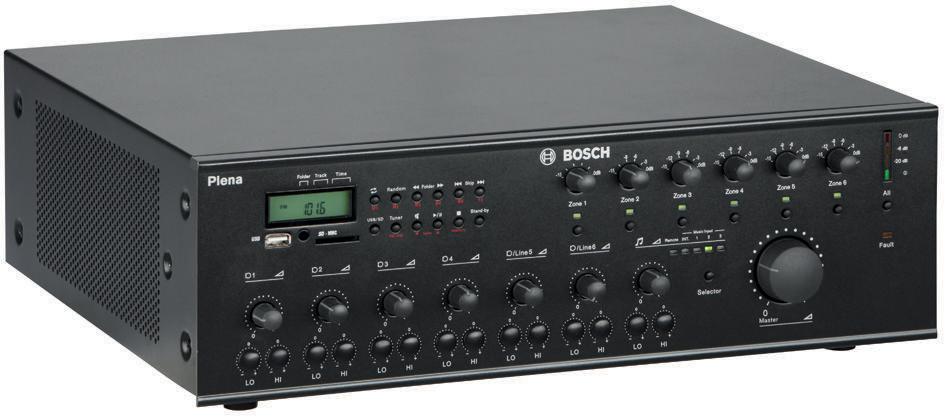

Bosch PLN-6AIO240

The Bosch PLN-6AIO240 is an all in one background music and paging system consisting of a240 watt amplifier with integral FM/AM tuner and an MP3 player which plays audio files from an SD card or USB device. Suitable only for 100 volt line sound systems.

This model is being withdrawn by Bosch soon. Limited stocks are available - please contact us for up-to-date availability.

There are 3 auxiliary music inputs, 4 mic inputs and a further 2 combination inputs switchable between microphone and line level.

6 output zones are available for paging and up to 6 optional call stations can be connected in a loop through arrangement. (See PLN-6CS in related products.)

3U high - rack mount brackets supplied.

Warranty: 3 Years

1a: 100V multi-zn 3U amfm SD USB
Log in for Trade Prices

Please contact us for availability

CONTACT US

SPECIFICATIONS



Power



Voltage

115/230 Vac +/- 15%, 50/60 Hz

Fuse rating

6.3 A (230 Vac) 10 A (115 Vac)

Power consumption

720 W max

Performance



Frequency response

Microphone inputs: 100 Hz – 15 kHz +1/-3dB
Line inputs: 50 Hz – 20 kHz +1/-3dB (+1/‑3 dB @ ‑10 dB ref. rated output)

Distortion

<1% @ rated output power, 1 kHz

Bass control

+/- 8 dB @ 100 Hz

Treble control

+/- 8 dB @ 10 kHz

Accessory Inputs



Remote devices

2 x

Call station input

RJ45 for PLN‑6CS

Wall panel input

RJ45 for PLN‑4S6Z

Inputs



Microphone/Line input

Input 1‑4: mic Input 5‑6: mic/line

Input 1
(Push-to-talk contact for priority/ducking)

RJ45 for PLE‑1CS or PLE‑1SCS3‑pin XLR, balanced, phantom

Input 2-6
(with signal detector for priority/ducking)

3‑pin XLR, balanced, phantom

Sensitivity

1.5 mV (mic); 200 mV (line)

Impedance

>600 ohm (mic); >10 kohm (line)

S/N (flat at max volume)

>65 dBA (mic); >70 dBA (line)

CMRR (mic)

>40 dB (50 Hz to 20 kHz)

Headroom

>25 dB

Phantom power supply

18 V – No load

DOWNLOADS

Bosch PLN-6AIO240 Plena BGM System datasheet
Bosch PLN-6AIO240 Plena BGM System User Manual
