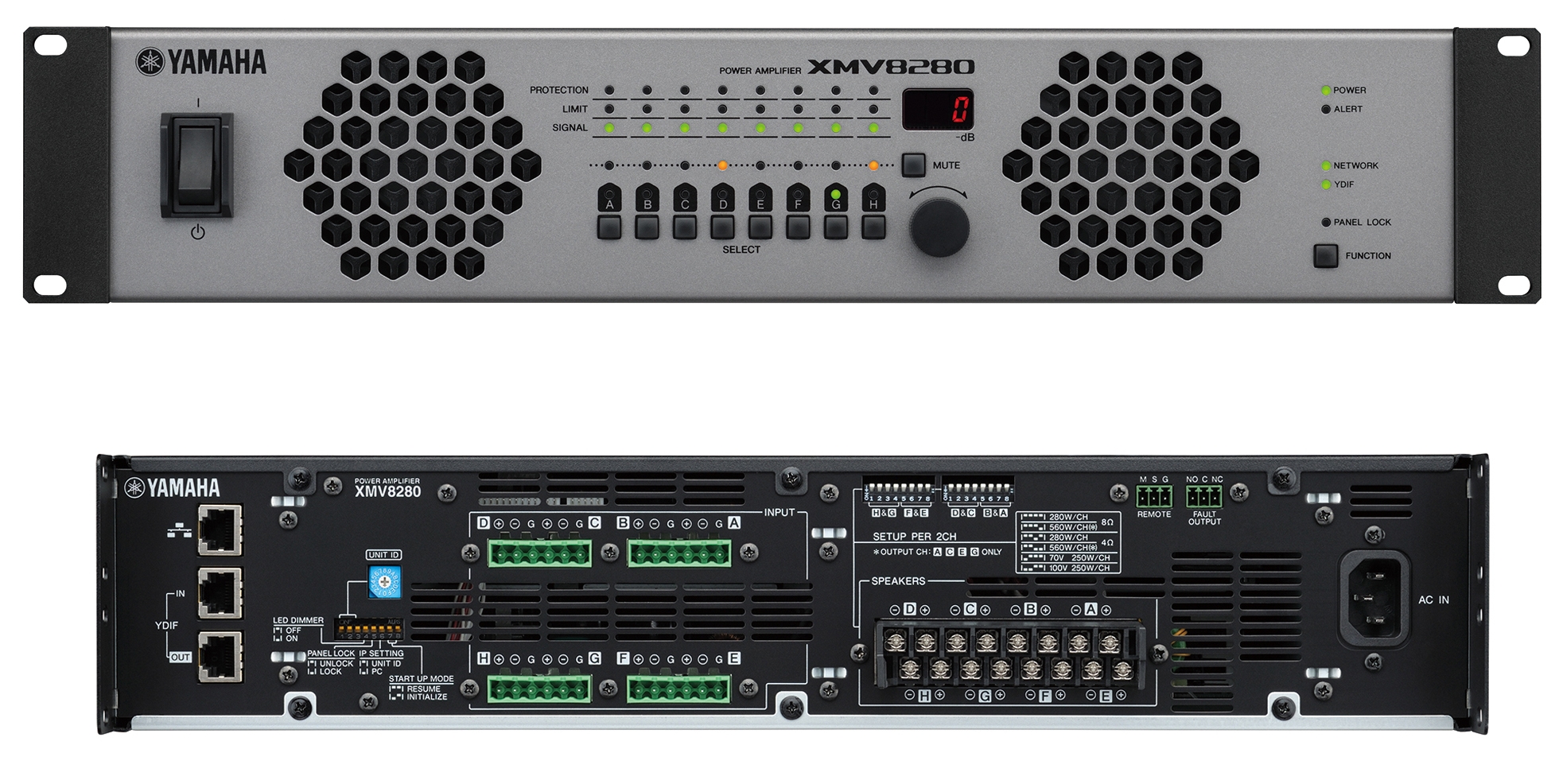

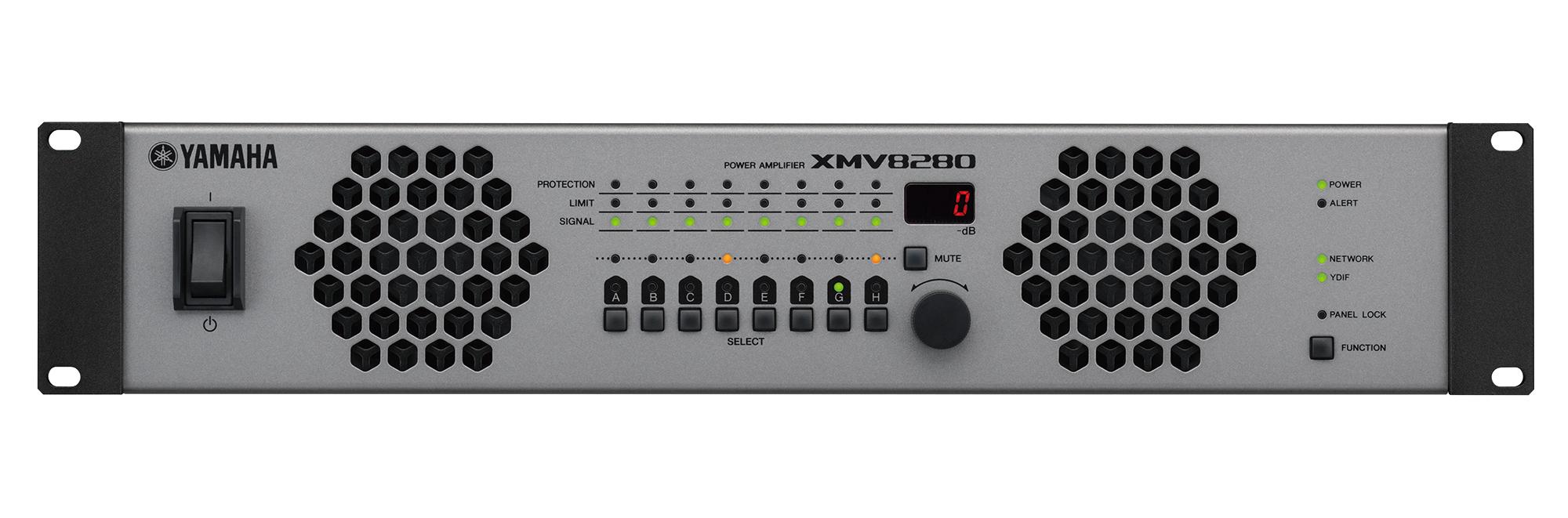

Yamaha XMV8280
Click to expand

Yamaha XMV8280

The Yamaha XMV8280 8 channel power amplifier combines Class D efficiency and versatile features for commercial installations.
Rated at 8 x 280 watts on 70 / 100 volt line or 8 x 250W, 4Ω / 8Ω.

Available in two power output versions and with the option of Dante control. Please see related products for other models.

  • Eight-channel power amp that can operate in both high-impedance (70V/100V line) or low-impedance (4Ω/8Ω) modes simultaneously.
  • 70V or 100V mode can be assigned to every pair of channels without affecting the number of available output channels.
  • The newly developed Double Power Mode function effectively doubles the output power of selected channels.
  • Equipped with YDIF* digital audio format for simple and fast system configuration.
  • Easy setting such as the mute on/off or attenuator changes with MTX Editor when used in system with MTX Series.
  • An innovative, new, patent pending circuit improves the already highly efficient Class D circuit topology, bringing the efficiency level of the amplifier's output stage up to over 90%.
  • Feature a Power Factor Correction equipped switching power supply, ensuring harmonic control and decreasing the amount of current draw while maintaining the same output power.
  • Powerful, intelligent protection features for more reliable operation.
  • Warranty: 5 Years.

*YDIF: the newly developed digital transmission format; a unique propriety Yamaha technology that delivers 16ch audio and word clock transmission via standard CAT5 Ether cable.

Click here to download the Yamaha Commercial Installations Brochure.

Click to download the Yamaha Brochure

100V 2U 4ohms 8ohms
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Model

XMV8280

Output Power (1kHz, THD+N = 1%)4Ω/8Ω / (Double Power Mode)

280W x 8 (560W x 4)

Output Power (100V line)

250W x 8 / 40 Ω

Output Power (70V line)

250W x 8 / 20 Ω

Maximum Input Level

+24dBu

Input Impedance

20kΩ (balanced), 10k Ω (unbalanced)

Analog Input Connectors

Euroblock x 2 (6P, balanced)

Digital Input / Output Connectors

RJ45 x 2 (YDIF IN / OUT)

Speaker Output Connectors

Barrier strip x 8 pairs

Network Connectors

RJ45 x 1

Remote, Fault Output Connectors

Euroblock (3P) x 1

AC IN Connector

AC Inlet x 1

Load Protection

POWER switch on/off: Output mute, DC-fault: Power supply shuts down, Clip limiting

Amplifier Protection

Thermal: Output mute (heatsink temp ≥90°C) (Restored automatically), Overcurrent: Output mute (Restored automatically),
Low load impedance: Output mute (Restored automatically)

Power Supply Protection

Thermal: Amplifier shuts down automatically (heatsink temp ≥100°C),
Integrated power: Gain reduction (Restored automatically)

Cooling Fan

3-Speed fan x 2, front-to-back airflow

Power Requirements

100V, 120V, 230V-240V; 50Hz/60Hz

Dimensions W x H x D

480mm (18.9") x 88mm (3.5") x 422mm (16.6")

Weight

10.1kg (22.3lbs)
