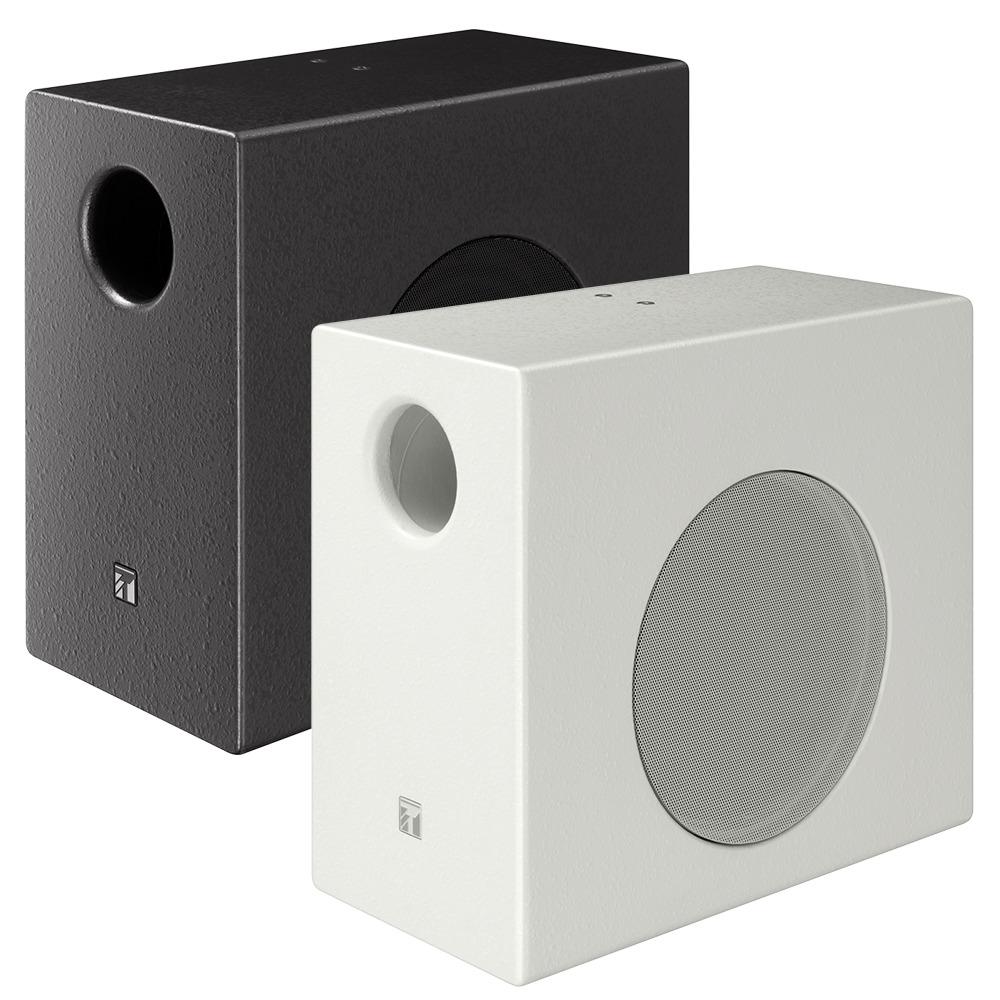

TOA FB-08BT / FB-08WT

The TOA FB-08BT / FB-08WT is an 8" indoor subwoofer system and a perfect addition to the F-Box Series for deeper bass reproduction expanding the sound spectrum in demanding installations.

The FB-08 sub is fitted with an 8” driver and is rated at 120 Watts (100V or 8 Ohms).

Available in black (FB-08BT) or white (FB-08WT).

  • High-performance 8-inch indoor subwoofer system
  • Powerful 20 cm (8") driver for robust bass reproduction
  • Built-in crossover network for simplified system setup
  • Seamless integration with F-03/05 series speakers without the need for external processors
  • Versatile high/low impedance compatibility
  • Optional brackets for wall or ceiling mounting
  • Available in black and white (BT = black, WT= white)
  • Priced and sold individually.
  • Warranty: 1 Year

The TOA F-BOX Series loudspeakers feature a minimalist, flat design to blend seamlessly into any architectural environment and there are models suitable for use indoors and outdoors.

Available in choice of sizes and fitted with a 3.5" full-range speaker or 5" / 8" two-way system. There’s also a matching 8” subwoofer. Please see related products below.

These surface-mount speakers deliver clear audio and sleek aesthetics, ideal for voice announcements and background music on both high-impedance and low-impedance audio systems.

Outdoor models of the wall cabinet speakers are also available which are dustproof & splashproof (IP65) and EN54-24 certified, making them ideal for voice evacuation systems.

100V 8ohms
List Ex VAT: £630.00
Log in for Trade Prices
CONTACT US





SPECIFICATIONS

Frequency range

45Hz - 300kHz

Sensitivity (1 W, 1 m)

90 dB

Rated input (100 V)

120 W

Tappings (100 V)

120/60 W

Rated input (low impedance)

Rated noise power:120 W (8 Ω),
Continuous program 240 W (8 Ω)

Rated impedance

8 Ω

Speaker component

20 cm (8'') cone-type

Operating temperature

−10 °C to +50 °C

Finish

MDF, Steel, black (RAL 9011 or equivalent)

Dimensions

251 x 392 x 216 mm (W x H x D)

Weight

5.2 kg
