TOA F-05BT / F-05WT
Click to expand

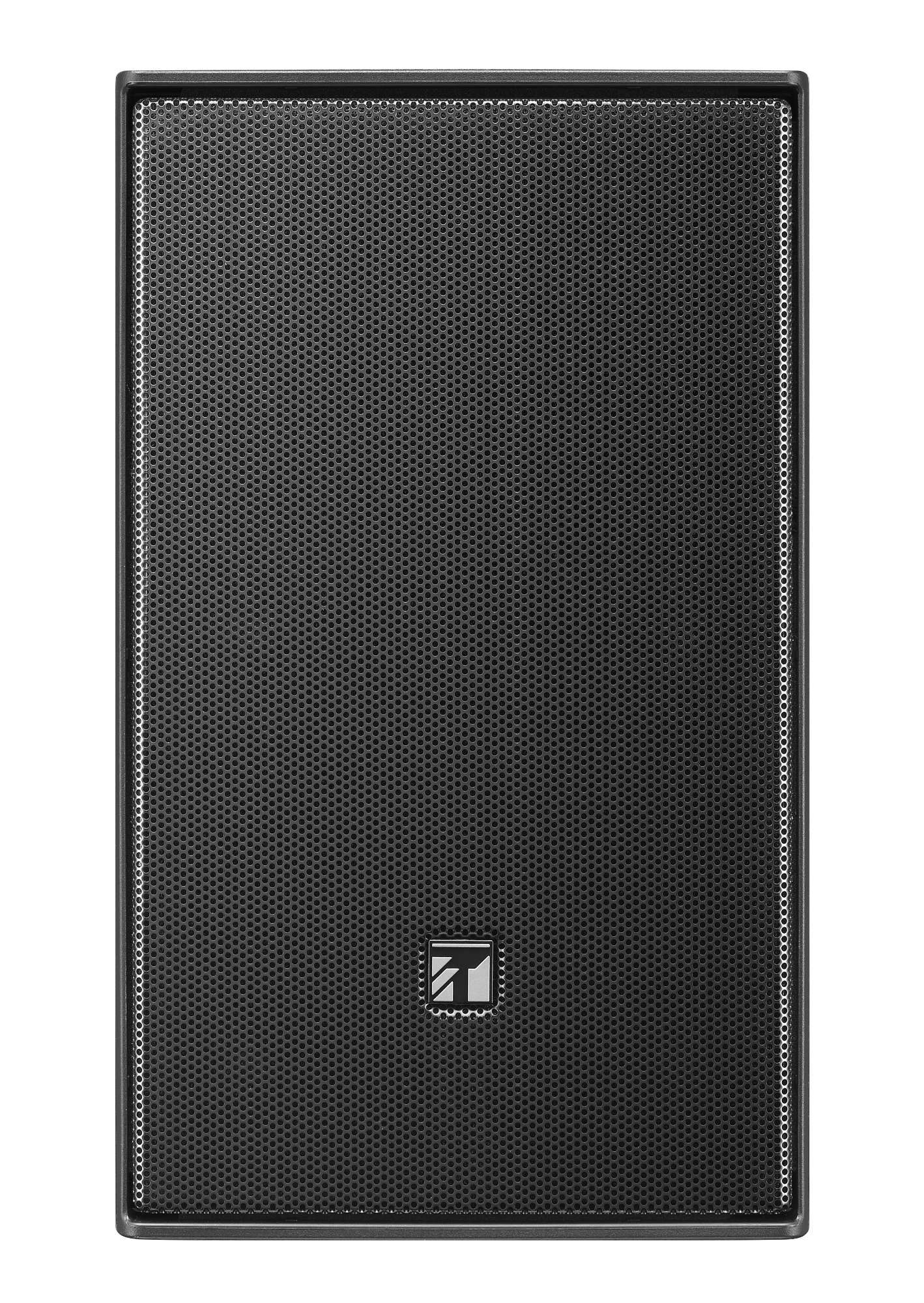

TOA F-05BT / F-05WT

The TOA F-05BT / F-05WT is a powerful speaker with enhanced bass response, perfect for background music or voice announcements in commercial environments

The F-05 is fitted with a 5” 2-way speaker and is rated at 30 Watts (100V) or 60 Watts (8 Ohms).

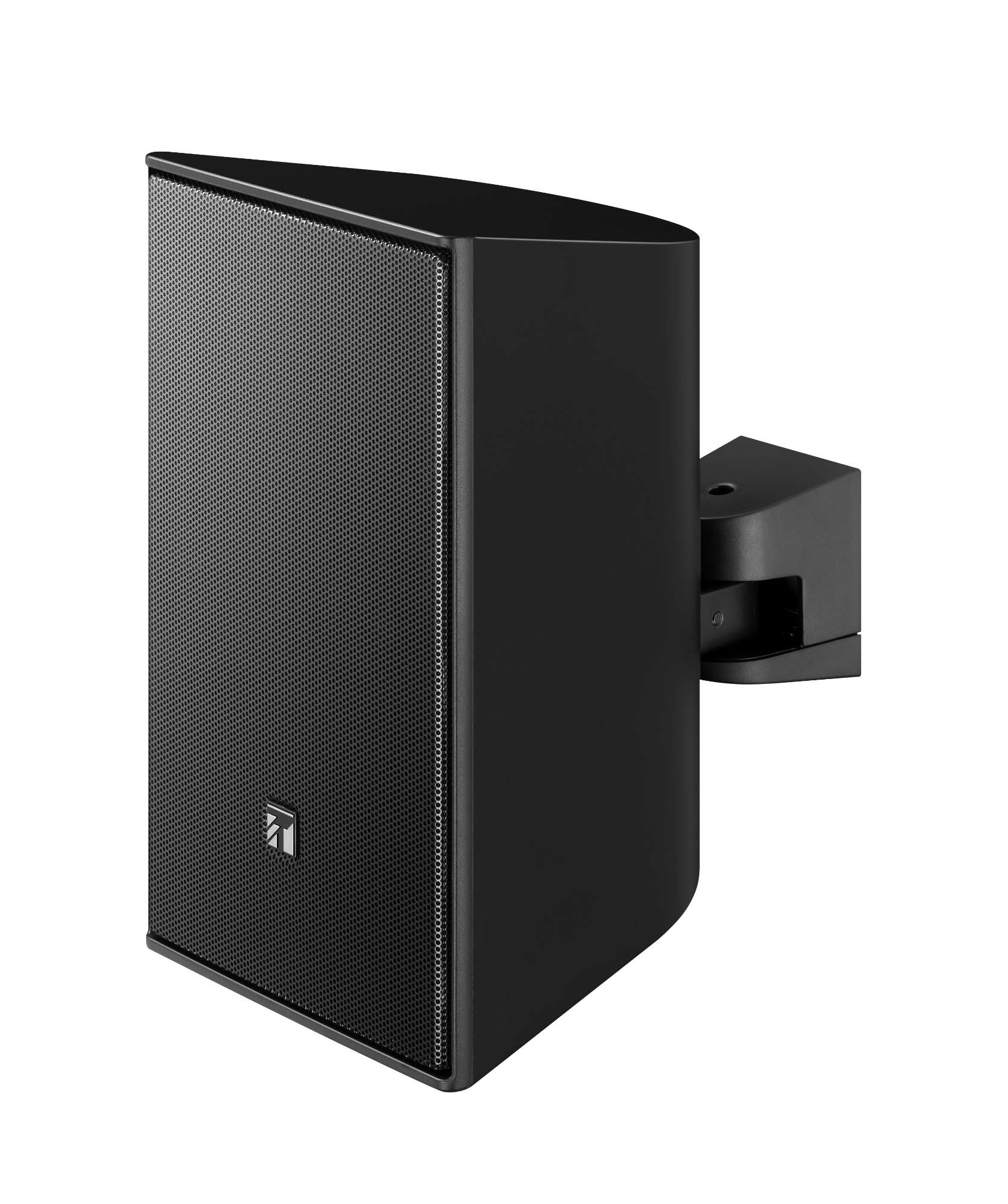

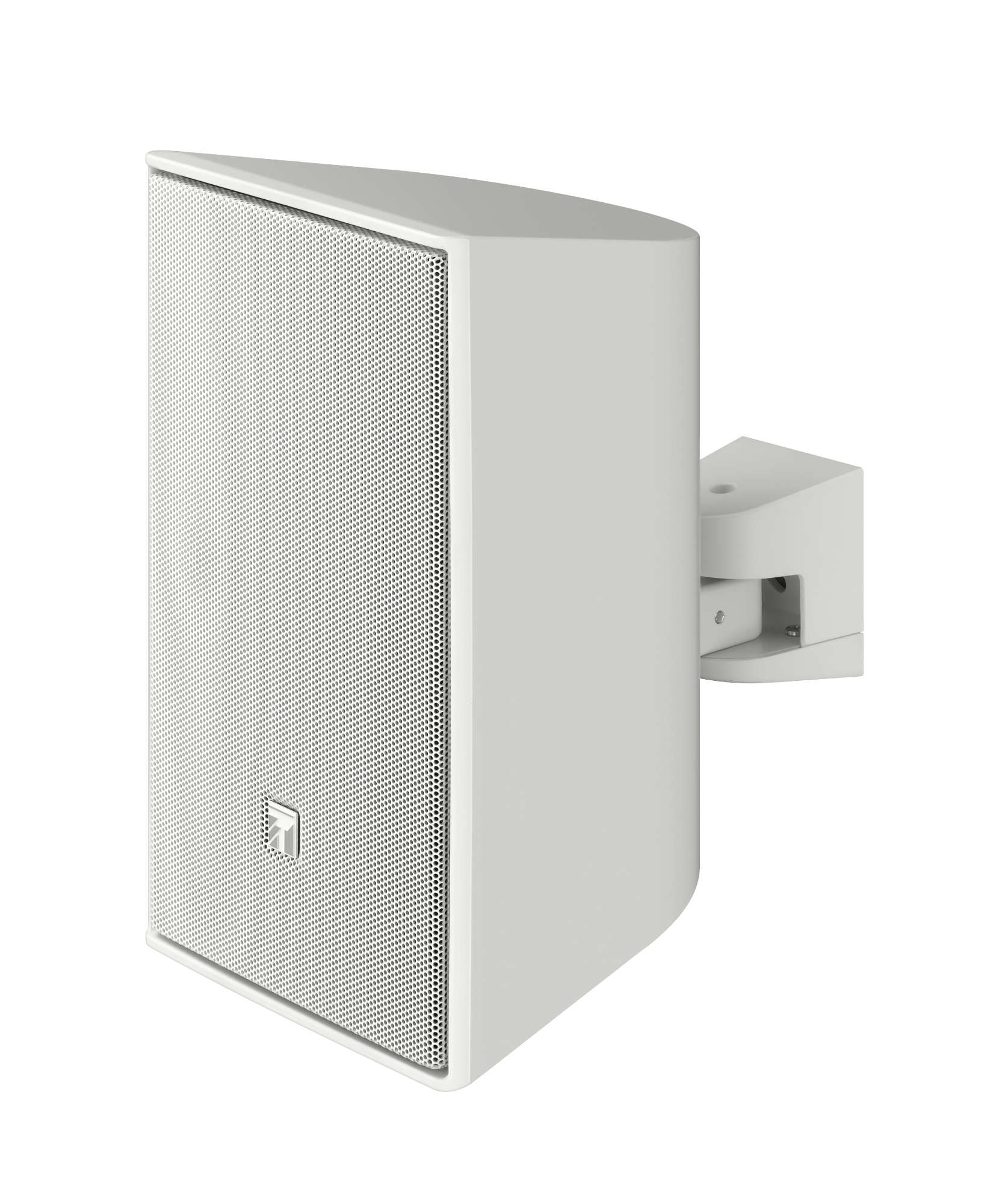

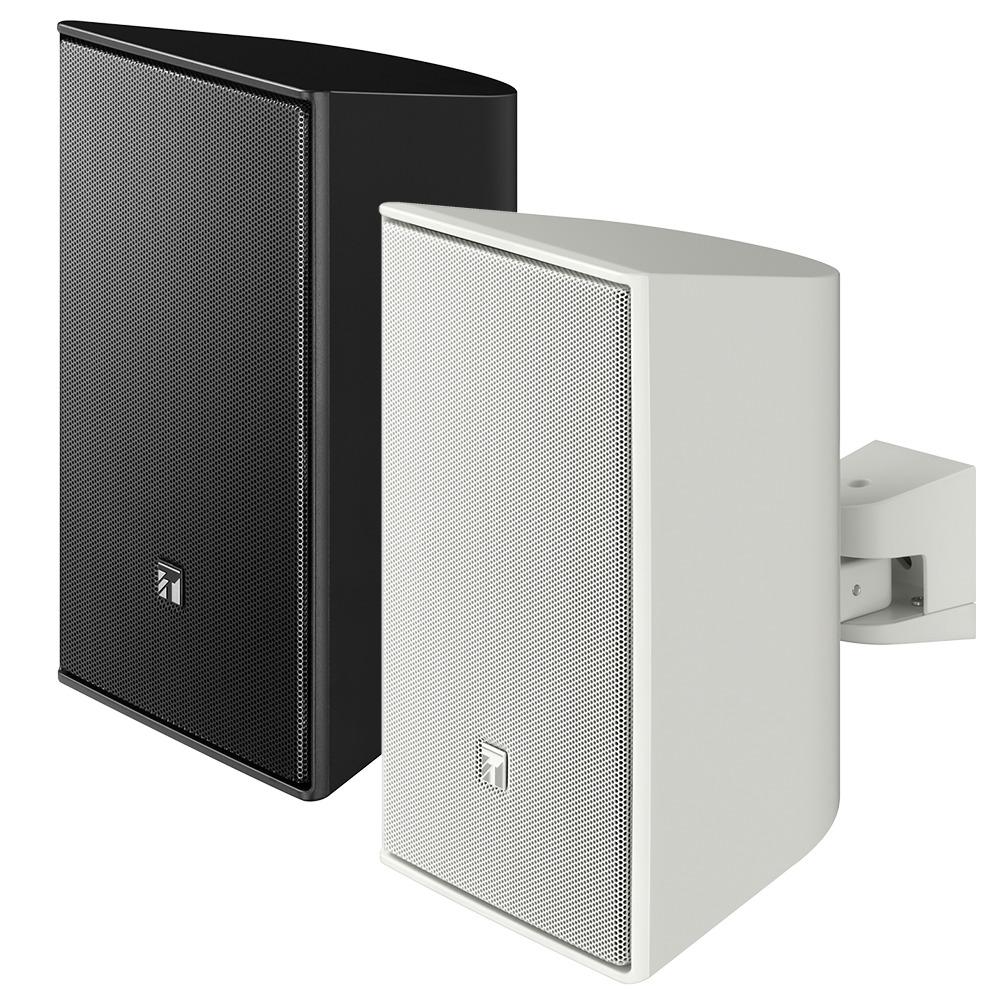

Available in black (F-05BT) or white (F-05WT) and supplied with a wall mounting bracket which has a temporary docking feature for simple installation and a flexible angle adjustment for both wall and ceiling use.

  • Versatile 5-inch 2-way surface-mount speaker system
  • Perfect for music and announcements
  • Sleek design for seamless integration with walls and ceilings
  • Safe and easy installations with included mounting bracket
  • Temporary docking feature allows effortless wiring and positioning (Indoor version)
  • Flexible angle adjustment for both wall and ceiling mounts
  • Ideal for permanent installs or portable setups
  • EN-54-24 certified outdoor edition available (F-05BT-WP-UE/F-05WT-WP-UE)
  • Available in black and white (F05BT = black, F05WT= white)
  • Priced and sold individually.
  • Warranty: 1 Year

The TOA F-Box Series loudspeakers feature a minimalist, flat design to blend seamlessly into any architectural environment and there are models suitable for use indoors and outdoors.

Available in choice of sizes and fitted with a 3.5" full-range speaker or 5" / 8" two-way system. There’s also a matching 8” subwoofer. Please see related products below.

These surface-mount speakers deliver clear audio and sleek aesthetics, ideal for voice announcements and background music on both high-impedance and low-impedance audio systems.

Outdoor models of the wall cabinet speakers are also available which are dustproof & splashproof (IP65) and EN54-24 certified, making them ideal for voice evacuation systems.

100V 8ohms
List Ex VAT: £200.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Frequency range

60 Hz - 20 kHz

Sensitivity (1 W, 1 m)

90 dB

Rated input (100 V)

30 W

Tappings (100 V)

30/10/3/1 W

Rated input (low impedance)

Rated noise power:60 W (8 Ω),Continuous program 120 W (8 Ω)

Rated impedance

8 Ω

Speaker component

Low frequency 13 cm (5'') PPcone-type, High frequency: 25 mm (1'') dome tweeter

Cord connector

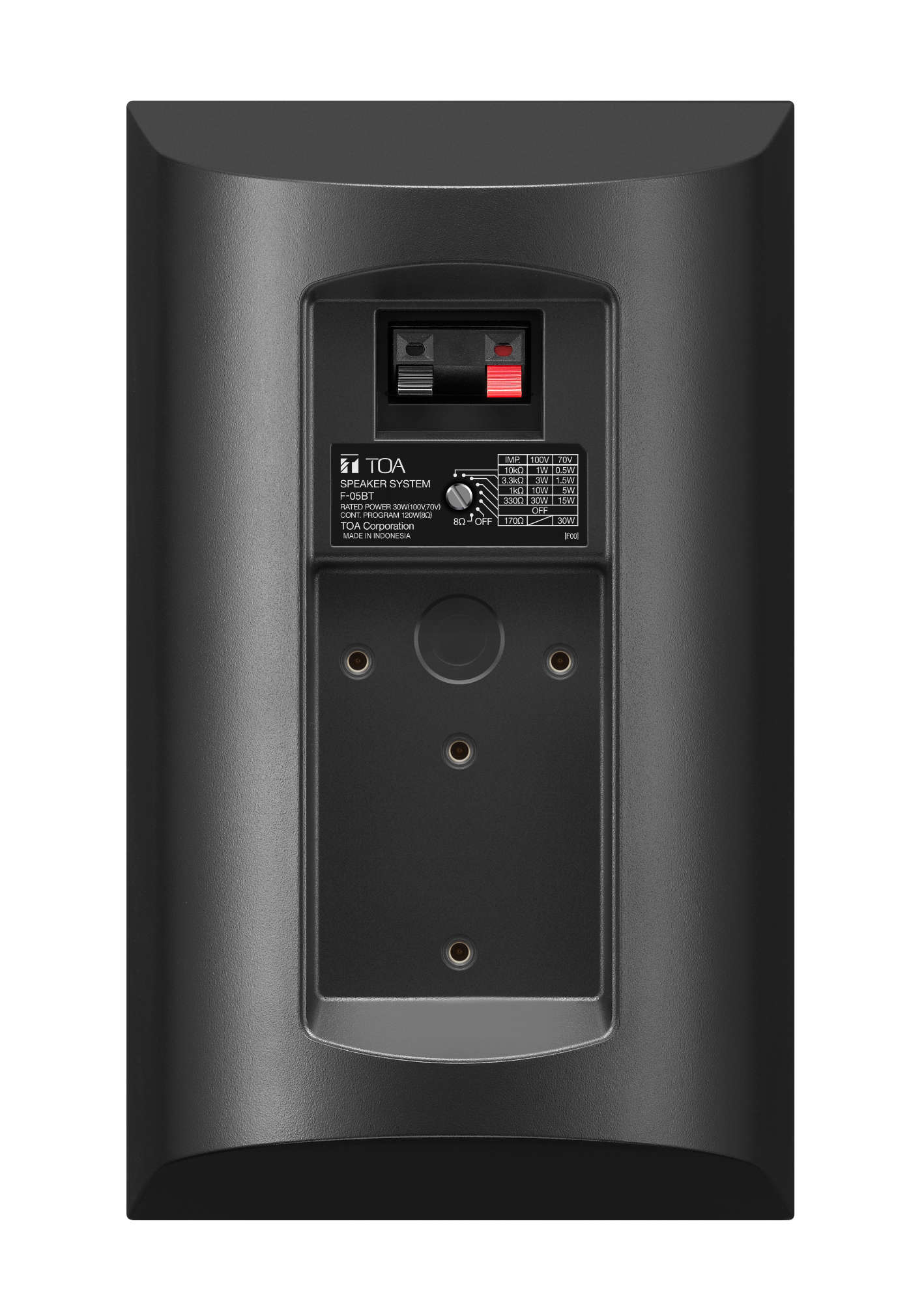

Push-In Terminal

Operating temperature

−10 °C to +50 °C

Finish

Aluminium grill, black (RAL 9011 or equivalent)

Dimensions

162 x 274 x 164 mm (W x H x D)

Weight

2.7 kg

Related Products

TOA F-03BT / F-03WT

3.5" full-range compact cabinet speaker. 30W @ 8 ohm / 15W @ 100V.

see more
List Ex VAT: £135.00
TOA F-05BT / F-05WT

5", 2-way cabinet speaker. 60W @ 8 ohm / 30W @ 100V.

see more
List Ex VAT: £200.00

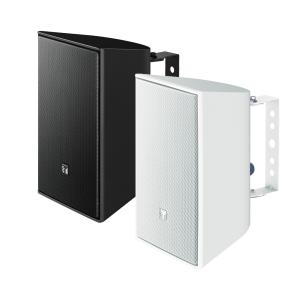

TOA F-05BT-WP-UE / F-05WT-WP-UE

5" 2-way outdoor speaker, IP65 & EN54-24 compliant. 60W @ 8 ohm / 30W @ 100V.

see more
List Ex VAT: £375.00

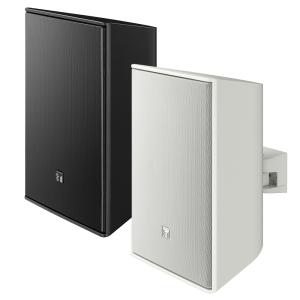

TOA F-08BT / F-08WT

8" 2-way high performance cabinet speaker. 90W @ 8 ohm / 60W @ 100V.

see more
List Ex VAT: £295.00

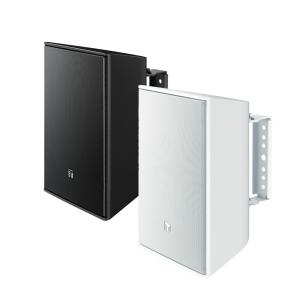

TOA F-08BT-WP-UE / F-08WT-WP-UE

8" 2-way outdoor speaker, IP65 & EN54-24 compliant. 90W @ 8 ohm / 60W @ 100V.

see more
List Ex VAT: £375.00

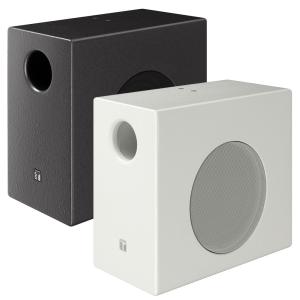

TOA FB-08BT / FB-08WT
