Audio Technica ES947C/XLR & ES947CW/XLR

Cardioid condenser boundary microphone for mounting into a desk, wall or ceiling.
List price Ex. VAT: £167.50

* Required Fields


The Audio Technica ES947C/XLR and ES947WC/XLR cardioid condenser boundary microphone is designed for permanent installation in a table, desk, wall or ceiling for unobtrusive sound reinforcement, professional recording and teleconferencing.

Protected by a rugged all-metal case with a two-layer perforated grille, the microphone’s cardioid polar pattern affords a 120° pickup angle, while its UniGuard® RFI-shielding technology provides outstanding rejection of radio frequency interference (RFI).

The ES947C/XLR is equipped with a self-contained power module with an XLRM-type output connector, eliminating the need for an external power module.

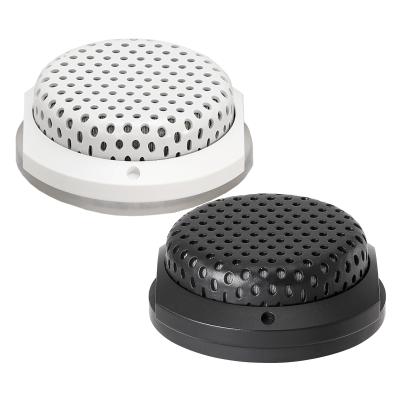

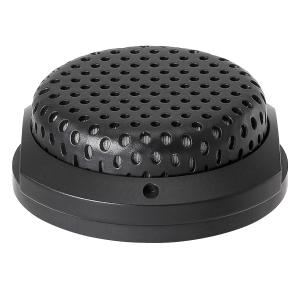

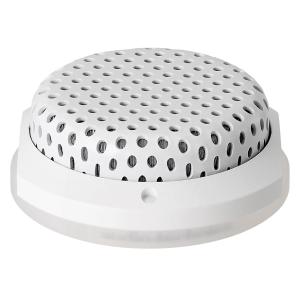

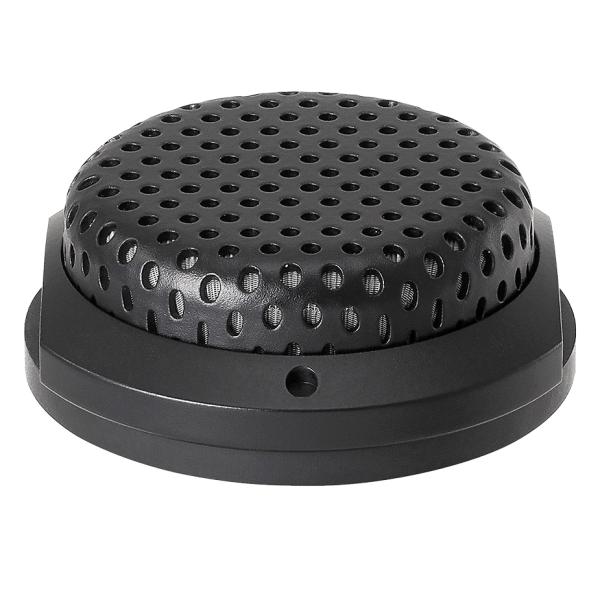

Available in black (ES947C/XLR) and white (ES947WC/XLR), and comes with a pair of rubber isolators for optional mechanical isolation from the mounting surface.

IPX4 rated - splash resistant.

  • Designed for surface-mount applications such as conferencing, recording, monitoring and other demanding sound pickup applications
  • Low-profile element provides uniform cardioid polar pattern with 120° acceptance angle
  • Mounts unobtrusively in tabletops, ceilings and panels
  • IPX4 water resistance protects the microphone from splashes of water
  • Self-contained power module with XLRM-type output connector
  • Rugged all-metal case with a two-layer perforated grille
  • Rubber Isolators provide mechanical dampening of mounting-surface vibration
  • Requires 11V to 52V DC phantom power
  • UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
  • Available in two colors: black (ES947C/XLR) and white (ES947WC/XLR)
  • RoHS compliant—free from all substances specified in the EU directive on hazardous substances

Additional Information


Fixed-charge back plate, permanently polarized condenser

Polar Pattern


Frequency Response

70-8,500 Hz

Open Circuit Sensitivity

-37 dB (0 dB = 1V/Pa, 1 kHz)

Output Impedance

100 ohms

Maximum Input Sound Level

134 dB SPL (1 kHz at 1% THD)

Dynamic Range

110 dB (1 kHz at max SPL)

Signal-to-Noise Ratio

70 dB (1 kHz at 1 Pa, A-weighted)

Phantom Power Requirements

11-52V DC, 2 mA


62 g (2.2 oz)


26.0 mm (1.02") W x 30.0 mm (1.18") D x 69.0 mm (2.72") H

Output Connector

3-pin XLRM-type

Accessories Included

Rubber isolator (x 2), nut

View FileEC Declaration of Conformity: ES947    Size: (80.84 KB)
View FileAudio Technica ES947C/XLR & ES947CW/XLR User Manual    Size: (880.16 KB)
