TOA TS-820

TOA TS-820

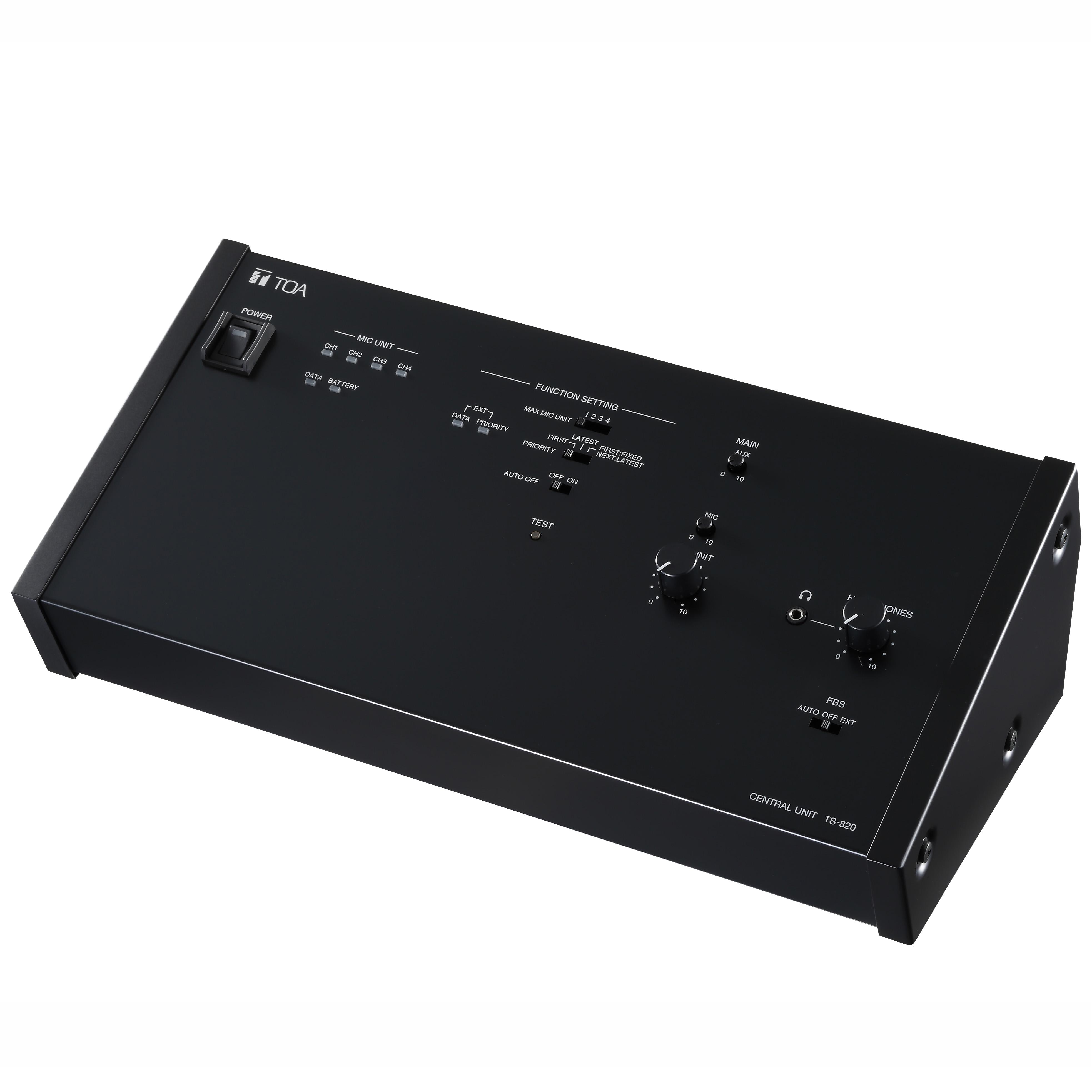

The TOA TS-820 is a Central Unit of the TOA wireless Infrared Conference System.

Easy to install and offering  flexible layout options, the TS-820 can control the Chairman and Delegate Units via wireless infrared signal in conjunction with the TS-905/907 IR Transmitter/Receivers.

An installation confirmation function allows the connection status of IR Transmitter/Receiver and Chairman/Delegate Units to be verified.

The TS-820 is equipped with FBS (Feedback Suppression) enabling effective control of acoustic feedback.

The system can be controlled by PC with the relevant custom made software.

Rack mountable using the optional rack mounting bracket.

  • Main unit of the system
  • Up to 64 conference units controllable
  • Mic In, AUX In, Line Out, Rec Out, Headphone monitor out, EQ in/out
  • Function setting – Number of open microphones, Auto mic-off function, Speech priority selector, Feedback suppressor
  • Rack-mountable with MB-TS920 optional bracket
List Ex VAT: £1,595.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS



Power source

100 - 240 V AC, 50 / 60 Hz (use of the supplied AC adapter)

Power consumption

72 W

Current consumption

3 A DC (when 24 V DC is supplied from the accessory AC adapter)

Indicator

LED: Audio signal receiving indicators 1-4 CH, Data signal receiving indicator, External control priority indicator, External control communication indicator, Battery indicator (flashes when a Chairman/Delegate unit`s battery nears complete discharge), short-circuit indicator

Operating humidity

90% RH or less (no condensation)

Operating temperature

0°C to +40°C (32°F to 104°F)

Finish

Steel plate, surface-treated, paint, 30% gloss, black

Dimensions

361 x 122.6 x 184.2 mm (W x H x D)

Weight

2.7 kg

Accessory (included)

EU AC adapter (Cord length: 1.8 m (5.91 ft) DC cord, and 2 m (6.56 ft) detachable AC cord) x 1

DOWNLOADS

TOA TS-820 and TS-920 Infrared Conference Brochure
TS-820 Series User Manual
