TOA PC-2360

TOA PC-2360

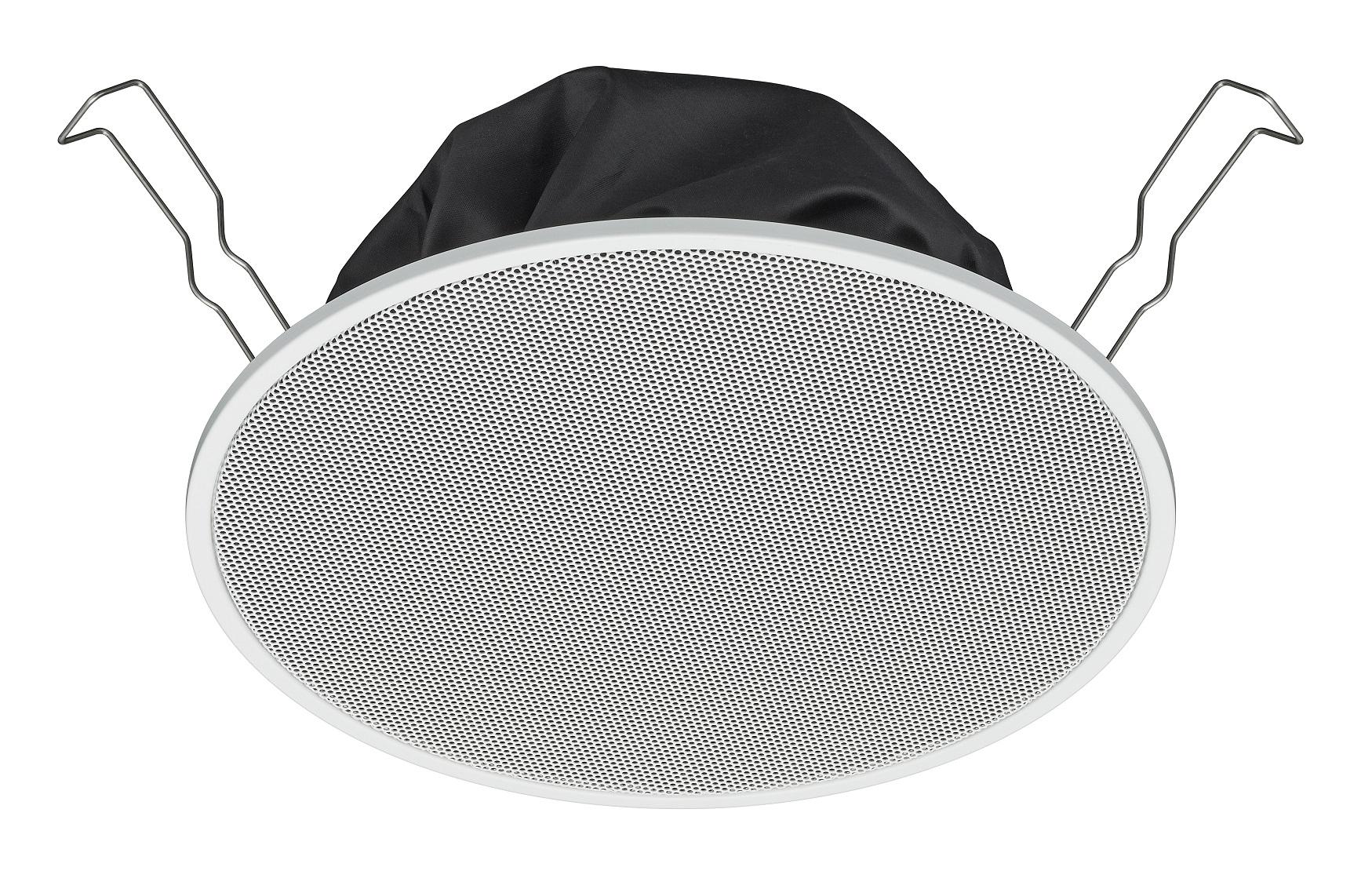

The TOA PC-2360 is a 6 watt, 100 volt line flush mount ceiling speaker for background music and paging.

The PC1869S is suitable for background music systems in shops, offices and restaurants.

  • 6" speaker.
  • Flush-mounted and easily installed with a spring catch mount.
  • Push in terminal block connector for quick wiring connection.
  • Bridging terminals for bridging of speaker lines.
100V
List Ex VAT: £32.50
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated Power (rms) 6W
Impedance 1.7kΩ, 3.33kΩ, 6.7kΩ & 13kΩ
Power Taps @ 100V 6W, 3W, 1.5W & 0.8W
Power Taps @ 70.7V 3W, 1.5W, 0.8W & 0.4W
SPL (1W/1m) 94dB
Frequency Range (-10dB) 60HZ - 20KHZ
Input Terminal Push In Terminal
Power Selection Method Plug
Material Housing: Steel, Grille: Steel
Colour White RAL9016
Dimensions mm Dia 230mm x 76mm (9.06" x 2.99")
Cutout diameter 200mm ±3mm

DOWNLOADS

TOA PC-2360 Datasheet
