Mipro ACT-5801
Click to expand

Mipro ACT-5801

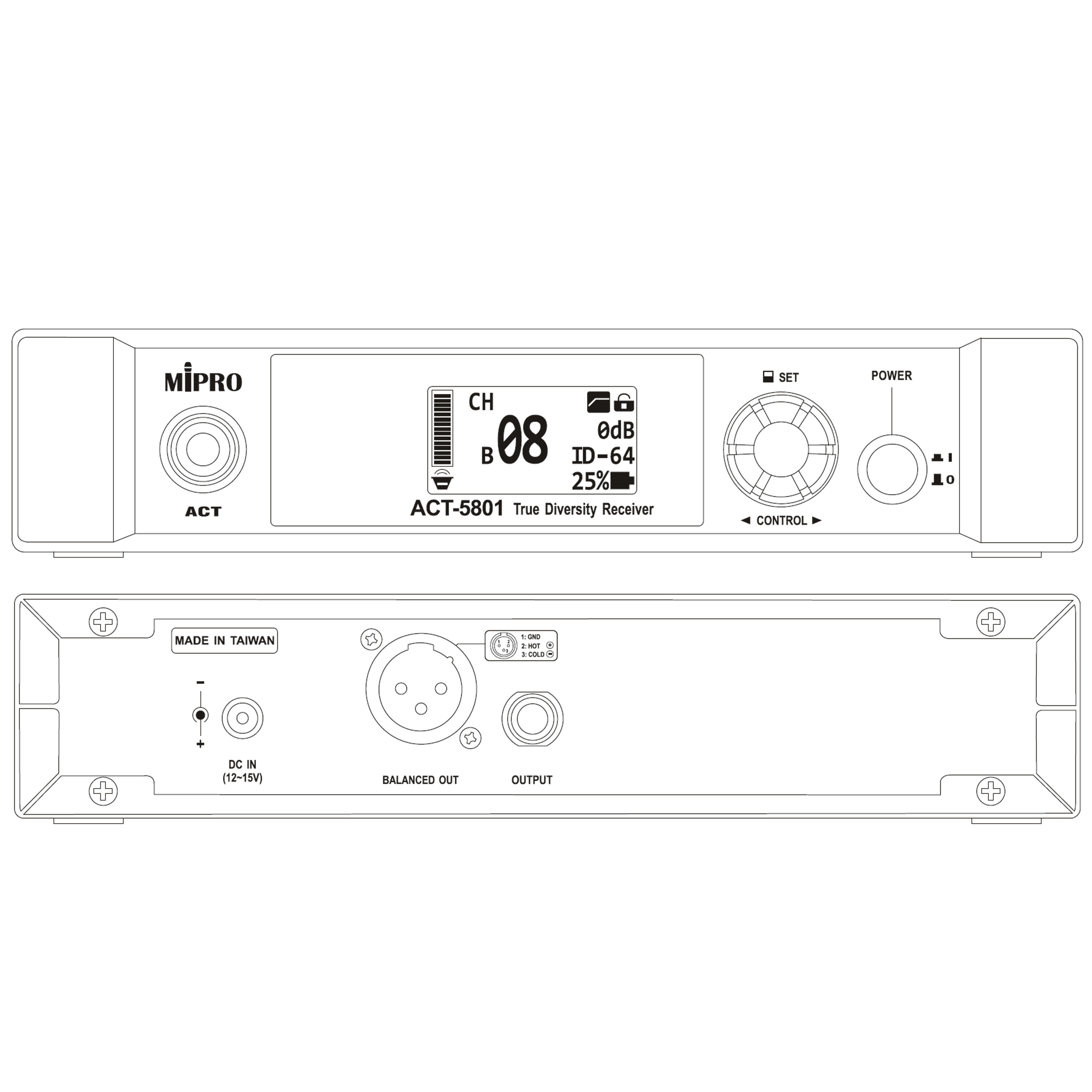

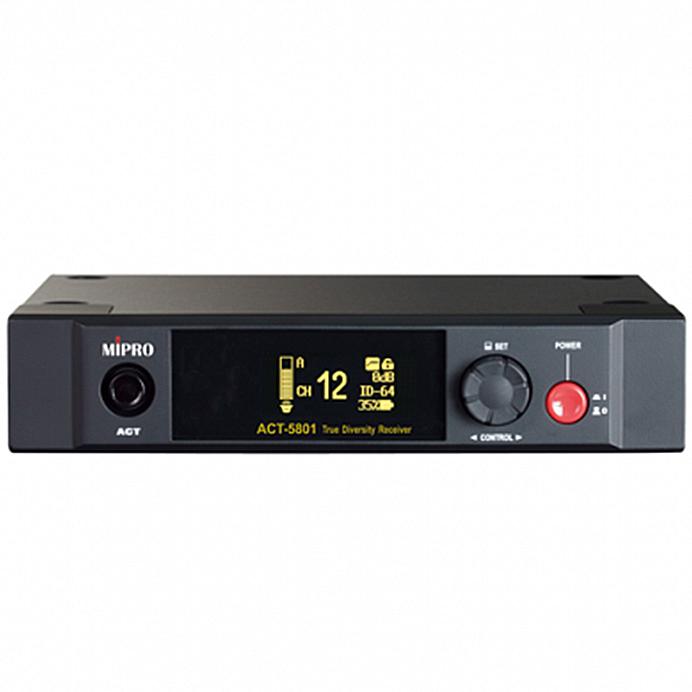

The Mipro ACT-5801 single channel digital wireless receiver operates in the 5.8GHz band with true diversity reception and offers a range of up to 100m. Licence free.

This licence free system offers excellent value for money.

Stable digital modulation circuitry with 12 channels of interference free operation are located in a single frequency band.

Dual tuner true diversity receiving ensures long reception distance and eliminates signal drop-out. A high efficiency antenna is built in to the front panel.

The neat half rack width receiver can be used freestanding or mounted in a rack using optional rack mount brackets.

Please see related products for suitable microphone transmitters as well as multi-channel receivers.

  • 1/2U metal chassis with a built-in high-efficiency antenna in the front panel.
  • MIPRO’s unique control panel equips a graphic OLED, providing a larger field of view without a blind angle.
  • Stable digital modulation circuitry. All frequencies are located in a single frequency band.
  • Dual tuner true diversity receiving ensures long reception distance and eliminates signal drop-out.
  • Effectively avoids the RF interference from UHF, Bluetooth, Wi-Fi and all 2.4 GHz communication products.
  • Presets Group A and B. Group A has less interference. Group B is recommended when more channels or shorter latency is required. Group A and B can’t operate at the same time.
  • Warranty: 1 Year
5.8ghz
List Ex VAT: £209.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Channel

Single

Chassis

EIA Standard 1/2U metal case

Antenna

Built-in, front panel

Display

Graphic OLED

Frequency Range

ISM 5.8 GHz (5,725~5,850 MHz)

Preset Channels

Presets 12 channels of interference-free operation in Group A and 24 channels of interference-free operation in Group B1 & B2. 64 ID codes and 1 specific ID are allowed to be set for each channel to prevent the same channel interfered on the same occasion.

Receiving Mode

Dual-tuner true diversity receiving. MIPRO’s ACT Sync channel set-up.

Sample Rate

24-bit / 48 kHz

Frequency Response

18 Hz ~ 23 kHz

Latency

< 1.5 ms (Group B)

Dynamic Range

> 120 dBA

Output Connectors

Balanced XLR & Unbalanced Ø 6.3 mm, -10 ~ +20 dB adjustable range.

Power Supply

External 100~240V AC switching power supply

Dimensions

210 × 44 × 162 mm (W×H×D)

Weight Approx.

0.7 kg

Related Products

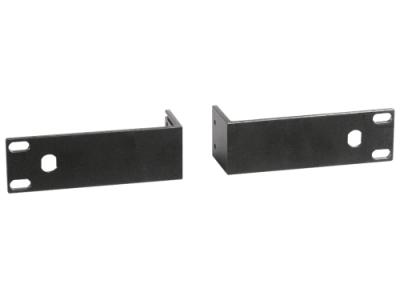

Mipro FB-71

Rack mount ears for Mipro half rack width wireless microphone receivers.

see more
List Ex VAT: £29.00

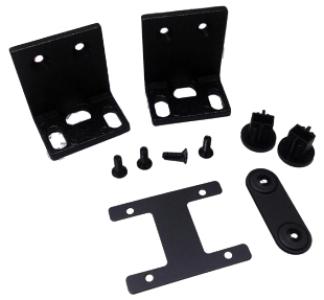

Mipro FB-72

Rack mount kit for Mipro wireless microphone receivers.

see more
List Ex VAT: £23.00

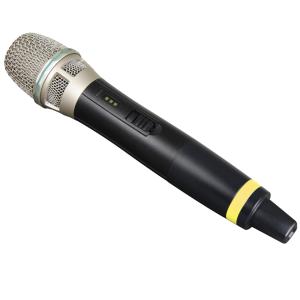

Mipro ACT-58H

Handheld digital wireless microphone transmitter.

5.8GHz, licence free.

see more
List Ex VAT: £169.00

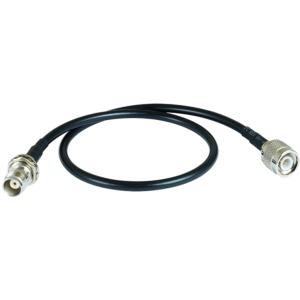

Mipro FBC-72
