Interfacing and Connectivity:
|
|
|
Overview
|

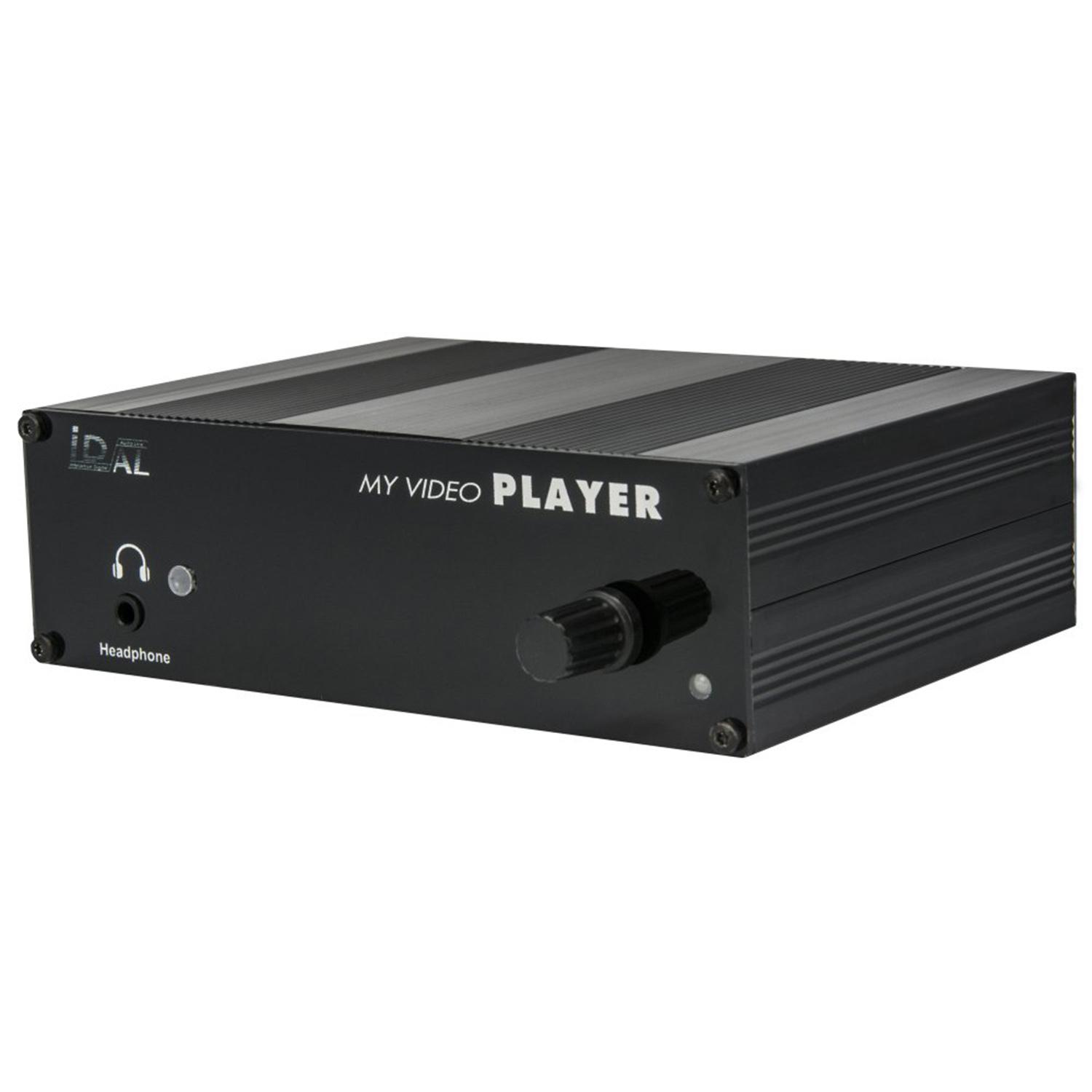

- Status LED
- Clickable knob (volume)
- Infrared sensor – Protocol: NEC

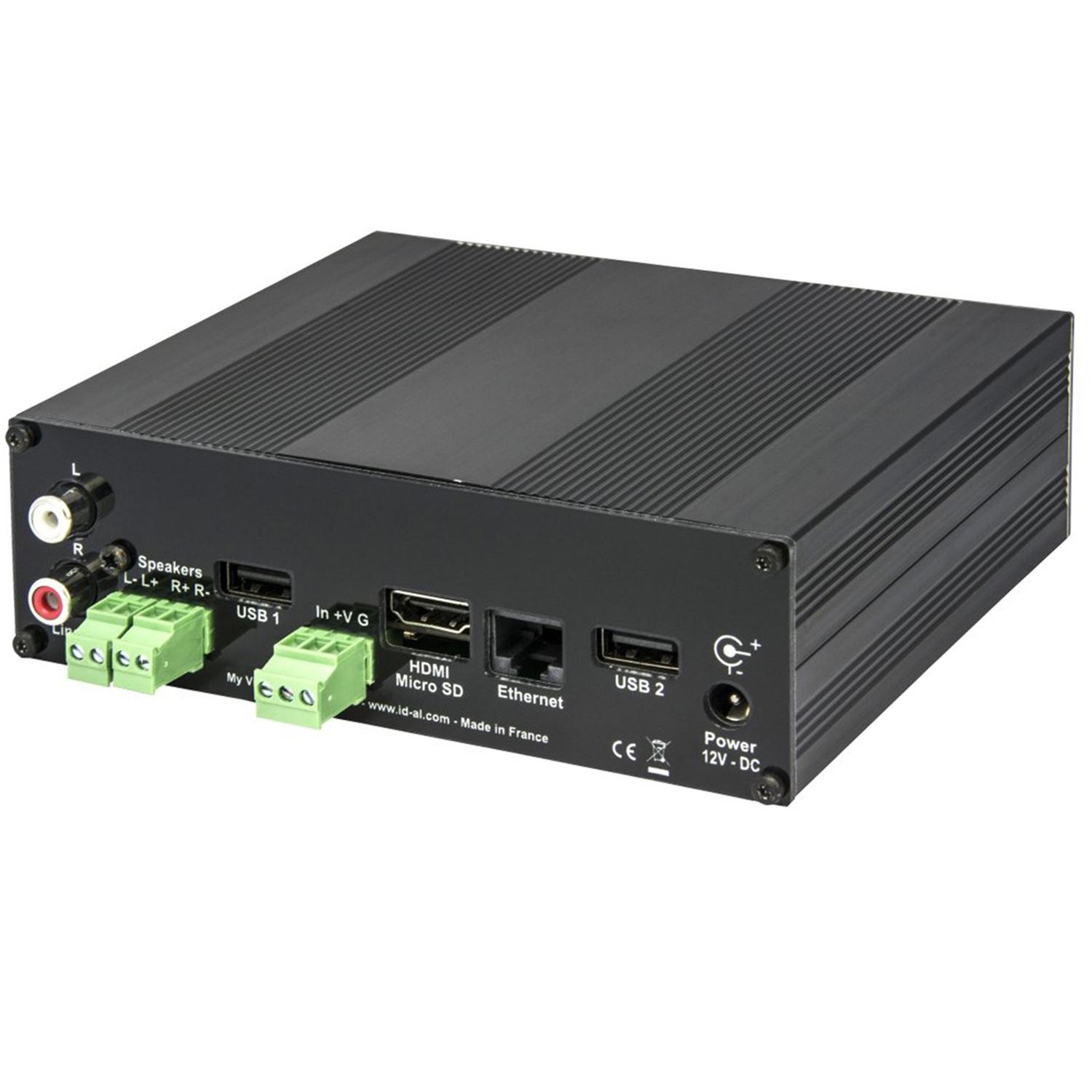

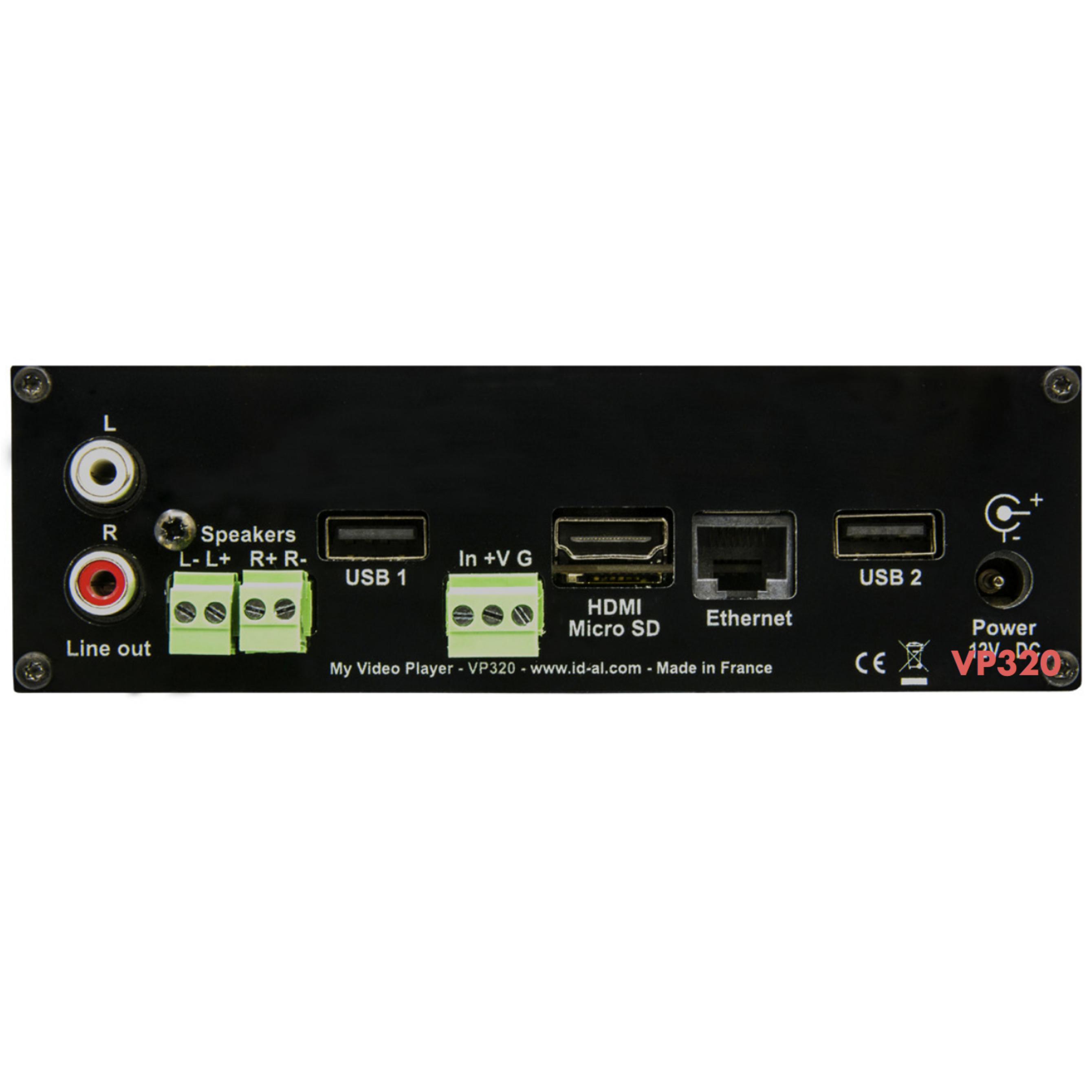

- 2 USB Host 2.0 High Speed (480 Mb/s), type-A receptacles, compatible:
- USB Mass Storage
- USB HID mouse, keyboard and multi-touch screen
- microSD card slot
- 10/100 Mbps Ethernet, RJ45 connector
- HDMI audio/video output, type-A (standard) receptacle connector (HDMI 2.0b, HDR10 and CEC)
- Unbalanced line-level stereo audio output on standard RCA connectors
- Headphone stereo audio output on a standard 3.5 mm (TRS) jack
- Class D amplified speaker stereo audio output on 3.81 mm pluggable terminal blocks
- A standalone configurable opto-isolated input contact on a 3.81 mm pluggable terminal block (typical debounce time: 25 ms)
- 1 power supply output on a pluggable terminal block
- External DC power supply chassis socket – Plug Ø 2.1 mm / 5.5 mm
|
|
Output Video Formats Supported
|
- 4K Ultra HD (3840 × 2160), 24/25/30/50/60 Hz
- 1080p (1920 × 1080), 24/50/60 Hz
- 1080i (1920 × 1080), 50/60 Hz
- 720p (1280 × 720), 50/60 Hz
- 576p and 576i (720 × 576), 50 Hz
- 480p and 480i (720 × 480), 60 Hz
- Main progressive scan VESA resolutions: see manual
|
|
Multimedia Container Formats Supported
|
Video
.mp4 (MPEG-4) / .mkv (Matroska) / .mov (QuickTime)
.jpg or .jpeg / .png / .bmp
Audio
.wav / .mp3 (MPEG-Layer 3) / .m4a (MPEG-4 Audio) / .ogg / .mka (Matroska)
|
|
Multimedia Codecs Supported
|
Video
H.265 HEVC MP-10@L5.1 up to 4K×2K@60fps
VP9 Profile-2 up to 4K×2K@60fps
H.264 AVC HP@L5.1 up to 1080p@60fps and 4K×2K@30fps
JPEG (ISO/IEC-10918) / PNG / BMP
Audio
- LPCM: up to 8 channels, 16/24-bit, up to 96kHz
- MP3: MPEG-1/2 Audio Layer III, mono/stereo, up to 48kHz, CBR (Constant Bit Rate) or VBR (Variable Bit Rate), with or without ID3v1/2 tags
- AAC-LC: Advanced Audio Coding, up to 8 channels, up to 96kHz
- HE-AAC-LC: High-Efficiency Advanced Audio Coding, mono/stereo, up to 96kHz
- Vorbis: up to 8 channels, up to 96kHz
- Opus: up to 8 channels, up to 48kHz
- FLAC: up to 8 channels, 16/24-bit, up to 96kHz
- DTS: Digital Theater System, HDMI passthrough
- AC3 Dolby Digital: HDMI passthrough or 6 channels, up to 48kHz
- E-AC3 Dolby Digital+: HDMI passthrough
Subtitles
- TXT : Text
- XML : Extensible Markup Language
|
|
Other File Formats Supported
|
- TM2 (.tm2): timestamped programming file (scheduler.tm2) – Scheduler V2 file format
- TXT (.txt): text files for the serial link (serial.txt) and the FTP configuration (ftpset.txt) – raw text format (only printable 7-bit ASCII characters) with CR/LF, LF or CR end of line characters
|
|
Embedded web browser
|
- Based on Chromium v92.0.4515.159
- JavaScript API to control the player
- Web page resolution: 1920×1080
|
|
Storage Devices
|
- File systems supported:
- FAT32 (read/write)
- exFAT (read/write)
- NTFS (read/write)
- ext2/3/4 (read/write)
- Internal storage: 4 GB
- Accepted storage device types:
- microSDSC cards
- microSDHC cards
- microSDXC cards
- USB flash drives
|
|
Network
|
- Embedded web server:
- Serve HTML5 / JavaScript pages
- Remote administration:
- Configuration
- Control
- Content update
- Maintenance
- Control the player through a REST API
- Embedded PJLink server to turn on and turn off a video projector
- Embedded FTP server for remote content update
- Embedded TCP/IP server for player control
- Embedded NTP client to synchronize the clock
- IPv4 and IPv6
- IPv4: static or DHCP address
- Embedded mDNS identification service (Zeroconf)
- Multicast “Start Sync” facilities over UDP
|
|
Audio Amplifier
|
- Headphone output:
- Maximum output power:
- 2 × 15 mW for 32 Ω
- 2 × 30 mW for 16 Ω
- THD+N:
- 0.014 % for 2 × 5 mW, 32 Ω, 1 kHz
- 0.016 % for 2 × 10 mW, 32 Ω, 1 kHz
- 0.022 % for 2 × 10 mW, 16 Ω, 1 kHz
- 0.028 % for 2 × 20 mW, 16 Ω, 1 kHz
- Speaker output:
- 2 × 8 W – 8 Ω, THD+N = 1 %, 1 kHz
- 2 × 10 W – 8 Ω, THD+N = 10 %, 1 kHz
- 2 × 15 W – 4 Ω, THD+N = 1 %, 1 kHz
- 2 × 19 W – 4 Ω, THD+N = 10 %, 1 kHz
|
|
Miscellaneous
|
- Nominal voltage: 12 V DC - 3.45A
- Timekeeping when the player is not powered: up to 2 months
- Operating ambient temperature: 0 to +45 °C
- Storage temperature: -20 to +60 °C
- Width: 143 mm - 1/3 of a 19-inch rack / Height: 43 mm - 1U
- Depth (with terminal block connectors): 136 mm
- Weight: 365g
|
