Sennheiser EW 300 G4-865-S
Click to expand

Sennheiser EW 300 G4-865-S

The Sennheiser EW 300 G4-865-S UHF headset radio microphone system uses the power of an increased switching bandwidth of up to 88MHz and new frequency ranges allow multi-channel setups with dozens of channels.

Available on Channel 38 only (EW 300 G4-865-S-GBW). Sennheiser part number: 509973

Supplied with a handheld transmitter with the super cardioid MME 865-1 condenser microphone head with high brilliance and feedback rejection. Ideal for vocals or speech.

The rugged, all metal construction half rack receiver is supplied with a rack mount kit.

  • Easy to use, fast setup time
  • Integrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM Software
  • Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment
  • Up to 88 MHz bandwidth, up to 32 channels
  • Increased RF output power (10/30/50 mW)
  • Transmission Range: up to 100 meters / 330 feet
  • Compatible with wireless speaker system LSP 500 PRO
  • RC (remote control) switch available for the bodypack transmitter

Whats in the Box?

  • EM 300-500 G4 true diversity receiver
  • SKM 300 G4-S handheld transmitter
  • MME 865-1 microphone head
  • GA 3 rackmount set
  • MZQ 1 microphone clamp
  • power supply
  • 2 AA batteries
  • 2 rod antennas
  • quick guide
  • safety guide
  • manufacturer declaration sheet
  • Warranty: 2 Years.



CH38 UHF
List Ex VAT: £840.83
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

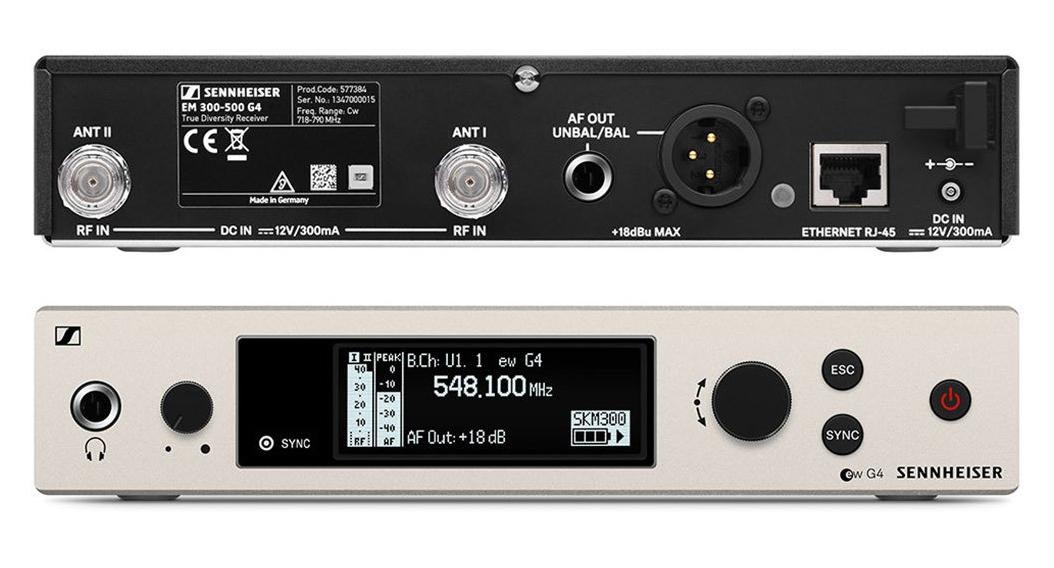

EM 300-500 G4 Receiver

Frequency Range

GBw: 606 - 678 MHz

Dimensions

202 x 212 x 43 mm

Weight

Approx. 980 g

Audio Output

6.3 mm jack socket (unbalanced): +12 dBu
XLR socket (balanced): +18 dBu

Power Supply

12 V DC

Antenna Connector

2 BNC sockets

RF sensitivity

< 2.5 μV for 52 dBA eff S/N

Receiver Principle

True diversity





SKM 300 G4-S Handheld Transmitter

Dimensions

Approx. Ø 50 x 265 mm

Weight

(incl. batteries) approx. 450 g

RF output power

switchable: Low: typ. 10 mW,
Standard: typ. 30 mW,
High: typ. 50 mW

Operating time

Typically 8 h

Power supply

2 AA batteries, 1.5 V or BA 2015 accupack

AF frequency response

80 – 18,000  Hz





MME 865-1 Capsule

SPL

152 dB

Transducer principle

Pre-polarised condenser

Pick-up pattern

supercardioid

Sensitivity in free field, no load (1kHz)

1.6 mV/Pa
