Terracom TERRA-EX
Click to expand

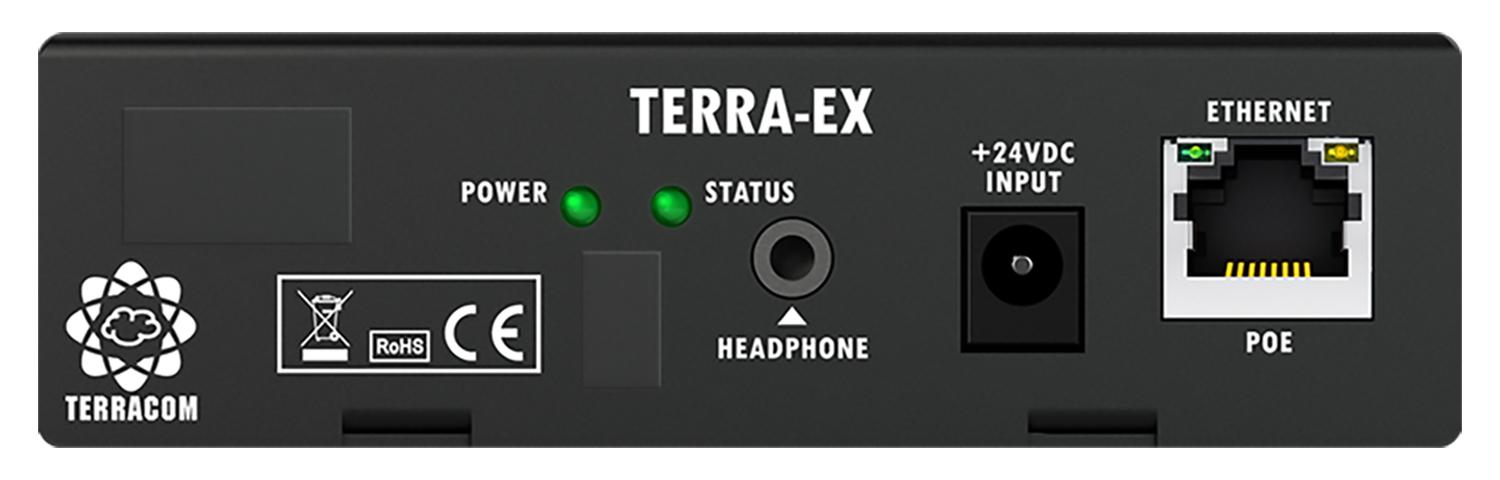

Terracom TERRA-EX

The Terracom TERRA-EX is an IP, POE (Power over Ethernet) audio decoder which can be used on any existing network for all kinds of audio reinforcement, background music and paging.

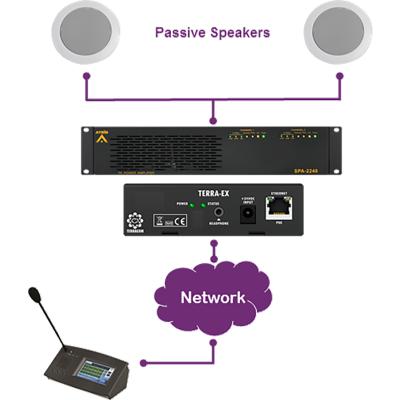

This decoder is used  to connect remote audio sources & microphones etc to standard audio equipment, such as the amplifier in a PA system, via your network.

Integrated shoutcast/icecast decoding, scheduler and internal storage are just some of the features of this IP decoder.

Configuration, control and monitoring is achieved via your favourite web browser.

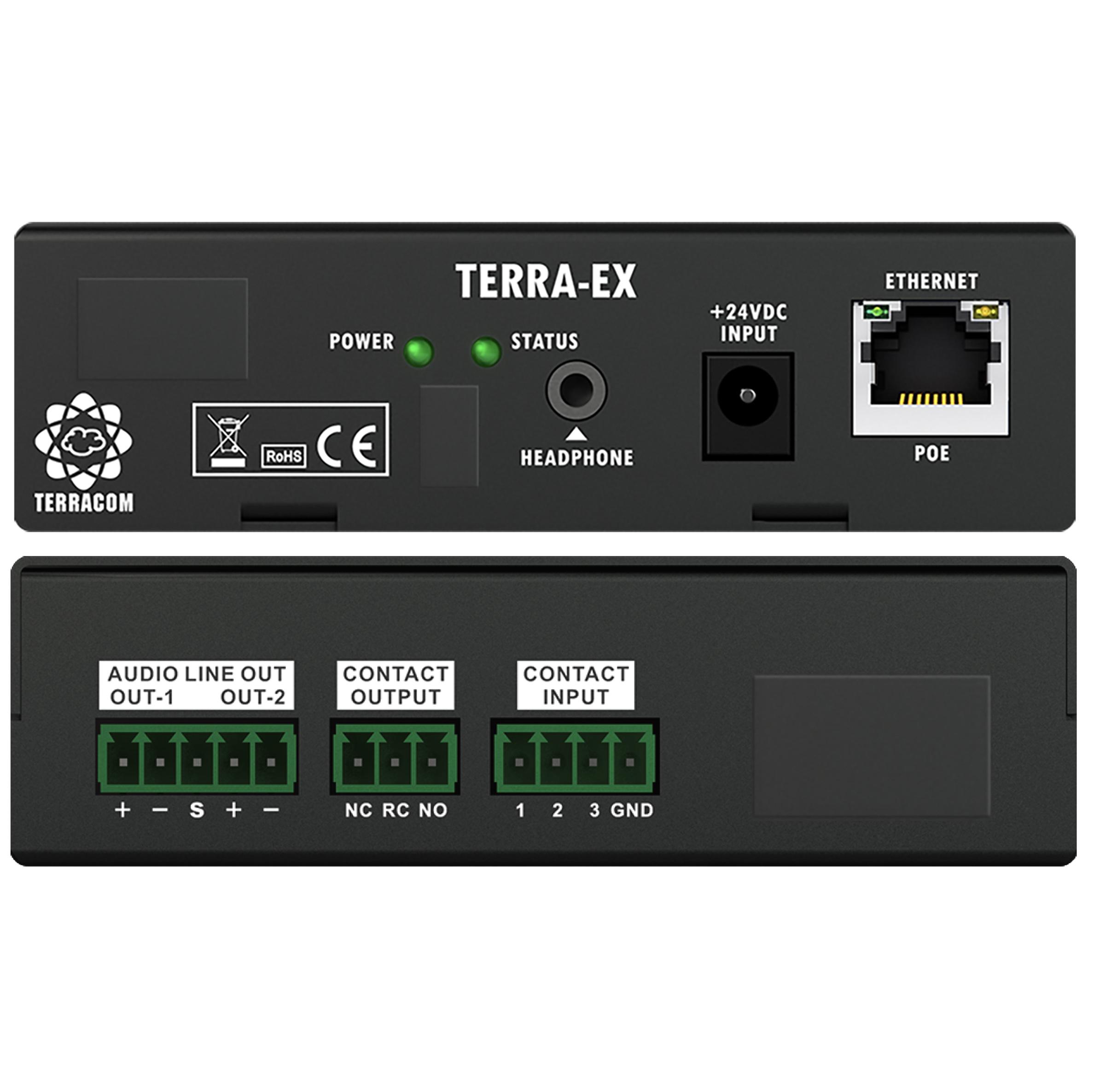

The TERRA-EX has 2 independent balanced line outputs, 1 contact output and 3 contact inputs. An alternative version with RS232 interface is available – see TERRA-EX2

  • 2 balanced line outputs (1 stereo or 2 mono)
  • 1 stereo line output (3.5 mm mini-jack) for headphone
  • Audio output: maximum level +5 dB, bandwidth 20 Hz ~ 20 kHz
  • Single CAT5/6 cable connectivity for audio and control
  • PoE or 24 VDC power supply (if PoE is not available)
  • Support G.711, G.722, G.726, G.727, G.729, MP3 audio codec and AAC+ (decoding only)
  • Web browser interface for management and monitor
  • SNMP (Simple Network Management Protocol) for device management on IP networks
  • Internal 80 MB storage for recoding, message storage
  • Power LED and Status LED indicators
  • 3 contact inputs and 1 contact output
List Ex VAT: £368.57
Log in for Trade Prices

Related Products

Terracom Terraserver

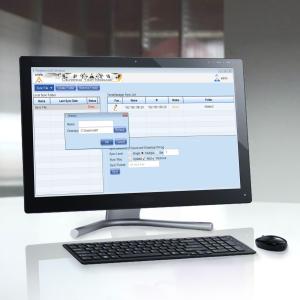

Terraserver Integrated Management Software for complex audio over IP systems.
