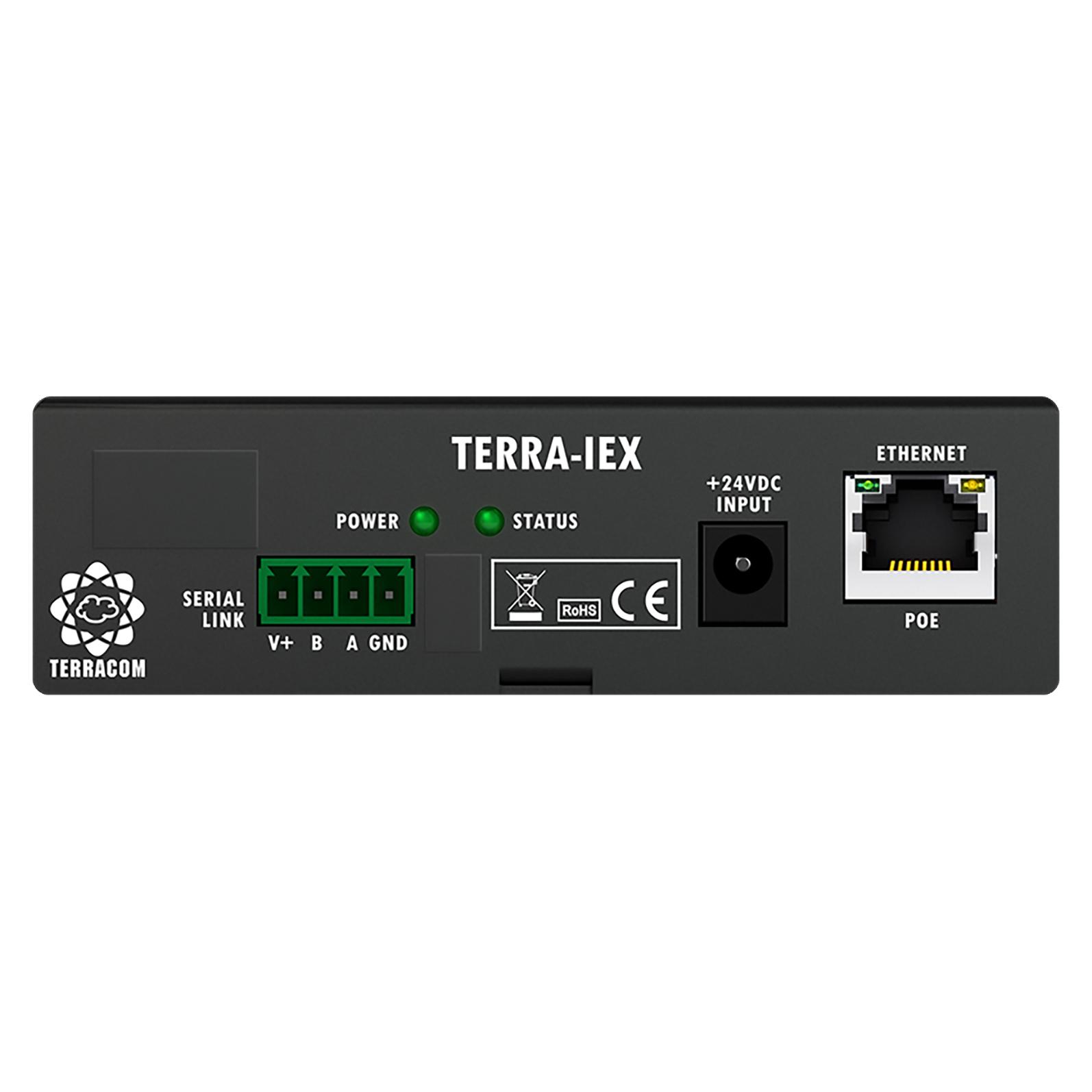

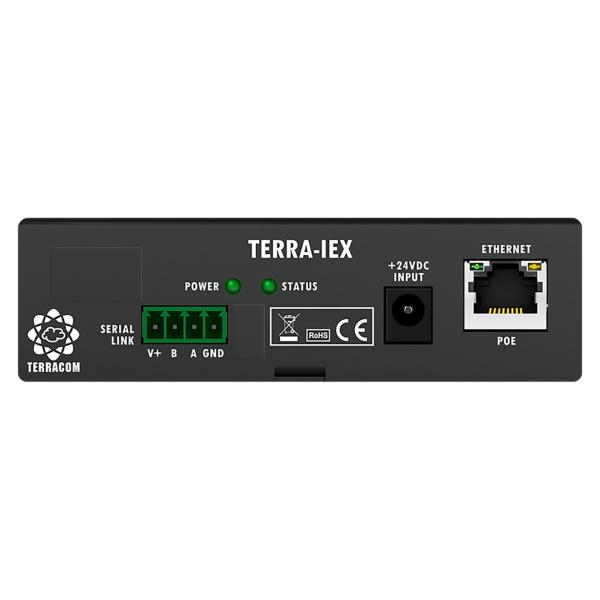

Terracom TERRA-IEX
Click to expand

Terracom TERRA-IEX

The Terracom TERRA-IEX is an IP, POE (Power over Ethernet) audio encoder/decoder which can be used on any existing network for all kinds of audio reinforcement, background music and paging.

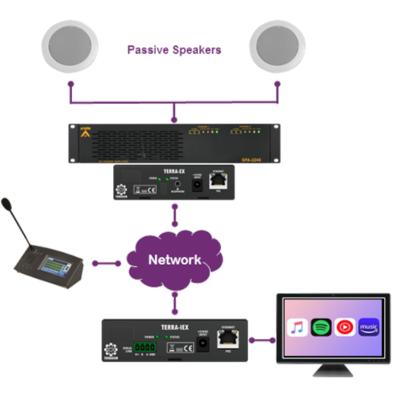

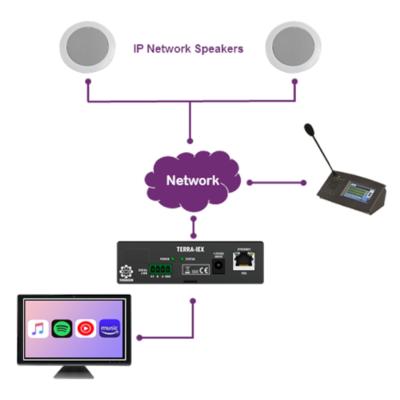

This encoder/decoder can be used to connect all kinds of audio sources to your network for Audio Over IP systems. Input or output digitised audio from a network and provide an analogue output with I/O. Simultaneous encoding/decoding of audio enables bi-directional and full duplex communication operating as an audio source for an IP network.

Integrated shoutcast/icecast decoding, scheduler and internal storage are just some of the features of this IP module.

Configuration, control and monitoring is achieved via your favourite web browser.

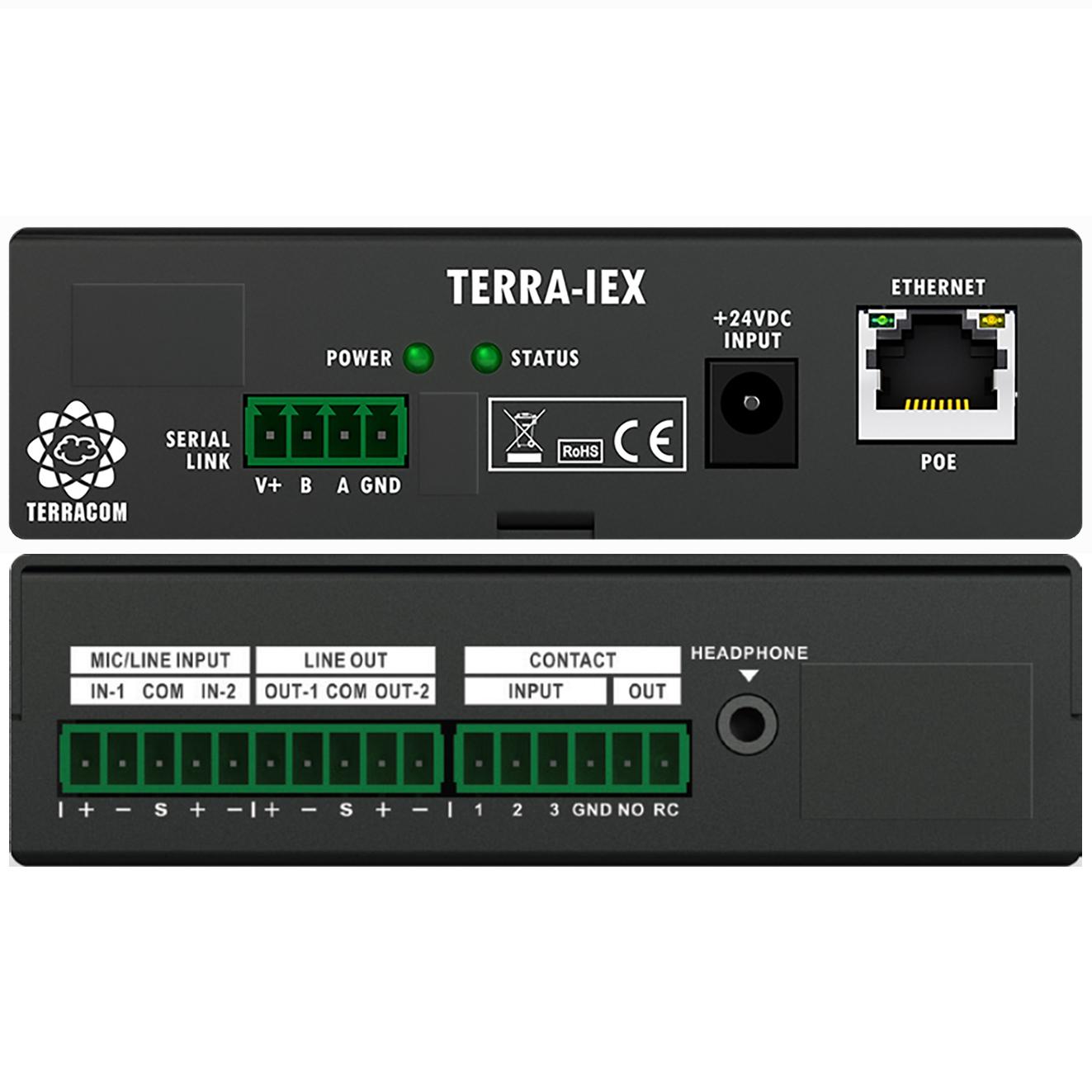

The TERRA-IEX has 2 x mic/line balanced inputs, 1 x stereo or 2 x mono outputs, 3 x contact inputs, 1 x contact output, 1 x RS232. Internal 80MB storage is provided for recording / message storage.

Also available with USB2.0 interface for music or message storage.
A further version is available with USB2.0 and RS485 instead of RS232.

  • 3 contact inputs and 1 contact output
  • 2 Mic/line balanced inputs
  • 2 balanced line outputs (1 stereo or 2 mono)
  • 1 stereo line output (3.5 mm mini-jack) for headphone
  • 1 optional S/PDIF digital transceiver
  • RS232 for third party control
  • Internal 80 MB storage for recoding, message storage
  • Audio inputs/outputs: maximum level +5 dB, bandwidth 20 Hz ˜ 20 kHz
  • PoE or 24 VDC power supply (if PoE is not available)
  • Support G.711, G.722, G.726, G.727, G.729, MP3 audio codec and AAC+ decoding
  • Options: USB interface or RS485 + USB (see TERRA-IEXU & TERRA-IEXU4)
List Ex VAT: £553.23
Log in for Trade Prices
