The Terracom TERRA-AMP is an IP audio terminal with built-in amplifier offering 2 x 15 W (at 8 Ohm) on two independent balanced outputs.

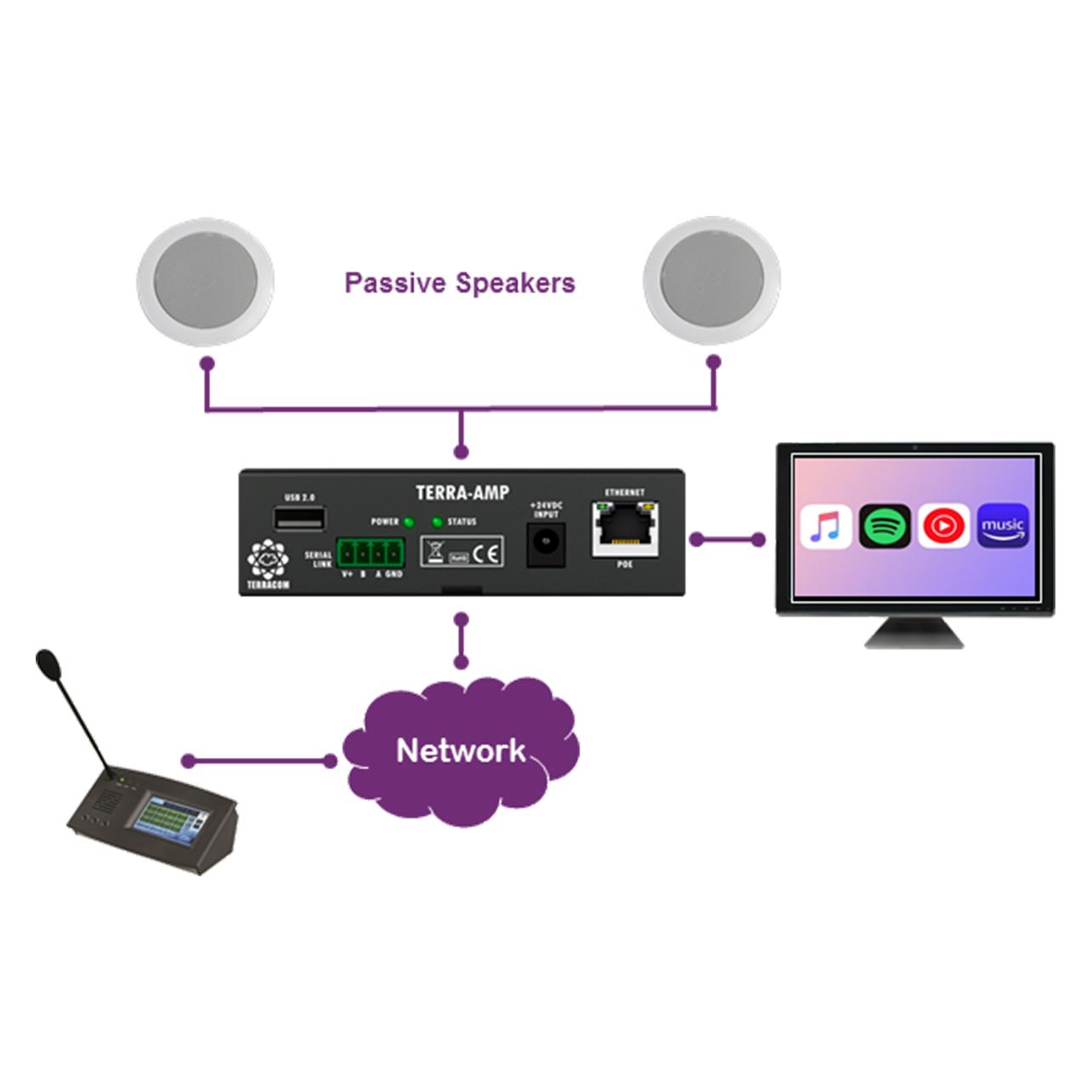

You can use this Audio over IP mini amp with existing low impedance speakers to play remote audio sources via your network.

There is a USB 2.0 flash memory interface for playlist backups or pre-recorded announcements. The mic/line balanced input can be used with a local audio source for network streaming.

Simultaneous encoding/decoding of audio enables bi-directional and full duplex communication operating as an audio source for an IP network. Integrated shoutcast/icecast decoding, scheduler and internal storage are just some of the features of this IP module.

Configuration, control and monitoring is achieved via your favourite web browser.

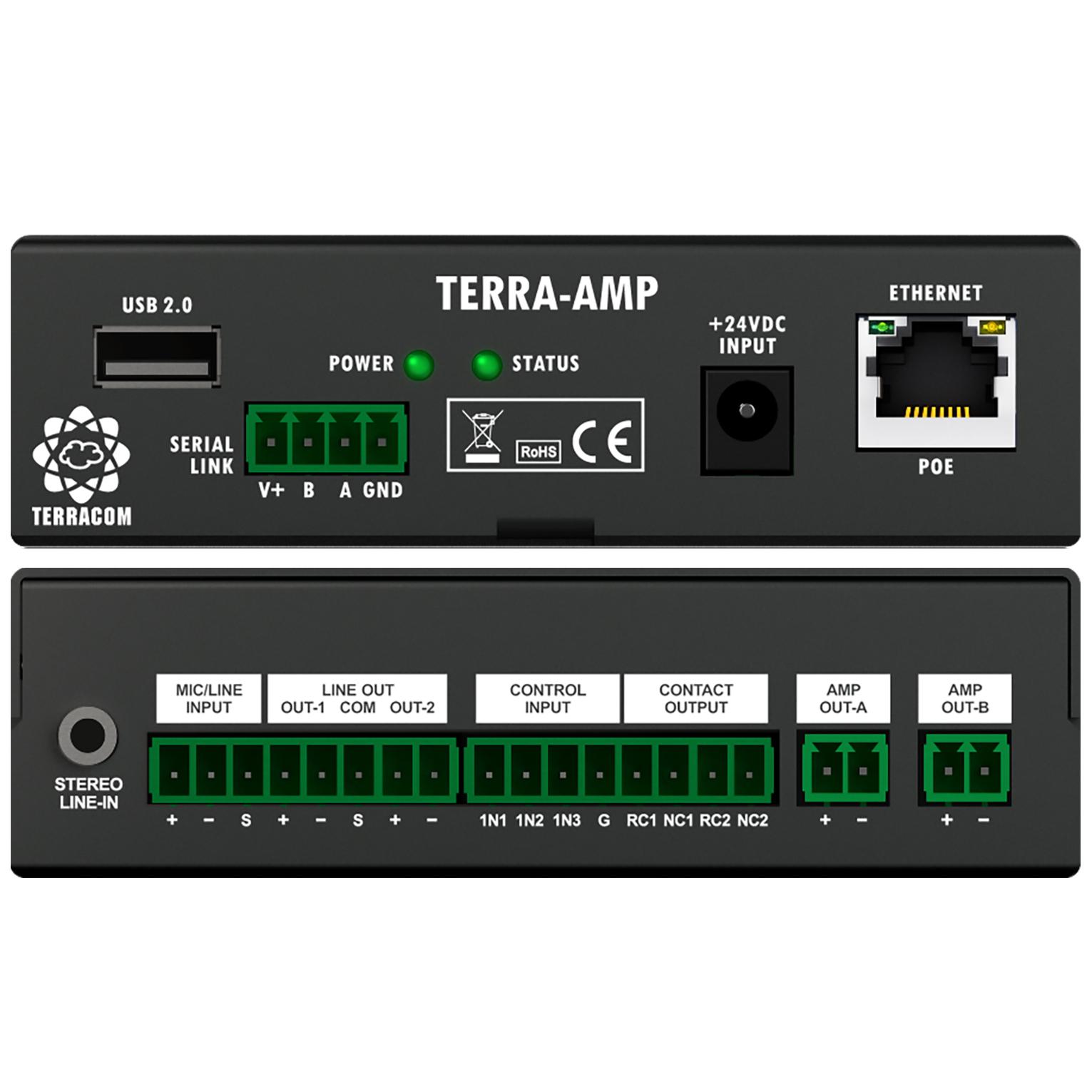

• 1 mic/line balanced input
• 2 balanced line outputs (1 stereo or 2 mono)
• 2 x 15 W (8 Ω) balanced independent amplified outputs
• 1 headphone output on mini-jack
• 3 contact inputs
• 2 relay outputs
• RS232 for third party control
• USB interface for additional storage
• Internal 80 MB storage for message recording and music playback
• Audio inputs/outputs: maximum level +5 dB, bandwidth 20 Hz ˜ 20 kHz
• PoE or 24 VDC power supply (if PoE is not available)
• Support G.711, G.722, G.726, G.727, G.729, MP3 audio codec and AAC+ decoding
