Electro-Voice C8.2LP

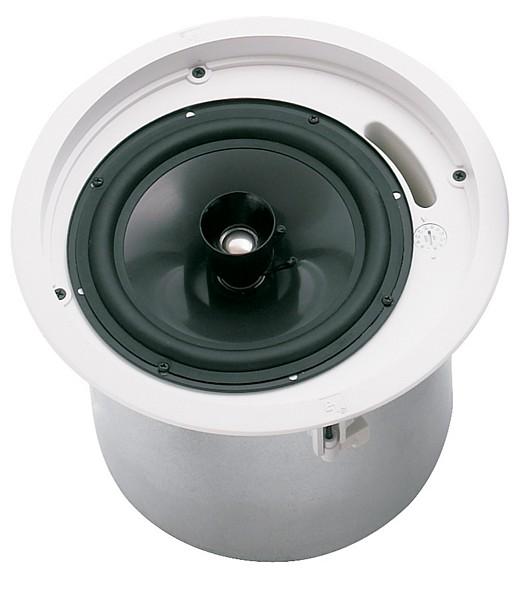

The Electrovoice EVID C8.2LP is a dual impedance 8", two way, coaxial ceiling speaker with a low profile design. Supplied and priced as a pair.


This ceiling speaker system has excellent full range sound quality with an extended bass response
thanks to its specially tuned enclosure and 8" woofer.

The 1" waveguide coupled tweeter gives smooth controlled coverage out to 18 kHz.

Perfect for installations where a flush mount design is desired but demand for high quality audio exists. Features a 4-point mounting system which makes installations fast and easy.

Complete with mounting support ring and tile rails. No additional accessories needed for most installations. A standard deep profile versionis also available for installations where space is not an issue - see C8.2.



  • Low-profile for rich sound in tight spaces
  • Ported enclosure for extended bass response
  • Waveguide-coupled 1-inch titanium-coated tweeter
  • Full-bandwidth overload protection
  • Integrated transformer for 70 V, 100 V, or 8 Ω use
  • Front-panel mode/wattage selector
  • Safe, easy installation with included tile bridge and mounting ring
  • White semi-gloss perforated grille
  • Complete package, requires no additional accessories





100V 8ohms
List Ex VAT: £301.10
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Chassis Size

203.2 mm (8")

Color

White (paintable surface)

Coverage (Nominal -6 dB)

110 conical

Diameter (Max)

270 mm (10.63")

Input Formats

8 Ω, 70 V, 100 V

Mounting Systems

Integrated 3-point toggle anchors

Speaker Type

Ported cabinet, internally damped, two-way (passive crossover included)

Transformer

Yes

Transformer Taps (Transformer Version Only)

(1.88 - 70 V only), 3.75, 7.5, 15, 30

Frequency Response (-10 dB)

50 - 20000 Hz

Sensitivity 1 W/1 m

91 dB

System Power Handling (Continuous/Program/Peak)

100 Watts Overload Protected

LF Transducer

8-inch polypropylene cone

HF Transducer

1-inch (25 mm) Ti Mylar Laminate Dome

Enclosure Material

Steel enclosure and UL94V-0 rated baffle and bezel

Outdoor

No

Grill

Powder-coated steel

Height

178 mm (7.01")

Weight Net

5 kg (11.02 lbs)
