LD Systems CFL52100V
Click to expand

LD Systems CFL52100V

The LD Systems CFL 52100V frameless in-wall speaker is designed for especially discreet installation in walls.

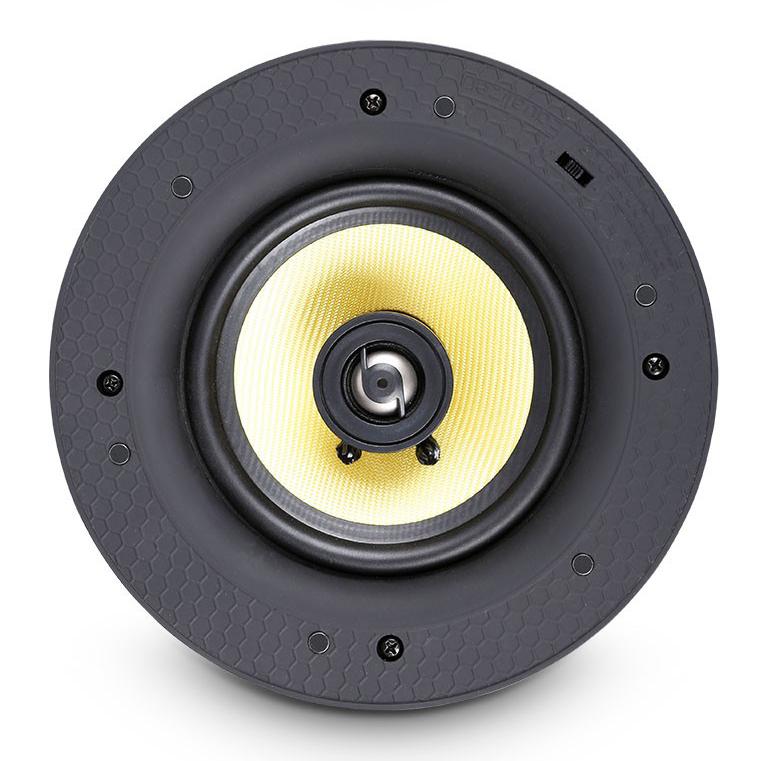

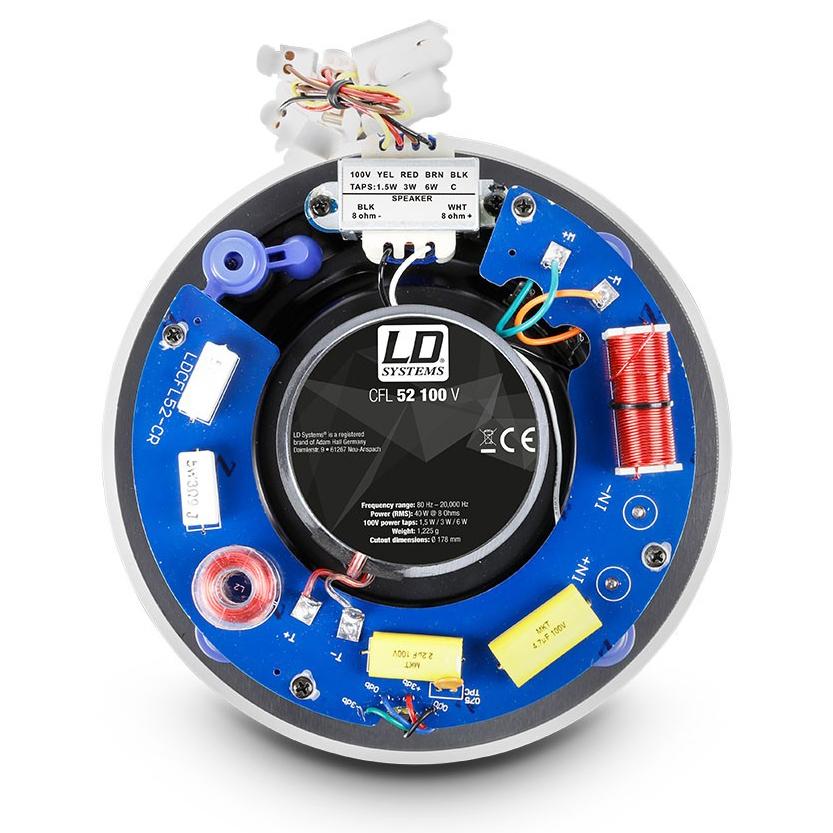

The two way loudspeaker with 5.25" woofer & 1.2" tweeter offers 6 W RMS output power on 100V line circuits with excellent sound quality and high speech intelligibility. Transformer tappings are available at 1.5W, 3W and 6W.

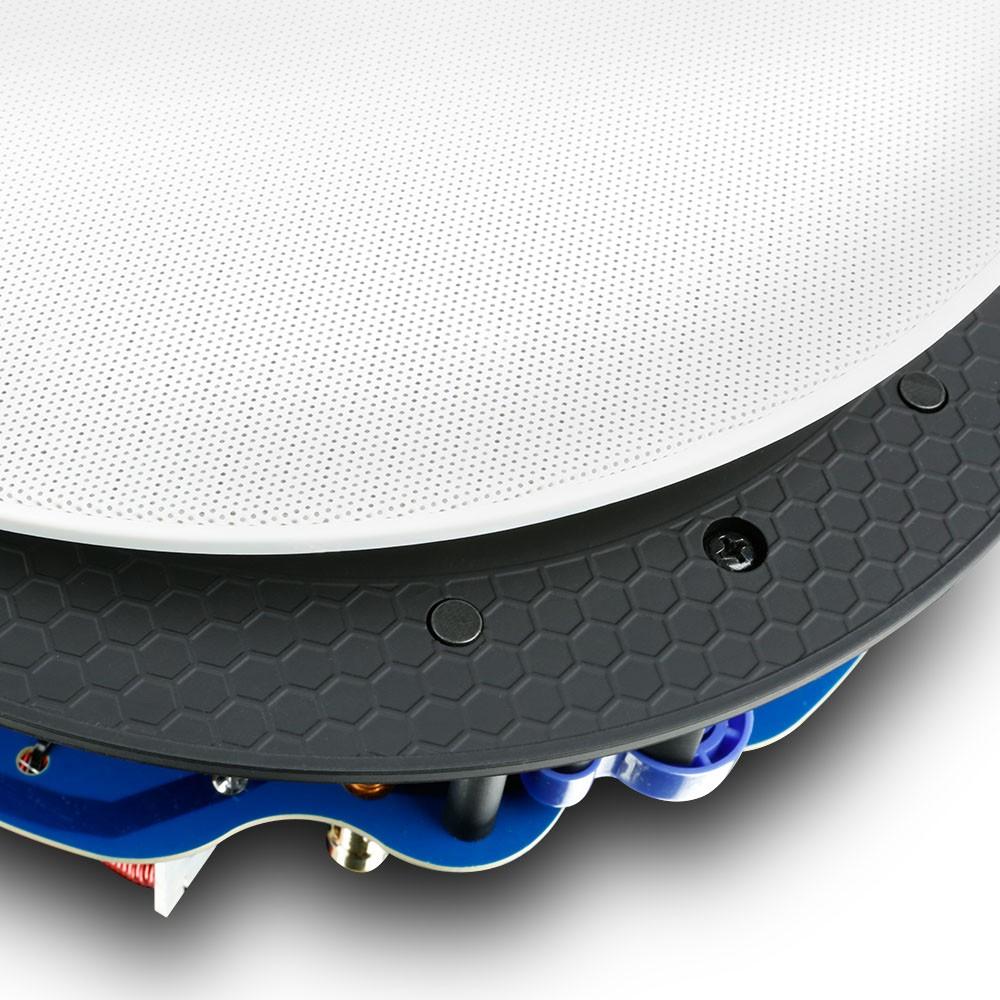

Installation is quick and easy; 4 swivel clamps secure the chassis in the mounting hole and the almost flush front grille is attached with magnetic mounts.

Also available in a low impedance 8 ohm version – see CFL 52.

  • 5.25" woofer
  • 1.2" high-frequency driver
  • Low installation depth

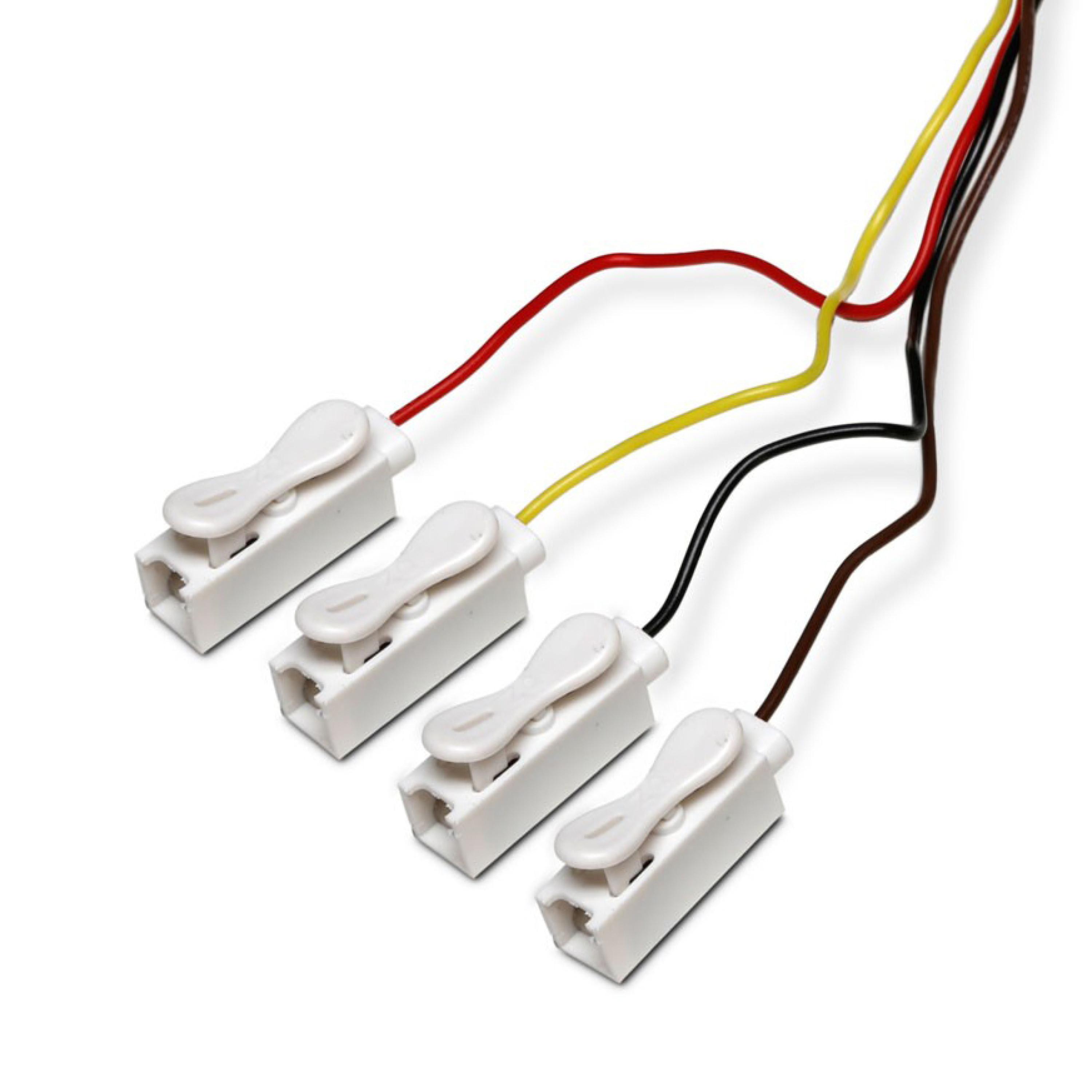

  • Transformer tappings at 1.5 W, 3 W, 6 W
  • Frequency range up to 20 kHz
  • High speech intelligibility
  • Easy and safe assembly with a discreet design
  • Ideal for hotels, restaurants, bars, lounges, shopping centres, conference rooms etc.
  • Also available as a low impedance, 8 ohm version
100V
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Speaker type

2-way speaker

Woofer dimensions

5.25 " / 133 mm

Tweeter dimensions

1.2 " / 30 mm

Min. / Max Material Thickness

3 mm / 15 mm

Frequency response

80 - 20000 Hz

Sensitivity (1 W / 1 m)

88 dB

100 V Inputs

1.5 W, 3 W, 6 W

Cut-out measurement

178 mm

Mounting depth

77 mm

Diameter x Depth

204 mm x 81 mm

Weight

1.225 kg
