LD Systems CFL62100V
Click to expand

LD Systems CFL62100V

The LD Systems CFL 62100V frameless in-wall speaker is designed for especially discreet installation in walls.

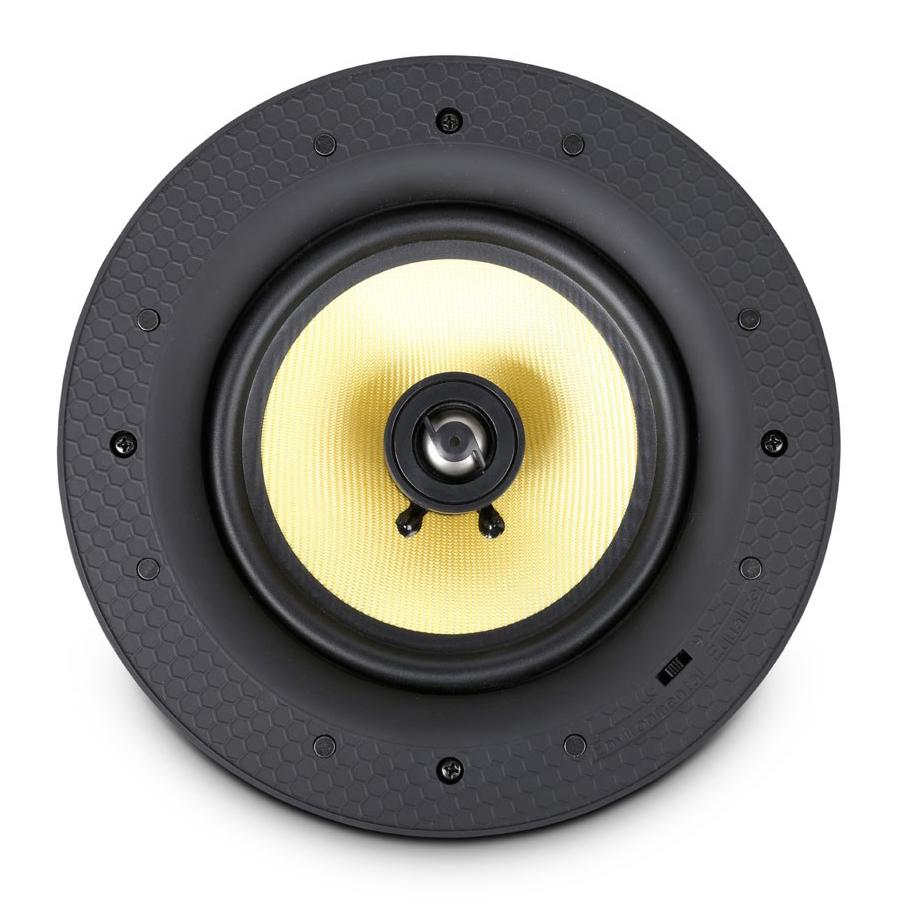

The two way loudspeaker with 6.5" woofer & 1.2" tweeter offers 24 W RMS output power on 100V line circuits with excellent sound quality and high speech intelligibility. Transformer tappings are available at 6W, 12W and 24W.

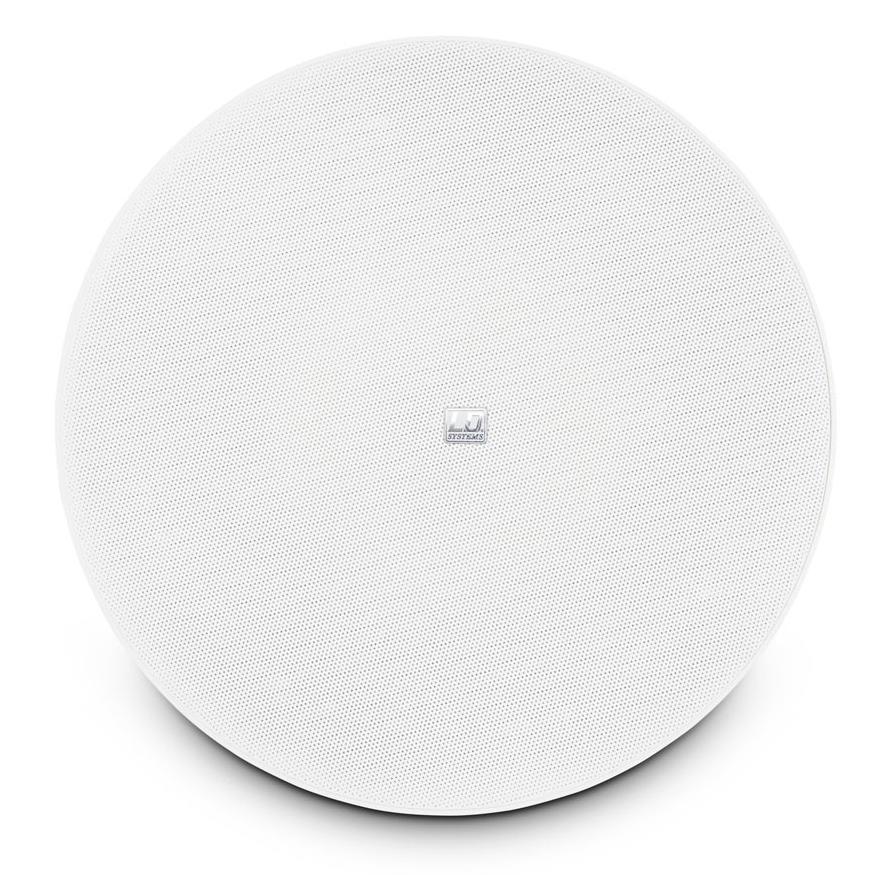

Installation is quick and easy; 4 swivel clamps secure the chassis in the mounting hole and the almost flush front grille is attached with magnetic mounts.

Also available in a low impedance 8 ohm version – see CFL 62.

  • 6.5" woofer
  • 1.2" high-frequency driver
  • Low installation depth
  • Transformer tappings at 6 W, 12 W, 24 W
  • Frequency range up to 20 kHz
  • High speech intelligibility
  • Easy and safe assembly with a discreet design
  • Ideal for hotels, restaurants, bars, lounges, shopping centres, conference rooms etc.
  • Also available as a low impedance, 8 ohm version
100V
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Speaker type

2-way speaker

Woofer dimensions

6.5 " / 165 mm

Tweeter dimensions

1.2 " / 30 mm

Min. / Max Material Thickness

3 mm / 15 mm

Frequency response

70 - 20000 Hz

Sensitivity (1 W / 1 m)

88 dB

100 V Inputs

6 W, 12 W, 24 W

Cut-out measurement

234 mm

Mounting depth

81 mm

Diameter x Depth

234 mm x 86 mm

Weight

1.865 kg
