LD Systems CWMS 52 100V

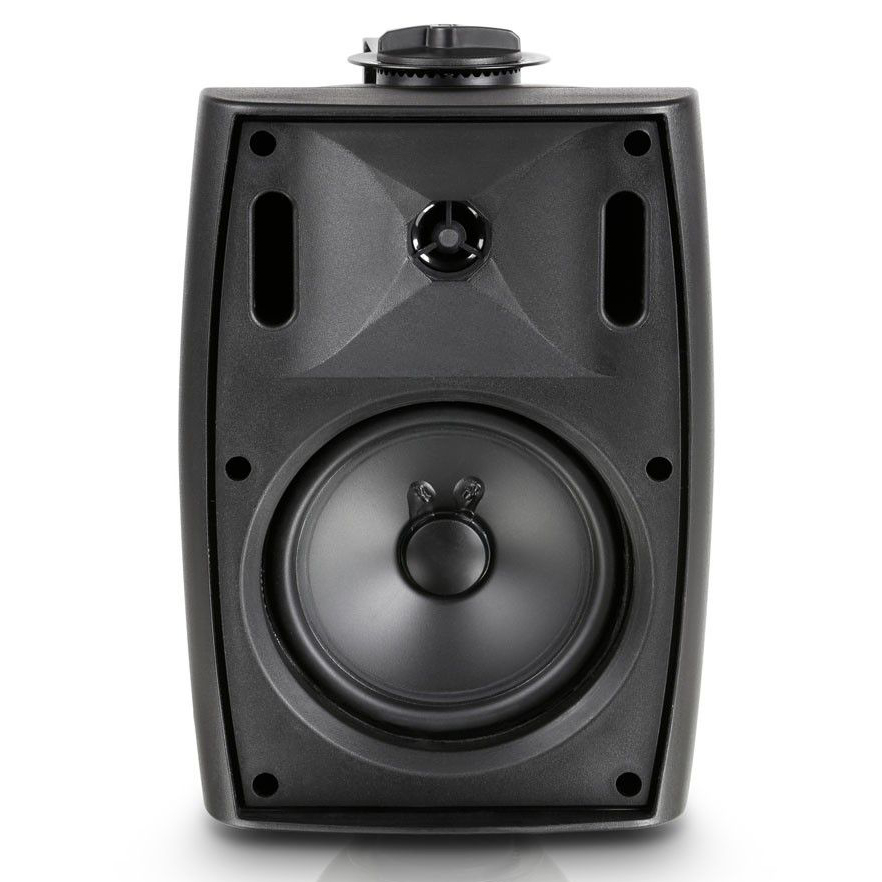

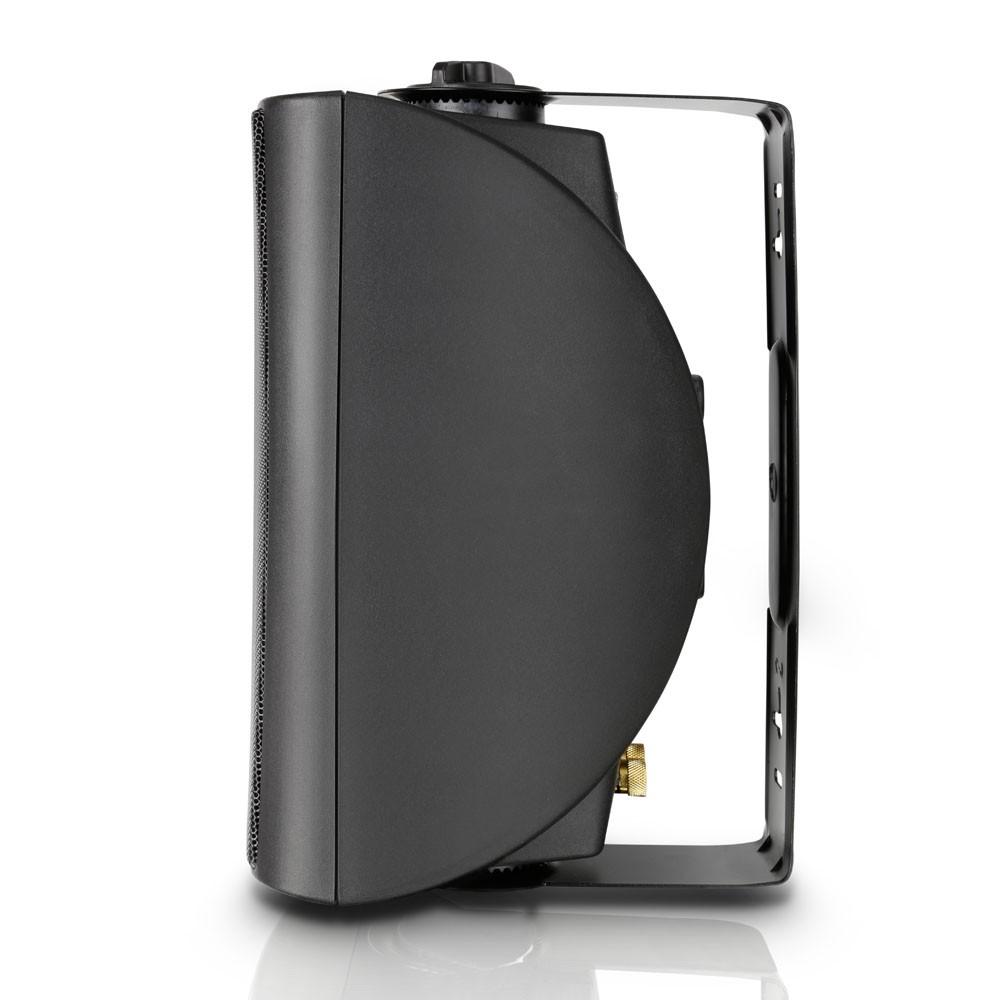

The LD Systems LDCWMS 52 100V is an elegant 2-way wall mounted cabinet speaker with a 5.25" woofer and a 1.2" tweeter, reaching a frequency response up to 20 kHz with high speech intelligibility.

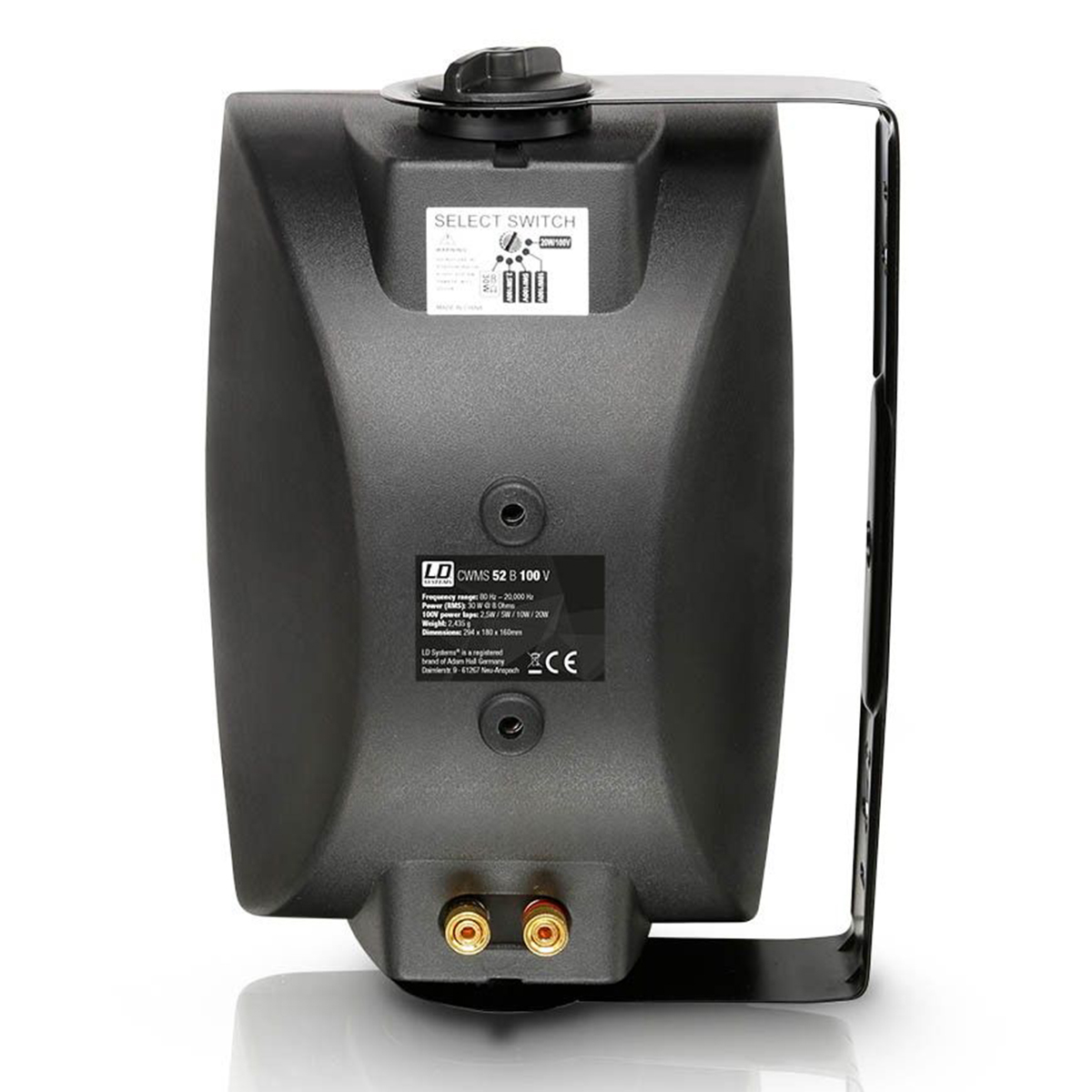

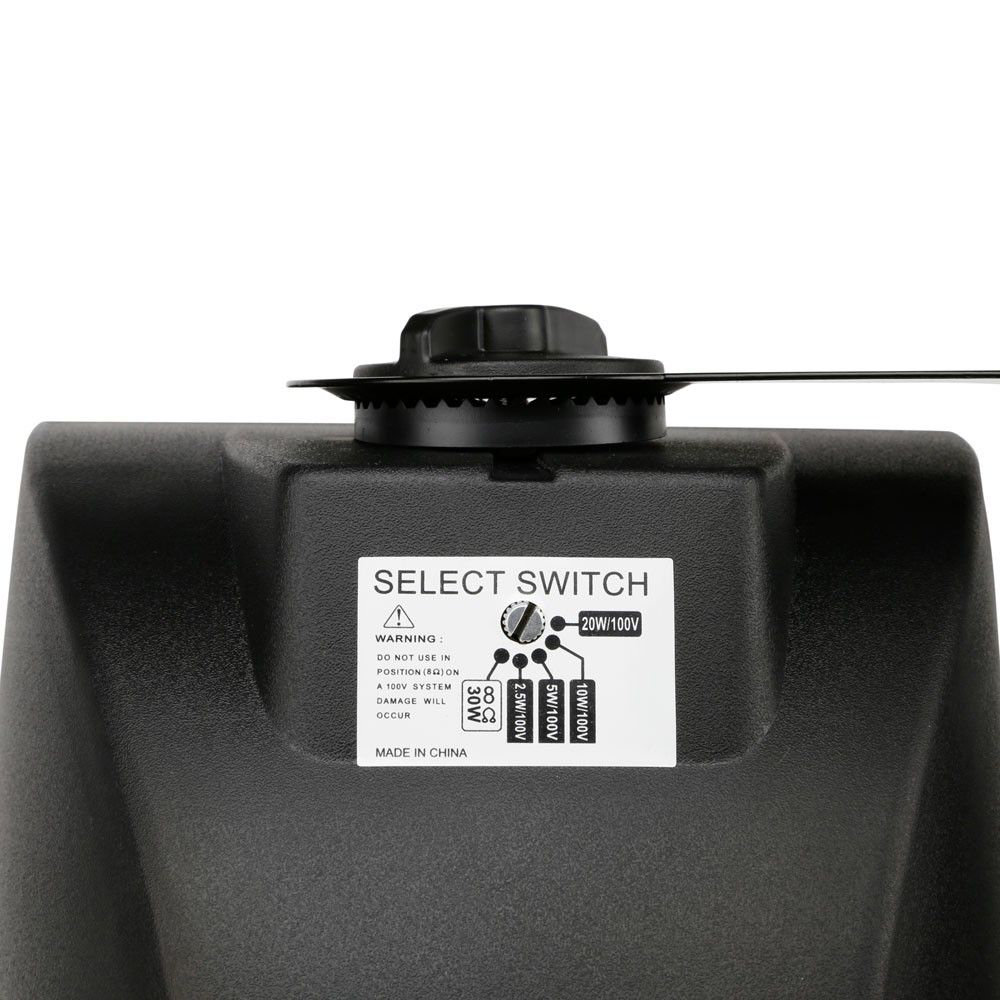

Suitable for 100V line loudspeaker circuits. Transformer tappings are at  2.5, 5, 10 and 20 Watts. A low impedance output is also provided rated 30 Watts, 8 Ohms.

Ideal for discreet audio reinforcement in hotels, restaurants, bars, lounges, training and conference rooms & shopping centres.

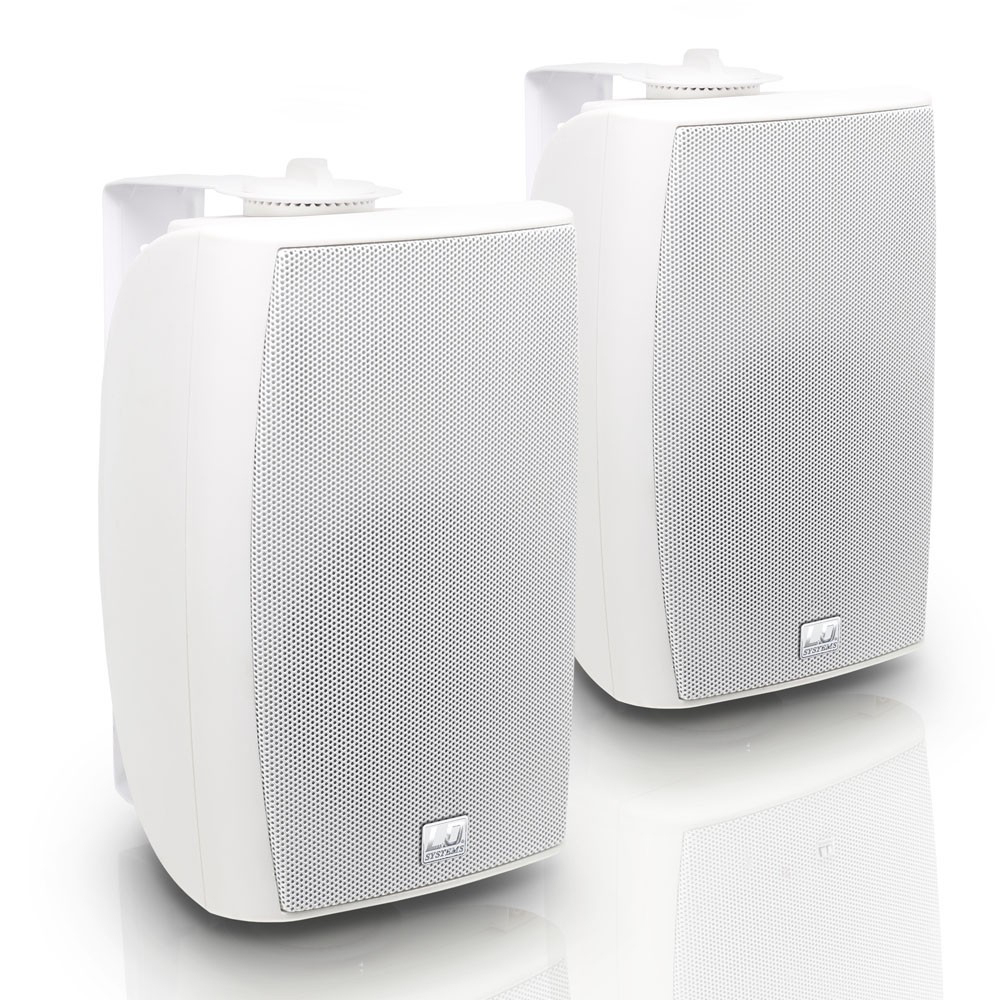

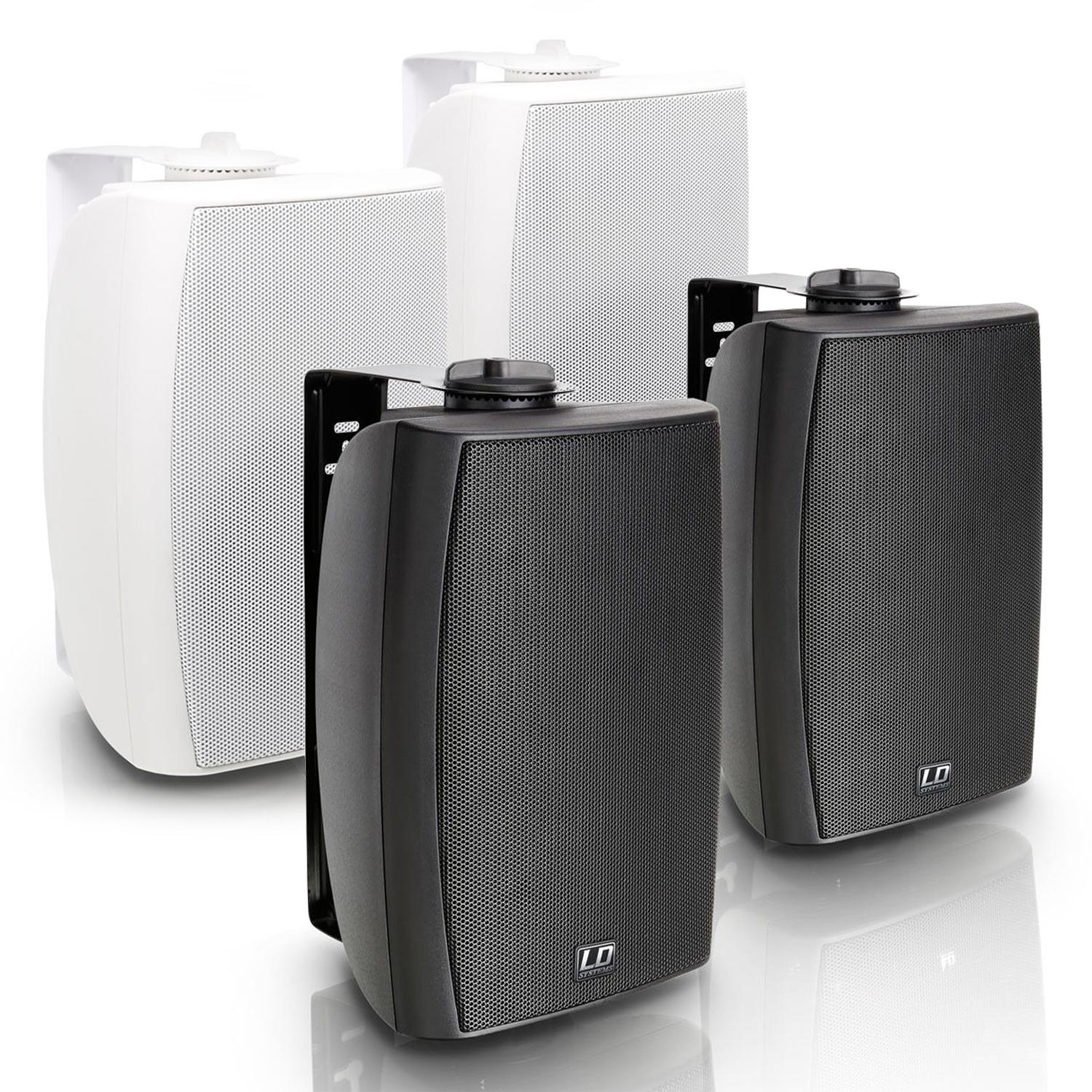

LDCWMS 52 100V is available in white (LDCWMS 52 W 100V) and black (LDCWMS 52 B 100V).

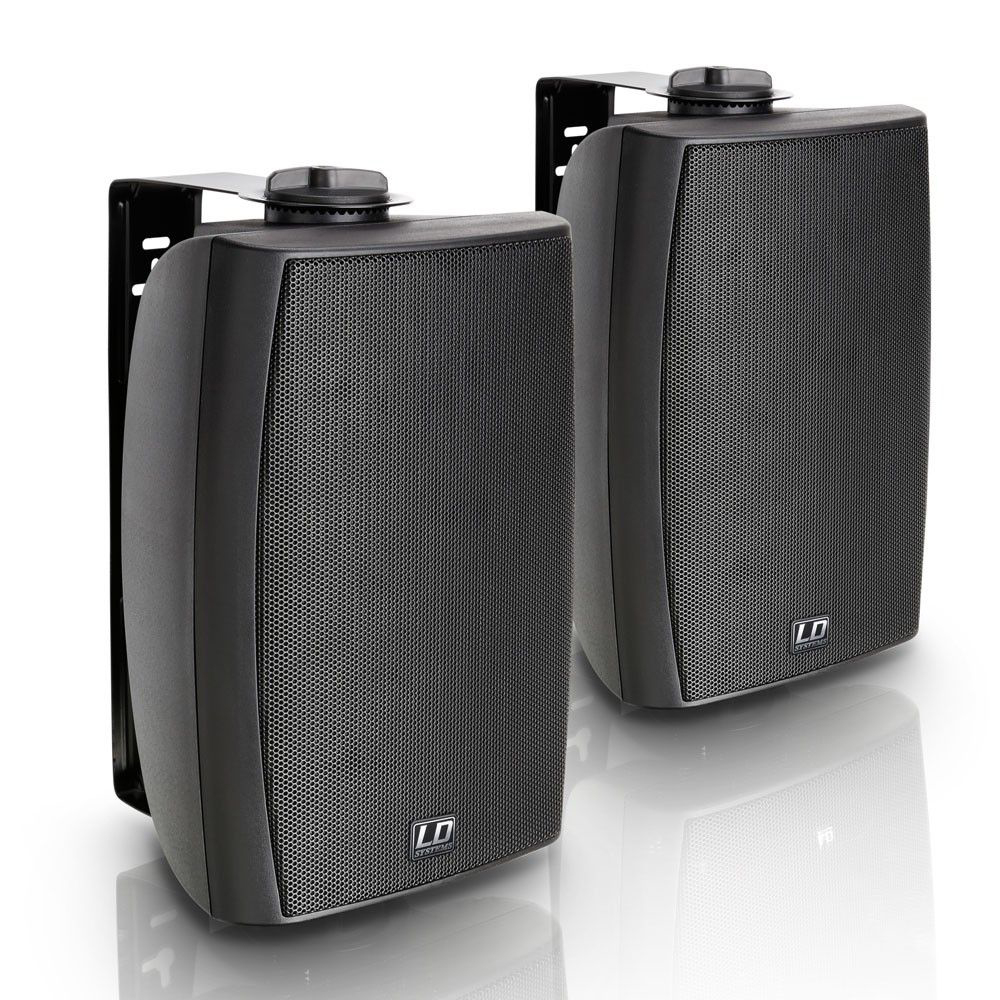

Supplied in pairs.

Also available in a low impedance version. (See CWMS 52 W, CWMS 52 B).

  • Compact wall speaker
  • 5.25" woofer
  • 1.2" high-frequency driver
  • 20 watts, 100V
  • 30 watts, 8 Ohms.
  • Frequency range up to 20 kHz
  • High speech intelligibility
  • Available in black or white
  • Low impedance version also available
100V 8ohms
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Woofer dimensions

5.25 " / 133 mm

Tweeter dimensions

1.2 " / 30 mm

Impedance (low-impedance)


8 Ohm(s)

Low-impedance rated load (RMS)

30 W

100V Inputs

2.5W, 5W, 10W, 20W

Frequency response

80 - 20000 Hz (-10dB)

Sensitivity (1W/1m)

88 dB

Cabinet material / colour

ABS plastic / Black or White

Height x Width x Depth

294 mm x 180 mm x 160 mm

Weight

4.87 kg
