The LD Systems LDSUB 88A active bandpass subwoofer is fitted with 2 x 8" low/mid woofers and has an integral mono amplifier rated at 150 W RMS.
The compact design enables unobtrusive placement either vertically or horizontally.
The sturdy MDF cabinet is finished in black textured paint.
|
Low/mid Woofer |
2 x 8 " (203mm) |
|
Amplifier |
Class A/B, 150 W RMS |
|
Frequency response |
40Hz – 120Hz |
|
SPL (1W/1m) |
92 dB |
|
Max. SPL |
115 dB |
|

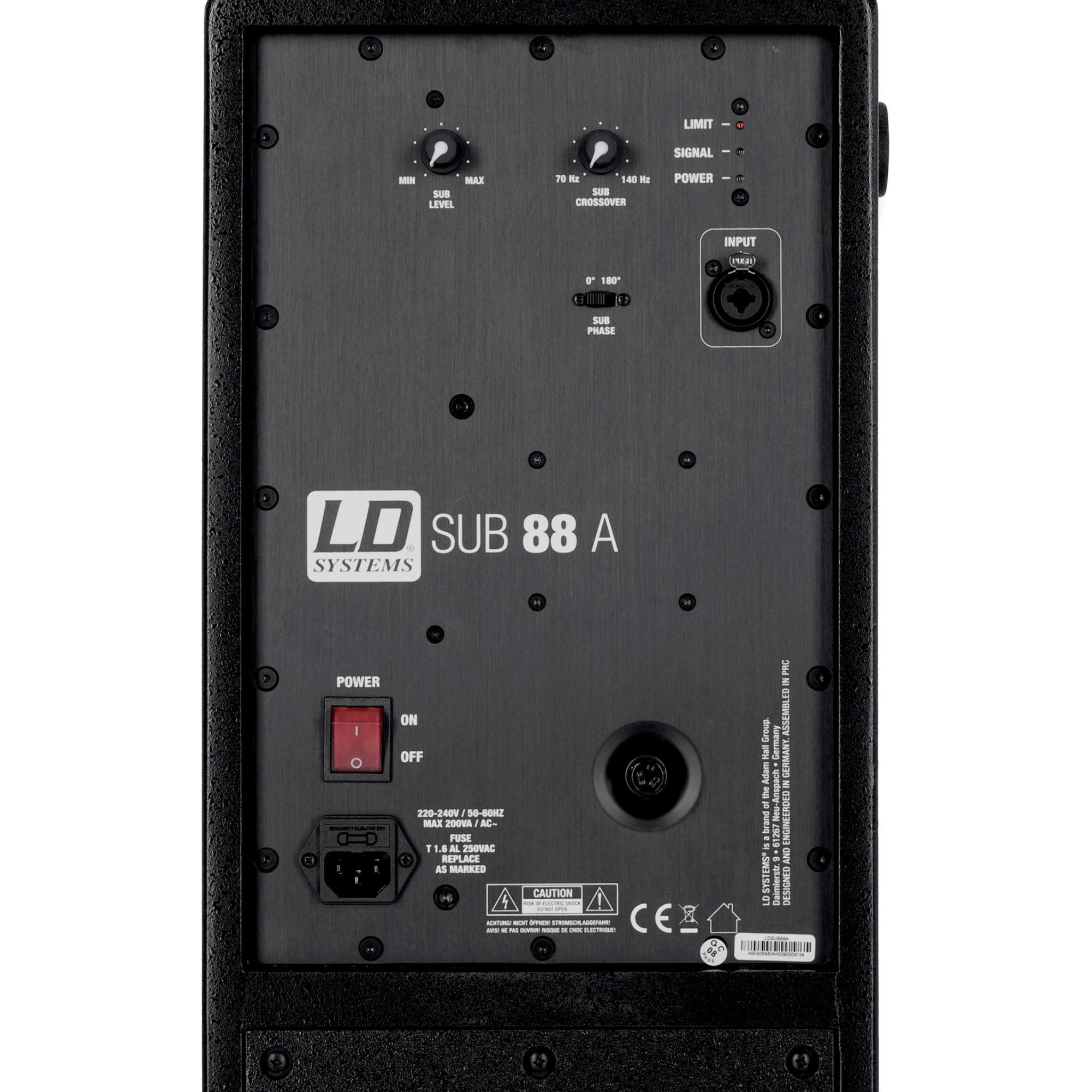

Controls |
Low-pass filter (70 - 140 Hz), Phase 180°, volume |
|
Indicators |
Limit, Power, Signal |
|
Line Input |
1 x 6.3 mm jack, XLR |
|
Operating Voltage |
220 V AC - 240 V AC, 50-60 Hz |
|
Cabinet material |
15 mm MDF |
|
Cabinet finish |
Black, textured paint |
|
Cabinet construction |
Bandpass |
|
Width x Height x Depth |
600 mm x 250mm x 350mm |
|
Weight |
15 kg |
