Bosch PRM-4P600
Click to expand

Bosch PRM-4P600

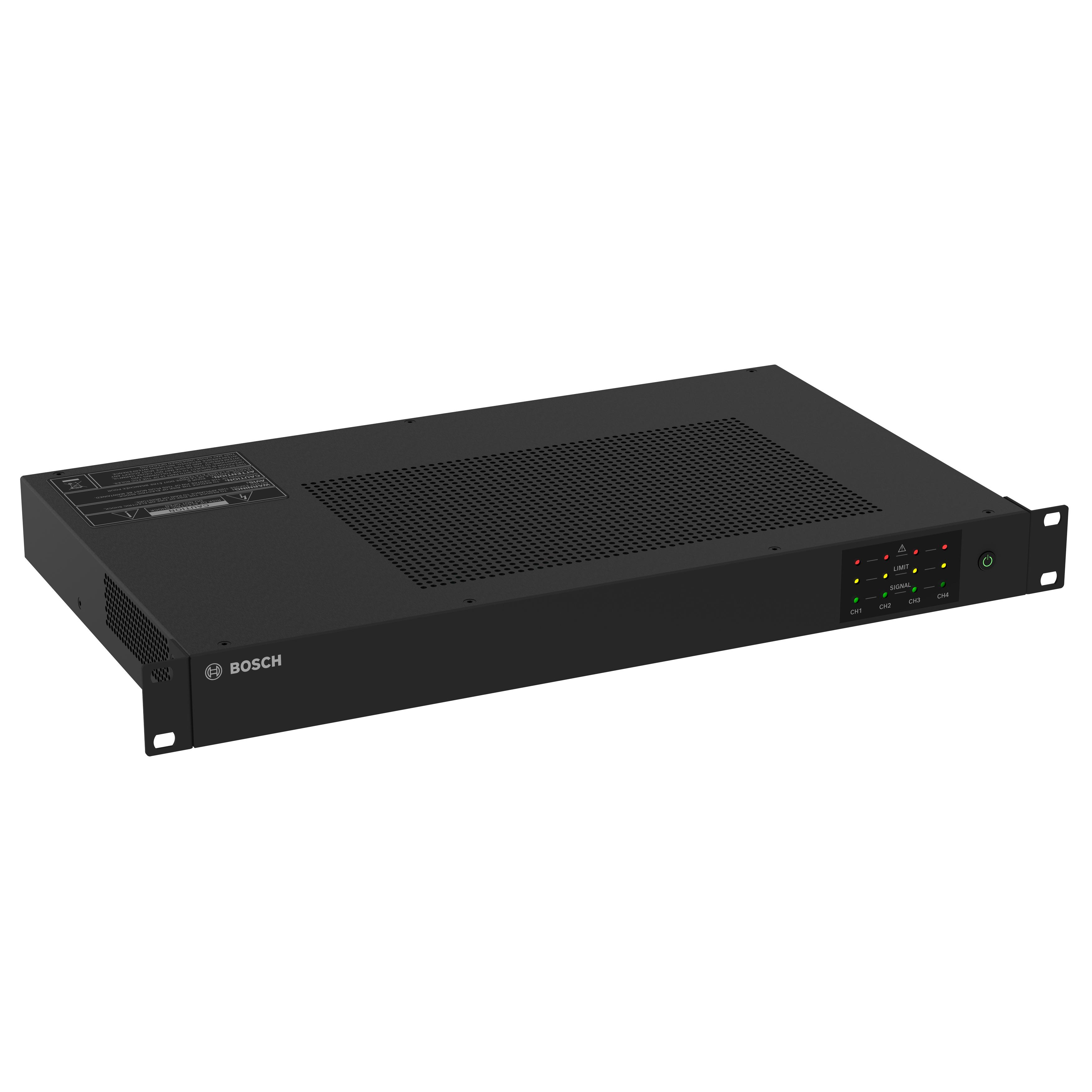

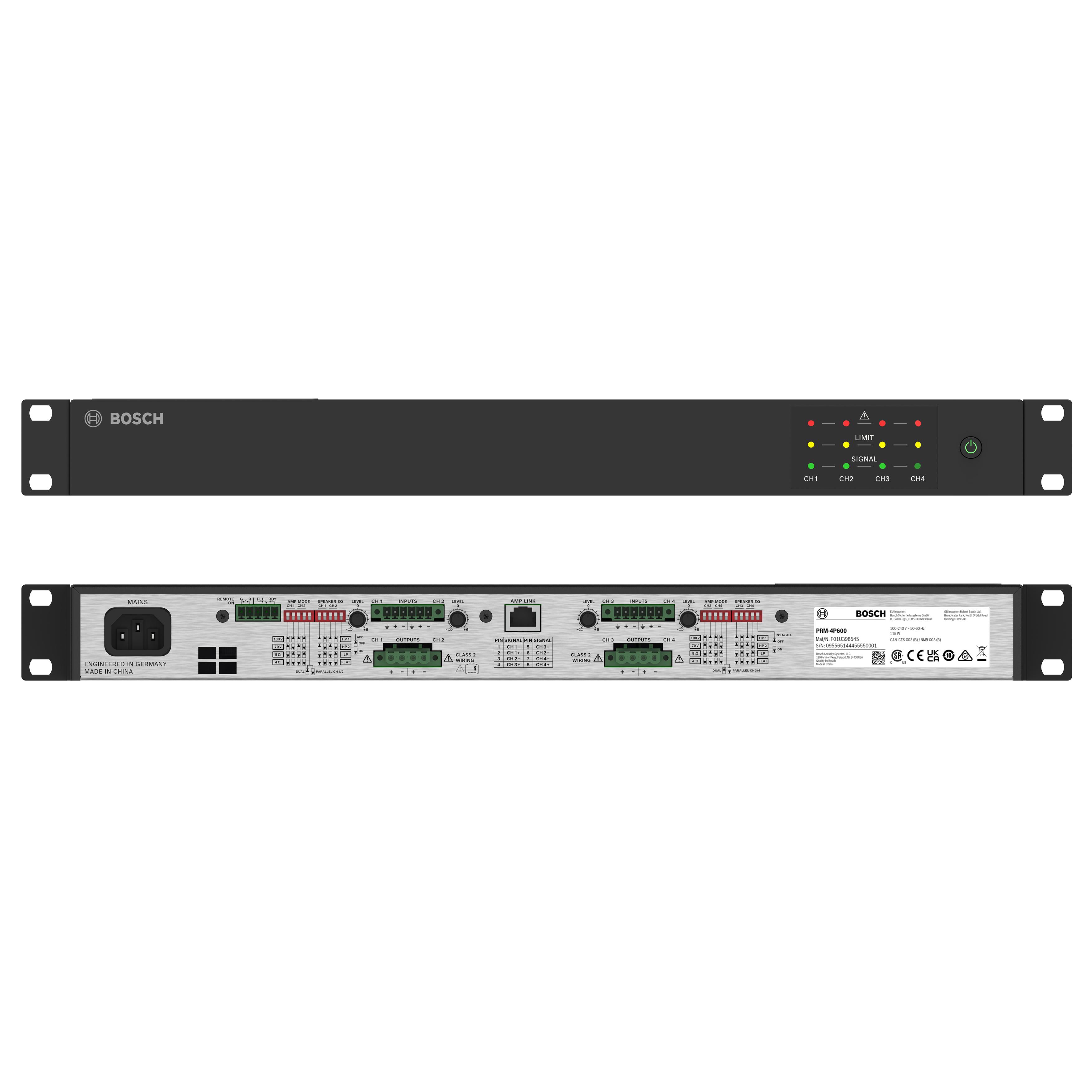

The Bosch PRM-4P600 is a new and highly innovative four channel power amplifier featuring a host of energy saving technologies and user flexible facilities, ideal for many commercial installations.

Available soon - please call us for an update.

In essence the PRM-4P600 is a 4 x 150w power amplifier however Bosch’s powerTANK technology provides a reservoir of 600w that is deployed flexibly across four channels with a maximum of 300w to a single channel.


  • Variable Load Drive (VLD) provides the same power into 4Ω, 8Ω, 70v or 100v loads.
  • High & Low pass filters available via dipswitch for each channel.
  • The Amplink connection allows easy cascading of the input signal to multiple amplifiers.
  • The amplifier automatically applies EcoRail technology, which will reduce the power consumption of the unit when low output levels are required and it will automatically switch to full power upon demand.
  • APD (auto power down) mode will save even more power when the amplifier has no audio signal going through it, and it will automatically switch on when it detects a signal. This can be easily be enabled/disabled via a rear mounted dipswitch.
  • DualCOOL thermal technology allows the amplifier to operate as a conventional convection cooled amplifier under low to medium output levels and its intelligent multispeed fan ensures that the amplifier is maintained at the correct temperature when high long term output levels are asked for or the environmental conditions are challenging.
100V multi-ch 4ohms 8ohms 1U Sharing
List Ex VAT: £1,190.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Output power

4 Ω, 8 Ω, 70 V, 100 V

Rated output power

4 x 150 W

Total rated output power

600 W
(shared across 4 channels, max 300W into 1 channel)

Number of channels

4

Output voltage rated output power

24.5 VRMS, 34.6 VRMS, 70.7 VRMS, 100 VRMS

Maximum output voltage

40.0 VRMS, 56.0 VRMS, 70.7 VRMS, 100 VRMS

Rated impedance per channel

4 Ω, 8 Ω, 33.3 Ω, 66.7 Ω

Minimum impedance per channel

2.6 Ω, 4 Ω, 10 Ω, 16.7 Ω

Dimensions (HxWxD)

With 19” mounting brackets:

44.2 x 483 x 269.5 mm (1.74 x 19.2 x 10.6 in)

Weight

3.6 kg (7.9 lb)
