Electro-Voice Evid C4.2

Electro-Voice Evid C4.2

There is a long lead time on these speakers coming into the UK - please contact us for more details.
Alternatively, please see the Bosch LC2-PC30G6-4 which has identical specifications with the addition of fire-rated terminals.

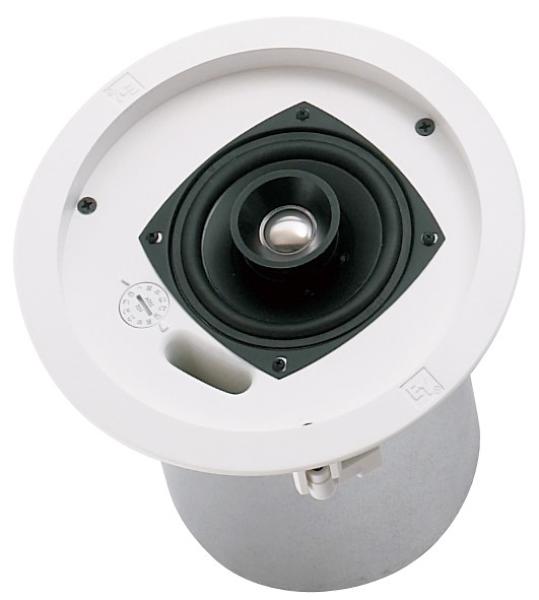

The Electrovoice EVID C4.2 is a dual impedance 4" two way ceiling speaker.

SOLD BY AND PRICED PER PAIR.

Perfect for conventional rooms. Excellent bandwidth in an esthetically, unobtrusive installation profile. Its compact design fits in tight areas.

Fully rated for use in air handling spaces. Its 4" woofer and waveguide coupled titanium coated dome tweeter give smooth, wide frequency response. The enclosure is ported and tuned to provide surprising bass response in such a compact package.

Features an easy 3-point mounting system for quick installations. Comes complete with mounting support ring and tile rails. No additional accessories needed for most installations.

Supplied in pairs.

Water resistant, rated IP34.

List Ex VAT: £249.90
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Chassis Size 101.6 mm (4")
Color White (paintable surface)
Coverage (Nominal -6 dB) 130 conical
Diameter (Max) 181 mm (7.13")
Input Formats 8 Ω, 70 V, 100 V
Mounting Systems Integrated 3-point toggle anchors
Speaker Type Ported cabinet, internally damped, two-way passive crossover included
Transformer Yes
Transformer Taps (Transformer Version Only) (1.88 - 70 V only), 3.75, 7.5, 15, 30
Frequency Response (-10 dB) 65 - 20000 Hz
Sensitivity 1 W/1 m 86 dB
System Power Handling (Continuous/Program/Peak) 80 Watts Overload Protected
LF Transducer 4-inch polypropylene cone
HF Transducer 0.75-inch (19 mm) Ti Mylar Laminate Dome
Enclosure Material Steel enclosure and UL94V-0 rated baffle and bezel
Outdoor No
Grill Powder-coated steel
Height 176 mm (6.93")
Weight Net 2.7 kg (5.95 lbs)
