Cloud Electronics 46-240
Click to expand

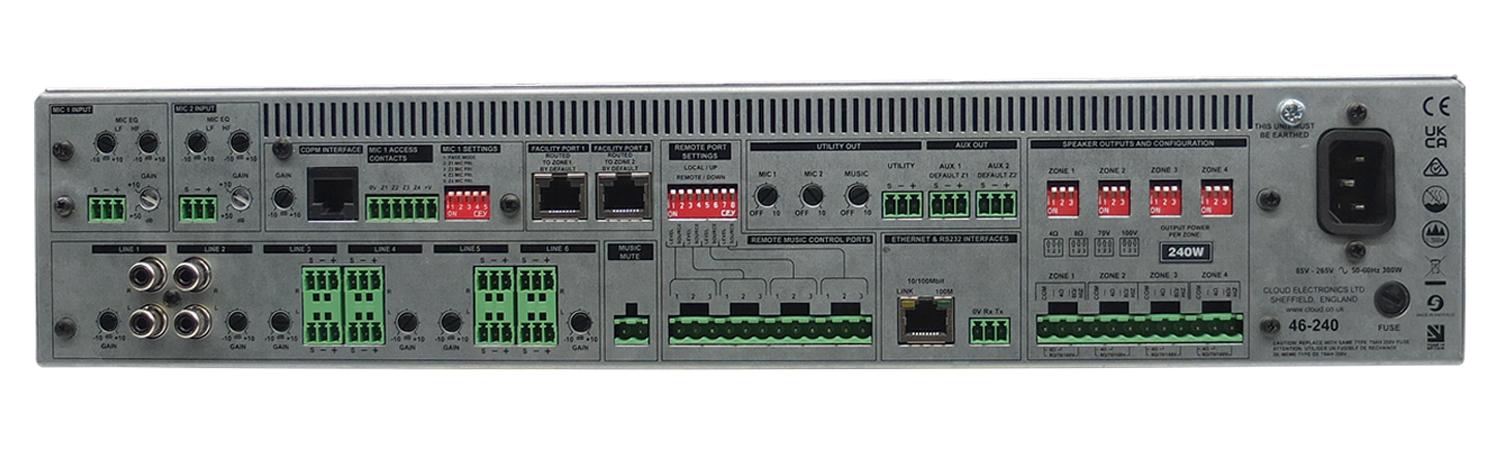

Cloud Electronics 46-240

The new Cloud Electronics 46-120 four zone mixer amp offers 4 x 240 watts output on 4Ω/8Ω/70V/100V.

Available soon - pre-order now. Please contact us for expected deivery date.

The Cloud 46-240 4 zone mixer amplifier provides individual source selection and volume control of up to six audio sources and two microphone inputs (with priority) across four zones.

Source selection and volume level control for each zone can be made via the front panel or remotely with the connection of up to four optional RSL-6  Remote Source / Volume Select controllers, one for each zone. A digital paging interface is provided for Cloud Digital PM Paging Microphones and there is also an Ethernet & RS232 Port.

An automatic stand-by function reduces power consumption when not in use.

The Cloud 46/240 Class D Mixer Amplifier provides a feature-packed single-box solution for four zone venues of all sizes across retail, leisure, education and hospitality sectors.

  • 4 x 240W Class-D Output per zone (4Ω/8Ω/70V/100V).
  • Limiters on each Zone plus Thermal/Short Protection.
  • 6 Stereo Line-Inputs (4 Balanced).
  • 2 Microphone Inputs with Priority Option.
  • Utility Output with Mic & Music Gain Control.
  • Remote Music Level and Source Selection via RSL-6 / RSL-6A.
  • 2 x Facility Inputs for Zone1 (Z1&Z3 or ALL) & Zone2 (Z2&Z4).
  • Ethernet & RS232 Port.
  • 2 Aux Outputs, Zone assignable (Z1 + Z2).
  • Auto Stand-By Mode Function.
  • Digital Paging Interface for Digital PM Paging Microphones.
  • Remote Music Mute (NO or NC operation) for Fire Alarm Interface.
  • Efficient, Universal Power Supply.
  • Variable Speed Fan Cooling.
  • Optional Accessories are: PM Series, RSL-6, RSL-1, LM-2, BT-1, M-1, L-1
100V multi-zn 2U 4ohms 8ohms RS232
List Ex VAT: £1,900.00
Log in for Trade Prices


Line inputs



195 mV (-12 dBu) to 2.0 V (+8 dBu)

Input impedance

>10 kohm (balanced/unbalanced)

Microphone inputs



2.45 mV (-50 dBu) to 245 mV (-10 dBu)

Input Impedance

3.3 kohms (balanced)

Phantom Power

12 V, selectable by jumper

Facility Inputs



0.775 V (0 dBu)

Input Impedance

10 kohms (balanced)



Output Power
(1 kHz continuous sine wave)

240 watts per zone maximum

Minimum Load

Low-Z: 4 or 8 ohms
70 V balanced: 20.5 ohms
100 V balanced: 33 ohms

Amplifier Protection

Fixed level signal limiter: DC, over-current and over-temperature protection.
Internal and external 20 mm cartridge fuses


Forced air cooling (front to back)



Power input

Universal type, 85 to 265 VAC, 45 to 65 Hz

Net Dimensions

482.6 mm x 88 mm (2U) x 407 mm
19” x 3.5” (2U) x 16.0”
(less connectors & knobs)

Net Weight

7.1 kg (15.9 lb)
